IPIDRO Magnetic Inspection Crawler
Model: IPIDRO
Compact magnetic crawler with uncompressed Full-HD camera, 145° field of view and 20 m cable for RVI of ferromagnetic pipes, ducts and boilers.
About the IPIDRO Magnetic Inspection Crawler

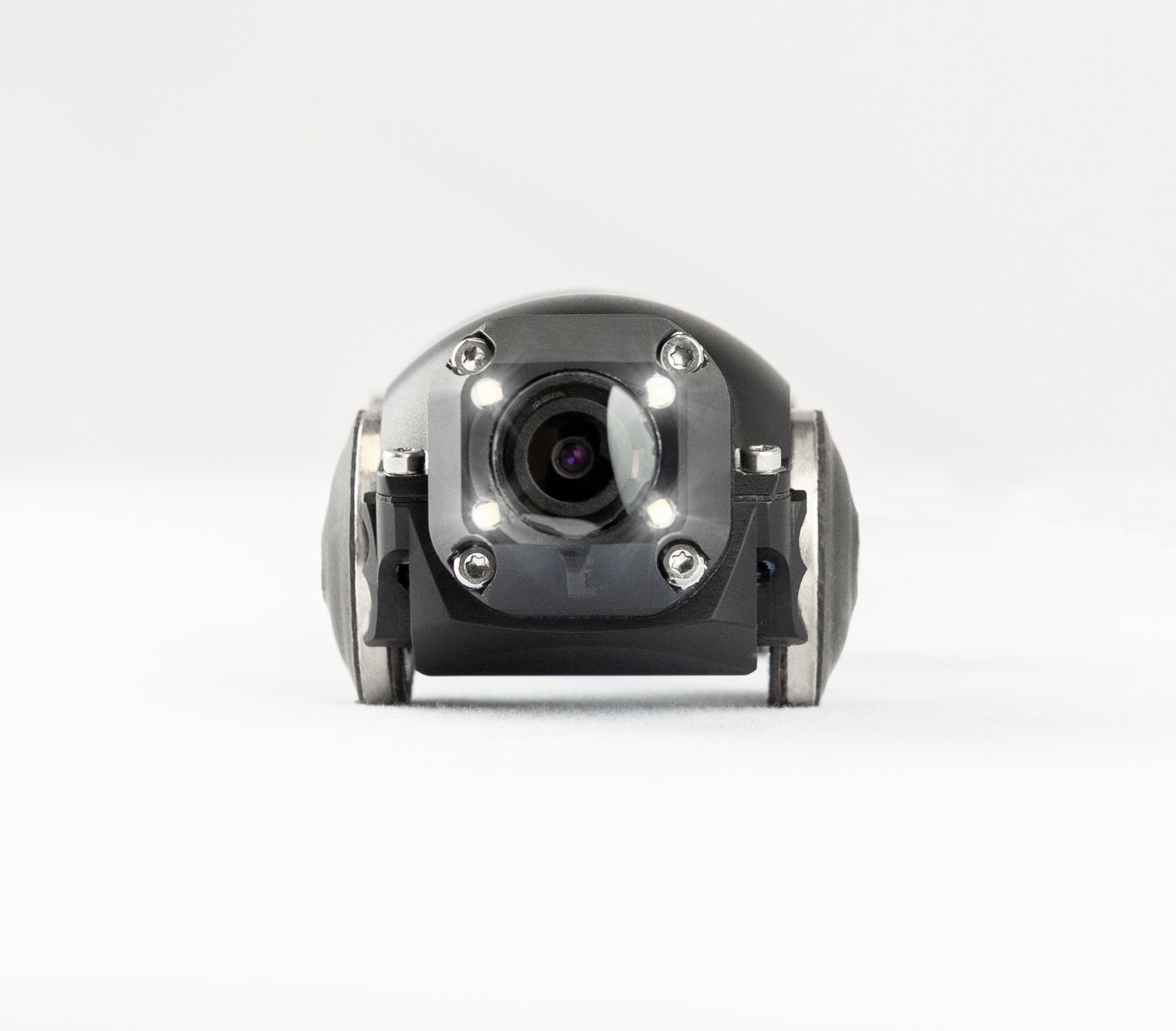

IPIDRO is viZaar's magnetic inspection crawler for remote visual inspection of hard-to-access ferromagnetic components. Magnetic wheels with a durable polyurethane coating and a flexible connector let it climb steep inclines in metallic pipelines, heat exchangers, cooling lines, process pipes, HVAC ducts, industrial boilers and chimneys, so the operator can inspect from a safe distance instead of entering confined or hot spaces. The integrated wide-angle camera delivers uncompressed Full-HD (1920 × 1080 px) images with a 145° field of view, supported by high-performance wide-angle LED illumination. Speed is finely controllable up to 3 m/min, and an integrated 20 m supply cable with metre marking aids orientation. IPIDRO is part of viZaar's Full-HD platform and is controlled and documented through the VUnit, with optional internal memory lock or hardware-encrypted USB storage.
- Uncompressed Full-HD 1920 × 1080 px
- 145° wide-angle field of view
- High-performance wide-angle LED illumination

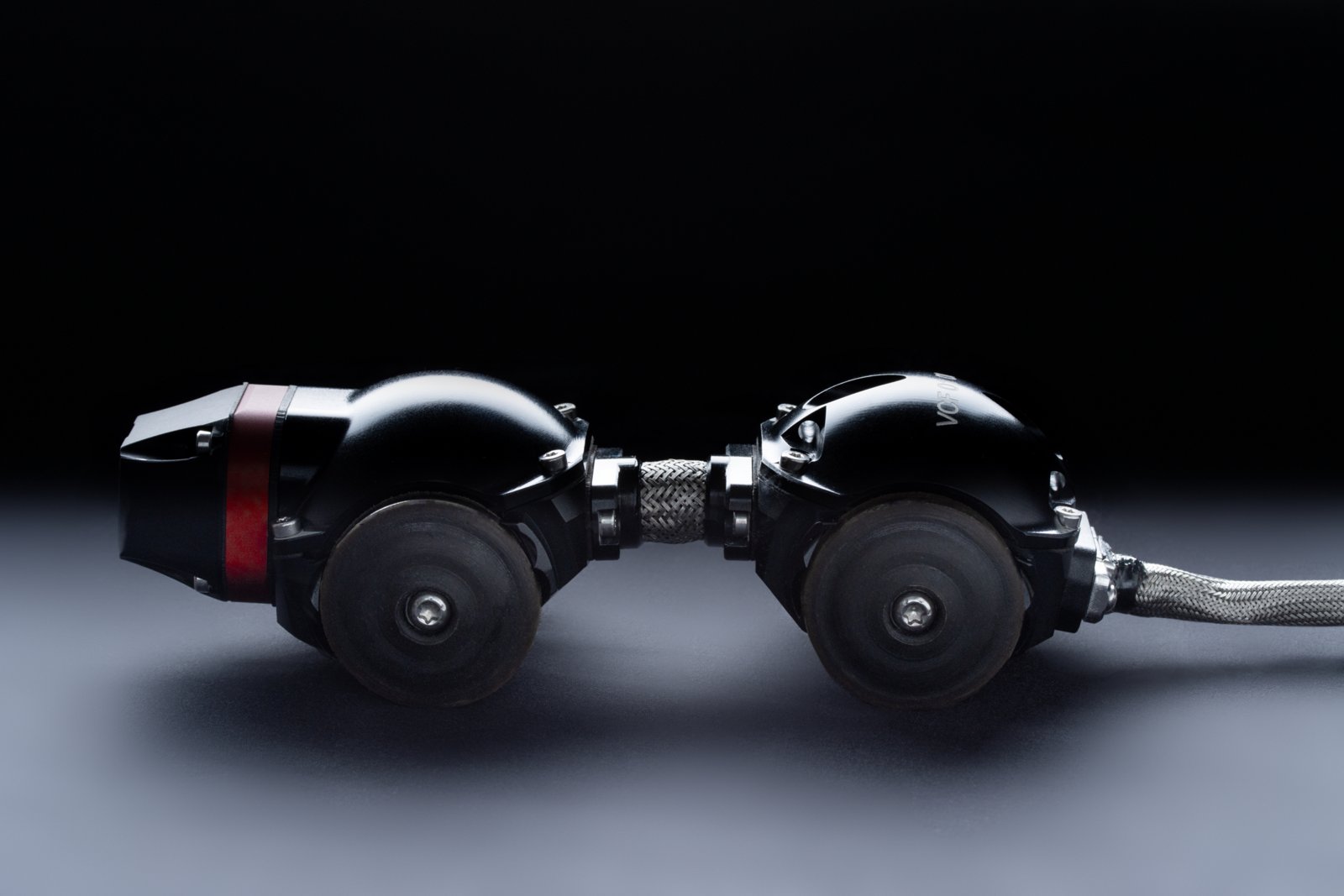

- Magnetic wheels with polyurethane coating
- Flexible connector for steep inclines
- Black anodized aluminium housings
- Inspection speed up to 3 m/min; 20 m metre-marked cable
- VUnit control with optional encrypted data storage
Technical data
- Resolution
- 1920 × 1080 px, uncompressed
- Field of view
- 145°
- Speed
- Up to 3 m/min
- Wheels
- Magnetic, polyurethane-coated
- Supply cable
- 20 m with metre marking
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Internal memory lock
- Hardware-encrypted USB storage
- VUnit control unit
Where the IPIDRO Magnetic Inspection Crawler is used
- Industrial pipelines and process pipes
- Heat exchangers and cooling lines
- HVAC air ducts
- Industrial boilers and chimneys
- Early detection of corrosion, leaks and deposits
Product imagery
Official product videos
Brochures & catalogues
IPIDRO — Brochure
PDF ·Brochure
