iPLORE+ Videoscope
Model: iPLORE+
Cost-effective handheld videoscope with plug-and-play interchangeable probes from Ø 2.4 mm, lengths up to 6 m and up to 4 h battery operation.
About the iPLORE+ Videoscope

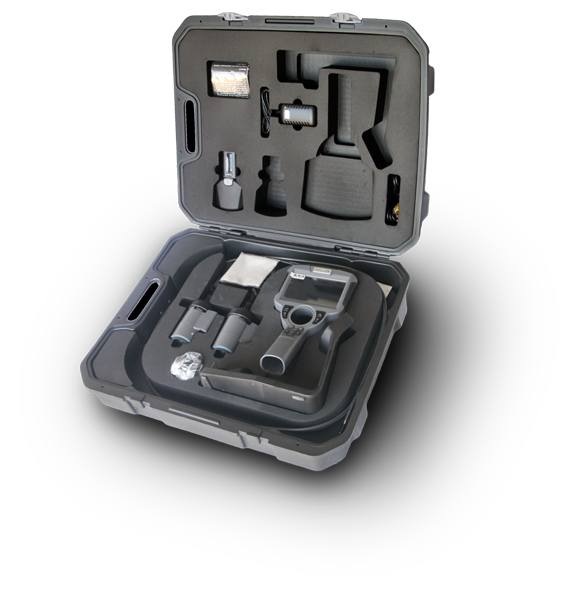

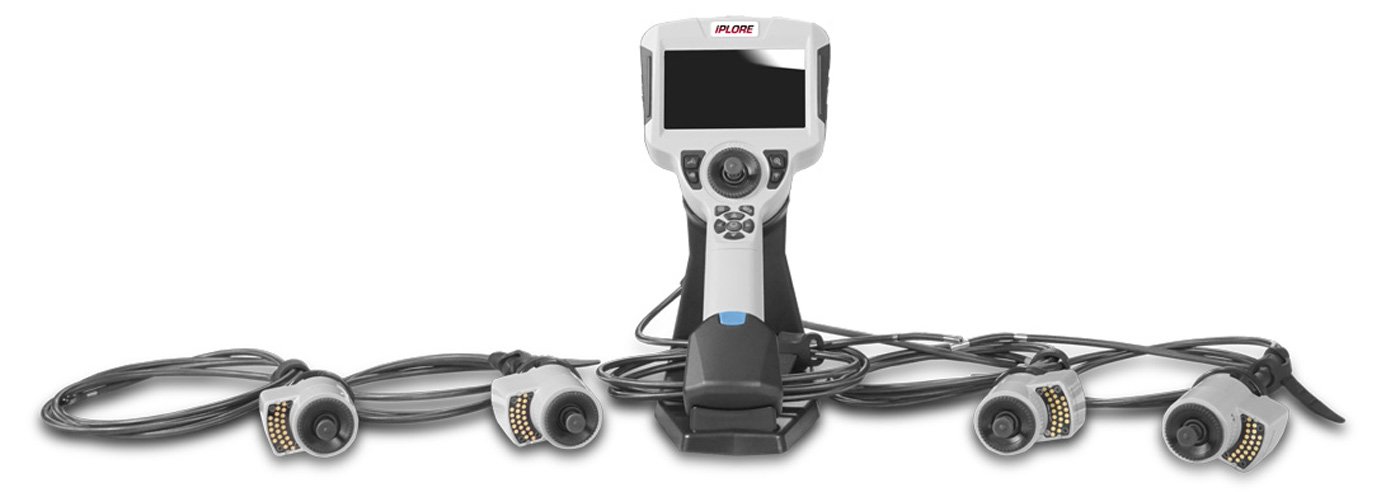

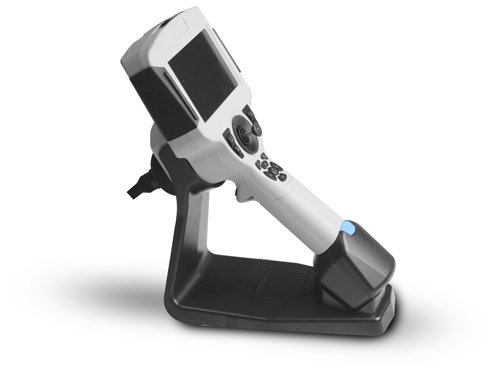

The iPLORE+ is viZaar's cost-effective, flexible handheld videoscope for less demanding inspections. Interchangeable video probes connect plug-and-play in diameters of 2.4, 3.9, 6.4 and 8.4 mm and lengths of 1.5, 2.0, 3.5 and 6.0 m; UV and IR probes extend the range of applications. At only 1.07 kg plus probe and with more than four hours of battery operation, it is suited to long inspections, and a dedicated endoscope stand is available. A robust transport case holds the base unit, stand, two probes, two batteries and the power supply.
- 5" LCD display, 1280 × 720 px
- Direct-access buttons for quick operation
- Precise joystick articulation control
- Plug-and-play interchangeable video probes
- Ultra-light — 1.07 kg plus probe
- Up to 4 h battery operation
- Optional UV and IR probes
Technical data
- Screen
- 5" LCD, 1280 × 720 px
- Diameters
- 2.4 / 3.9 / 6.4 / 8.4 mm
- Lengths
- 1.5 / 2.0 / 3.5 / 6.0 m
- Weight
- 1.07 kg plus probe
- Battery
- Up to 4 h
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- UV and IR probes
- Endoscope stand
- Transport case
Where the iPLORE+ Videoscope is used
- Maintenance inspections
- Automotive and machine components
- General visual testing
- Training and secondary inspection systems
Product imagery
Brochures & catalogues
iPLORE+ — Brochure
PDF ·Brochure
Videoscopes — Catalogue
PDF ·Catalogue
Other viZaar systems to consider
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
viZaar industrial imaging AG
TheiPLORE+ Videoscope is part of the viZaar metrology portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theiPLORE+ Videoscope, your parts and tolerances, and the configuration that fits your inspection workflow.
