MATRIX E3 Documentation System
Model: MATRIX E3
All-in-one control and documentation unit for tank and pipe cameras, with trans-reflective touchscreen, joystick and up to 5 h battery operation.
About the MATRIX E3 Documentation System

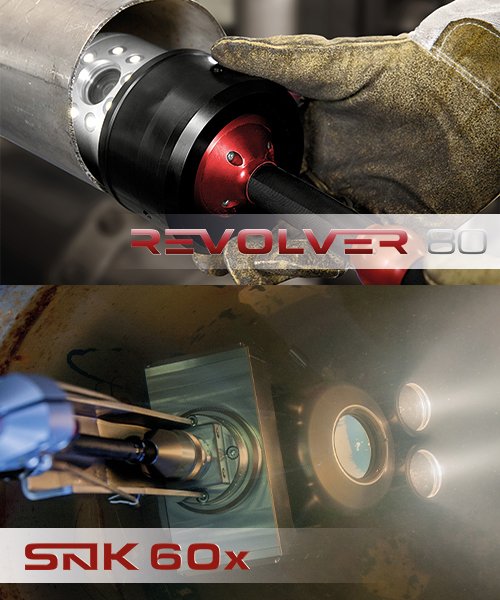

The MATRIX E3 is the core of viZaar's inspection camera line: an all-in-one unit for camera operation, documentation and analysis of remote visual inspections. It controls the SNK 60x, SNK Ultra 365 and Revolver 80 — and cameras from other manufacturers — through one interface, with individual archives and folder structures for each connected camera. A trans-reflective touchscreen, joystick camera control and continuous adjustment of illumination and focus simplify operation, and the proven VUMAN software tools add test charts, annotations and image editing. Extendable handles and rubber wheels ease transport, and a dock for commercially available external batteries allows up to five hours of mains-independent work.
- Connection for various inspection cameras, including third-party

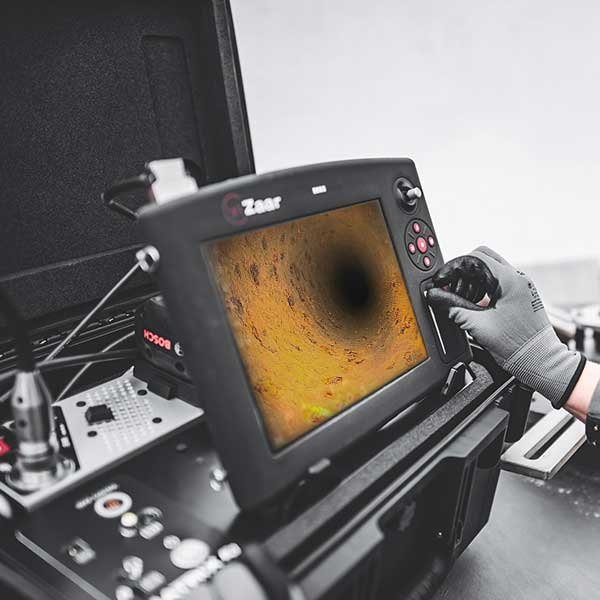

- Trans-reflective touchscreen with intuitive interface
- Joystick camera operation
- Continuous adjustment of illumination and focus

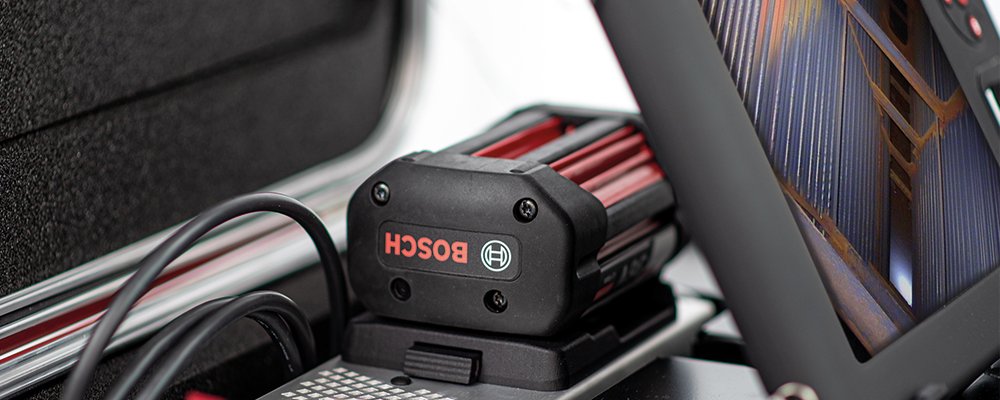

- External battery dock — up to 5 h without mains
- Extendable handles and rubber wheels
- VUMAN software tools for annotation and editing
Technical data
- Battery operation
- Up to 5 h with external battery
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- External battery dock
- Transport case
Where the MATRIX E3 Documentation System is used
- Tanks, vessels, boilers, manholes and chimneys
- Large pipes and pipeline construction
- Buildings and bridges
- Pharmaceutical, nuclear and food sectors
- Components below the waterline
Product imagery
Brochures & catalogues
MATRIX E3 — Brochure
PDF ·Brochure
Tank, vessel & pipe inspection cameras — Catalogue
PDF ·Catalogue
