Revolver 80 Pipe Camera
Model: Revolver 80
Dual-view pipe camera from 80 mm inner diameter with endless 360° side-view rotation for orbital weld inspection; work lengths up to 150 m.
About the Revolver 80 Pipe Camera

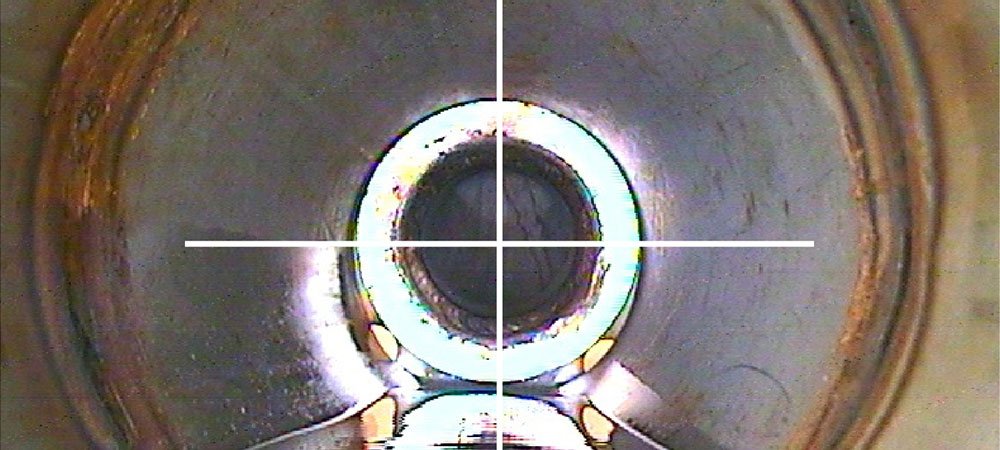

The Revolver 80 is viZaar's dual-view inner-pipe inspection camera for pipelines from 80 mm inner diameter and the reference system for visual inspection of orbital welds in large-diameter pipelines. A forward camera (DOV 0°) gives orientation while travelling through the pipe; the side-view camera rotates endlessly and infinitely variably through 360° under joystick control for complete inspection of the pipe wall and weld seams. Camera coordinates are shown on a position display and can be documented, and auto-levelling keeps the image upright. Controlled from the MATRIX E3, the Revolver 80 shares one documentation platform with the SNK 60x. Accessories include a spare camera head, longer system cables, fibre-optic push rods and centring fixtures.

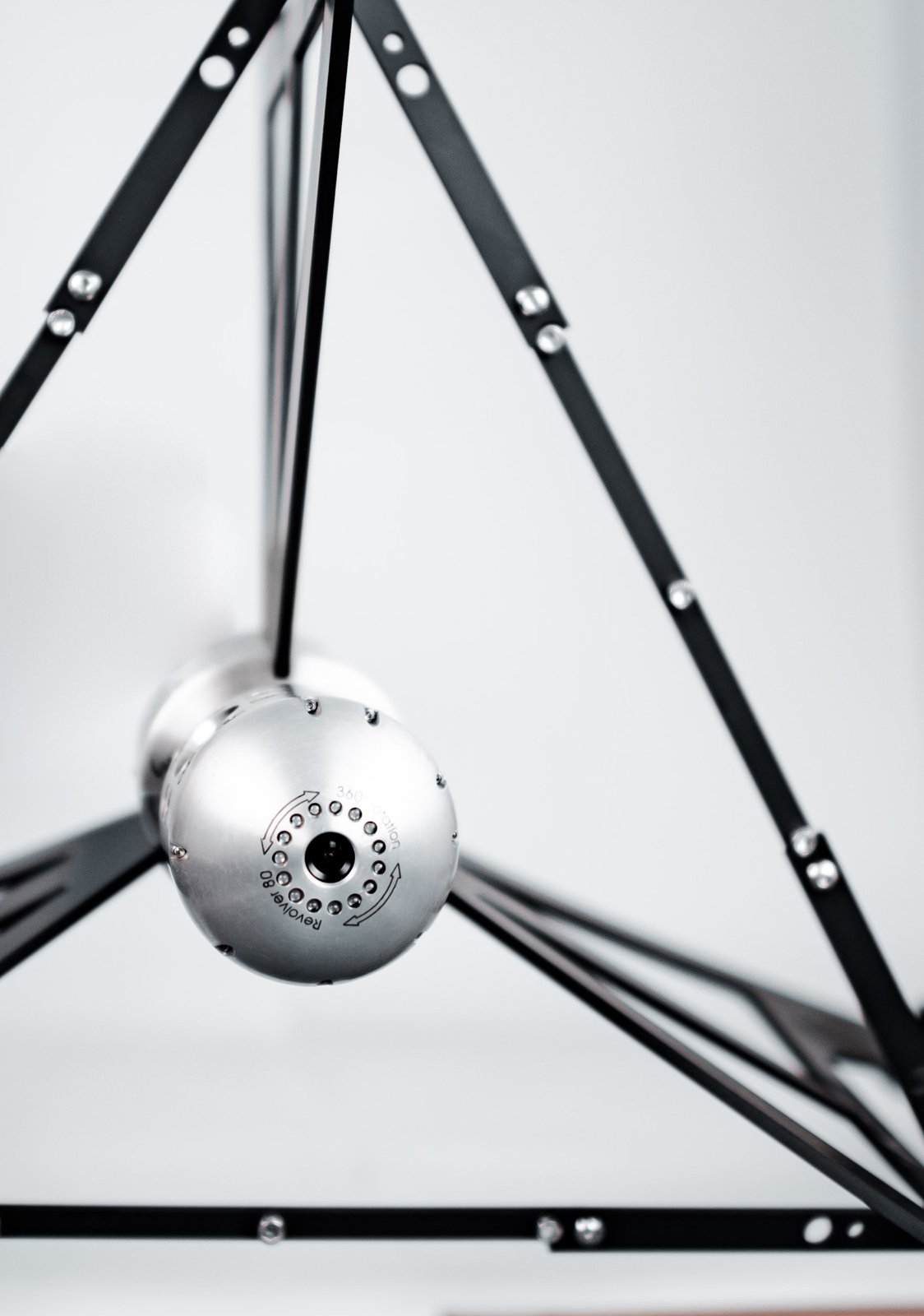

- Dual camera head: straight view and rotating side view
- Endless 360° side-view rotation
- High-performance LEDs
- Position display and auto-levelling
- Optional work lengths up to 150 m

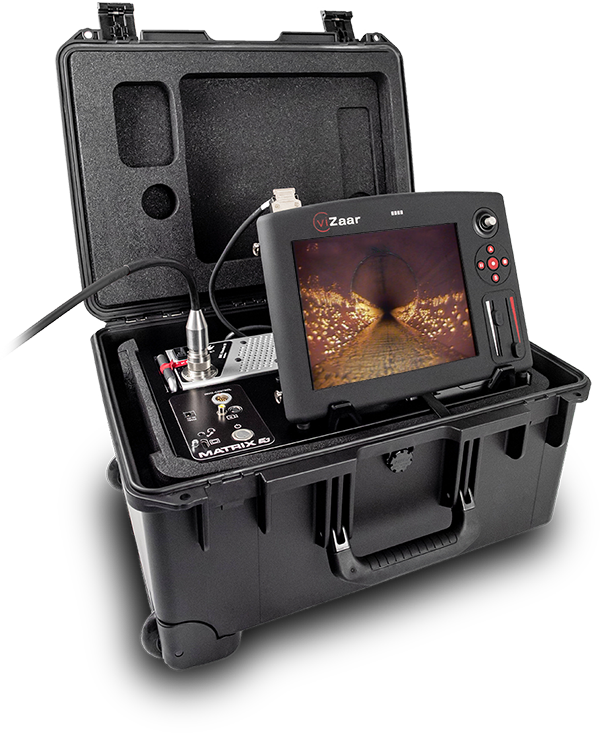

- Control and documentation via MATRIX E3
Technical data
- Minimum pipe ID
- 80 mm
- Front camera
- DOV 0°
- Side camera
- Endless 360° rotation
- Work length
- Up to 150 m (optional)
Data from official viZaar product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Spare camera head
- Longer system cables
- Fibre-optic push rods
- Centring fixtures
Where the Revolver 80 Pipe Camera is used

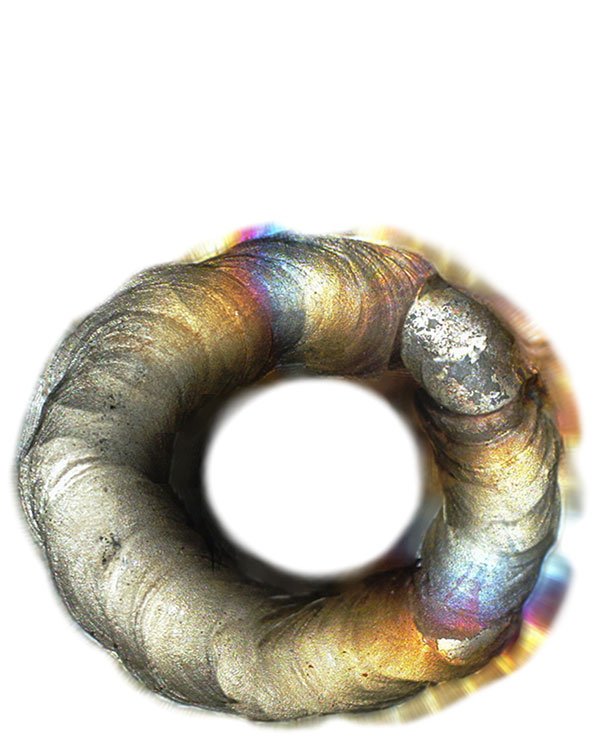

- Orbital weld seam inspection
- Inner pipe wall inspection
- Pipeline construction
- Sewer inspection
Product imagery
Brochures & catalogues
Revolver 80 — Brochure
PDF ·Brochure
Tank, vessel & pipe inspection cameras — Catalogue
PDF ·Catalogue
