Cougar EVO
Compact micro-focus X-ray and CT system for SMT, semiconductor and lab inspection on about one square metre of floor space.
About the Cougar EVO
The Cougar EVO is the compact CC-series system: it brings 2D, oblique 2.5D, laminography and CT inspection of electronics onto a footprint of about one square metre (1000 × 1050 mm). Its 1450 kg weight suits many standard building floors and, in many cases, the system can be moved in existing lifts.
It shares the FeinFocus FXT-160.50 / FXT-160.51 tubes (20–160 kV), flat-panel detector options and ±70° oblique viewing of the Cheetah EVO, with a 440 × 550 mm sample size and 310 × 310 mm radioscopic area.
FGUI workflows include VoidInspect automatic void calculation, eHDR image enhancement, a dose-reduction kit with low-dose detector mode, the Comet Yxlon FF CT reconstruction software and ProLoop for direct communication with inline AOI/AXI systems. Dragonfly 3D View and Dragonfly 3D World are available for visualisation and analysis.
- Smallest footprintAbout one square metre.

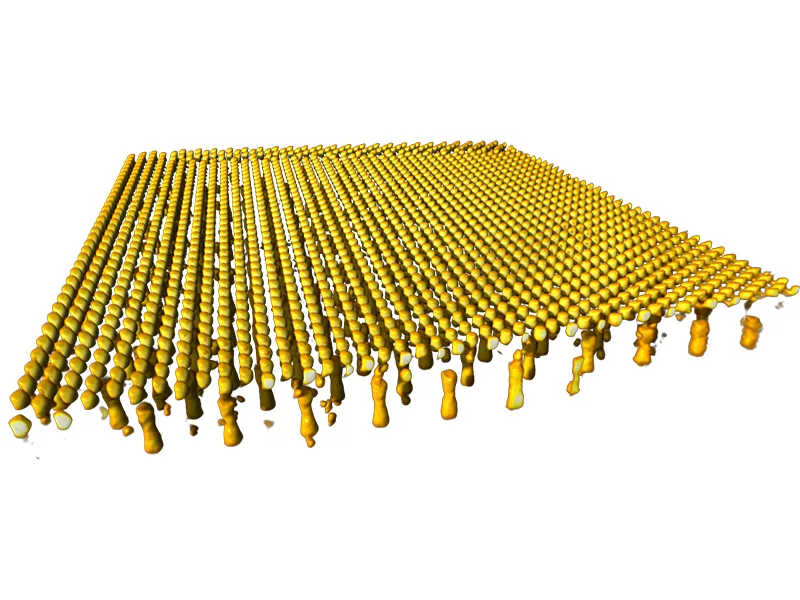

- micro3Dslice laminographySuited to large PCBs; alternative to micro-sectioning.

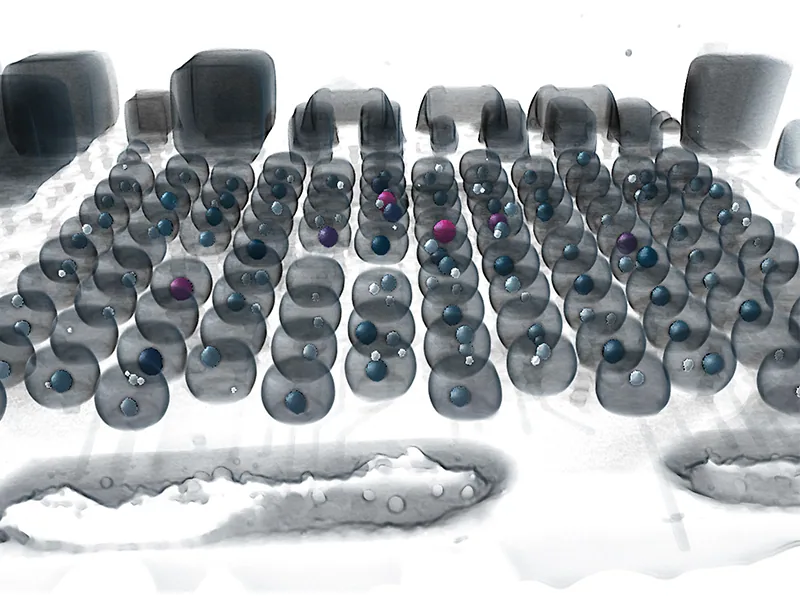

- VoidInspectAutomatic void calculation in solder joints.
- Dose reductionDose Reduction Kit and low-dose detector mode.
- ProLoopCommunication with inline AOI/AXI for yield optimisation.
Technical data
- Max. sample size
- 440 × 550 mm
- Max. radioscopic area
- 310 × 310 mm
- System dimensions (W × D × H)
- 1000 × 1050 × 2200 mm
- System weight
- 1450 kg
- X-ray tube
- FeinFocus FXT-160.50 micro-focus or FXT-160.51 multi-focus, 20–160 kV
- Pixel matrix
- 1004 × 620 px (FPD 1308); 1004 × 1004 px (FPD 1313); 1276 × 1276 px (FPD 1616)
- Pixel pitch
- 127 µm
- Bit depth
- 16 bit
- Oblique viewing
- ±70° (140°)
- 3D modes
- Laminography (micro3Dslice), CT QuickScan, QualityScan
Data from official Comet Yxlon product information (yxlon.comet.tech). Maximum values depend on configuration; voxel size, detail detectability and MPE are different quantities. Final configuration is confirmed in the EMUS quotation.
Options & packages
- CT workspot / rotation table
- Dose Monitoring package
- ProLoop
- Dragonfly 3D World
Where the Cougar EVO is used

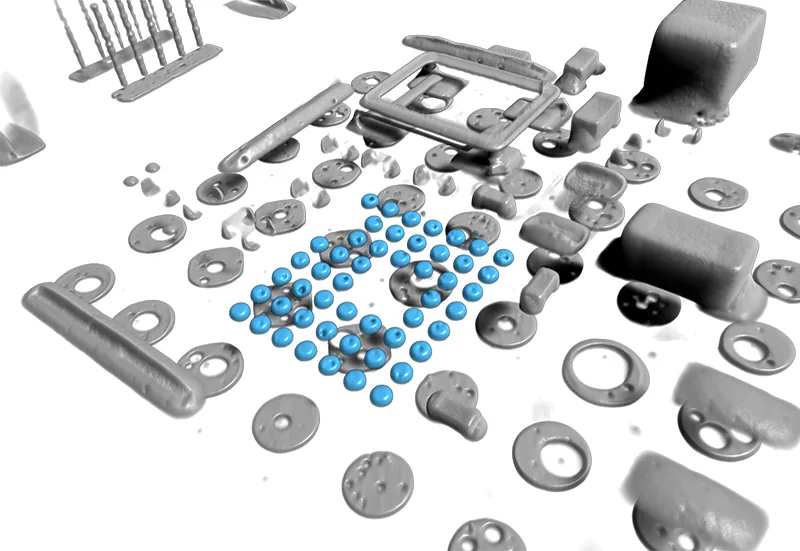

- PCB, BGA, LGA, BTC, QFN/QFP, THT, IGBT and LED inspection
- Solder-joint void analysis

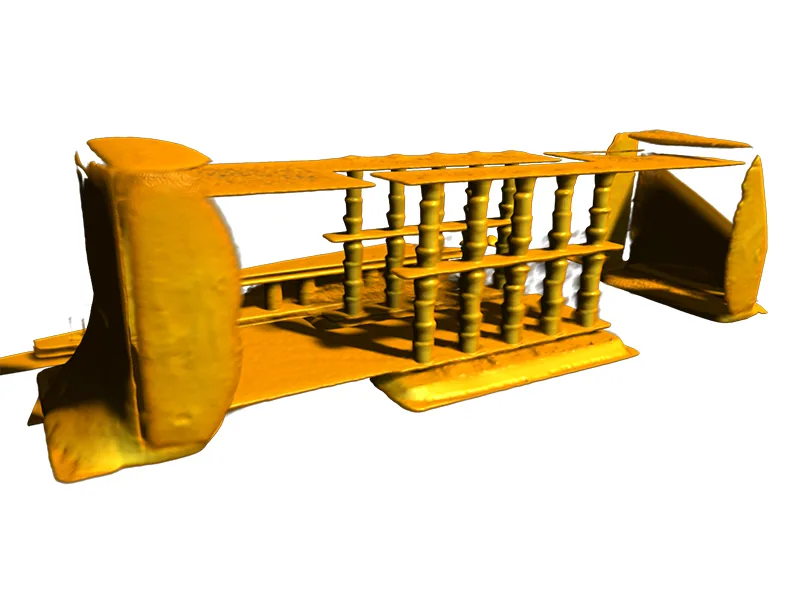

- Wafers, ICs, die attach, TSV, MEMS/MOEMS
- Batteries, connectors and medical materials

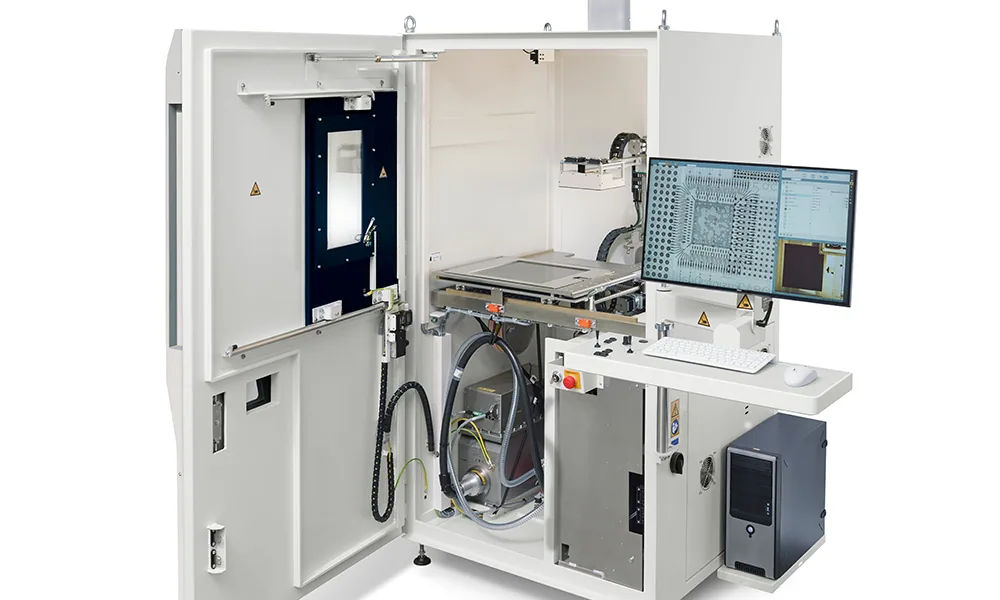

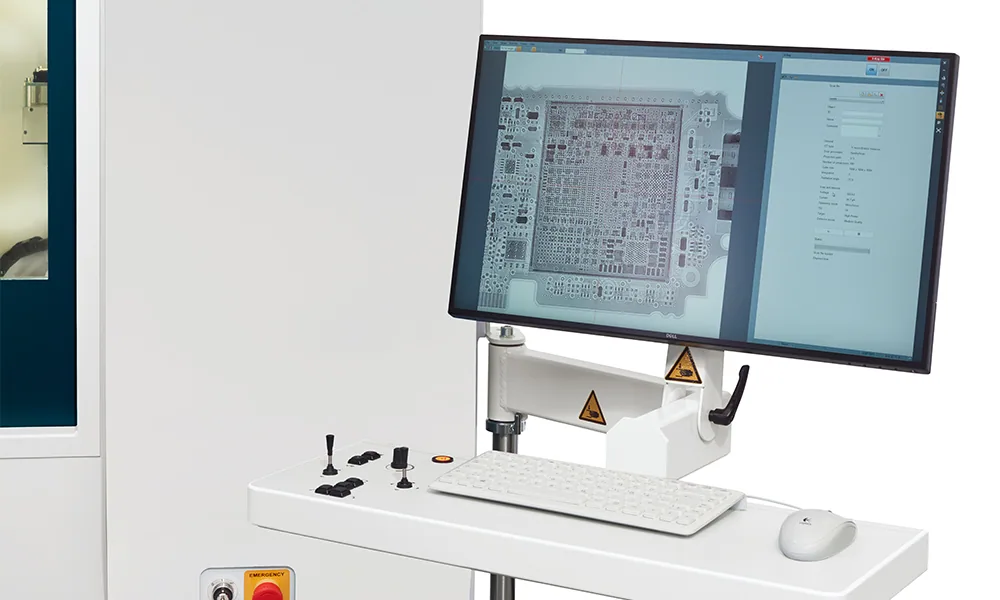

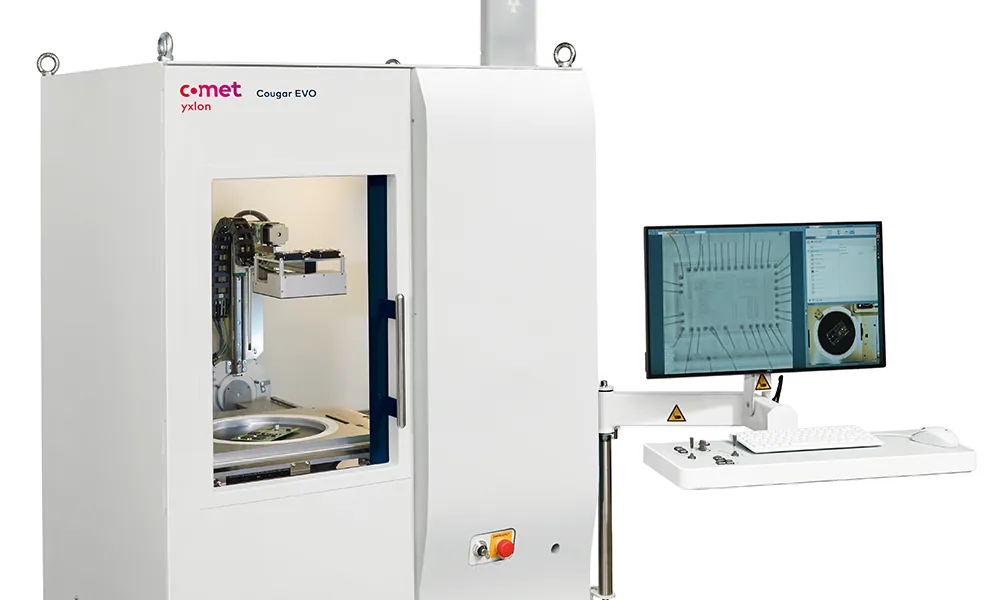

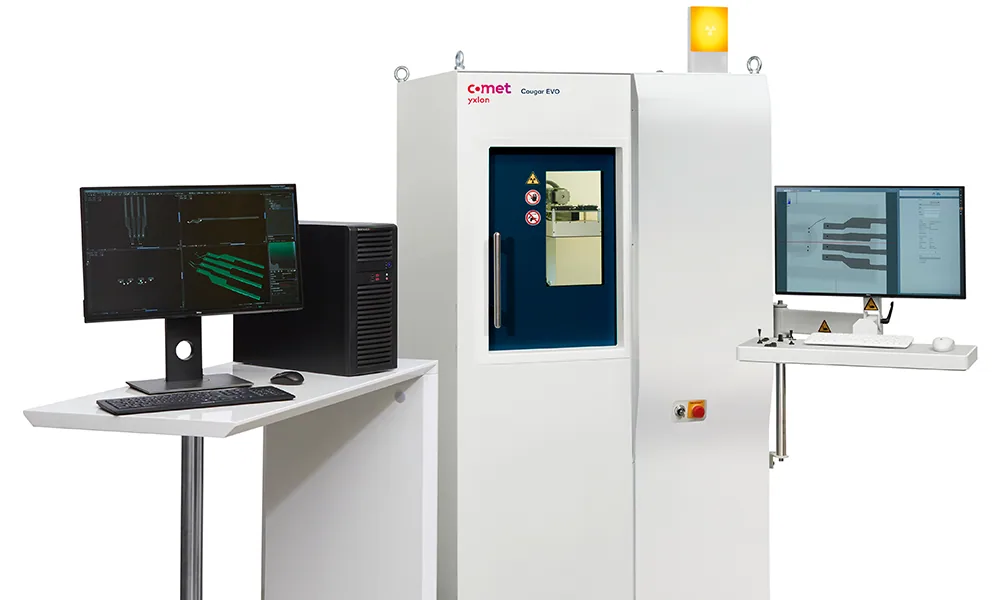

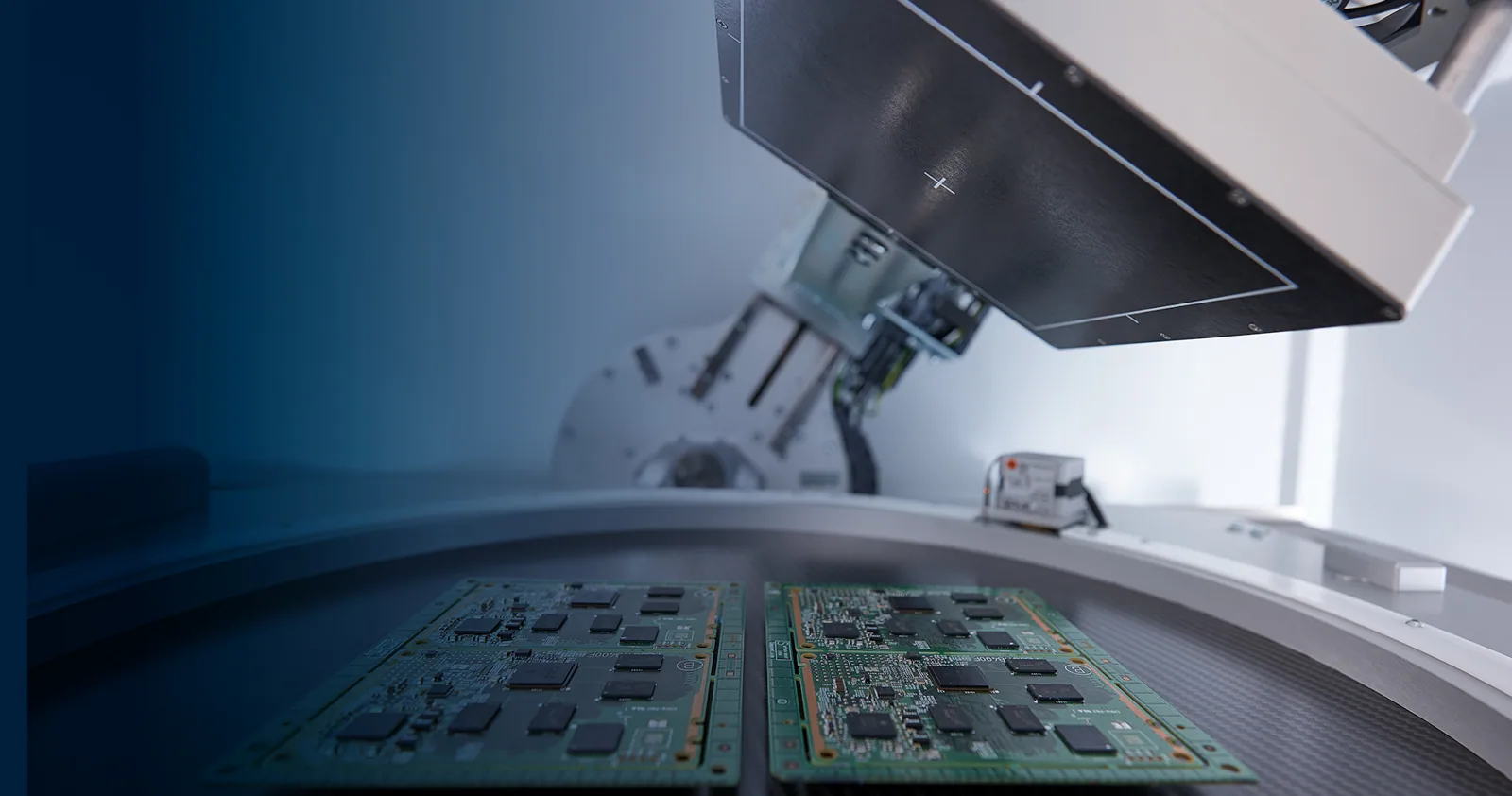

Product imagery
Official product videos
