Dragonfly 3D World
AI-supported 3D visualisation and quantitative analysis software for CT data: segmentation, porosity, wall thickness, fibre analysis and deviation from CAD.
About the Dragonfly 3D World

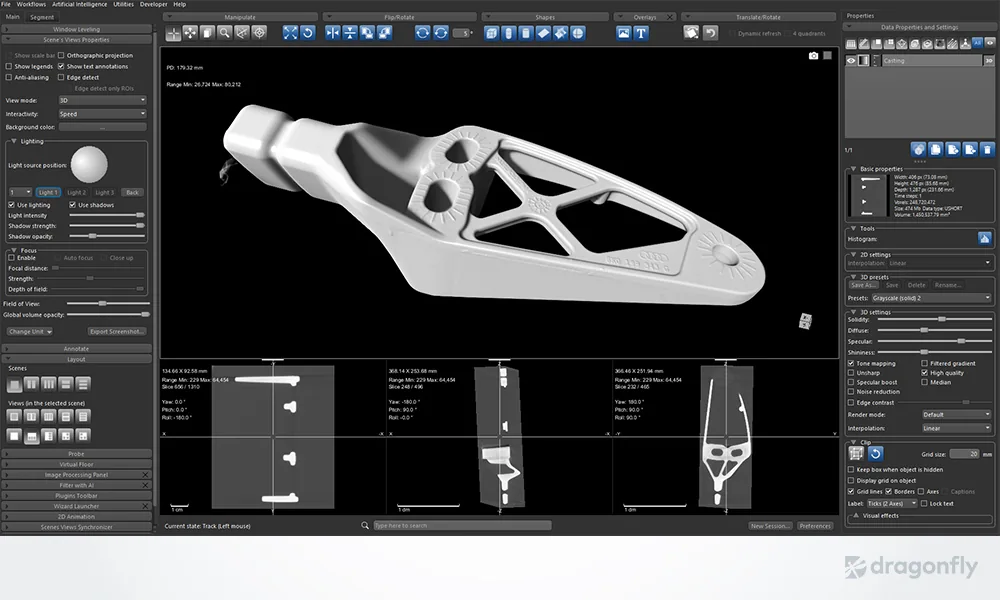

Dragonfly 3D World is image-processing and analysis software offered by Comet Yxlon for CT data. Unlike the system-bound packages of the Software Suite, it is a standalone analysis environment that imports 2D, 3D and 4D images and volumetric data from many sources (X-ray, SEM, FIB-SEM, confocal microscopy and others).
Its deep-learning segmentation engine, with wizard-based model training, separates materials, pores and features with less operator bias. Quantitative tools cover porosity and void analysis, wall-thickness analysis, size/shape measurements (volume, surface area, Feret diameter, sphericity and more), fibre orientation and length, meshes and models, and deviation of the scanned part from its STL design.
It is used on the FF, UX, CC and CA product lines and forms the basis of Dragonfly-powered Insights packages. Note: Dragonfly 3D World performs analysis; dimensional results are only as reliable as the underlying CT data and system qualification.
- Deep-learning segmentationTrain and refine your own DL models via wizards.
- Porosity and void analysisColour-coded by size or volume.

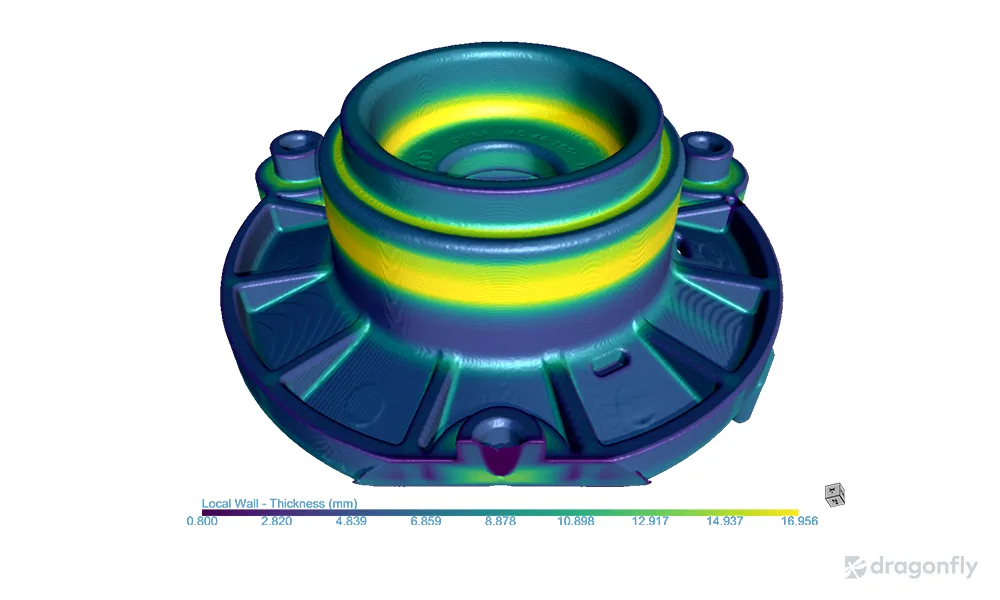

- Wall-thickness analysisThickness maps and statistics.

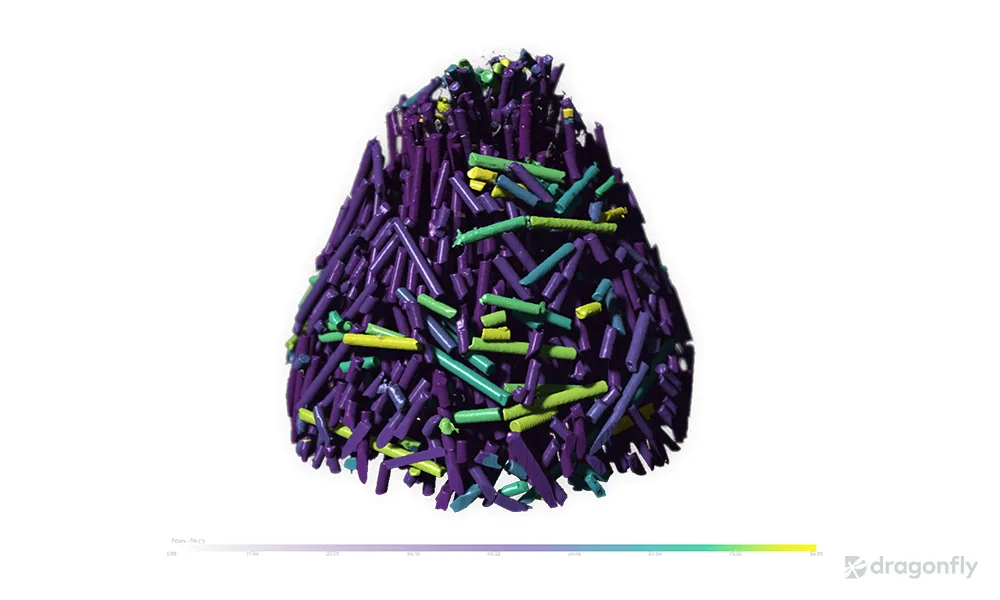

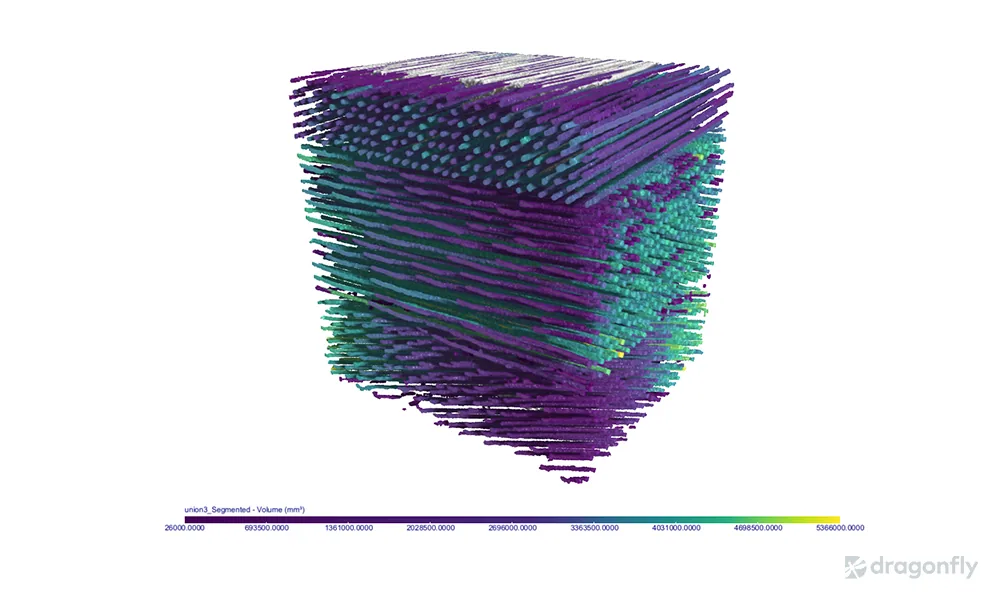

- Fibre analysisOrientation, length, tortuosity, fibre–matrix interface.
- Deviation from designComparison with STL design mesh.
- Macros & automationAutomated 3D analysis workflows.
Technical data
- Type
- Standalone image-analysis software
- Data
- 2D, 3D and 4D images, volumetric data, proprietary formats
- Segmentation
- Machine-learning / deep-learning engine
- Simulation interfaces
- OpenPNM, PuMA, NGSolve (per official page)
- Used with
- FF20/35/85 CT, UX20, UX50, Cheetah EVO, Cougar EVO, CA20
Data from official Comet Yxlon product information (yxlon.comet.tech). Maximum values depend on configuration; voxel size, detail detectability and MPE are different quantities. Final configuration is confirmed in the EMUS quotation.
Where the Dragonfly 3D World is used
- Casting porosity analysis
- Electronics void analysis
- Additive-manufacturing quality assurance
- Composite fibre analysis
- Nominal–actual comparison against CAD
- Research imaging
