UX50
450 kV X-ray and CT system for dense, complex parts up to 100 kg, with flat-panel and/or CTScan 3 line detector and multiple field-of-view extensions.
About the UX50
The UX50 extends the UX series to high energy: a 450 kV mini-focus tube and a large inspection envelope make it suitable for massive engine blocks, larger steel parts and complex e-mobility components.

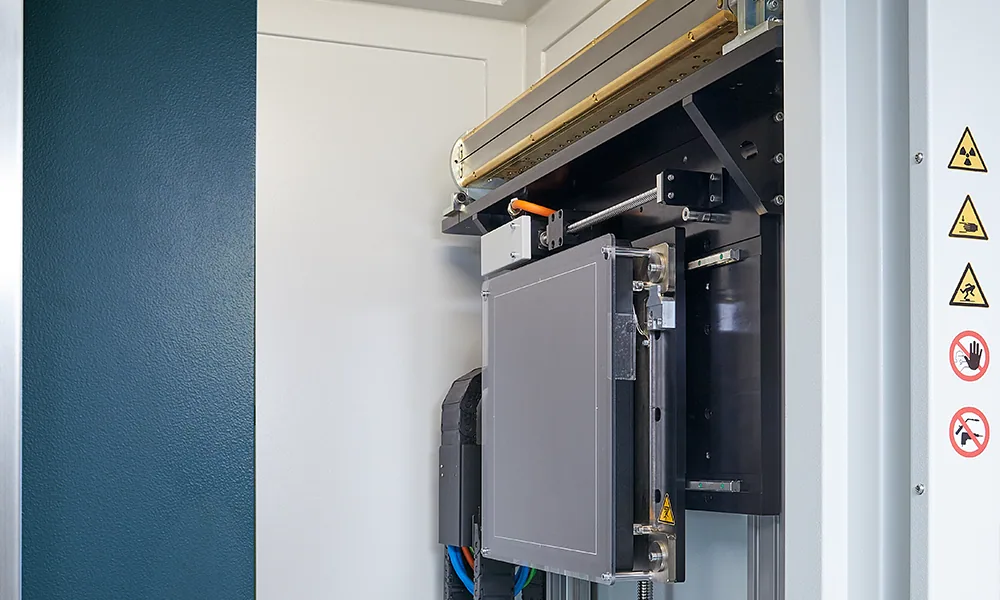

It can be configured with the Y.Panel 4343 N flat-panel detector, the Comet Yxlon CTScan 3 line detector, or both. The line detector is efficient at high energies with reduced scatter; the flat panel is more versatile and faster for cone-beam CT. With both, operators switch image chains within one sequence; single-detector systems can be upgraded on site.
Comet Yxlon states voxel sizes down to 55 µm. Voxel size is the reconstructed grid spacing and depends on magnification; it is not the same as spatial resolution or measurement accuracy. CT techniques include QuickScan, QualityScan, HeliExtend, horizontal/vertical field-of-view extensions, a patented horizontal FoV extension for fan-beam CT, plus ScatterFix 2.0, BHC and MAR image corrections.
Versions & configurations
Flat-panel configuration
Y.Panel 4343 N — versatile cone-beam CT.
Line-detector configuration
CTScan 3 — fan-beam CT at high energy.
Dual-detector configuration
Both image chains, switchable in one sequence.
- 450 kV mini-focus tubePenetration of dense aluminium, steel and superalloy parts.
- Flat-panel and/or line detectorY.Panel 4343 N and/or CTScan 3, upgradeable on site.
- Field-of-view extensionsHorizontal and vertical for cone-beam; patented horizontal extension for fan-beam.
- Image correctionsScatterFix 2.0, beam-hardening correction, metal artefact reduction.
- Automated calibrationAutomated detector calibration and image-sharpness measurement.
Technical data
- Max. sample diameter
- 600 mm
- Max. sample height
- 850 mm (flat panel) / 800 mm (line detector)
- Max. sample weight
- 100 kg
- System dimensions (W × D × H)
- 2620 × 1945 × 2560 mm (flat panel) / 2620 × 2585 × 2775 mm (line detector)
- X-ray tube
- 450 kV mini-focus
- Detectors
- Flat-panel 4343 N and/or line detector CTScan 3
- Voxel size
- down to 55 µm (configuration-dependent)
- CT (3D) with flat panel
- 570 × 850 mm
- CT (3D) with line detector
- 600 × 800 mm
- DR (2D)
- 520 × 850 mm
- CT modes
- Cone-beam CT, QuickScan, QualityScan, HeliExtend, SpeedMode, fan-beam CT, ScanExtend, volume crop
- Manipulation
- 5 axes
Data from official Comet Yxlon product information (yxlon.comet.tech). Maximum values depend on configuration; voxel size, detail detectability and MPE are different quantities. Final configuration is confirmed in the EMUS quotation.
Options & packages
- Second detector (flat panel or line detector)
- Dragonfly 3D World
- Vista package
Where the UX50 is used
- Aluminium, steel and superalloy components

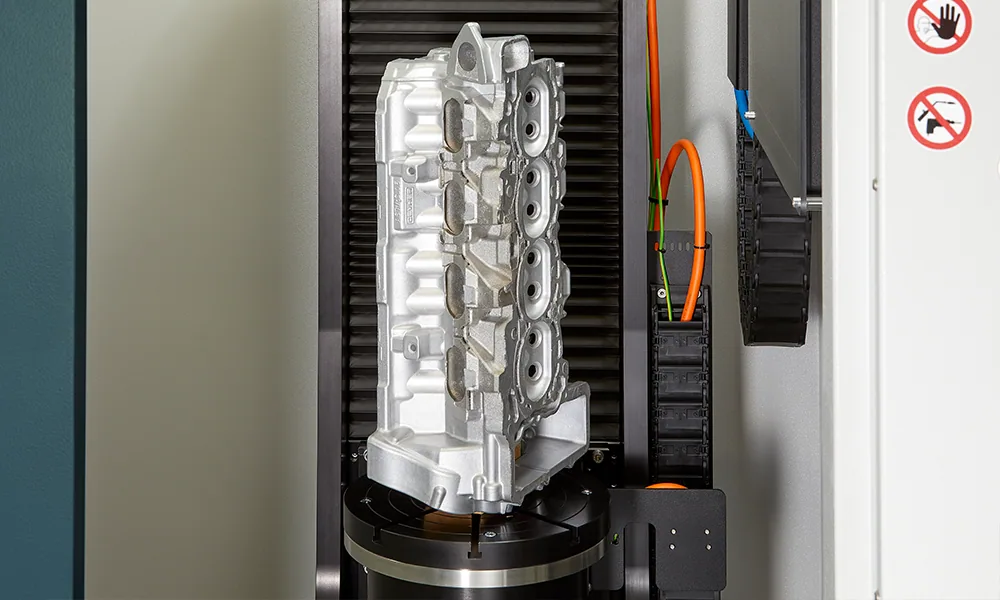

- Engine blocks and large castings

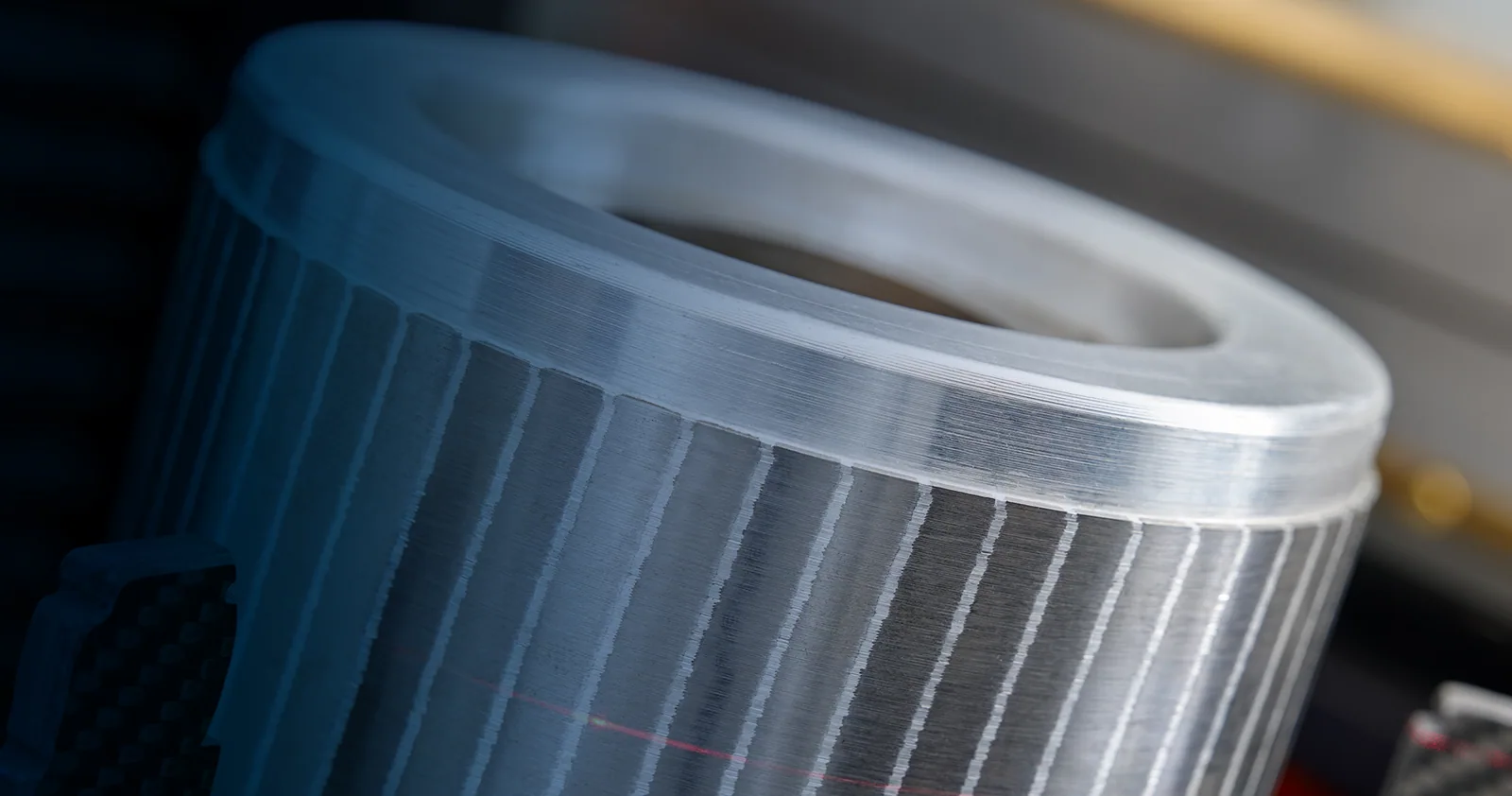

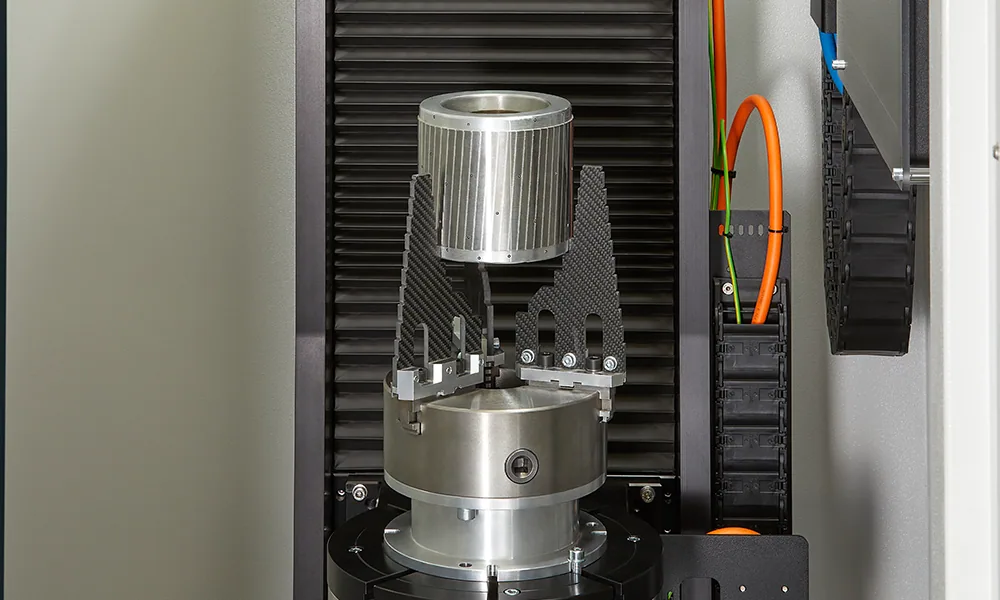

- E-mobility drive components and batteries
- Mechatronic assemblies
- Geological samples and fossils

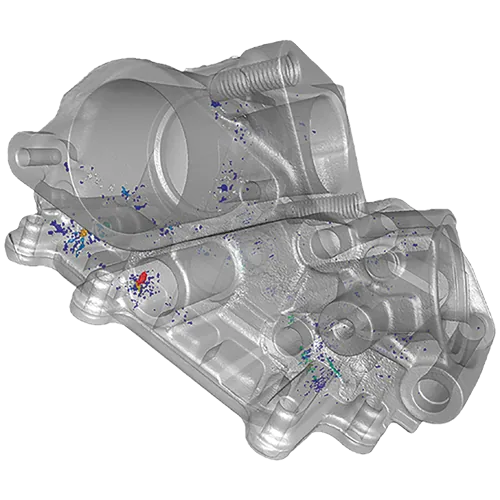

- Porosity analysis of cast parts
Frequently asked questions
Is 55 µm the resolution of the UX50?
It is the smallest stated voxel size. Actual detail detectability depends on focal spot, magnification, part material and scan parameters.
