FF85 CT
High-energy, high-resolution CT with dual-tube option (up to 600 kV mini-focus plus micro-/nano-focus) and flat-panel and line detectors, configurable up to 1000 kg samples.
About the FF85 CT
The FF85 CT is the largest and most versatile system of the FF series. It combines up to two X-ray tubes with a flat-panel detector (digital detector array, DDA) and a line detector array (LDA), so one system can cover micro-CT of small components and high-energy CT of large, dense parts. Operators switch between 2D radioscopy, 3D cone-beam CT and fan-beam CT.

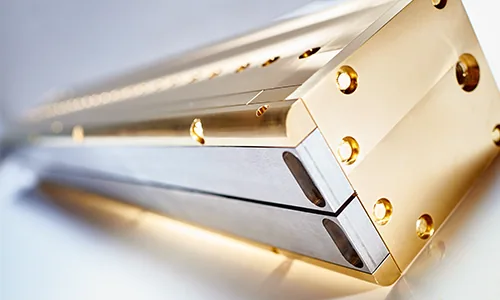

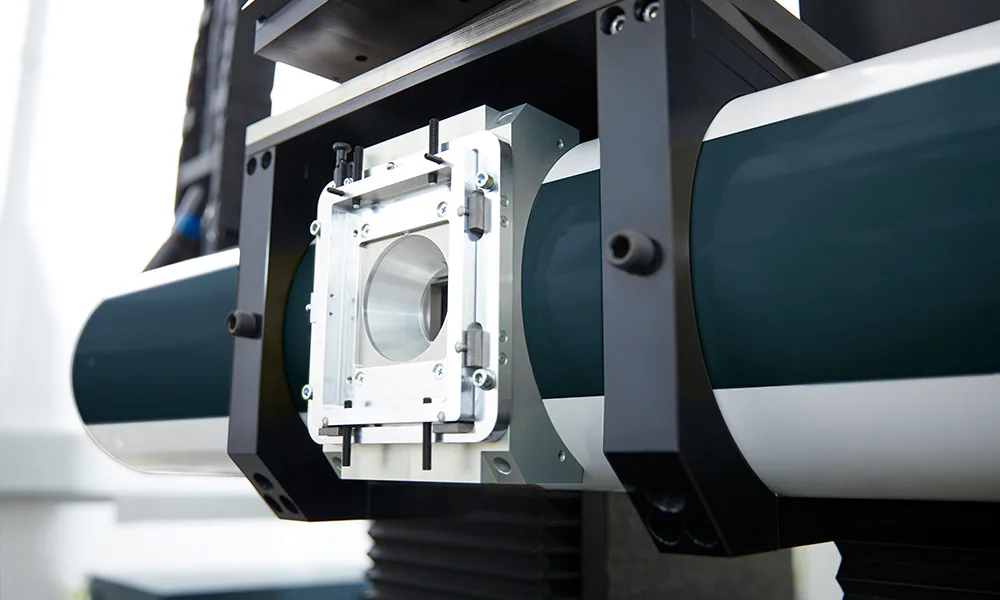

Available sources range from 190 kV nano-focus and 225 kV / 300 kV micro-focus tubes to 450 kV meso- and mini-focus and 600 kV mini-focus tubes. The Comet Yxlon CTScan 3 line detector (254 µm pixel pitch, designed for up to 600 kV) reduces scatter for large or dense components. The optional HDP target is also available for the 225 kV tube.

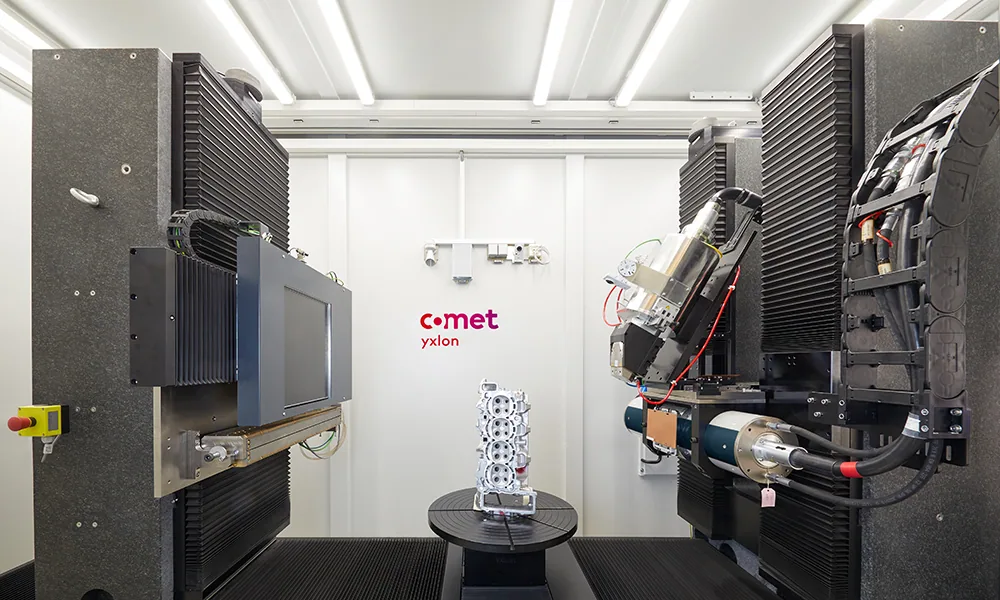

The system is built on a granite base with up to 7 manipulation axes, field-of-view extensions and helical / dual-helical CT. Comet Yxlon offers several configurations; the published maximum values — sample diameter up to 1800 mm, height up to 3000 mm, weight up to 1000 kg and FDD up to 3700 mm — refer to the configuration for extra-large parts (e.g. complete EV battery packs), not to every FF85 CT. Full specifications of each configuration are in the official brochure and flyer.
Versions & configurations
Standard configurations
Dual-tube high-energy / high-resolution CT for small to large parts.

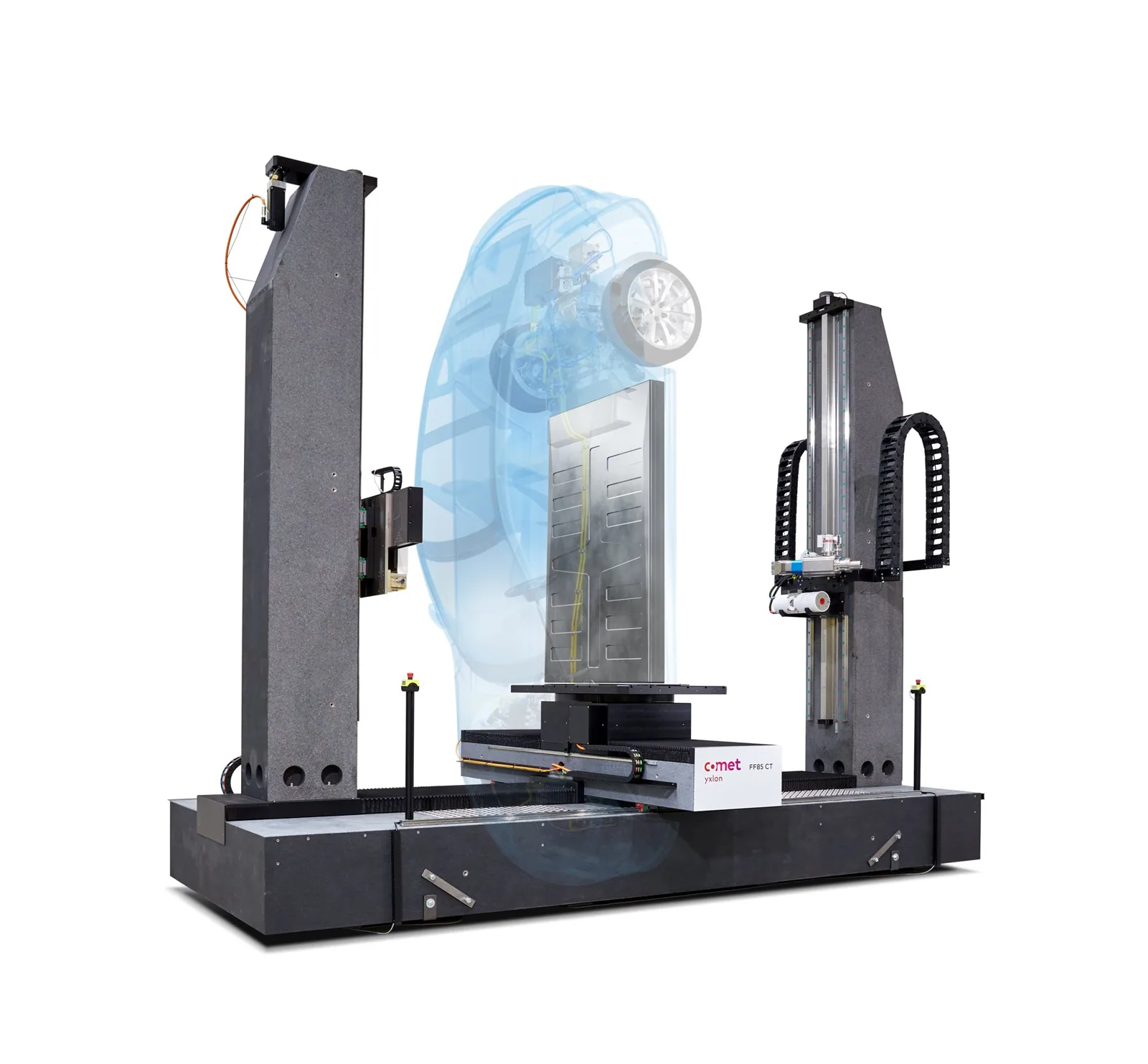

Configuration for extra-large parts
Up to 1800 mm × 3000 mm and 1000 kg, e.g. complete EV battery packs.
- Dual-tube optionMini-focus up to 600 kV for large/dense parts plus micro-focus (up to 300 kV) for fine detail.
- Flat-panel and line detectorDDA for cone-beam CT, CTScan 3 LDA for fan-beam CT with low scatter.
- Extra-large configurationUp to 1800 mm diameter, 3000 mm height and 1000 kg (configuration-dependent).
- Granite base, up to 7 axesWarp resistance and temperature stability.
- Image enhancementScatterFix 2.0, beam-hardening correction (BHC) and metal artefact reduction (MAR).
- Field-of-view extensionsHeliExtend, horizontal and vertical ScanExtend, FlexCenter.
Technical data
- Max. sample diameter
- up to 1800 mm ¹
- Max. sample height
- up to 3000 mm ¹
- Max. sample weight
- 1000 kg ¹
- Focus–detector distance (FDD)
- up to 3700 mm ²
- Mini-focus
- 600 kV; 450 kV
- Meso-focus
- 450 kV
- Micro-focus
- 300 kV; 225 kV (optional HDP target)
- Nano-focus
- 190 kV
- Detectors
- Flat-panel detector; line detector array CTScan 3 (254 µm pixel pitch, up to 600 kV)
- CT modes
- Cone-beam CT, QuickScan, QualityScan, HeliExtend, FlexCenter, ZoomScan, LayerScan, SpeedMode, fan-beam CT, ScanExtend, volume crop
- Manipulation
- 7 axes, granite base
- Notes
- ¹ Configuration for extra-large parts. ² Mini-focus tube with line detector.
Data from official Comet Yxlon product information (yxlon.comet.tech). Maximum values depend on configuration; voxel size, detail detectability and MPE are different quantities. Final configuration is confirmed in the EMUS quotation.
Options & packages
- Second X-ray tube
- Line detector CTScan 3
- Extra-large part configuration

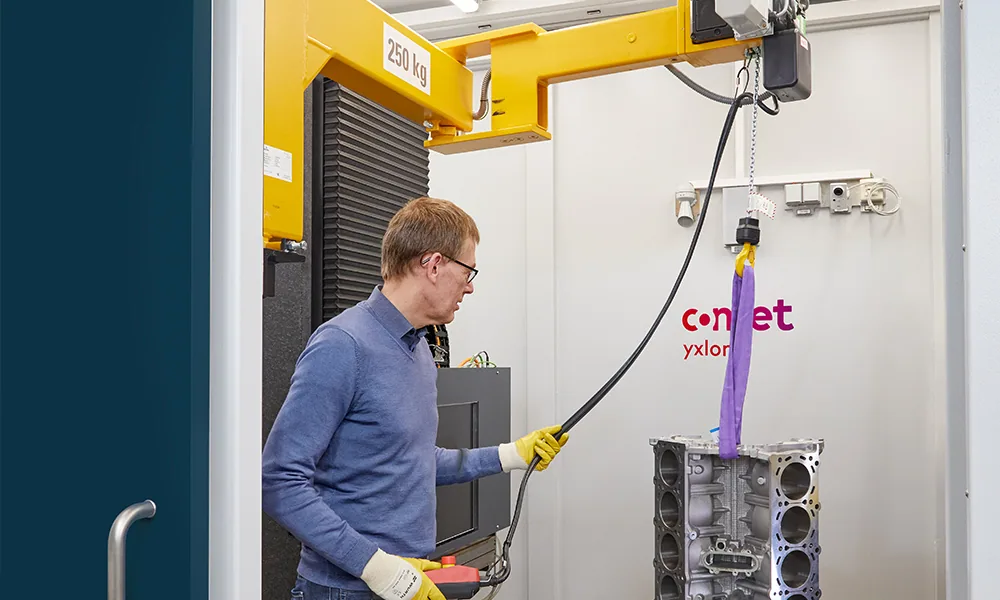

- Crane for heavy parts
- HDP target (225 kV)
- Battery Insights package
- Dragonfly 3D World
Where the FF85 CT is used
- Aluminium, steel and superalloy components
- Additively manufactured parts
- Battery cells, modules and complete packs
- Fibre-reinforced composites and injection-moulded plastics
- Mechatronic modules
- Cultural assets and archaeological objects

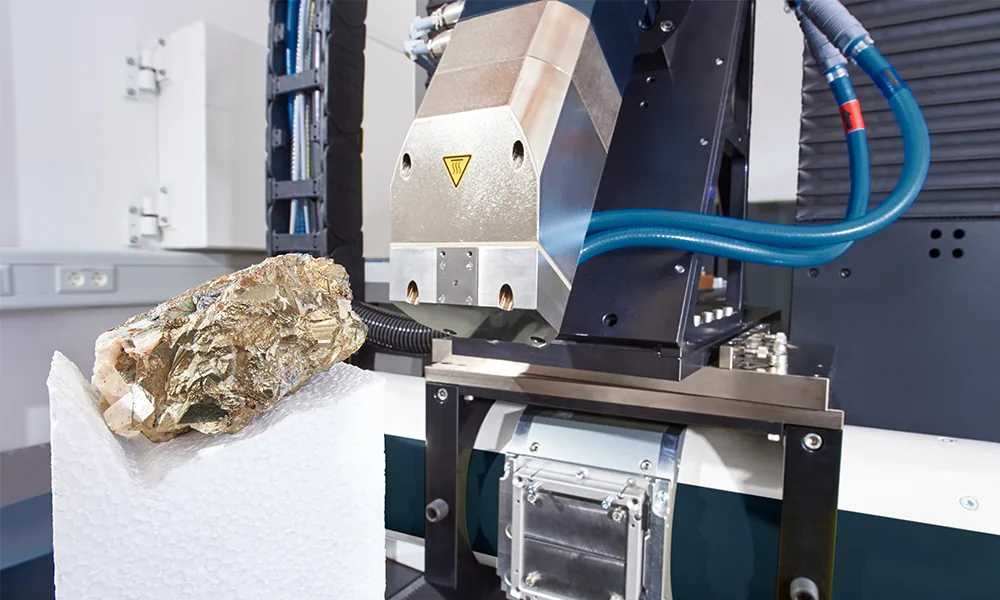

- Geological, palaeontological and biological samples
- First-article inspection, dimensional measurement, failure analysis
Frequently asked questions
Does every FF85 CT handle 1000 kg parts?
No. 1000 kg, 1800 mm diameter and 3000 mm height are the published values for the configuration for extra-large parts. The usable scan volume also depends on detector, source and trajectory.
Why combine a flat-panel and a line detector?
The flat panel gives fast cone-beam CT; the line detector gives fan-beam CT with lower scatter and better image quality on large, dense parts.
