BK30 Brinell Scope

Name: BK30 Brinell Scope
Brand: AFFRI Testing Instruments

Model: BK30

Portable Brinell microscope for automatic measurement of ball indentations of Ø 2.5, 5 or 10 mm made by a separate Brinell tester.

Request Technical Consultation About AFFRI

Overview

About the BK30 Brinell Scope

HBW 2.5/15.62 HBW 2.5/31.25 HBW 2.5/15.6 HBW 2.5/187.5 HBW 5/25 HBW 5/62.5 HBW 5/125 HBW 5/250 HBW 5/750 HBW 10/100 HBW 10/250 HBW 10/500 HBW 10/1000 HBW 10/1500 HBW 10/3000

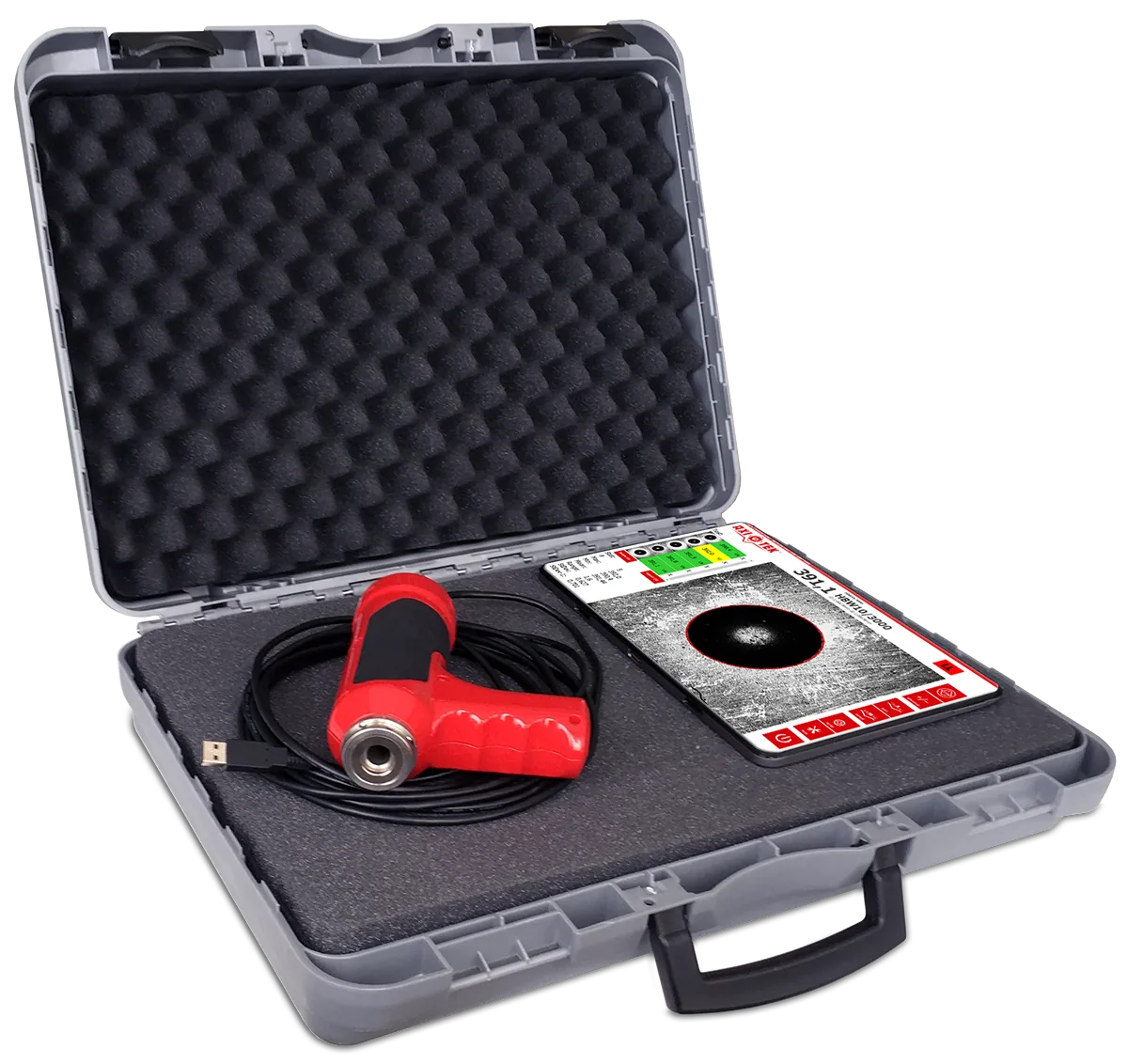

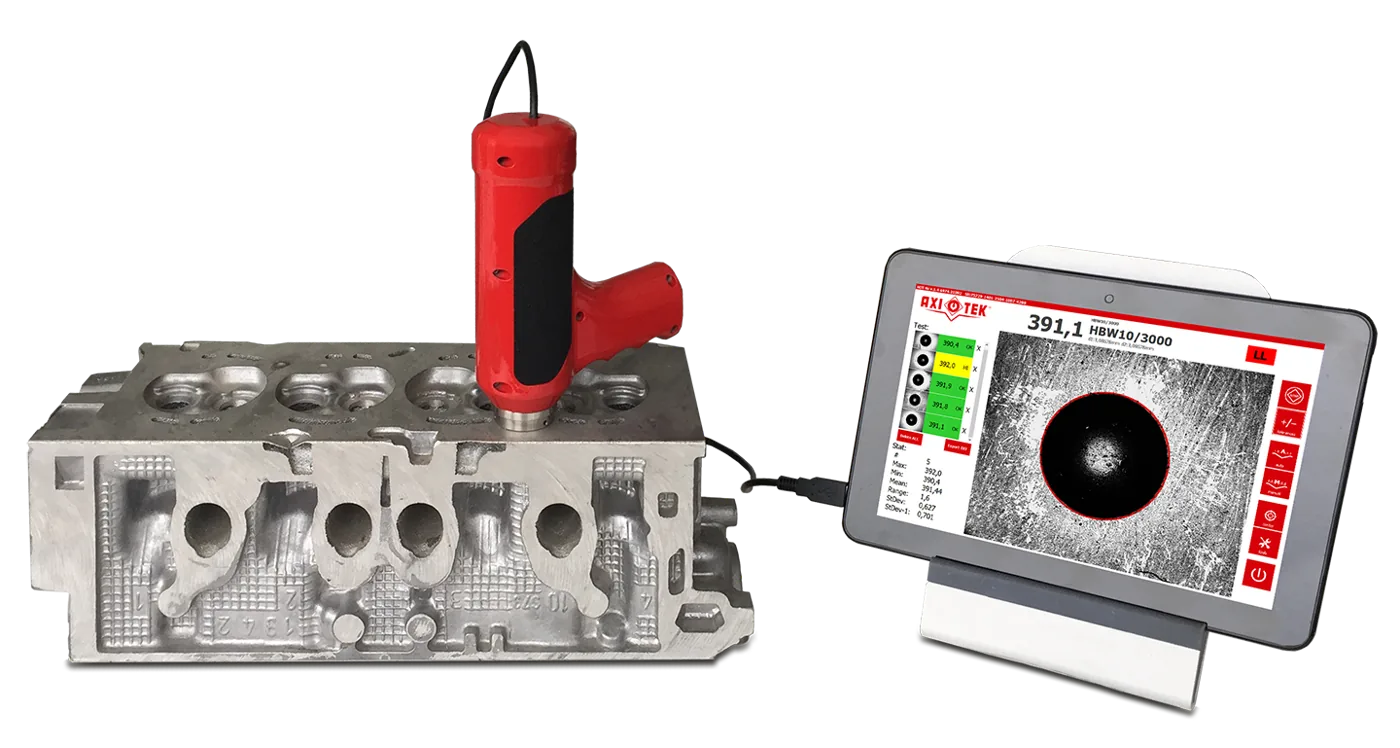

The tester’s limited weight and compact size make it an extremely efficient instrument to test any surface, any large or unwieldy item, or any already assembled product. It is extremely easy to use: simply choose the desired hardness scale, put the test probe on the surface, and push the red button. The result immediately appears on the wide graphic display. At this point, the tester is once again ready for a new measurement.

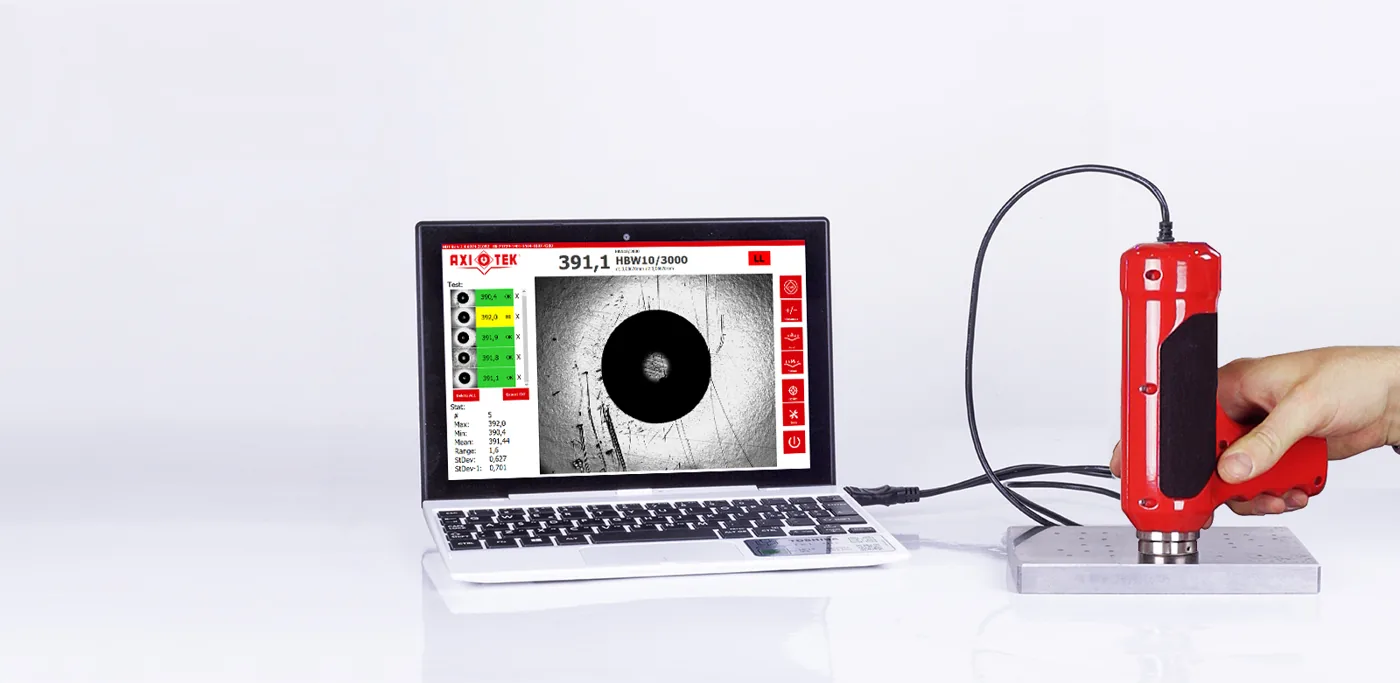

With AFFRI portable Brinell microscope it is possible to perform quick and precise indentation measurements using the same method and technology as a standard bench-top instrument.

Key features

Portable Brinell Microscope
Portable Brinell microscope for automatic ball indentation measurement Ø 2.5 or 5 or 10 mm
User Friendly, Handy And Accurate
The Software
Exclusive Advantages

Testing methods

Supported methods documented by AFFRI

Brinell HBW — optical reading of an existing indentation

Measurement principle

Optical indentation measurement only — the BK30 does not apply a test force.

Technical notes

The indentation must first be made with a Brinell tester at the selected ball and force; the BK30 then measures the diameter and calculates HBW.

Technical detail

How the BK30 Brinell Scope works

Portable Brinell Microscope

Digital portable microscope for automatic Brinell measurement

Portable Brinell microscope for automatic ball indentation measurement Ø 2.5 or 5 or 10 mm

User friendly and compact
Automatic light adjustment
Accuracy and repeatability of measurement +/- 1%
It run on Windows®
Export data and images as jpg, bmp, PDF, Excel, txt, csv
Create and print reports with results and statistics
Internet connection for remote data network, calibration, service and software updates

User Friendly, Handy And Accurate

The Software

The software controls the whole measurement avoiding setting errors or operators mistakes:

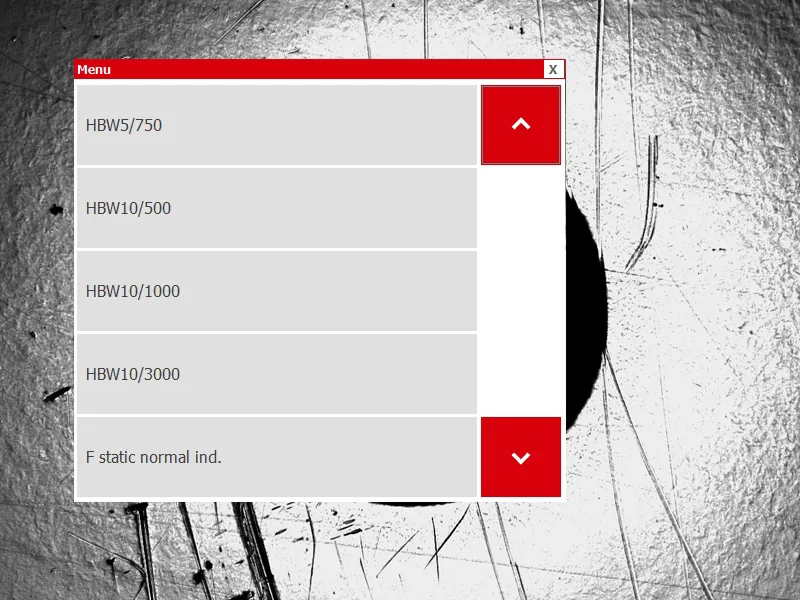

Setup the hardness test scales, the properties of the camera, the test method standards, and the conversion scales.
Export results as a TXT file or use the USB/WI-FI/Bluetooth outputs to connect the tablet to printers.

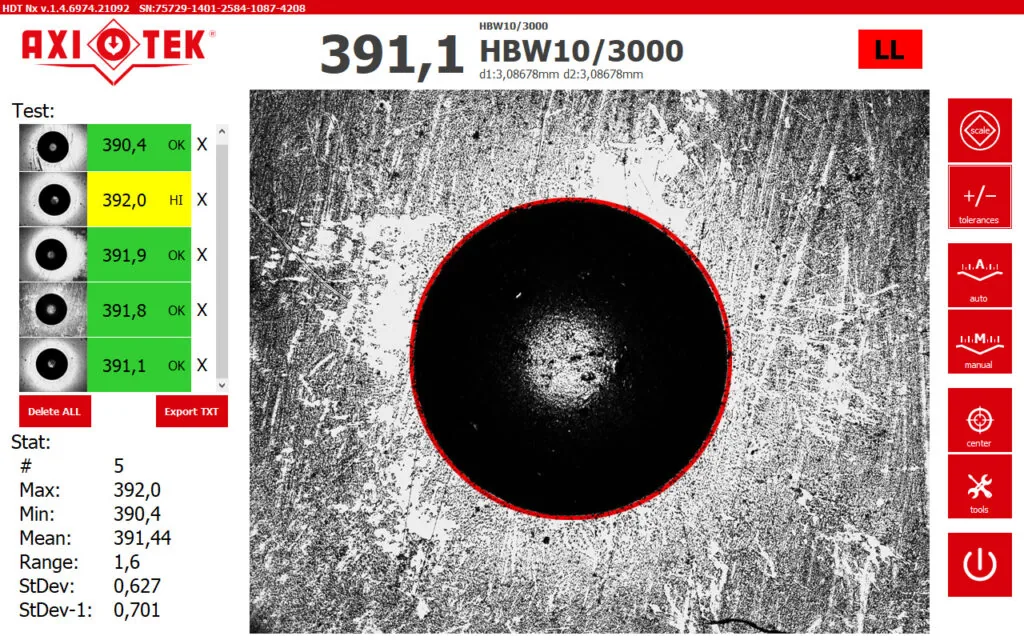

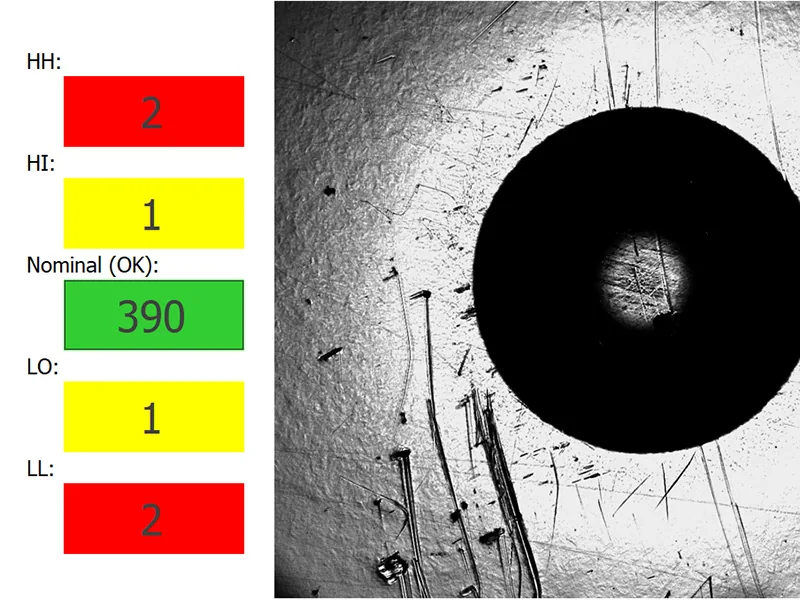

Lists all of the readings done and their associated image. Chart the results and statistics highlighted according to their tolerance values (LOW, OK, HIGH).

Exclusive Advantages

With AFFRI portable Brinell microscope it is possible to perform quick and precise indentation measurements using the same method and technology as a standard bench-top instrument.

One complete indentation measurement in only few seconds.

Accurate and reliable on all materials, without adjustments

Specifications

Technical data

Published specifications

Standards: ASTM E-10 / ISO 6506
Feasible tests: Probe A: Objective 20X - Automatic Brinell reader for indentation of Ø 5 - 10 mm Probe B (Optional): Objective 40X - Automatic Brinell reader for indentation of Ø 2.5 mm

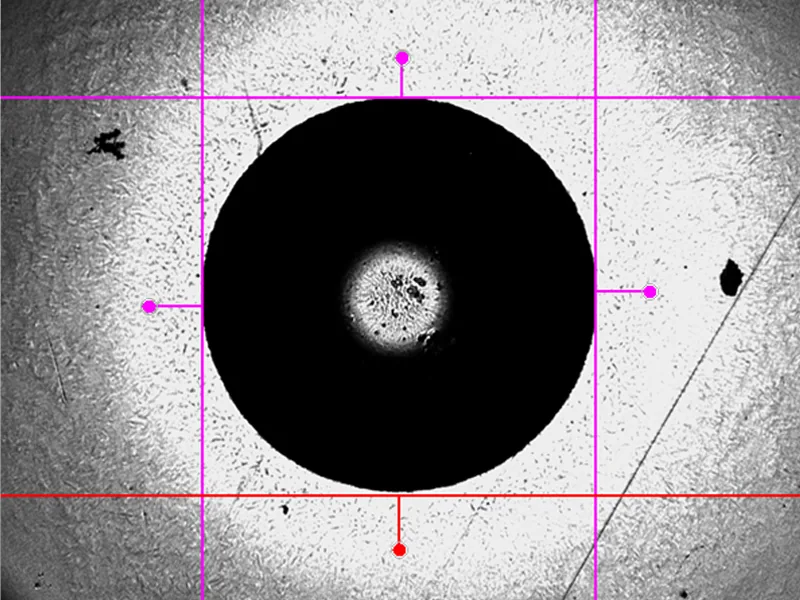

Reading: Automatic indent reading with autofocus
Data output: USB
Data export: jpg, bmp, PDF, txt, csv, Excel
Operative Sistem: Windows®
Computer: Tablet Windows® touchscreen 10.1" IPS, Full HD, RAM 4GB, SSD 64GB, WI-FI, Bluetooth, Ethernet
Accuracy: Better than 1 %
