AFFRI Testing Instruments
Rockwell, Brinell, Vickers and portable hardness testers with closed-loop load-cell technology from Italy.
About AFFRI Testing Instruments
AFFRI (Affri Testing Instruments, ATI) is an Italian manufacturer of hardness testers for metals, founded on the patented AFFRI System: load cells with closed-loop electronic force control and top-surface referencing with specimen clamping.
Its portfolio spans automatic Rockwell and Superficial Rockwell bench testers, Brinell testers up to 3000 kgf with camera reading and milling preparation (including the Easydur portal and radial systems), Vickers and micro-Vickers testers with automatic reading, and portable instruments for on-site testing.
AFFRI designs instruments for both laboratories and production lines — from manual bench testers to CNC, robot-mounted and inline systems.
Technologies
The inspection and measurement technologies AFFRI Testing Instruments manufactures.
Industries served
Manufacturing sectors where AFFRI Testing Instruments technology is typically applied.
Applications
Typical inspection and quality-control tasks AFFRI Testing Instruments systems address.
Products grouped by application
Organized by AFFRI Testing Instruments product category. Each product links to its dedicated page with features, specifications, images and videos.
Rockwell
Rockwell & Superficial Rockwell
11 ProductsManual, motorised, automatic, inline and robot-mounted depth-measuring testers.

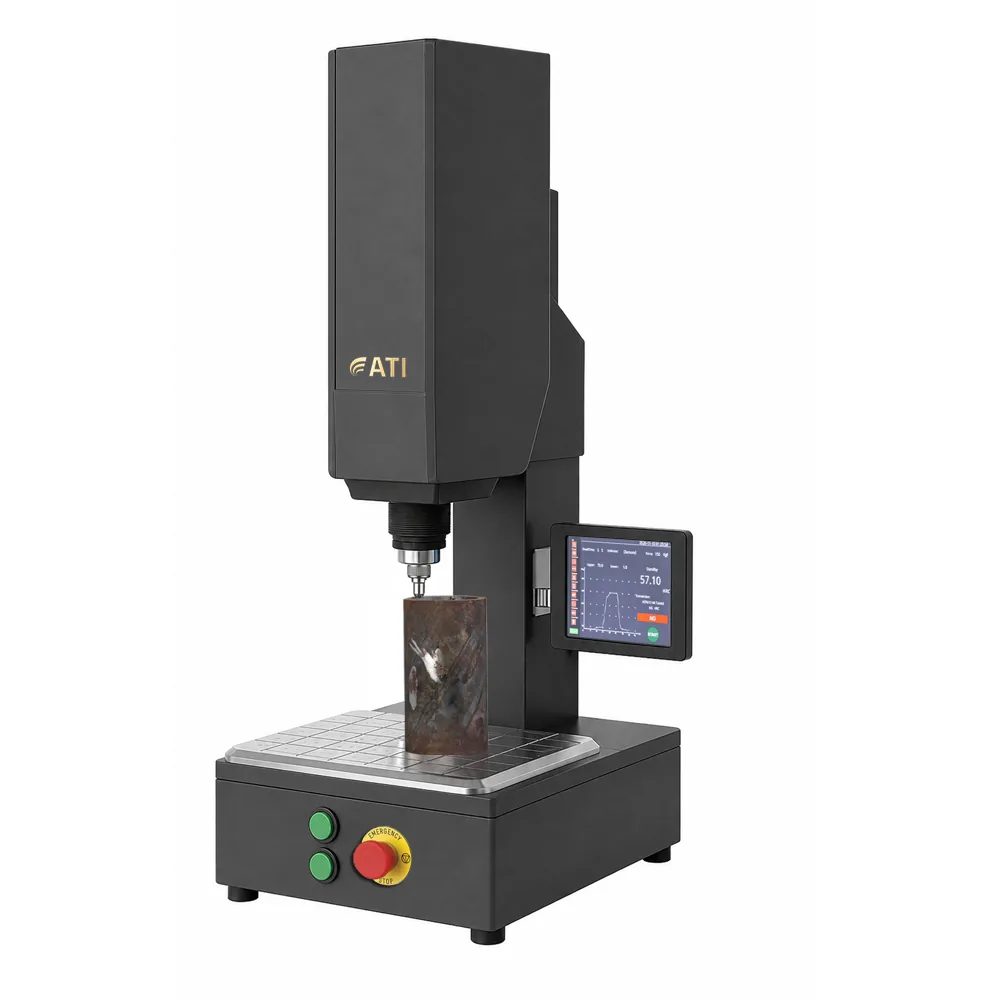

ATI HTR
Fully automatic bench Rockwell and Superficial Rockwell hardness tester with one-button test cycles, motorised vertical stroke and closed-loop force control.

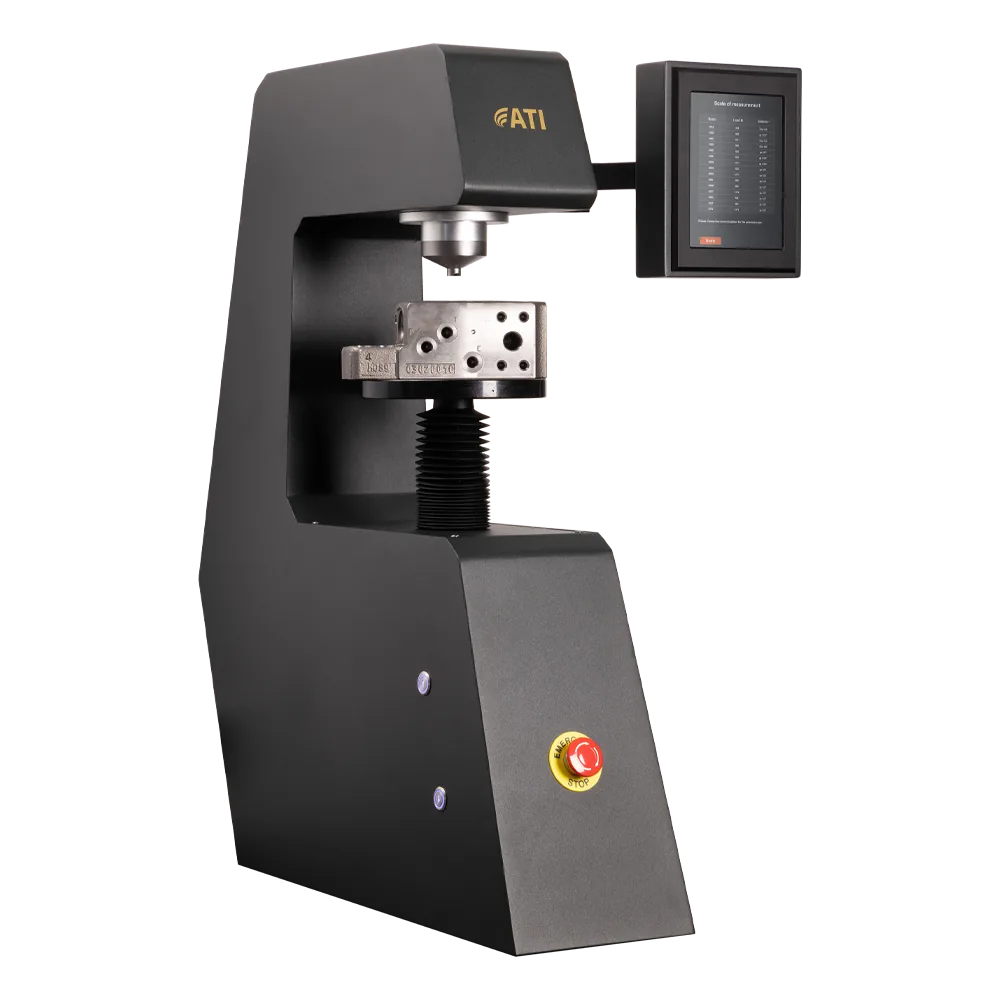

ATI MARS
Motorised, automatic Rockwell and Superficial Rockwell bench tester with load-cell closed-loop control at 1 kHz and optional Brinell and Vickers scales.

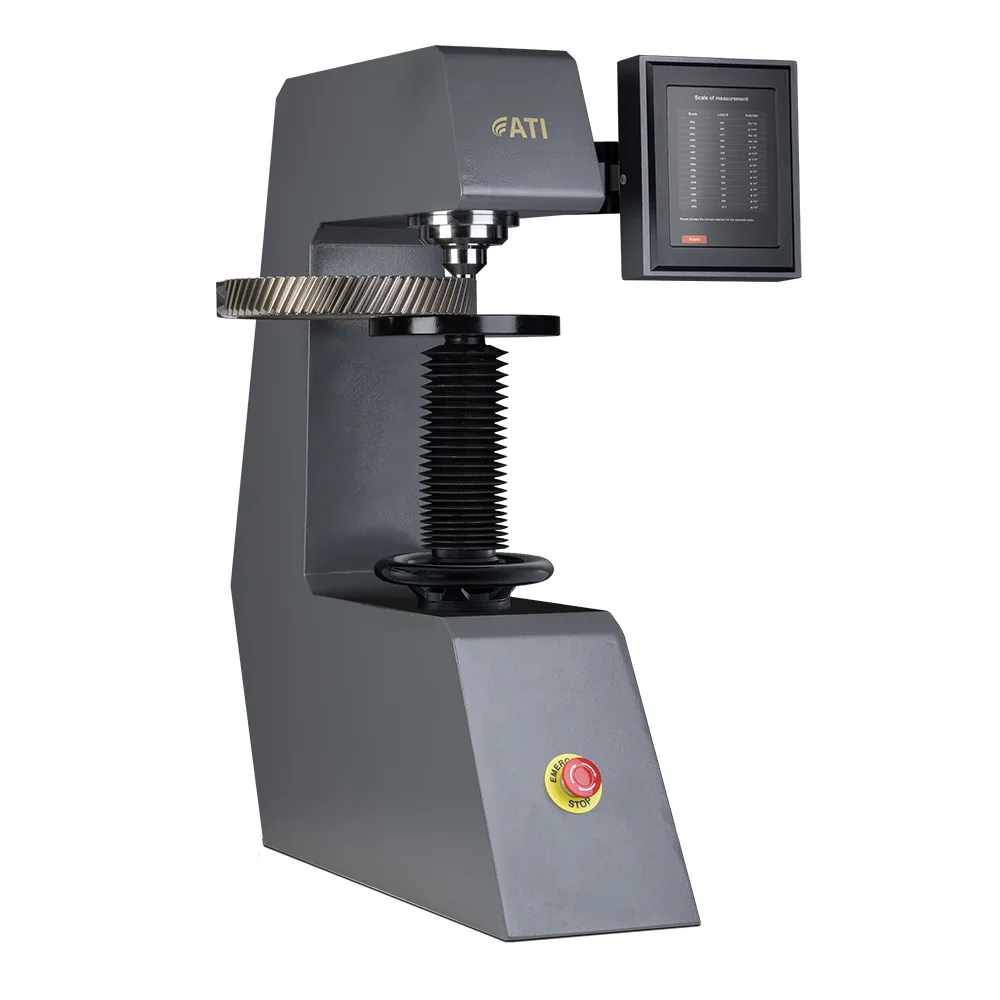

ATI R / RS
Automatic bench Rockwell and Superficial Rockwell hardness tester with electronic force control and digital depth measurement, plus optional Brinell and Vickers scales.

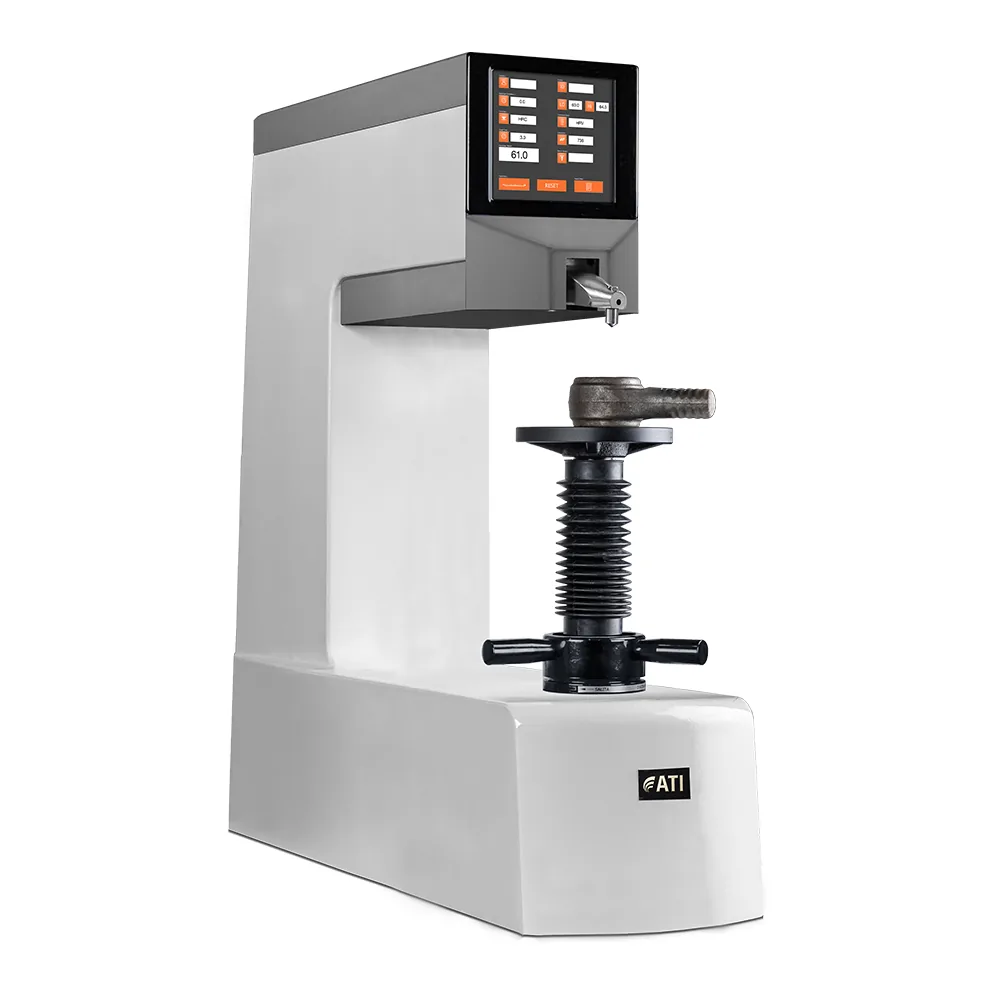

ATI IN
Automatic Rockwell hardness tester with a special-shape indenter for deep cavities, internal diameters from 25 mm and areas near flanges, with built-in image viewing.

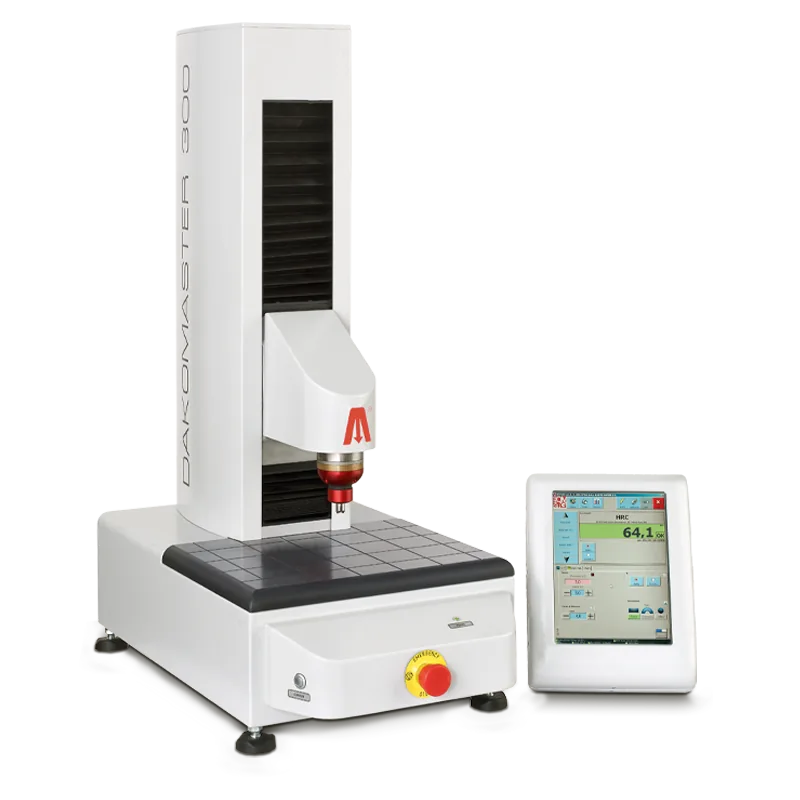

DAKOMASTER 300
Top-level motorised bench tester with wide touchscreen for Rockwell and Superficial Rockwell testing, with Brinell HBWT, Vickers/Knoop indentation and Shore options.

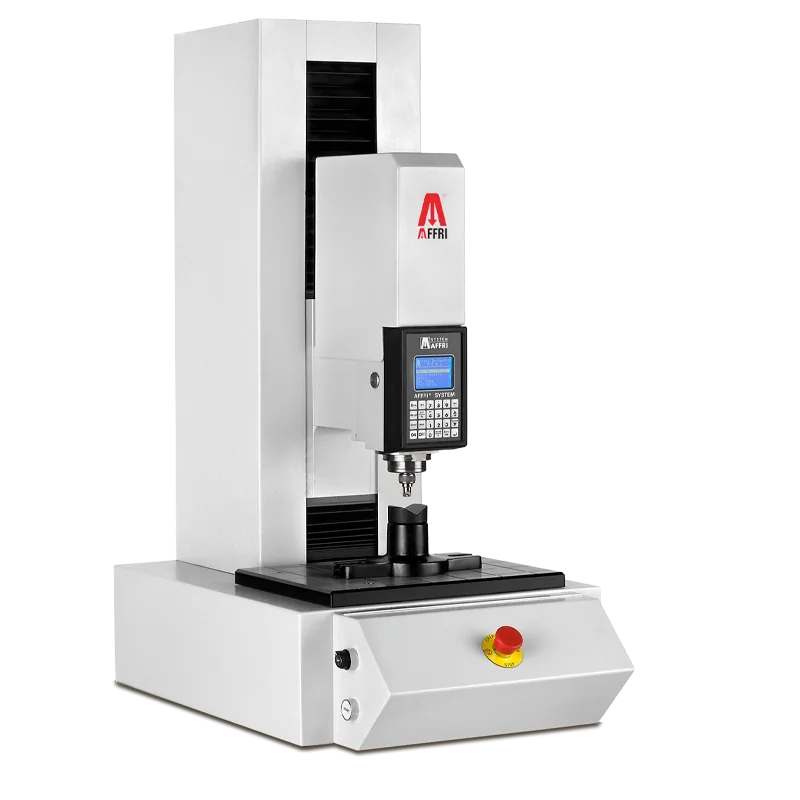

MRS Series
Fully motorised Rockwell bench testers with patented clamping, 50 mm independent indenter stroke and closed-loop load cells, for heavy and unstable parts.

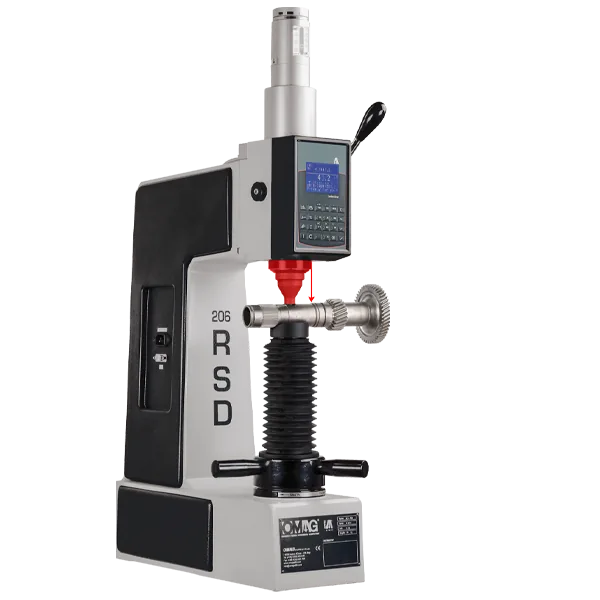

RSD Series
Automatic, simple and very fast Rockwell hardness testers with test loads from 3 to 250 kgf, in Rockwell (RSD) and Superficial Rockwell (RS-SD) versions.

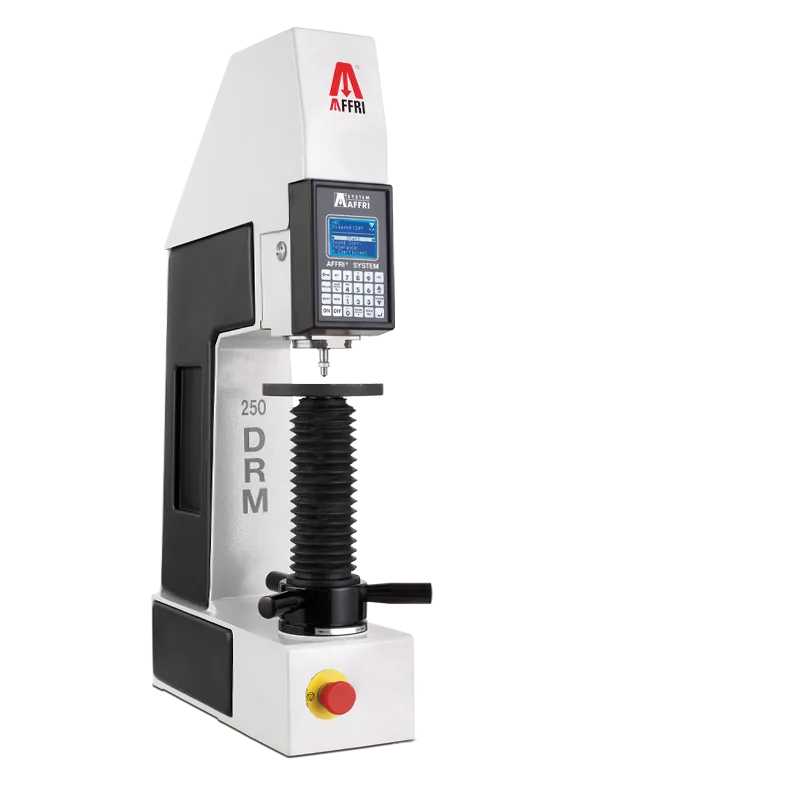

DRM / EX / RT
Semi-automatic Rockwell bench testers — 250 DRM, 206 EX and RT families — with Rockwell, Superficial Rockwell and Brinell HBWT options.

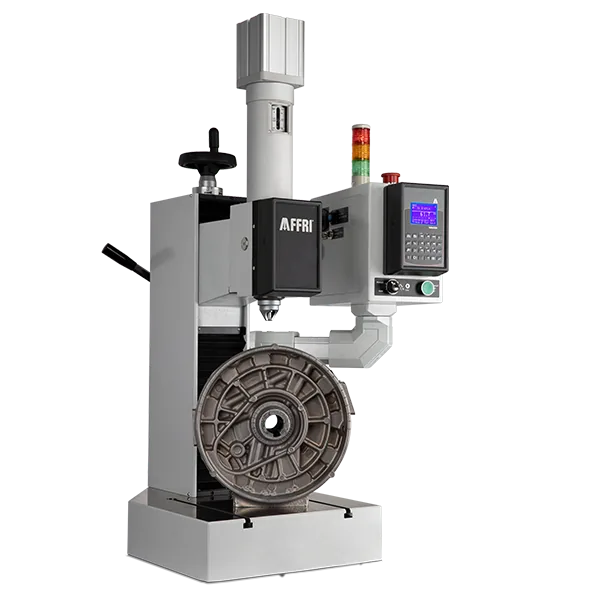

PRS
High-speed automatic Rockwell tester designed for integration into production lines and 100% testing, particularly of bearings.

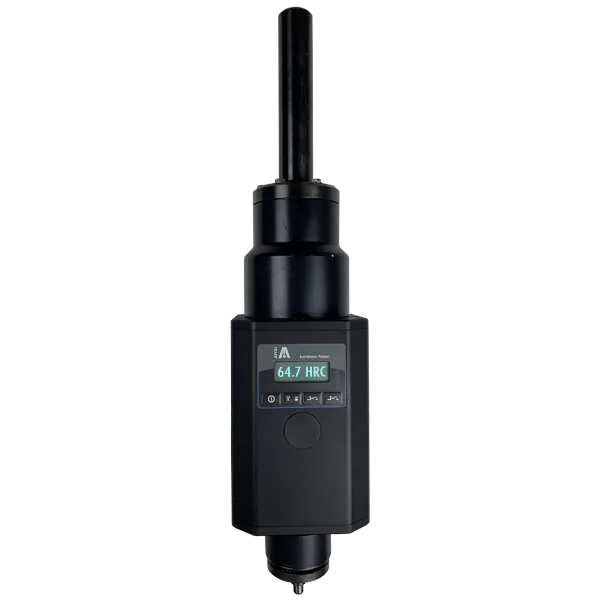

EXPLORER
Rockwell hardness tester designed as a tool for CNC machines and robots, controlled from the machine panel with a wireless connection.

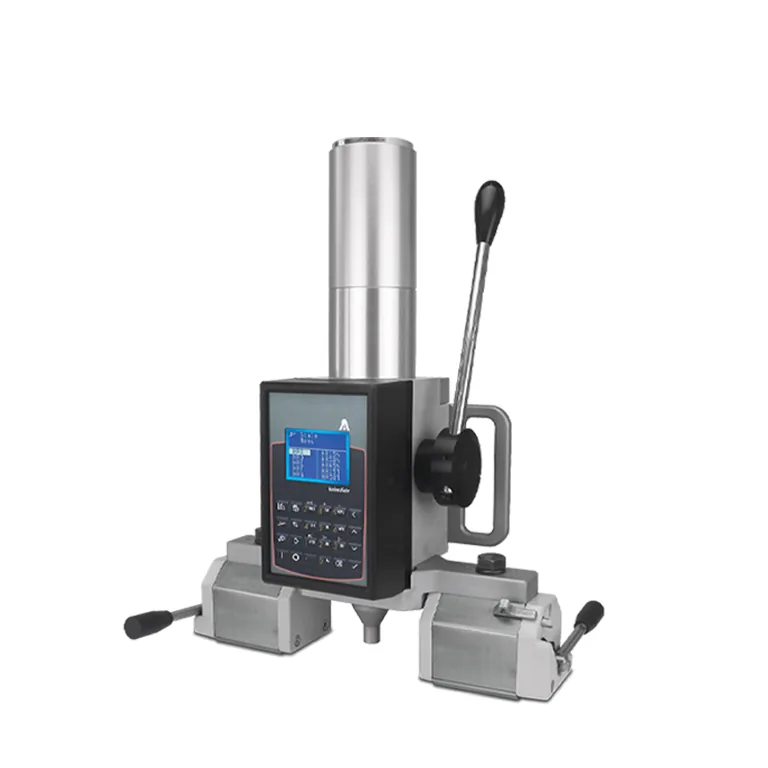

RSD MAG
Portable depth-measuring hardness tester with magnetic base for Rockwell, Superficial Rockwell and Brinell HBWT on large parts in any position.
Brinell
Brinell Hardness Testers
13 ProductsBench, universal, portal and radial Brinell systems up to 3000 kgf with optical and camera reading.
RSD MAG
Portable depth-measuring hardness tester with magnetic base for Rockwell, Superficial Rockwell and Brinell HBWT on large parts in any position.

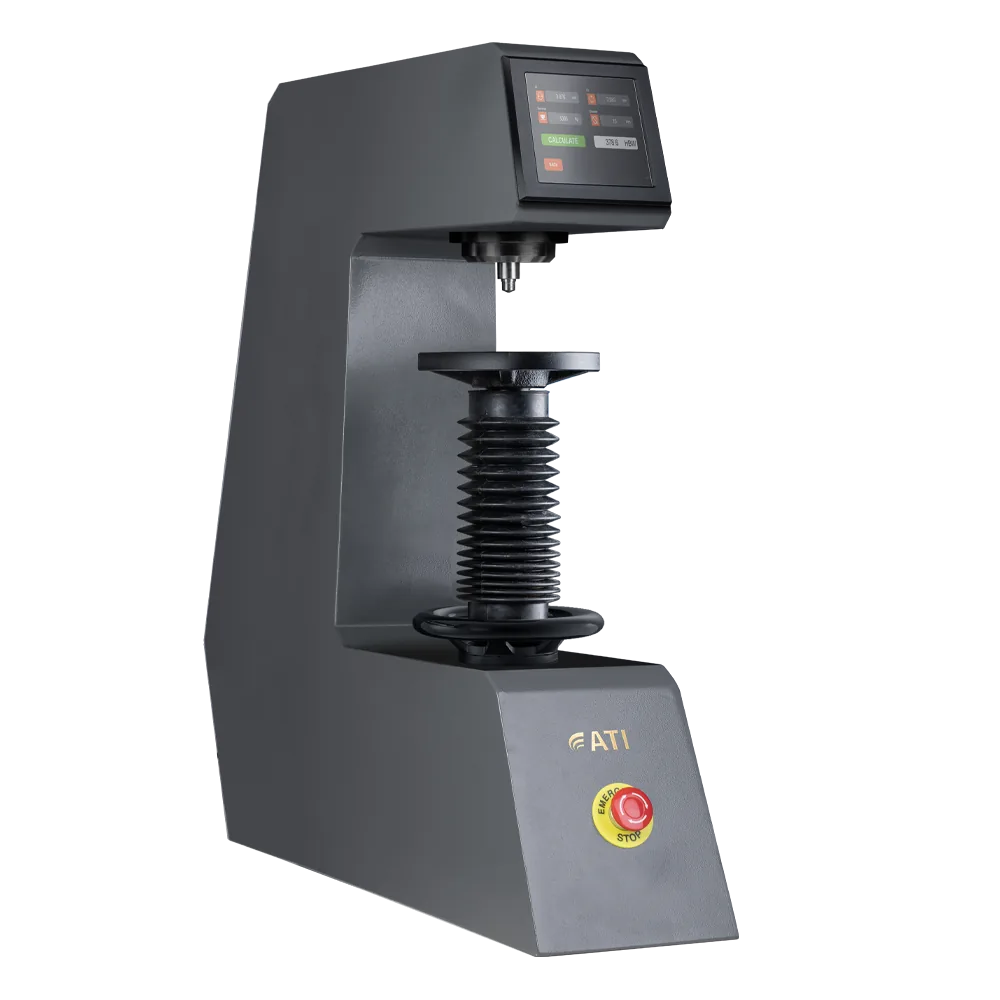

ATI B3000-2
Brinell hardness tester to ASTM E10-23 and ISO 6506 with closed-loop load cells from 62.5 to 3000 kgf and manual optical reading.

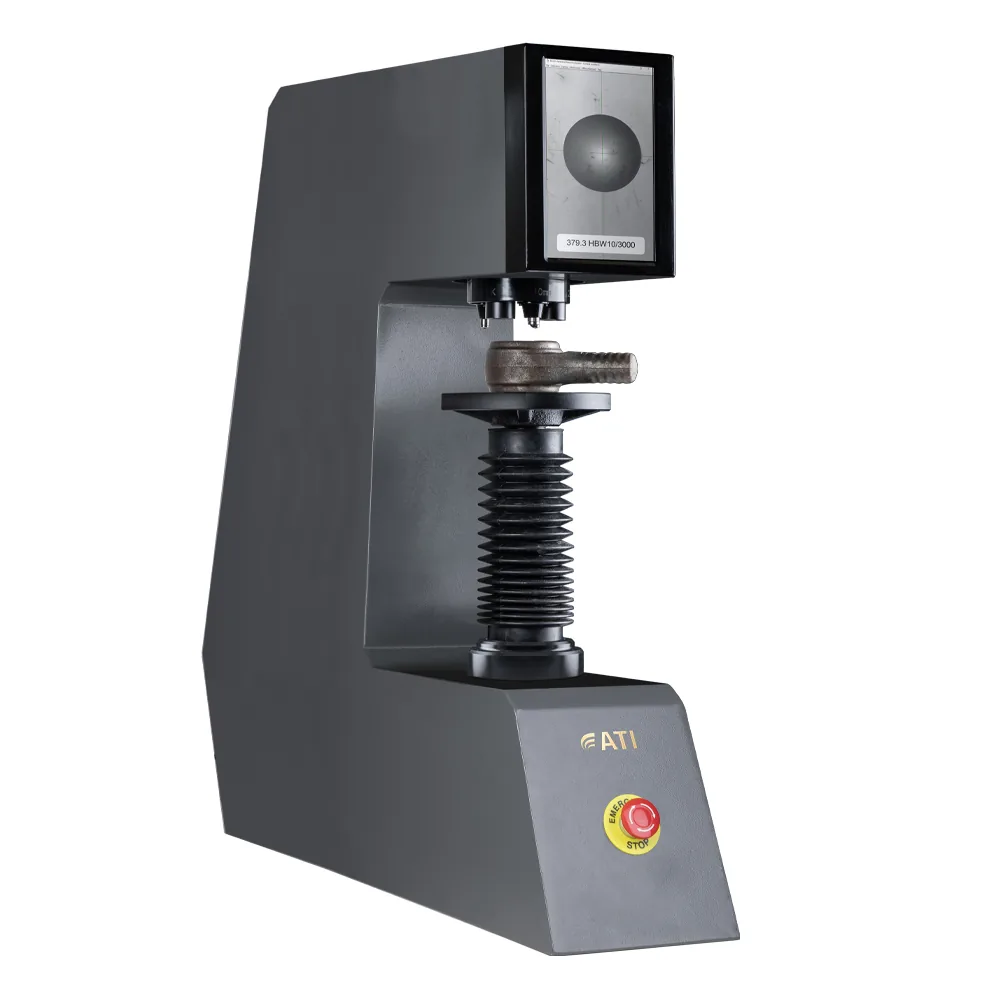

ATI B3000
Automatic Brinell hardness tester with motorised turret and camera reading, for production lines and laboratories, 62.5 to 3000 kgf.

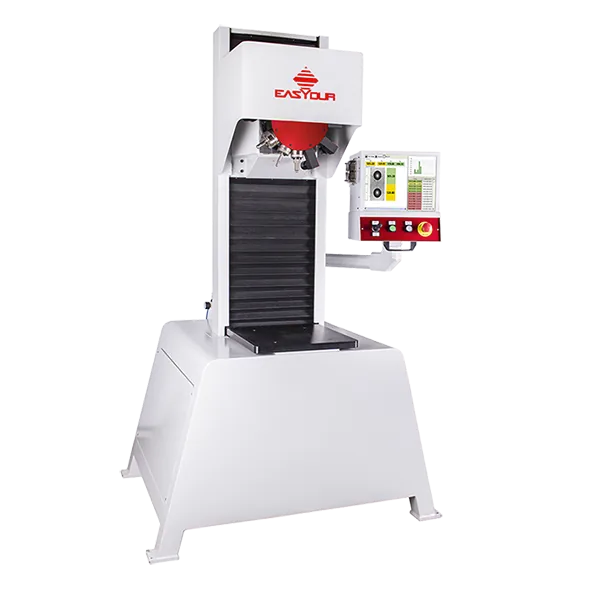

INTEGRAL REVOLVER
Universal automatic hardness tester with motorised revolver turret for Brinell, Rockwell and Vickers on one stand, with optional milling preparation.

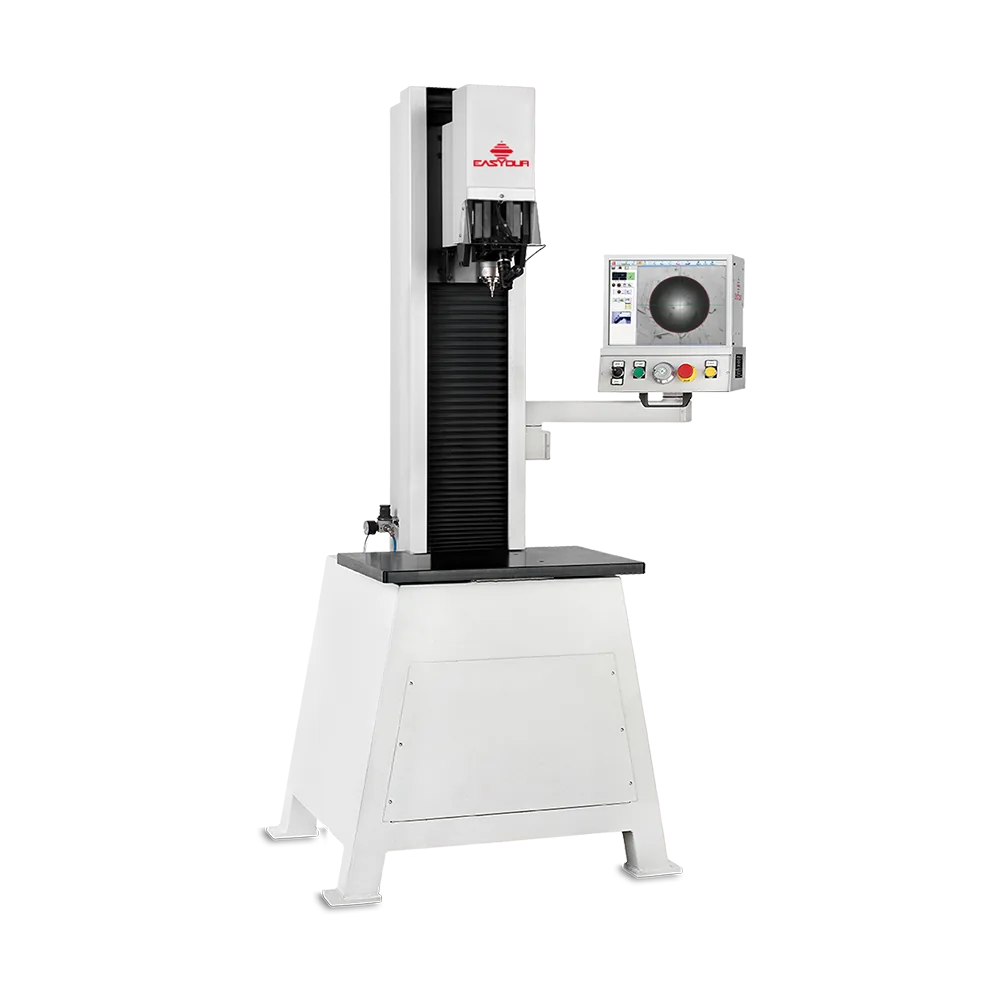

INTEGRAL 1
Fully motorised Brinell hardness tester from 1 to 3000 kgf with automatic cycle, camera auto-reading, autofocus and exclusive milling tool.

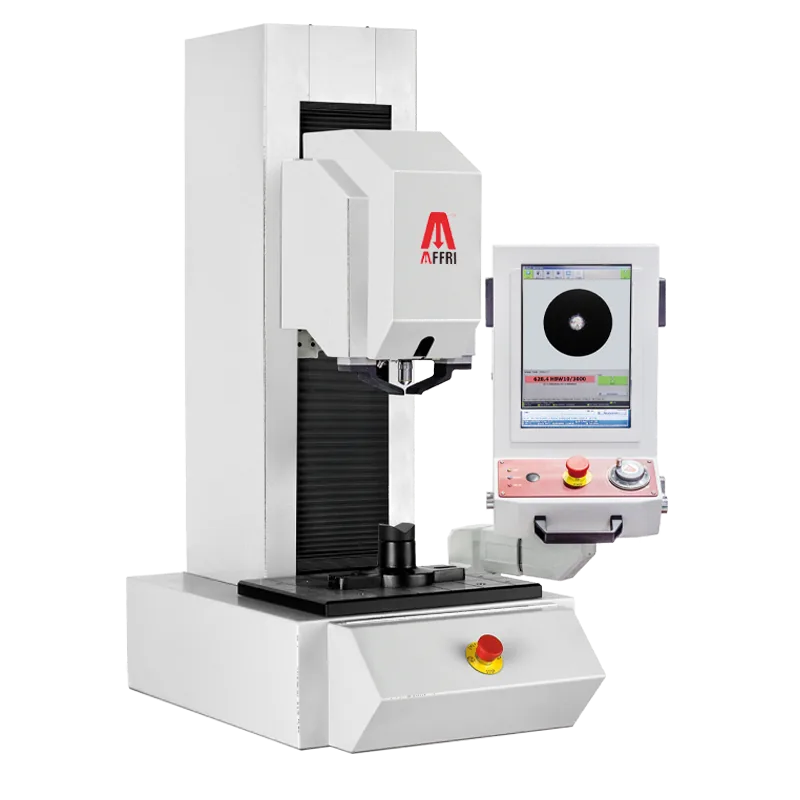

LD250 / LD750
Motorised universal bench hardness testers with closed-loop forces; Rockwell, Superficial Rockwell, Brinell and Vickers depending on the model.

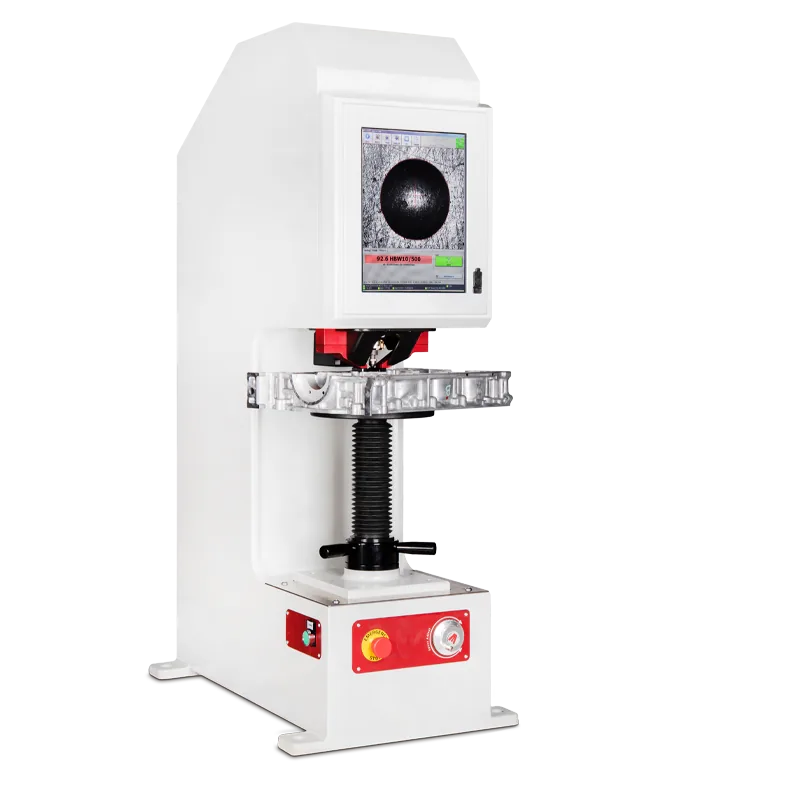

LD3000AX
Universal automatic hardness tester up to 3000 kgf for Brinell, Rockwell and Vickers on large, heavy specimens.

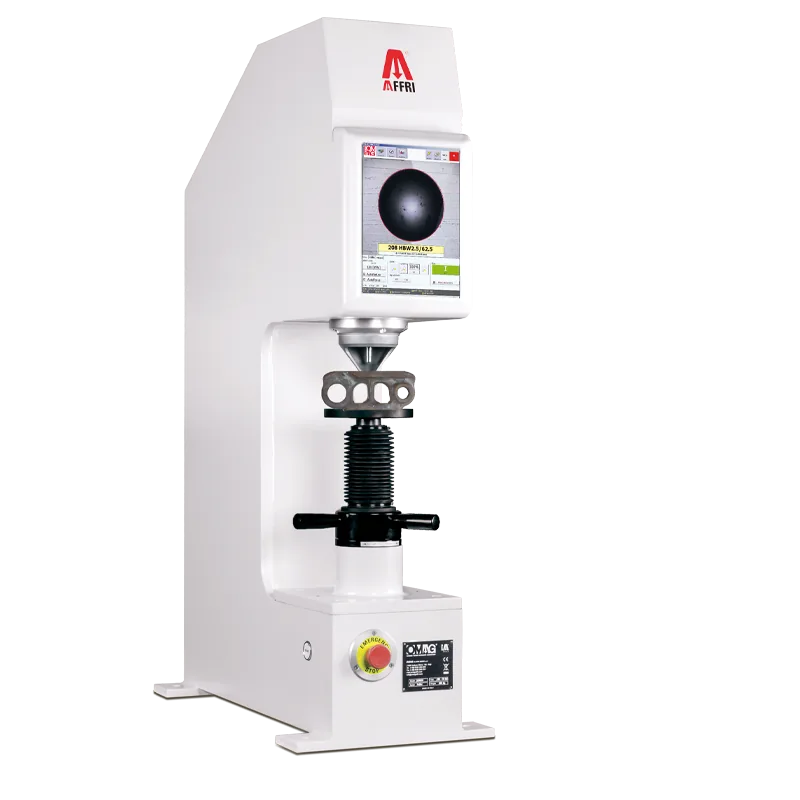

LD3000
Brinell HBW hardness tester to ASTM E10 and ISO 6506 with closed-loop forces at 1000 inputs per second, auto-contact and electronic microscope.

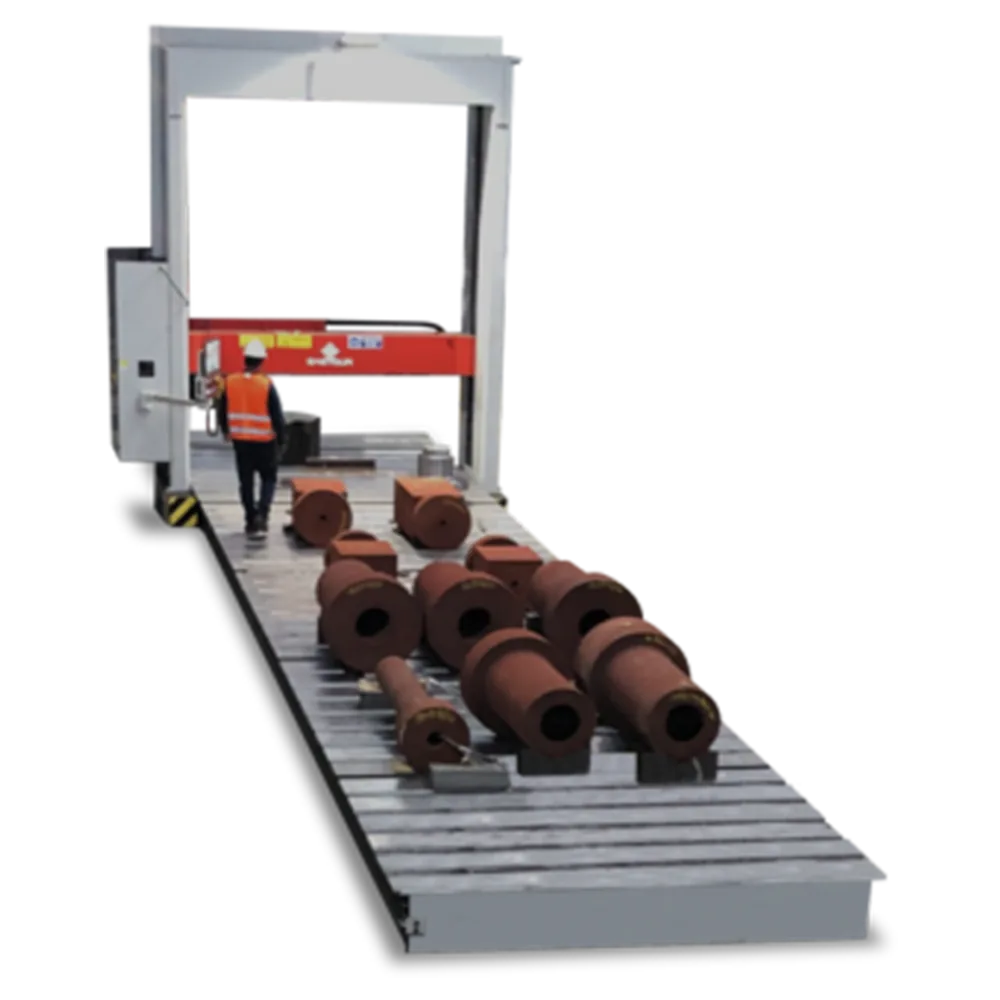

Easy Portal 3000
CNC portal Brinell hardness tester combining automatic milling, indenting and camera reading on a rotating turret over a fixed 6000 mm table.

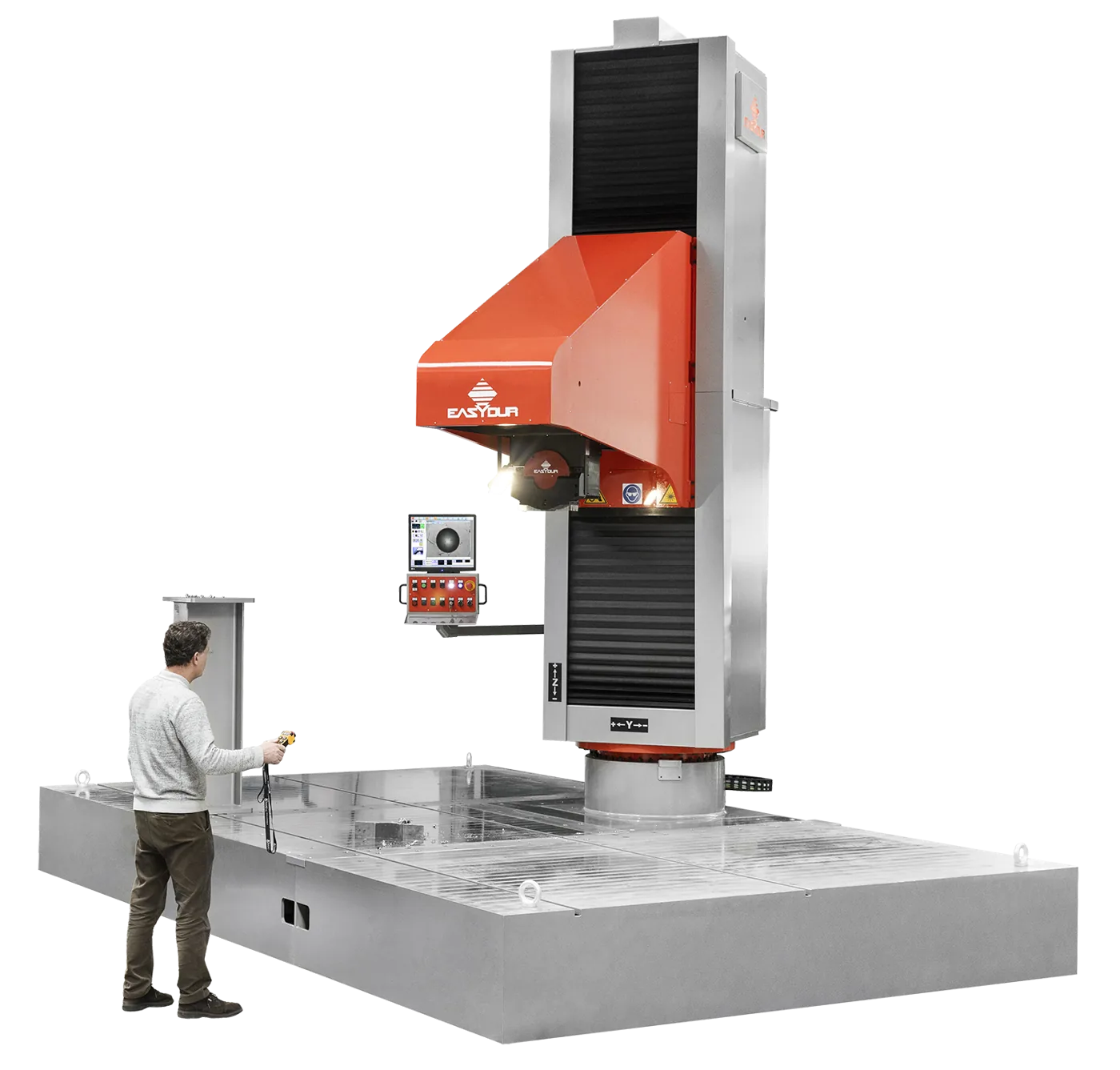

Easyflag 3000
Radial-arm Brinell hardness tester with built-in milling for heavy forgings and castings, replacing radial drills for surface preparation and testing.

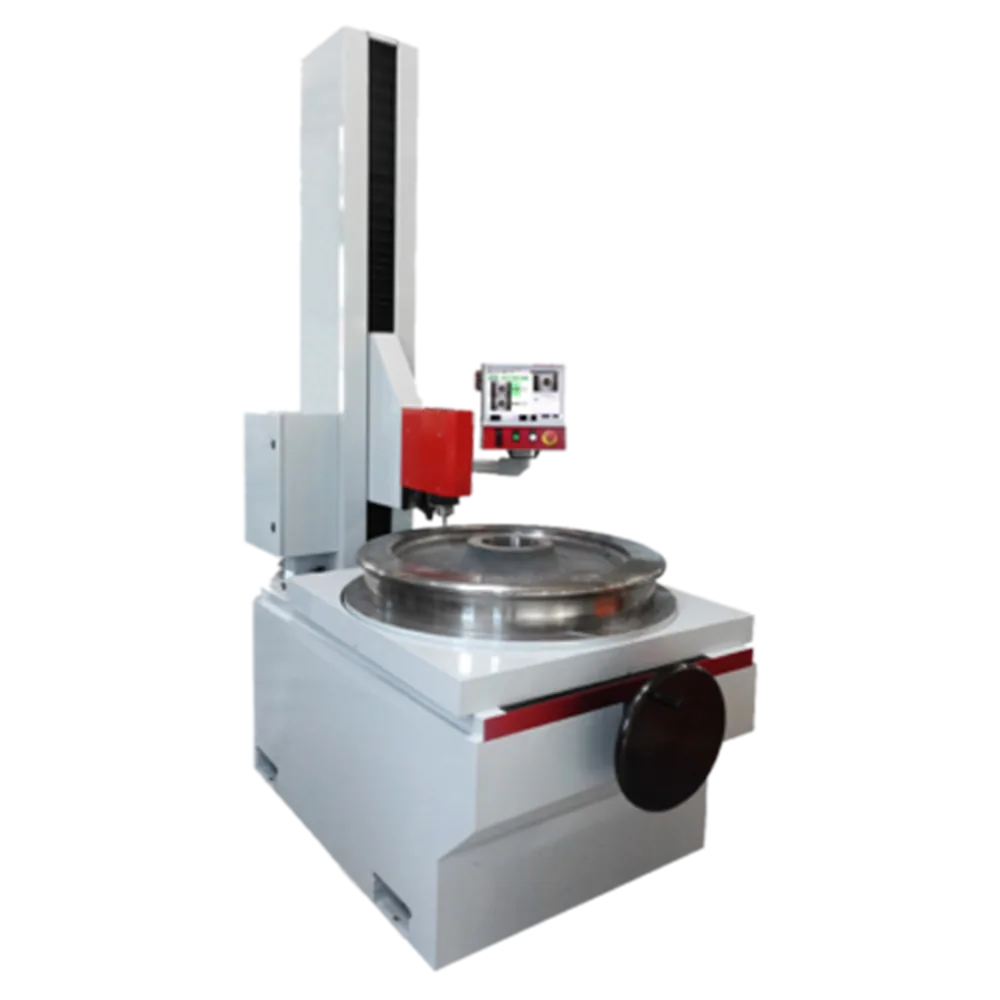

Integral Wheels
Special automatic Brinell hardness tester for wheels with motor-driven rotating and sliding table for easy loading.

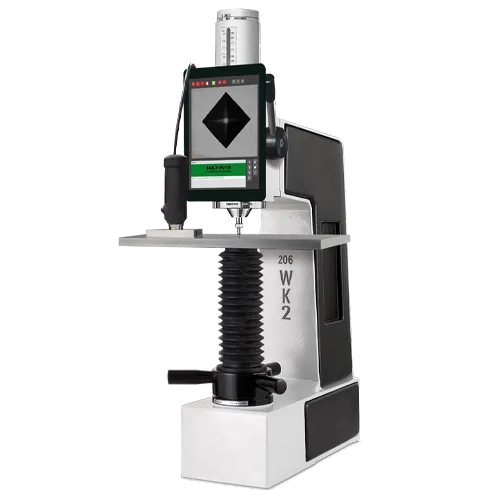

WK Series
Hardness testers with built-in probe and microscope for automatic measurements across Rockwell, Brinell HBWT and Vickers indentation.

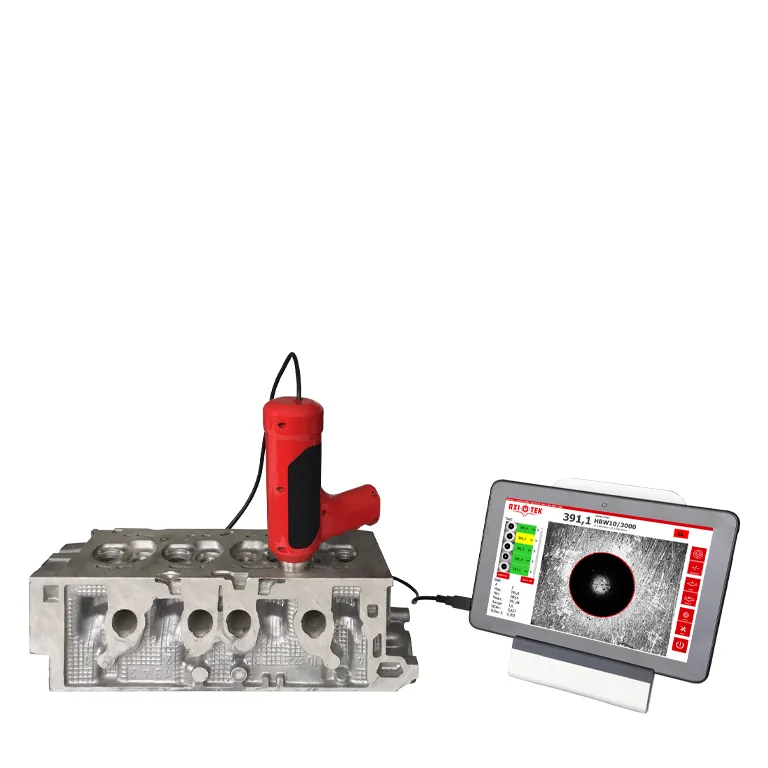

BK30 Brinell Scope
Portable Brinell microscope for automatic measurement of ball indentations of Ø 2.5, 5 or 10 mm made by a separate Brinell tester.
Vickers
Vickers & Micro-Vickers
8 ProductsMicro and macro Vickers and Knoop testers, CHD testing and automatic reading software.
ATI Software Kit
Software and camera upgrade that automates indentation reading on existing Vickers hardness testers, with Knoop and Brinell measurement and metallographic analysis modules.

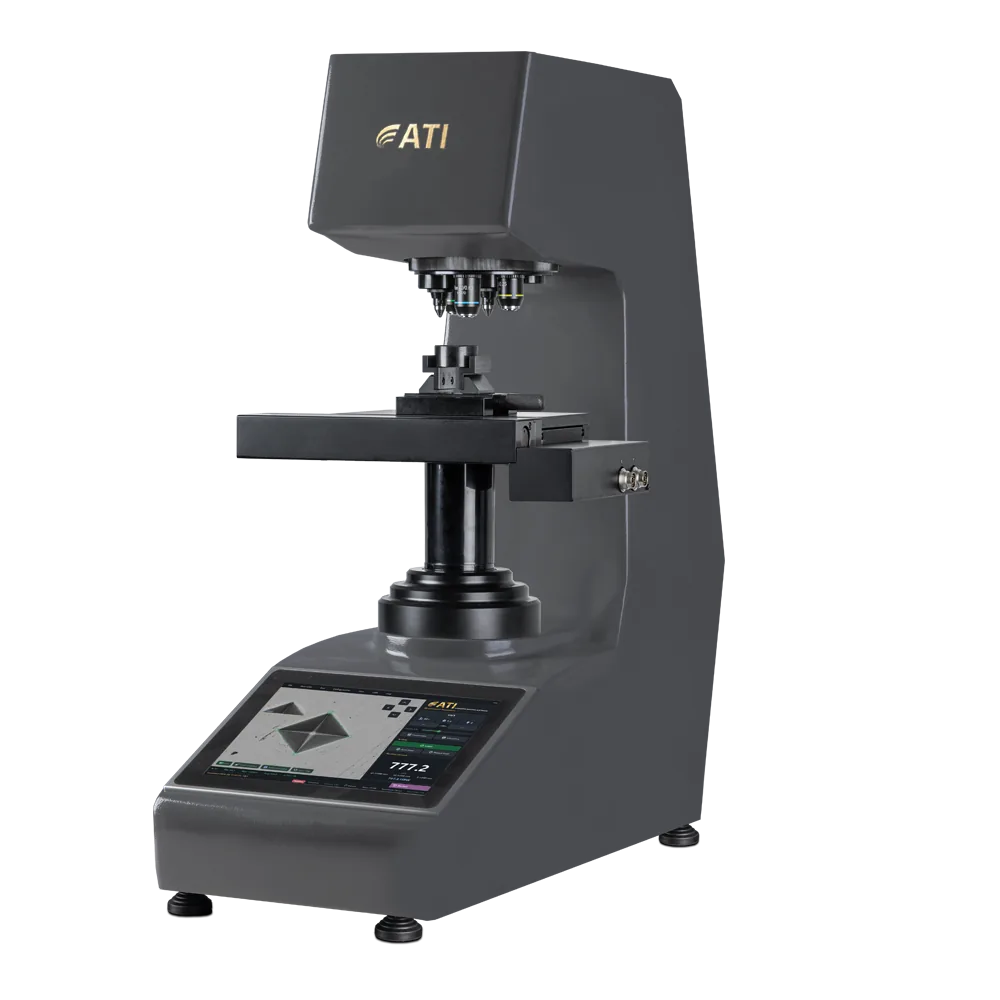

ATI V-AUTO
Automatic Vickers, micro-Vickers and Knoop hardness tester with closed-loop load cell, multi-position turret and CNC automation.

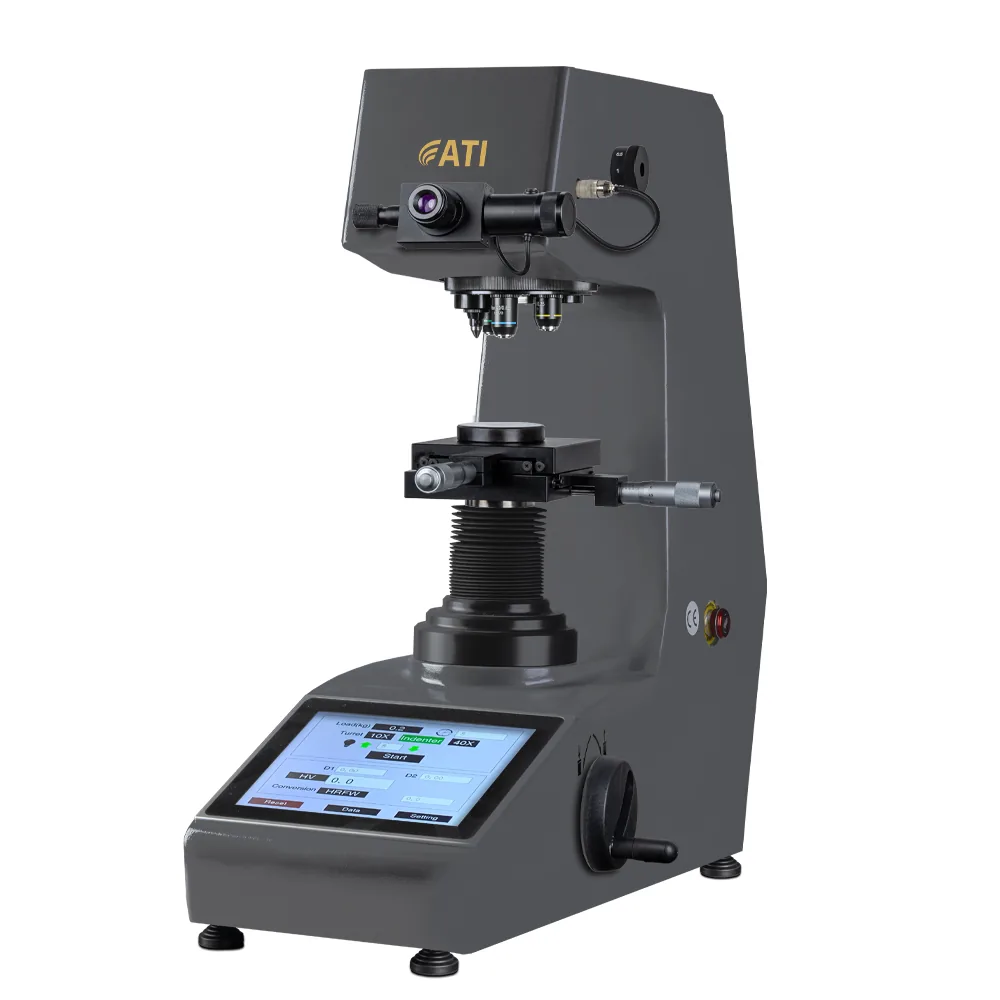

ATI DM2
Compact micro-Vickers hardness tester with automatic turret, automatic test cycle and direct digital measurement, 10 to 1000 gf.

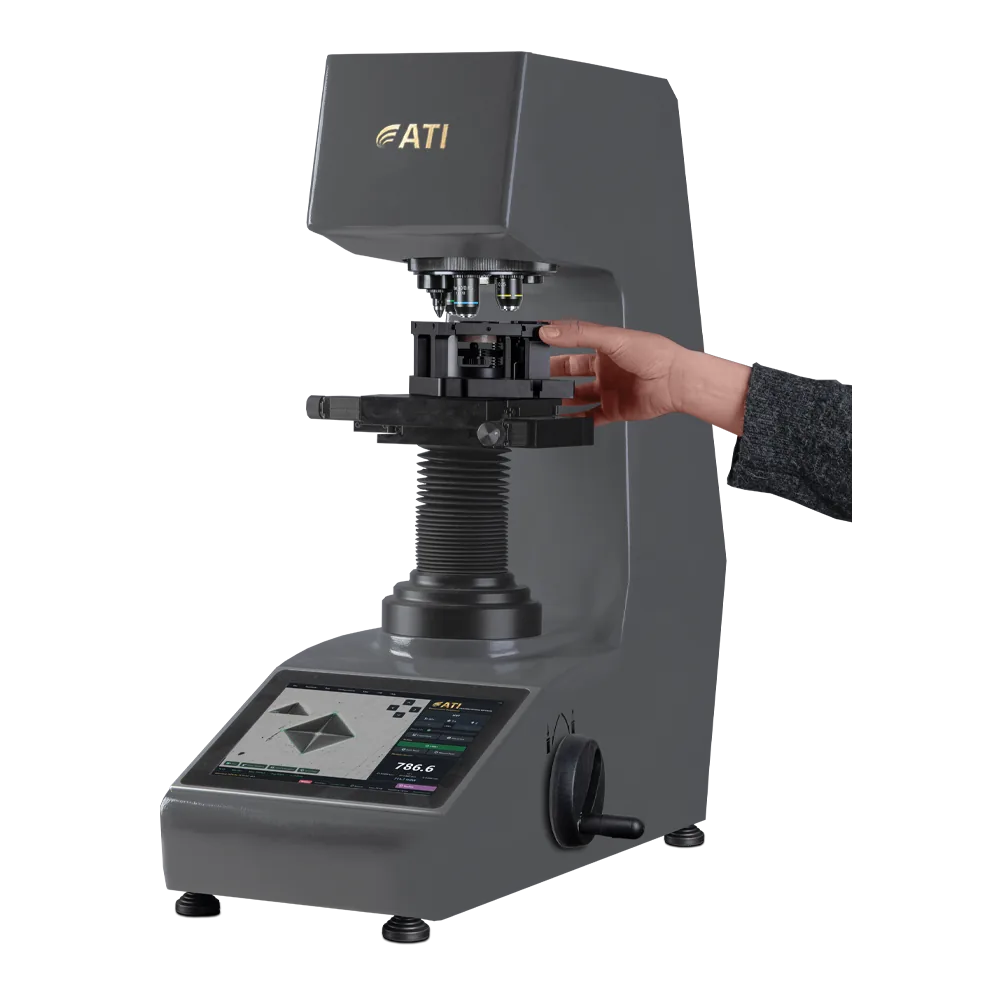

ATI V
Automatic Vickers and micro-Vickers hardness tester with manual X-Y table, 5-position auto-turret and built-in image viewing.

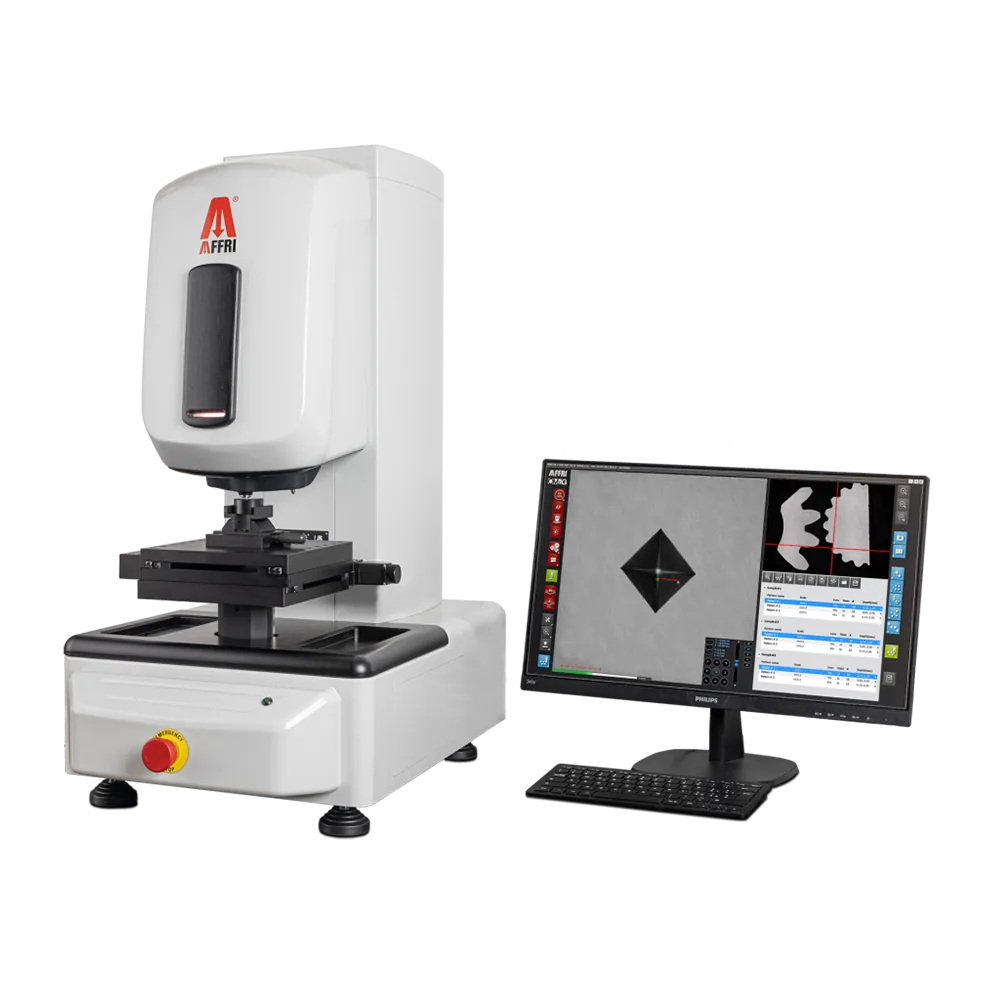

WIKI 90 CNC
CNC micro-hardness tester for micro and macro Vickers and Knoop with camera auto-reading, motorised turret and multi-test sequences.

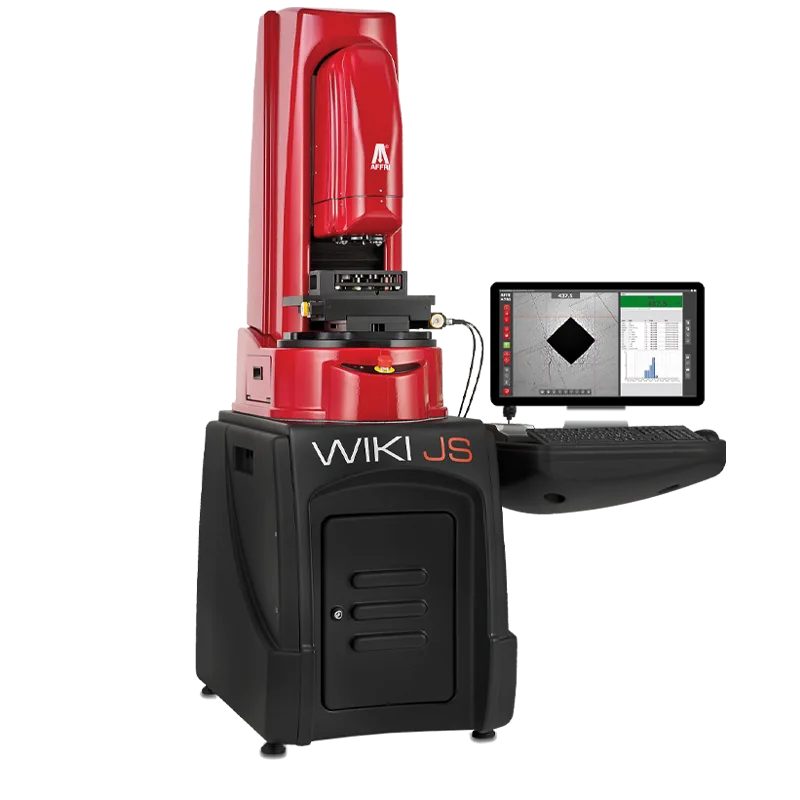

WIKI 200 JS
Fully automatic, motorised Vickers hardness tester for micro and macro Vickers and Knoop, including automatic CHD traverses and weld testing.

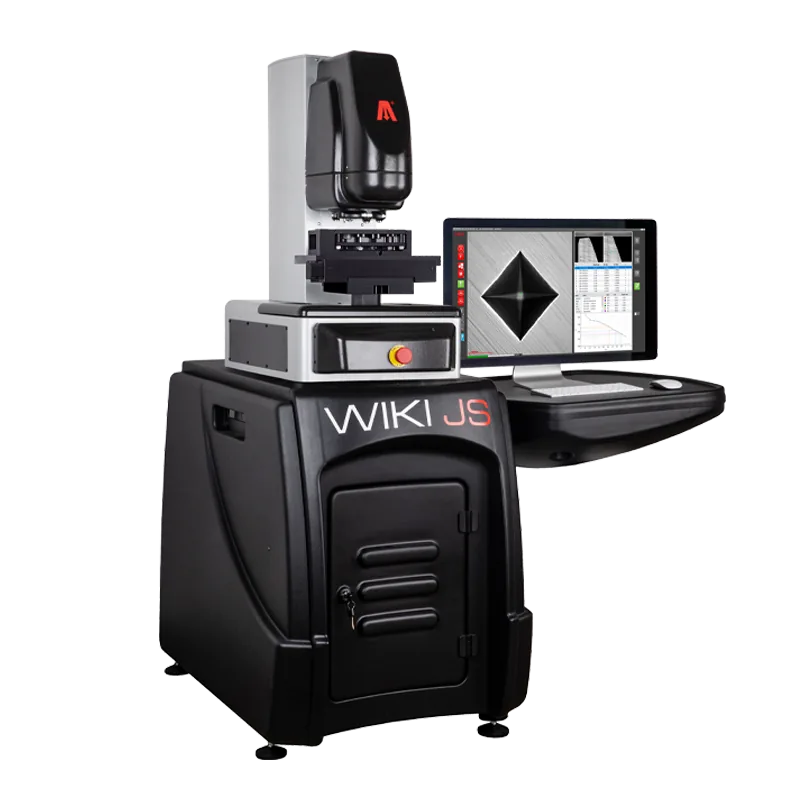

WIKI 90 JS
Micro-hardness tester with load-cell technology, HD camera auto-reading and 6-position motorised turret for simple, semi or automatic testing.

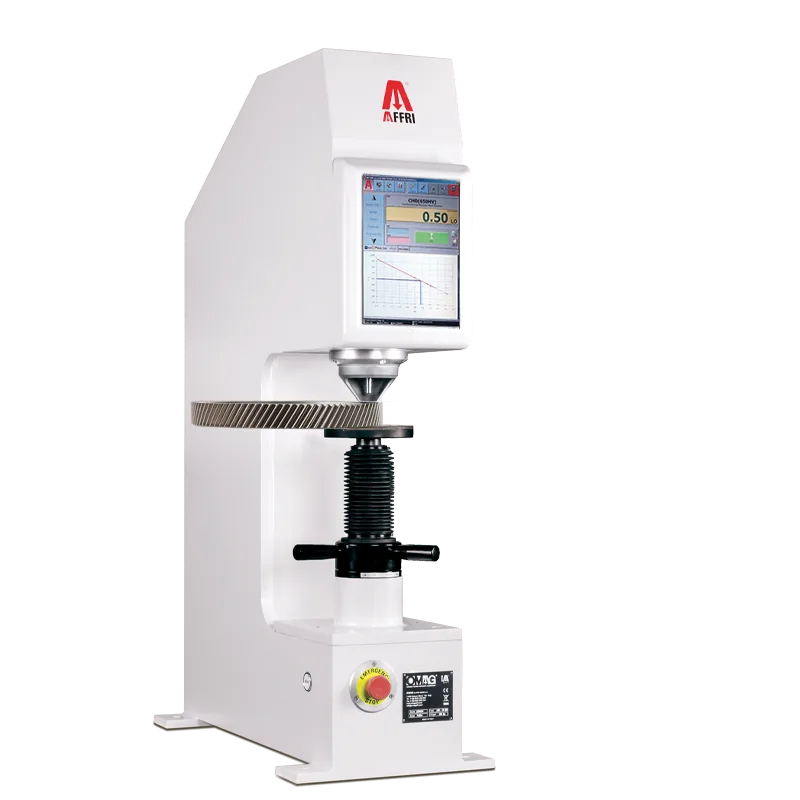

LD3000AF
Special automatic hardness tester from 10 to 3000 kgf that evaluates case hardness depth (CHD) in minutes without cutting the sample, using AFFRI's HDTL method.
Portable
Portable Hardness Testers
5 ProductsMagnetic-base, load-cell and UCI instruments plus portable Brinell indentation scopes.
RSD MAG
Portable depth-measuring hardness tester with magnetic base for Rockwell, Superficial Rockwell and Brinell HBWT on large parts in any position.
BK30 Brinell Scope
Portable Brinell microscope for automatic measurement of ball indentations of Ø 2.5, 5 or 10 mm made by a separate Brinell tester.

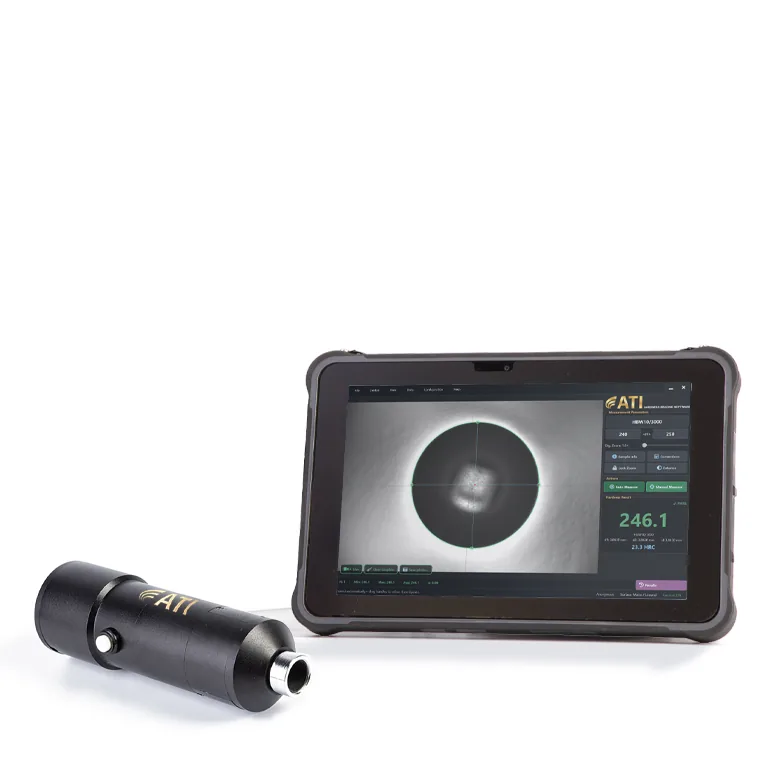

ATI BR Brinell Measuring Scope
Pocket-size digital microscope with rugged tablet and software for automatic reading of Brinell and Vickers indentations on site or in the lab.

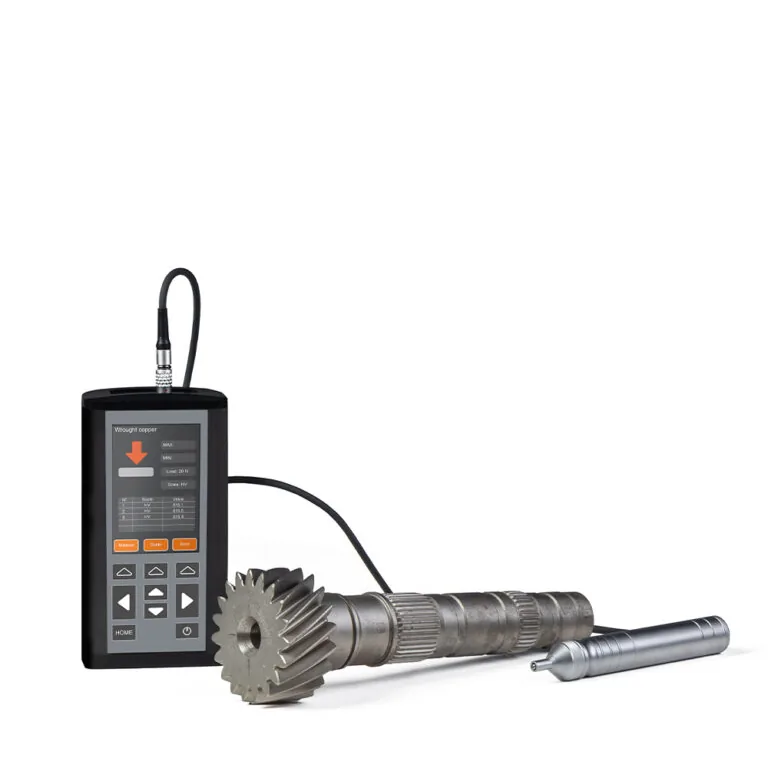

ATI ULTRA
Portable ultrasonic contact impedance (UCI) hardness tester with a 136° Vickers diamond and selectable probe loads, for fast checks on finished parts.

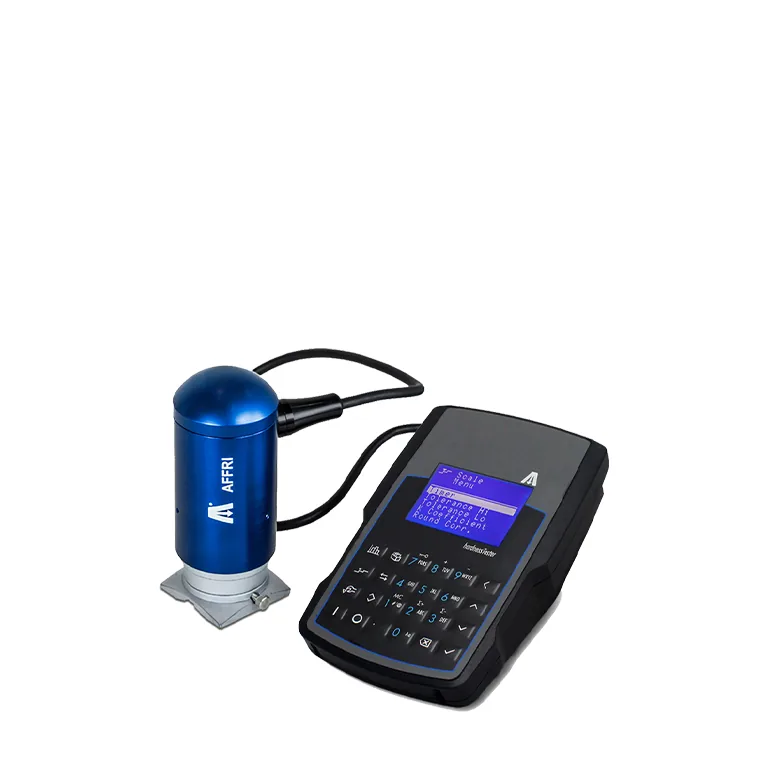

MKII / METALTEST
Small portable hardness tester with dynamometric load cell, operable in any position, for tubes, profiles, valves and thin layers from 0.06 mm.
Why EMUS represents AFFRI Testing Instruments
Choosing a hardness tester starts with the part, the material and the standard — not the scale on the display. EMUS helps laboratories and manufacturers in the Balkan region match the AFFRI method, force range, clearance and automation level to their components, and makes clear where a portable instrument measures directly and where it converts.
- Rockwell and Superficial Rockwell from manual to fully automatic.
- Brinell up to 3000 kgf with camera reading and milling preparation.
- Vickers, micro-Vickers and Knoop with automatic indentation reading.
- Portable testers with clearly stated measurement principles.
- Separation of standardized methods from converted scales.
