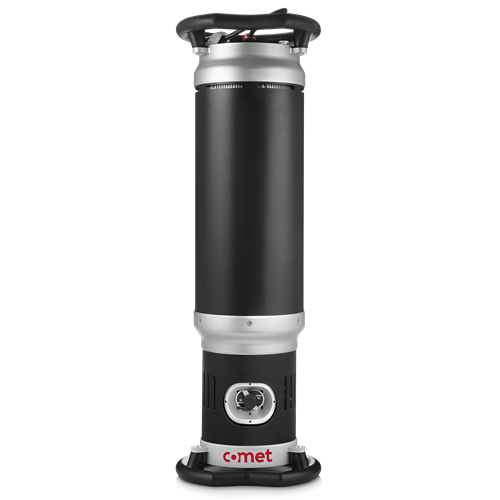

EVO 300D
Heavy-duty portable X-ray system designed and built in Denmark, combining 300 kV and 900 W constant potential X-ray power for high penetration field radiography in dusty and wet conditions.
- Weight
- 29 kg
- High voltage
- 50–300 kV
- Max. X-ray power
- 900 W
- Environment
- IP65
Weight
High voltage
Max. X-ray power
Environment
About theEVO 300D
Designed and built in Denmark, the EVO systems are comprised of the best components and assembled with the utmost care — making them reliable, long lasting and a sound investment. They are fitted with a high quality metal ceramic X-ray tube, and the robust composite casing protects all vital parts even better. The systems meet the IP65 standard, making them fully operational in dusty and wet conditions. The ergonomic design and the low weight of 29 kg make the EVO 300D easy to handle and re-position, while a broad temperature range from -20°C to +50°C ensures smooth operation even in extreme environments. Built to meet the highest international safety standards, each unit is individually tested and measured for safety and accuracy. The EVO 300D features a combination of 300 kV and 900 W constant potential X-ray power for high penetration — making it well suited for all heavy duty field inspection jobs.
What sets theEVO 300D apart
High quality metal ceramic X-ray tube
IP65 — fully operational in dusty and wet conditions
Focal spot size 3.0 mm (EN 12543)
High voltage adjustment 50 – 300 kV
mA adjustment 0.5 – 4.5 mA
Max. X-ray power 900 W constant potential
Beam angle 40° x 60°
High penetration for heavy duty field inspection
Low weight, 29 kg / 774 mm height
Operating temperature -20°C to +50°C
Built-in exposure calculator (CONTROL EVO)
Power supply 85 – 264 VAC, 45 – 65 Hz with power factor correction
EVO 300D specifications
- Weight
- 29 kg
- Height
- 774 mm
- Focal spot size EN 12543
- 3.0 mm
- High voltage adjustment
- 50 - 300 kV
- mA adjustment
- 0.5 - 4.5 mA
- Max. X-ray power
- 900 W
- Beam angle
- 40° x 60°
- Leakage radiation
- Max. 5.0 mSv/h
- Environment
- IP65
- Temperature range
- -20°C to +50°C
- Cont. exposure 35°C, 300 kV / 3.0 mA
- Min. 1 hour
Compliance & safety
- CE — Low voltage EN 61010-1
- EMC 2004/108/EC
- Machinery EN 60204-1
- DIN 54113
- Röntgenverordnung (RöV)
- NFC 74-100
Steel (Fe) exposure chart
Fe exposure diagram — 700 mm FFD / D7-type + Pb / D = 2.0 (minutes)
| mm Fe | 100 kV | 150 kV | 200 kV | 250 kV | 300 kV |
|---|---|---|---|---|---|
| 0 | 1 | 1 | 1 | 1 | 1 |
| 10 | 2 | 1.5 | 1.2 | 1.1 | 1 |
| 20 | 6 | 3 | 2 | 1.5 | 1.2 |
| 30 | 18 | 7 | 4 | 2.5 | 1.8 |
| 40 | 50 | 18 | 9 | 5 | 3 |
| 50 | 100 | 45 | 20 | 10 | 6 |
| 60 | 100 | 100 | 45 | 22 | 12 |
| 70 | 100 | 100 | 100 | 48 | 25 |
Where theEVO 300D is used
- Heavy-duty field radiography
- Field inspection of welds and castings
