18650, 21700,4680 Battery Inspection Machine
Suitable for the detection and packaging of cylindrical lithium batteries such as 18650, 21700 and 4680, the equipment is mainly used for automatic feeding of cylindrical lithium batteries, coding, electrostatic dust removal, appearance detection (positive ele
About the 18650, 21700,4680 Battery Inspection Machine

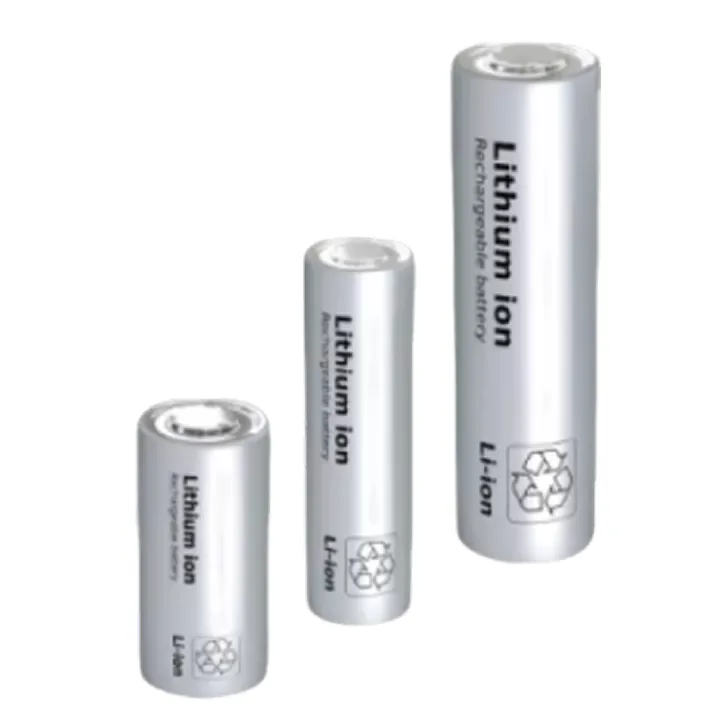

Suitable for the detection and packaging of cylindrical lithium batteries such as 18650, 21700 and 4680, the equipment is mainly used for automatic feeding of cylindrical lithium batteries, coding, electrostatic dust removal, appearance detection (positive electrode，negative electrode, the side shell), battery scanning, automatic packaging, CCD review, carton labeling, bar code binding, automatic packaging and other processes.
Documented functions: defect detection, handling, packaging & line integration, ocv electrical check. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Automatic box packaging of Cylindrical lithium batteryRealize on-line reading, detection and packaging of cylindrical lithium battery
- AOI detection of cylindrical lithium batteryThe self-developed deep learning-based appearance defect detection software is mainly applicable to the surface of cylindrical lithium batteries, such as scratches, nicks, foreign material, pollution, corrosion and other defects detection, to ensure accurate detection of defects.
- Open circuit voltage OCV detection of cylindrical lithium batteryMulti-servo flexible structure, probe self-inspection calibration, to achieve a variety of different specifications of cylindrical lithium battery detection
Technical data
- Inspection Item
- Defects such as indentation, nicks, foreign matter, contamination, corrosion and so on in the polar and raceway surface of lithium battery
- Inspection Range
- Ø 15～30mm, H50~80mm
- Camera Qty
- 8
- Optical resolution
- 0.02mm
- Precision
- 0.1mm
- Speed
- 200PPM
- Voltage
- 220V,50HZ
- Power
- 14KW
- Air Pressure
- 0.5 MPa～0.8MPa
- Size/Weight
- 12000(L)*2500(W)*2000(H)mm/5000Kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Other Features
- 1. Real-time display of detection status and NG quantity alarm; 2. The equipment software has remote technical support function; 3. The packaging line can be extended; 4. The structure is more simple, support one-key transformation; 5. Extensible scanning code system.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
