Pouch Cell AOI & Packaging Line
Designed for appearance defect inspection and packaging of pouch cells, this system integrates multi-spectral lighting, photometric stereo imaging, and AI-based multi-angle analysis to enable full inspection of all six sides of the cell body and the positive/n
About the Pouch Cell AOI & Packaging Line
Designed for appearance defect inspection and packaging of pouch cells, this system integrates multi-spectral lighting, photometric stereo imaging, and AI-based multi-angle analysis to enable full inspection of all six sides of the cell body and the positive/negative tabs.It detects a wide range of defects, including dents and impact damage, foreign particles, pinholes, wrinkling, R-corner damage, indentations, corner cracks, corrosion, scratches, and tape wrinkling on the cell body, as well as tab defects such as short circuits, whitening, wrinkles, breakage, corrosion, contamination, scratches, and pressure marks—providing a stable and reliable solution to key inspection challenges.
Documented functions: defect detection, handling, packaging & line integration, ocv electrical check. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Automatic box packagingRealize on-line reading, detection and packaging of Pouch Cell
- AOI detectionThe self-developed deep learning-based appearance defect detection software is mainly applicable to the surface of Pouch Cell, such as scratches, nicks, foreign material, pollution, corrosion and other defects detection, to ensure accurate detection of defects.
- Open circuit voltage OCV detectionMulti-servo flexible structure, probe self-inspection calibration, to achieve a variety of different specifications of Pouch Cell detection
Technical data
- Inspection Item
- Detects surface defects on cells, including scratches, bumps, corrosion, wrinkles, corner deformation, and contamination.
- Inspection Range
- Pouch lithium-ion batteries
- Miss Rate
- No missed critical defects；Minor defects＜0.01%.
- Optical resolution
- 0.02mm
- Precision
- 0.1mm
- Speed
- 20-25PPM
- Voltage
- AC380/50HZ
- Power
- 6KW
- Air Pressure
- 0.5 MPa～0.7MPa
- Size/Weight
- 5000(L)*2800(W)*2500(H)
- Loading & Unloading
- Loading via sorting trays or pallet carts; compatible with robot- or module-based systems.
- Other Features
- 1、Real-time display of inspection status with defective product alarms； 2、Remote support capability via device software； 3、Simple structure with one-click changeover； 4、Expandable for integration with downstream packaging lines； 5、Scalable to connect with automated palletizing systems.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

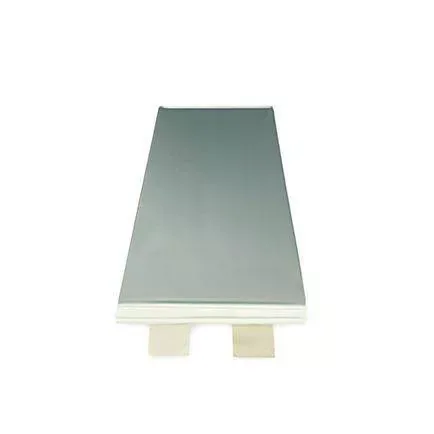

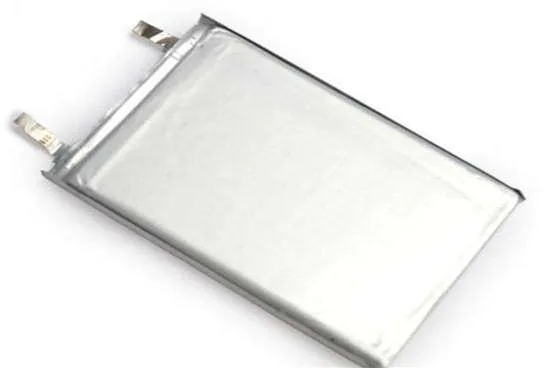

Product imagery
