Square Battery Case AOI Machine
This equipment is based on on actual production needs and previous and subsequent processes, including size inspection, data scanning and binding, and online appearance inspection.
About the Square Battery Case AOI Machine
This equipment is based on on actual production needs and previous and subsequent processes, including size inspection, data scanning and binding, and online appearance inspection. Three inspection units automatically sort non-conforming products while conducting testing, and optimize the previous process based on the size, barcode, appearance inspection, and quality data of the square battery shell. Finally, data can be reported and sent to the cloud for storage and visualization to assist customers in quality management.
Documented functions: defect detection, dimensional measurement, classification & sorting. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- R&D SoftwareRealizing the detection of defects such as indentations, scratches, foreign objects, pollution, corrosion, etc. Combined with Al deep learning technology to improve detection accuracy
- Hardware DesignCustomized optical mechanical and electrical system design, realize loading and unloading and circulation mechanism system workflow control, which helps to provide one-stop solution for factories
- Lower CostFull automatic high-speed Inspection line reduces manual misjudgment, and greatly improves the production efficiency and product quality of the factory
Technical data
- Inspection Item
- 1: Large and small surfaces: dirty, scratched, pulled, deformed, black spots, oxidized2: Edges: wrinkled, cracked 3: Outsole: dirty, crushed, deformed4: Inner sole: dirty, crushed, deformed5: Mouth: scratches, burrs, blackening, stains, residual aluminum wire6: Inner wall: dirty, blackened, yellowed, residual aluminum blocks7: Dimensions: measurement of length, width, height, case thickness, mouth size, etc
- Inspection Range

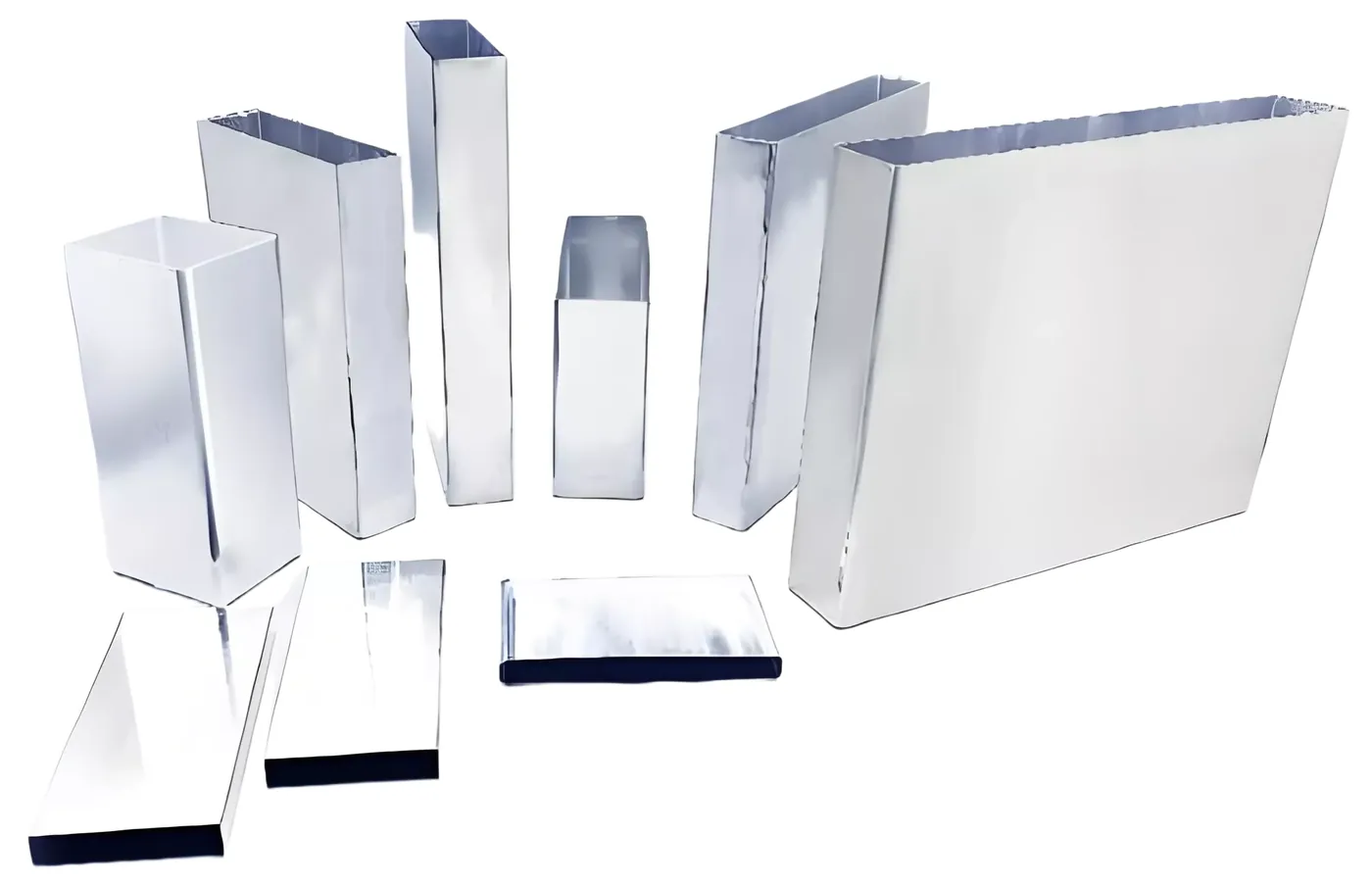

- Square/Short Knife/Half Knife Battery Case
- Missing Rate
- 0%
- Optical Resolution
- 0.02mm
- Precision
- 0.1mm
- Speed
- 15PPM-24PPM
- Voltage
- AC380V、50HZ
- Power
- 5KW
- Air Pressure
- 0.5 MPa～0.6MPa
- Size/Weight
- 3600(L)*1800(W)*2200(H)mm/1000Kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Other Features
- 1. Real-time display of detection status and NG quantity alarm; 2. The equipment software has remote technical support function; 3. The packaging line can be extended; 4. The structure is more simple, support one-key transformation; 5. Extensible scanning code system.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
