Automatic Online Machine Vision Inspection Equipment
Automatic Online Inspection Equipment for Machine Vision is an inspection machine which is used to detect medium-large size workpieces such as powder metallurgy parts, precision ceramic parts, precision stamping, electronic components, auto parts and so on.
About the Automatic Online Machine Vision Inspection Equipment

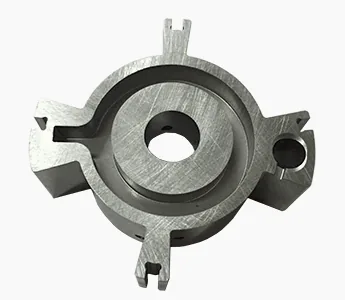

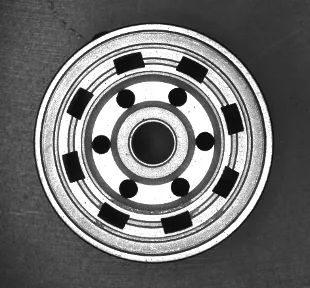

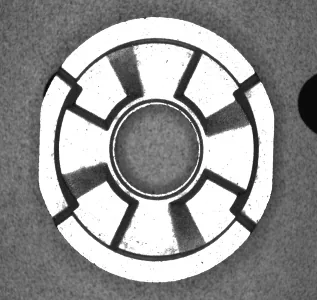

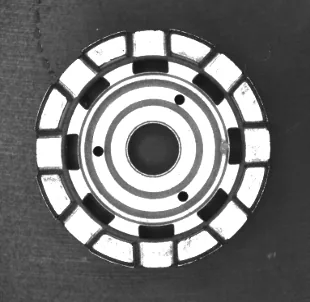

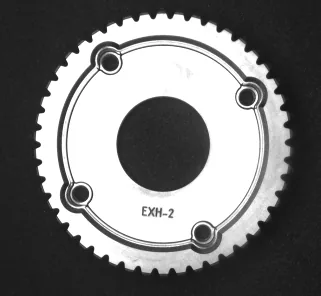

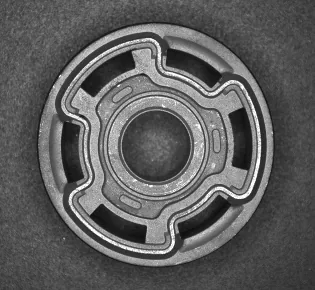

Automatic Online Inspection Equipment for Machine Vision is an inspection machine which is used to detect medium-large size workpieces such as powder metallurgy parts, precision ceramic parts, precision stamping, electronic components, auto parts and so on. Common workpieces like sprockets, stators, rotators, gear ring, clutch pressure plate, planet gear, valve seat and disk are also detectable.
Documented functions: defect detection. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
This is an engineered inspection solution rather than a fixed standard model: feeding, imaging stations and defect standards are configured to the customer’s parts, so performance is agreed per project.
Configurable solution — not a fixed standard model
- Detection of Various WorkpiecesOne equipment can fulfill missing-process detection, mixed-material detection and character identification of various workpieces;
- Auto-alarm for Lacking of MaterialThe equipment is armed with auto-alarm for lacking of material and real-time display of workpiece appearance defects and detection status.
- Excellent Scalability and AdaptabilityWith excellent scalability and adaptability, according to the actual needs of customers, the equipment can extend to duplex or multi-station detection.
Technical data
- Inspection Item
- Lack of material, collapse, pits, scratches, crushing, bump, marking errors,uneven grinding, dislocation, leakage, porous material, scraps, grind, rust, bore size
- Inspection Range
- Ø3-120mm.
- inspection Requirements
- Surface clean, no oil
- Optical Resolution
- 0.05mm
- Mean Time to Failure
- 10,000H
- Speed
- 3600~7200 pcs/h
- Voltage
- 220V,50HZ
- Power
- 1000W
- Air Power
- 0.5 MPa～0.8MPa
- Size/Weight
- 1.2m*0.9m*1.8m / 100kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. Real-time display detection status and the number of NG alarm.2. Device software with remote technical support.
- Extended Application

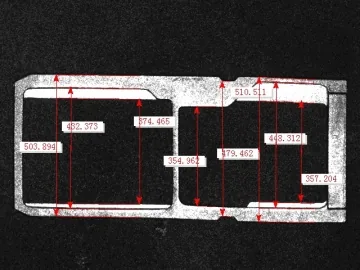

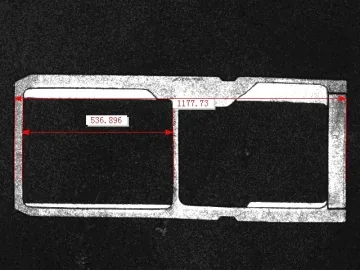

- 1. Check whether there is thread;2. Measurement of SIM card size.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

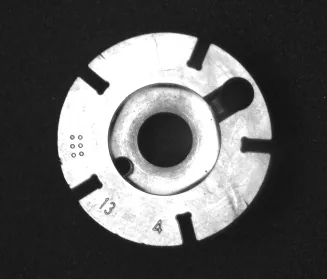

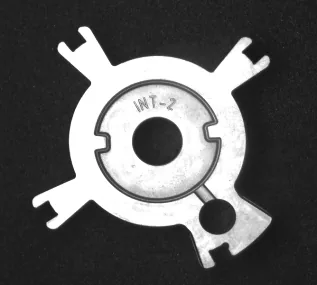

Product imagery
