Big Roller Automatic Optical Inspection Machine
The Automatic Optical Inspection Solution for Big Roller Appearance Defects is a professional machine for inspecting medium and large rollers.
About the Big Roller Automatic Optical Inspection Machine
The Automatic Optical Inspection Solution for Big Roller Appearance Defects is a professional machine for inspecting medium and large rollers. It detects defects on the diameter, dents, chamfer, and both ends. Using robots to handle the rollers prevents secondary damage. It inspects up to 2,000 pcs/h and can run continuously 24/7 in various conditions. Advanced technology enables multiple inspection functions, and a user-friendly interface makes operation easier for operators.
Documented functions: defect detection, handling, packaging & line integration. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- 360-degree Inspection with No Blind SpotsIt achieves 360 degree comprehensive detection.
- Strong Data SupportThe inspection data turns more accurate with a database collecting defects of hundreds of millions of rollers. The inspection technology has reached a world-leading level.
- Multi-model ConfigurationOne machine can enable to detect wide size range of rollers, equipped with multi-model configuration and one-click change function.
Technical data
- Inspection Item

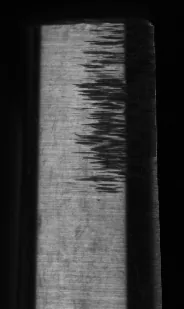

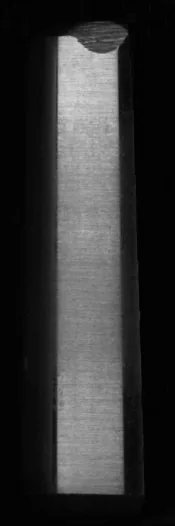

- OD defects — Less Grinded, Grinding Marks, Excess Grinding, Smashed, Rust, Scratch, Crack and etc.
- Inspection Item
- End Face defects — Grinding Mark, Dent, Dimple, Spots, etc.
- Inspection Range
- Ø 20~80mm
- Inspection Requirements
- Clean surface, no oil stains
- Inspection Speed
- 900-2000pcs/h
- Mean Time Between Failure
- 10,000H
- Optical Resolution
- 0.05mm
- Voltage
- 220V,50HZ
- Power
- 6200W
- Air Pressure
- 0.5～0.8MPa
- Size/Weight
- 1.5m*1.7 m*2.2 m / 1500kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. The device displays the detection status and defect count in real time. 2. The device software includes remote technical support capabilities.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
