XL Roller Automatic Optical Inspection Machine
The Automatic Optical Inspection Machine for XL Roller Appearance Defects is a professional system for inspecting XL rollers.
About the XL Roller Automatic Optical Inspection Machine
The Automatic Optical Inspection Machine for XL Roller Appearance Defects is a professional system for inspecting XL rollers. It detects defects on the diameter, dents, chamfer, and both ends. Using robots to handle the rollers prevents secondary damage. It inspects at a speed of 30~60s/pc and can run continuously 24/7 in various conditions. Advanced technology supports multiple inspection functions, and a user-friendly interface makes operation easier for workers.
Documented functions: defect detection, handling, packaging & line integration. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Multi-model ConfigurationChamfer detection, dent detection, multi-model configuration and other new functions are added.
- Flexible ConnectionFlexible connection can avoid secondary damage and the equipment can operate 7*24 hours uninterrupted in various circumstance.
- 360-degree Inspection without Dead AngleIt successfully breaks the dilemma between inspection angle and speed and realizing 360-degree inspection.
Technical data
- Inspection Item

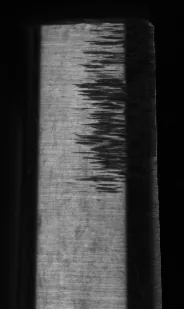

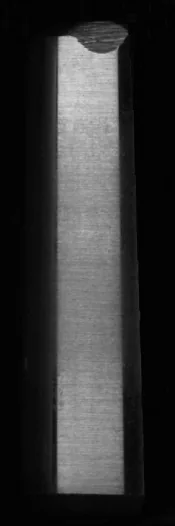

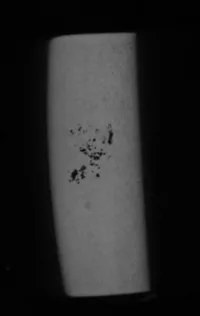

- OD defects — Less Grinded, Grinding Marks, Excess Grinding, Smashed, Rust, Scratch, Crack and etc.
- Inspection Item
- End Face defects — Grinding Mark, Dent, Dimple, Spots, etc.
- Inspection Range
- Ø 40~190mm, H 40~320mm
- Inspection Requirements
- Surface clean, no oil
- Speed
- 30-60 second/Pcs
- Mean Time Between Failure
- 10,000H
- Optical Resolution
- 0.03mm
- Voltage
- 220V,50HZ
- Power
- 6200W
- Air Pressure
- 0.5～0.8MPa
- Size/Weight
- 2m*1.4m*2.5m/1500kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. Real-time display detection status and the number of NG alarm. 2. The device software has long-range technical support function.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
