Spherical Roller Automatic Optical Inspection Machine

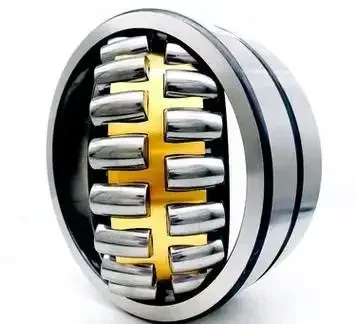

The Automatic Optical Inspection Machine for Spherical Roller Appearance Defects is a professional system for inspecting SRB rollers.
About the Spherical Roller Automatic Optical Inspection Machine
The Automatic Optical Inspection Machine for Spherical Roller Appearance Defects is a professional system for inspecting SRB rollers. It solves the challenge between inspection angle and speed, enabling full 360-degree detection.
Documented functions: defect detection. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Multi-model ConfigurationChamfer detection, dent detection, multi-model configuration and other new functions are added.
- Flexible ConnectionFlexible connection can avoid secondary damage and the equipment can operate 7*24 hours uninterrupted in various circumstance.
- 360-degree Inspection with No Blind SpotsIt successfully breaks the dilemma between inspection angle and speed and realizing 360-degree inspection.
Technical data
- Inspection Item

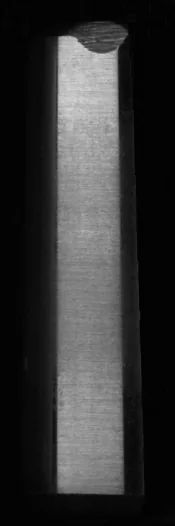

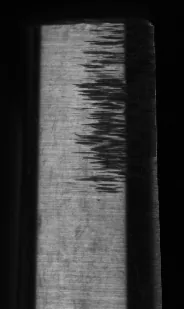

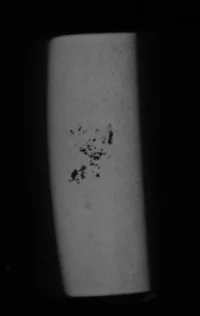

- OD defects — Less Grinded, Grinding Marks, Excess Grinding, Smashed, Rust, Scratch, Crack and etc.
- Inspection Item
- End Face defects — Grinding Mark, Dent, Dimple, Spots, etc.
- Inspection Range
- Ø 12~60mm，L 12~80mm（Grading Detection）
- Inspection Requirements
- Clean surface, no oil stains
- Inspection Speed
- 900~1,800pcs/h
- Mean Time Between Failure
- 10,000H
- Optical Resolution
- 0.05mm
- Precision
- 0.3mm
- Voltage
- 220V,50HZ
- Air Pressure
- 0.5～0.8MPa
- Power
- 2000W
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. The device displays the detection status and defect count in real time. 2. The device software includes remote technical support capabilities.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
Product imagery

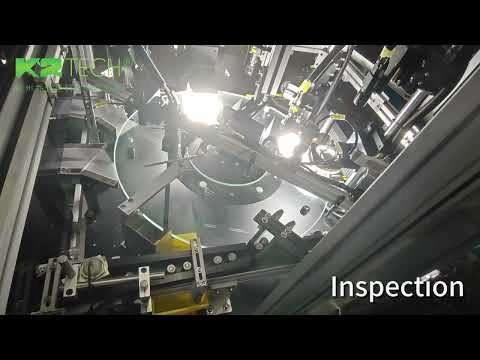

Official product videos
