Needle Roller Automatic Optical Inspection Machine

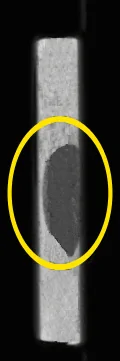

The optical automatic detection equipment inspects 360° appearance defects on bearing needle rollers, such as grinding marks, rust, collapsed surfaces, and knife-like marks.
About the Needle Roller Automatic Optical Inspection Machine
The optical automatic detection equipment inspects 360° appearance defects on bearing needle rollers, such as grinding marks, rust, collapsed surfaces, and knife-like marks. Detection speed reaches 60,000 pcs/h, and the system supports high-speed wired appearance inspection. It integrates dimension measurement and out-of-tolerance sorting to effectively remove parts that don't meet length standards.
Documented functions: defect detection, dimensional measurement. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Applied in Multiple ScenesThe equipment can also be applied in valve catheter, cylindrical pin and other appearance defect inspection industries.
- 360-degree Inspection with No Blind Spots.The equipment solves some difficult pain points in manual inspection such as error detection and missing detection.
- Lower CostThe customers will gain benefits of lower labor costs, higher quality of inspection and stronger market competitiveness of products.
Technical data
- Inspection Item

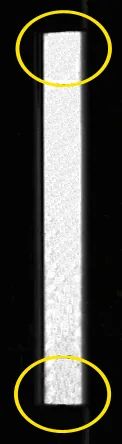

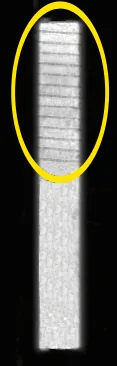

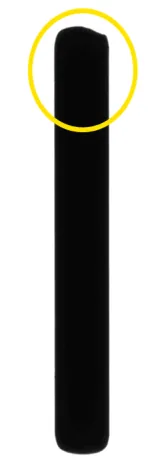

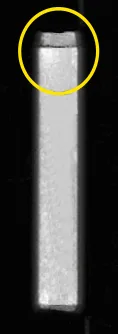

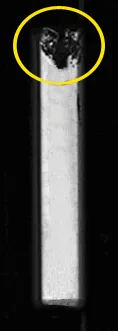

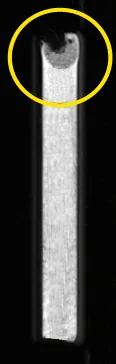

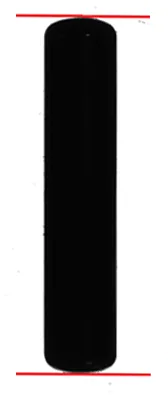

- Grinding marks on raceway, marks like knives, rusty spots, short shots,flat end, over-grinding, crack, length measurement, out of roundness measurement
- Inspection Range
- Φ 2-4mm，L 5-30mm
- Inspection Speed
- 5-10m/min
- Precision
- 0.2mm
- Optical Resolution
- 0.03mm
- Mean Time to Failure
- 10,000H
- Power
- 1000W
- Voltage
- 220V,50HZ
- Size/Weight
- 1.6m*0.6m*1.7m / 300Kg
- Air Pressure
- 0.5MPa～0.8MPa
- Working Environment
- 5℃-30℃；Humidity<70%
- Applications

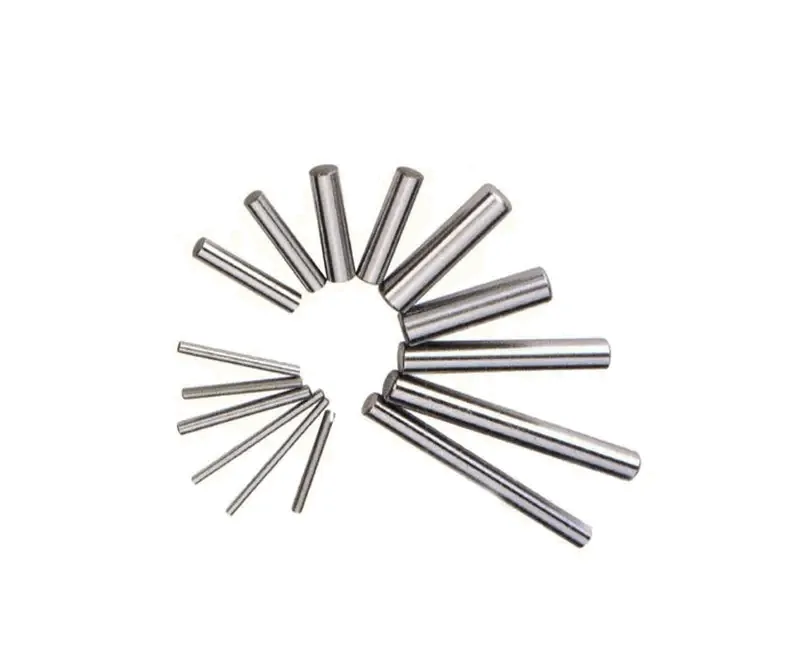

- This equipment is designed to handle and perform complete inspection on needle rollers of varying dimensions.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
Product imagery
Official product videos
Brochures, datasheets & catalogues
AOI machines for bearings — catalogue (2024-11)
PDF · Catalogue
AOI machine for needle roller appearance defects — brochure
PDF · Brochure
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
K2 TECH
TheNeedle Roller Automatic Optical Inspection Machine is part of the K2 TECH portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theNeedle Roller Automatic Optical Inspection Machine, your parts and tolerances, and the configuration that fits your inspection workflow.
