Cylindrical Battery Case AOI Machine
This equipment is based on actual production needs and previous and subsequent processes, including size inspection, data scanning and binding, and online appearance inspection.
About the Cylindrical Battery Case AOI Machine
This equipment is based on actual production needs and previous and subsequent processes, including size inspection, data scanning and binding, and online appearance inspection. Three inspection units automatically sort non-conforming products while conducting testing, and optimize the previous process based on the size, barcode, appearance inspection, and quality data of cylindrical lithium batteries. Finally, data can be reported and sent to the cloud for storage and visualization to assist customers in quality management.
Documented functions: defect detection, dimensional measurement, classification & sorting. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Intelligent Detection SystemHigh-precision detection capability can identify micron-level defects and supports high-speed production line inspection, ensuring real-time image processing for rapid detection cycles.
- Automated SortingIntegrated with PLC to automatically reject defective products.
- Data Management & TraceabilityDisplaying real-time detection status, alarm alerts, and historical data queries.
Technical data
- Inspection Item
- Appearance defects such as deformation and collision of cylindrical surface/mouth, indentation, foreign objects, pollution, and damage
- Inspection Range
- 4680/4695/46120 Battery Case
- Missing Rate
- 0%
- Optical Resolution
- 0.02mm
- Precision
- 0.1mm
- Speed
- ≥60PPM
- Voltage
- AC380V、50HZ
- Power
- 20KW
- Air Pressure
- 0.5 MPa～0.6MPa
- Size/Weight
- 11000(L)*3000(W)*2200(H)mm/5000Kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Other Features
- 1. Real-time display of detection status and NG quantity alarm; 2. The equipment software has remote technical support function; 3. The packaging line can be extended; 4. The structure is more simple, support one-key transformation; 5. Extensible scanning code system.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

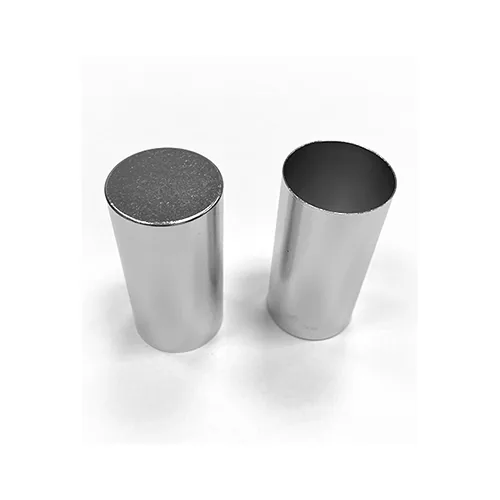

Product imagery
