Gear Appearance Automatic Optical Inspection Machine
Automatic Optical Inspection Machine for Gear Appearance Defects is especially used for inspecting gears, whose diameter is 10mm~30mm, such as small gears, helical gear and so on.
About the Gear Appearance Automatic Optical Inspection Machine
Automatic Optical Inspection Machine for Gear Appearance Defects is especially used for inspecting gears, whose diameter is 10mm~30mm, such as small gears, helical gear and so on. It not only can detect appearance defects but also measure size. The machine is with high automation and reliable performance, which approved by customers' years of use.
Documented functions: defect detection, dimensional measurement. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- High Inspection EfficiencyWith high efficiency, the maximum speed can be up to 4,000 pcs/h;
- Easy to OperateThe equipment is easy to operate. Operators only need to place undetected gears into the vibrating disk, then the system will sort automatically. What’s more, adding a storage bin to contain mass materials is feasible on the basis of customers’ requirements.
- Intelligent FeedingThe feeding of material is intelligent. When lacking of material in the vibrating disk, the storage bin will automatically reduce the feeding frequency to prevent secondary damage. Besides, warning function enables to display monitoring status and the quantity of rejects.
Technical data
- Inspection Item
- Cracks, chipping, missing teeth, burrs, sticky powder, size measurement and so on
- Inspection Range
- Ø 10~30mm , H 5~15mm
- inspection requirements
- Surface clean, no oil
- Optical Resolution
- 0.05mm
- Mean Time to Failure
- 10,000H
- Speed
- 2000-4000 Pcs/h
- Voltage
- 220V, 50HZ
- Power
- 1,000W
- Air Power
- 0.5MPa～0.8MPa
- Size/Weight
- 1.2m*0.8m*1.7m / 150kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Features
- 1. Real-time display detection status and the number of NG alarm; 2. Support for remote debugging.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.
Product imagery

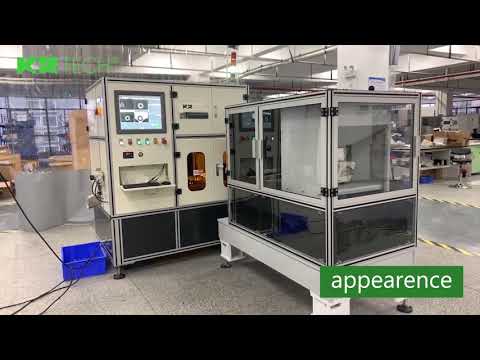

Official product videos
