VVT/VCT Parts Automatic Optical Inspection Machine
Automatic Optical Inspection Machine for VVT/VCT Parts Appearance Defects is used to detect VVT/VCT parts whose diameter is 65mm~110mm, such as sprockets, stators, rotators, cover plates, cam connectors, target wheels and so on.
About the VVT/VCT Parts Automatic Optical Inspection Machine
Automatic Optical Inspection Machine for VVT/VCT Parts Appearance Defects is used to detect VVT/VCT parts whose diameter is 65mm~110mm, such as sprockets, stators, rotators, cover plates, cam connectors, target wheels and so on. It can inspect defects including chipping, crack and fissure, characters or marks recognition, procedure missing.
Documented functions: defect detection. Defect types, inspection ranges, speeds and optical resolution in the specification table are quoted from K2 TECH; optical resolution describes the imaging system and is not a measurement accuracy unless stated as such.
Final detection capability depends on part condition, presentation, cycle time and the agreed defect catalogue; EMUS validates these with K2 TECH using sample parts before quotation.
- Excellent Mechanical DesignExcellent mechanical design can not only avoid the secondary damage of the workpiece, but also complete imaging with different angles. It uses high-precision line scan camera to ensure the effect of outer and lateral inspection;
- High Inspection SpeedThe machine is designed with high inspection speed and precision and stable inspection performance. And it can realize 7*24 hours uninterrupted operation;
- Perfect Data Statistics FunctionData statistics function can display the real-time inspection quantity of defects, which contributes to finding problems for manufacturers and lowering the rate of complaints.
Technical data
- Inspection Item
- Detectable defects include: upper and lower face and side teeth defects; collapse, bump, cracks; character or mark identification, leakage processing
- Inspection Item
- Ø 65~110mm， H 15~30mm
- Inspection Requirements
- Surface clean, no oil
- Precision
- Collapse, missing teeth: 0.3mmCrack: 0.1 * 1 mm
- Optical Resolution
- 0.05mm
- Mean Time to Failure
- 10,000H
- Speed
- 600~900pcs/h
- Voltage
- 220V, 50HZ
- Power
- 2,000W
- Air Power
- 0.5MPa～0.8MPa
- Size/Weight
- 1.2m*1.2m*1.8m / 450kg
- Working Environment
- 5℃-30℃；Humidity<70%
- Main Function
- 1. Real-time display detection status and the number of NG alarm. 2. The device has the number of detection statistics, defect type statistics, test data can be derived. 3. The software has long-range technical support functions.
Data from official K2 TECH product information. Final configuration is confirmed in the EMUS quotation.

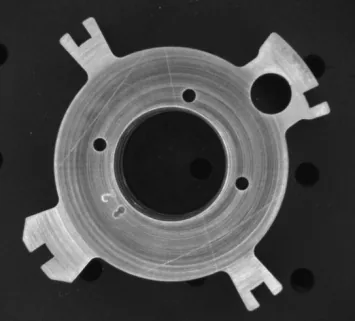

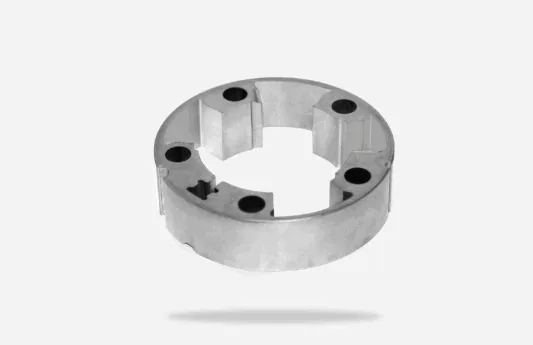

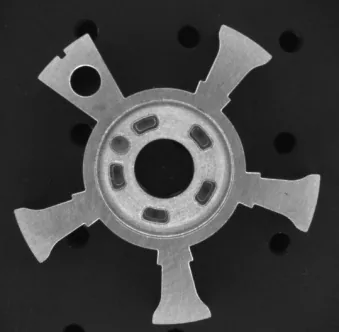

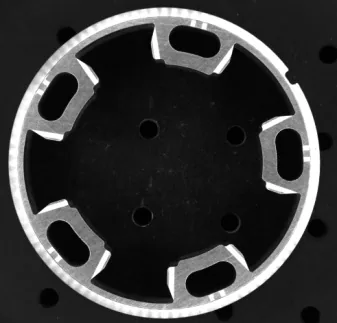

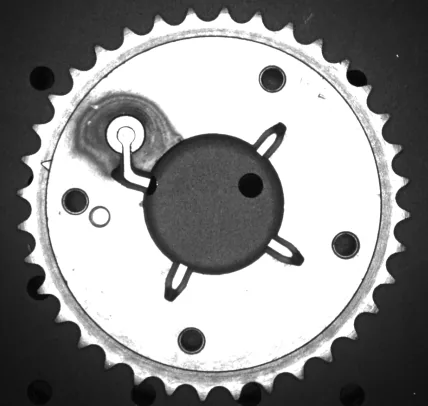

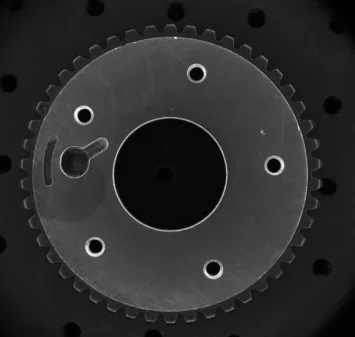

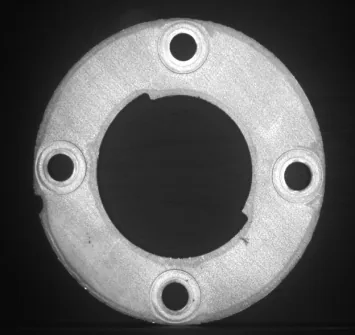

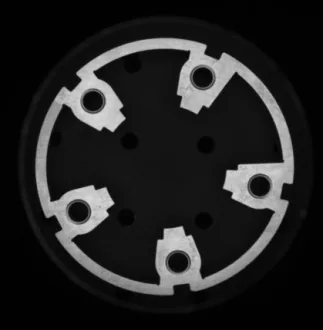

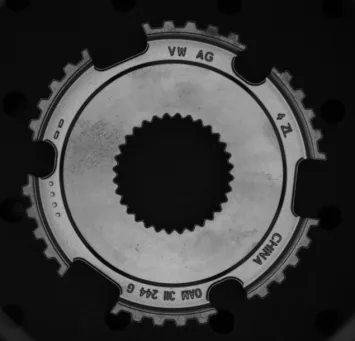

Product imagery
