AVR200 CNC Vision System
Model: AVR200 / AVR200 FOV
Benchtop CNC vision system for parts up to 8" (200 mm), with zoom or telecentric (FOV) optics.
About the AVR200 CNC Vision System
The AVR200 is a CNC automatic vision metrology system for repetitive measurement and automatic comparison to CAD files, measuring parts up to 8" (200 mm) long. It is offered with dedicated zoom optics (AVR200) or interchangeable telecentric lenses for field-of-view measurement (AVR200 FOV), with a maximum FOV of 0.93" (24 mm). MetLogix™ M3 shows the live part image with geometry tools on a touchscreen and supports 3-axis measurement, 2D constructs and touch-probe use.
Configurations on this page
AVR200
Dedicated 6.5:1 or 12:1 CNC zoom optics; bayonet lenses for the 6.5:1 manual zoom; 0.5x, 1.5x, 2.0x auxiliary lenses.
AVR200 FOV
Quick-change bayonet or fixed mount for telecentric optics: 0.30x, 0.50x, 0.80x, 1.0x, 2.0x, 4.0x.
- Z travel: 8" (200 mm)
- Full CNC X-Y-Z or motorized manual positioning with joystick pendant
- MetLogix™ M3 metrology software with video edge detection
- FOV measurement integrated with stage motion
- Renishaw scales, 4 µin (0.1 µm) on X, Y, Z (select models)
- Color digital camera; collimated LED sub-stage and LED ring light
- Granite base; touch-probe compatible
Technical data
- Max. part length
- 8" (200 mm)
- Z travel
- 8" (200 mm)
- Max. field of view
- 0.93" (24 mm)
- Scale resolution
- 4 µin (0.1 µm), select models
- AVR200
- Dedicated 6.5:1 or 12:1 CNC zoom; 0.5x, 1.5x, 2.0x auxiliary lenses
- AVR200 FOV
- Telecentric 0.30x, 0.50x, 0.80x, 1.0x, 2.0x, 4.0x
- Net weight
- 145 lb (66 kg)
- Shipping weight
- 250 lb (115 kg)
- Shipping dimensions
- 34" x 20.5" x 27" (86 x 52 x 69 cm)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Programmable darkfield quadrant LED illumination (zoom optics)
- Renishaw touch probe kit
- 2 or 4 bay touch probe change rack
- DXF/FOV option for automatic comparison to CAD files
- Modular system workstation
- Calibration standards
- Part fixtures and work-holding devices
- Thread measurement software module
- CNC rotary axis fixture
Where the AVR200 CNC Vision System is used
- Repetitive CNC measurement of production parts
- Automatic comparison to DXF CAD files
- First-article inspection
- Medical and precision component QC

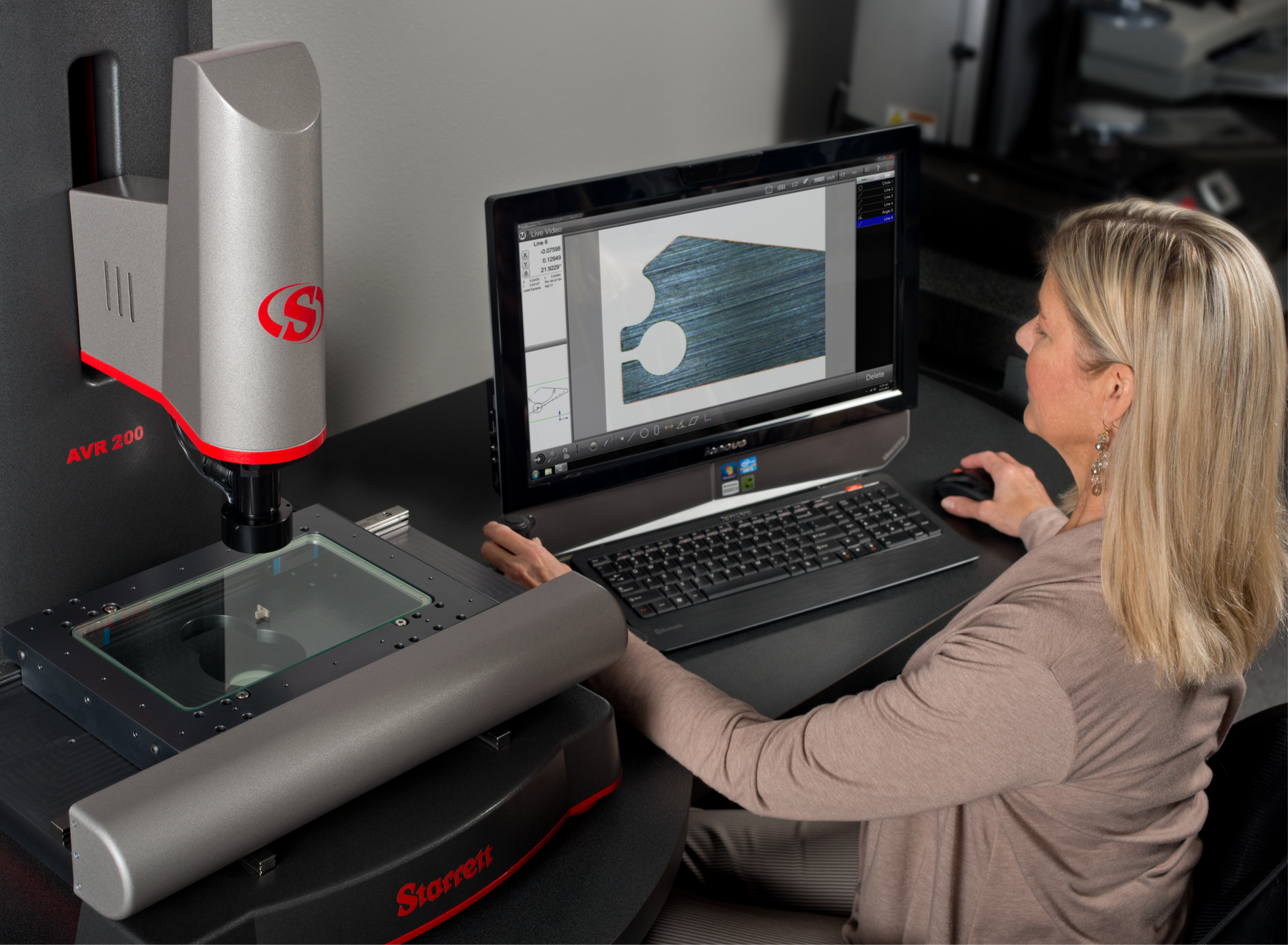

Product imagery
