HD400 Optical Comparator
Model: HD400
Dual-lens horizontal benchtop optical comparator for instant switching between two magnifications.
About the HD400 Optical Comparator

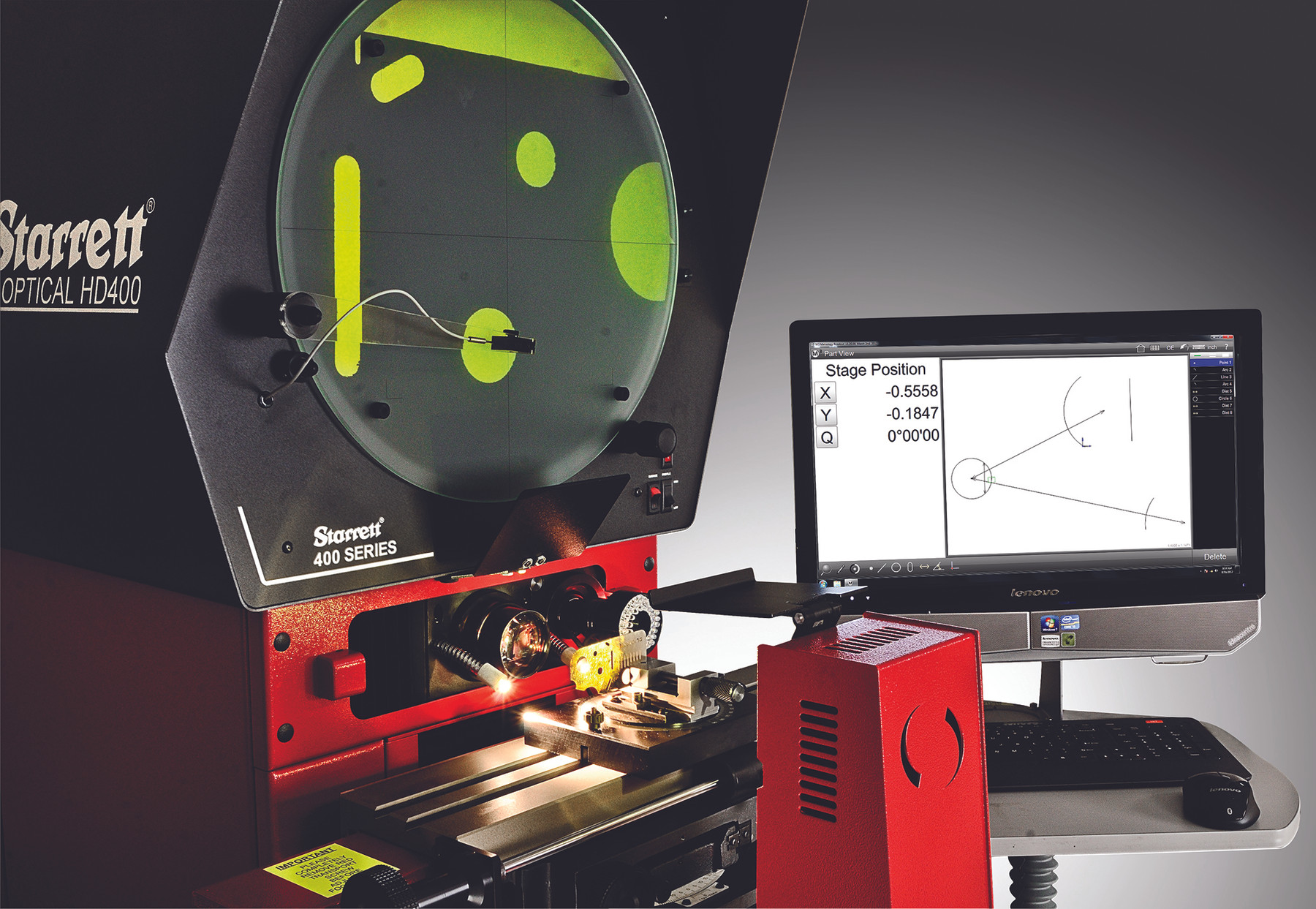

The HD400 adds a two-lens mount to the 400-series benchtop platform, so operators can switch instantly between two magnifications without changing lenses. It is fitted with a 16" (400 mm) screen and 16" travel workstage, helix adjustment for thread-form inspection, and accepts five interchangeable bayonet lenses. Automatic optical edge detection, motorized axes and a swing-away lamp house are optional.

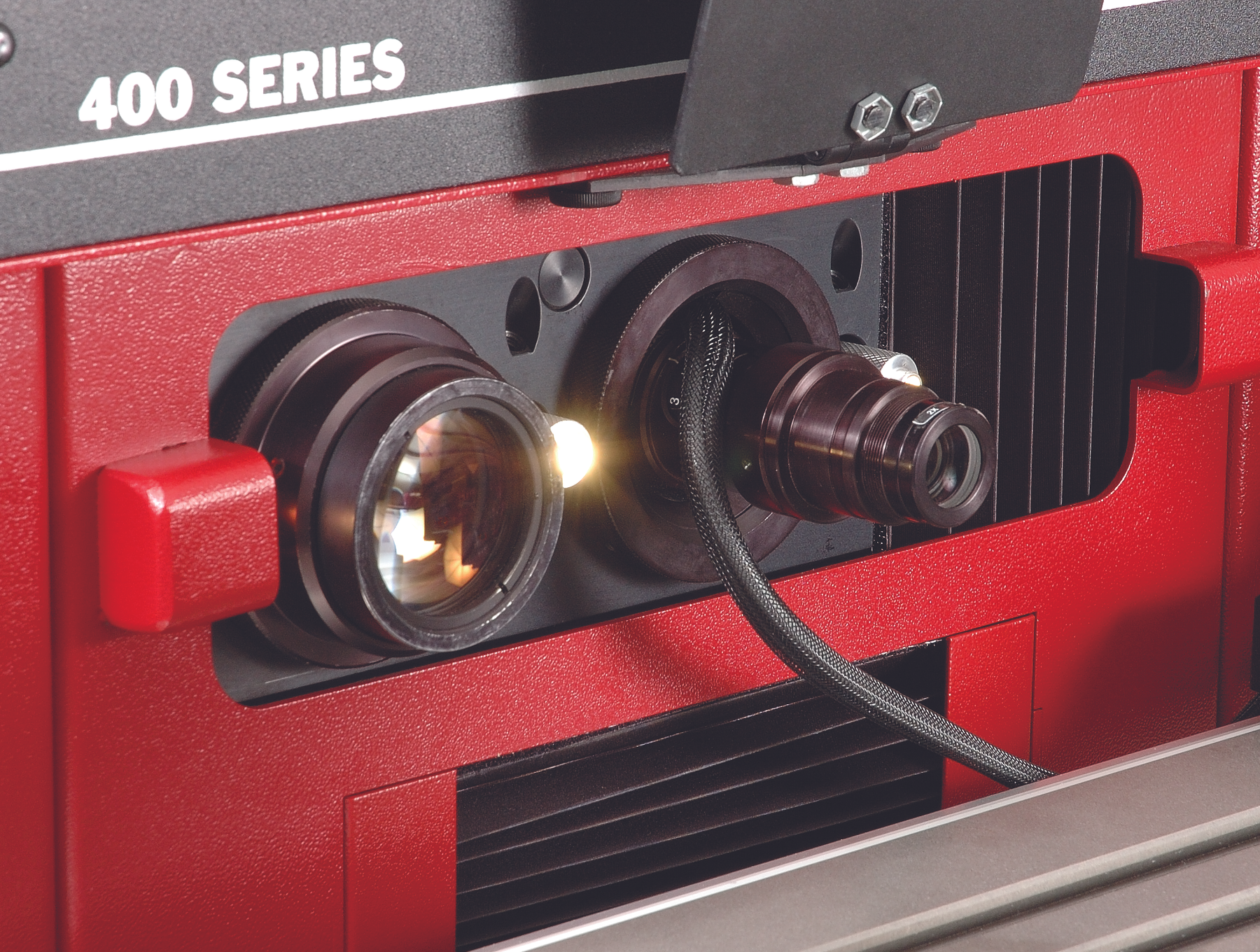

- Dual-lens mounting system for instant magnification change
- 16" (400 mm) diameter screen
- 16" x 6" (400 x 150 mm) X-Y travel workstage
- Linear glass-scale encoders, 20 µin (0.5 µm) resolution on X and Y
- LED profile and surface illumination; retractable duplex fiber-optic light
- Digital protractor with 1' resolution via Q-axis readout
- Helix adjustment for thread form inspection
- MetLogix™ M2, M2E or Mx-series digital readout
Technical data
- Screen diameter
- 16" (400 mm)
- X-Y travel
- 16" x 6" (400 x 150 mm)
- Scale resolution (X, Y)
- 20 µin (0.5 µm)
- Angle resolution
- 1'
- Lens mount
- Dual-lens
- Lens options
- 10x, 20x, 25x, 50x, 100x
- Net weight
- 320 lb (145 kg)
- Shipping weight
- 385 lb (175 kg)
- Shipping dimensions
- 49" x 32" x 51" (125 x 81 x 130 cm)
Data from official Starrett product information. Final configuration is confirmed in the EMUS quotation.
Available options
- Automatic optical edge detection
- Motorized X and Y axes
- Swing-away lamp house
- Purpose-built cabinet stand
- Extensive line of accessories
Where the HD400 Optical Comparator is used
- Profile and contour inspection
- Shop-floor dimensional QC
- Angle and radius measurement
- First-article inspection
- Thread form inspection
