ATI B3000-2
Model: ATI B3000-2
Brinell hardness tester to ASTM E10-23 and ISO 6506 with closed-loop load cells from 62.5 to 3000 kgf and manual optical reading.
About the ATI B3000-2
ATI B3000-2 is a Brinell hardness tester that is fully compliant with ASTM E10-23 and ISO 6506 standards, making it an ideal solution for accurate and reliable hardness testing.
ATI B3000-2 is automatic Brinell hardness tester for Brinell hardness testing complaint with ASTM E10-23 and ISO 6506 standards. ATI B3000-2 hardness tester is extremely easy to use: just choose the correct hardness scale, bring the sample to the test area using the manual elevating screw and press the CALCULATE button. The measurement cycle starts automatically. The operator will have to type the measured indentation value on the keyboard and the software will calculate the corresponding hardness value and show it on the display.
The software is designed to guide the user through the Brinell hardness testing process. First, all relevant test parameters must be entered, including load, dwell time, and indenter specifications. Once these parameters are set, the user clicks the ‘CALCULATE’ button, and the software automatically processes the data to provide the final hardness test result. Set the hardness test scales, set the standard test method, conversion scales, manage the instrument tools and check if the installed instrument is correct and compliant with the selected hardness test method.
- Automatic Brinell hardness tester
- Software
- Add ATI BR
Supported methods documented by AFFRI
- Brinell HBW — optical (manual reading)
Technical notes
- Published accuracy: better than 1 % (62.5–3000 kgf) and better than 0.5 % (500–3000 kgf).
How the ATI B3000-2 works
Automatic Brinell hardness tester
ATI B3000-2 is automatic Brinell hardness tester for Brinell hardness testing complaint with ASTM E10-23 and ISO 6506 standards. ATI B3000-2 hardness tester is extremely easy to use: just choose the correct hardness scale, bring the sample to the test area using the manual elevating screw and press the CALCULATE button. The measurement cycle starts automatically. The operator will have to type the measured indentation value on the keyboard and the software will calculate the corresponding hardness value and show it on the display.

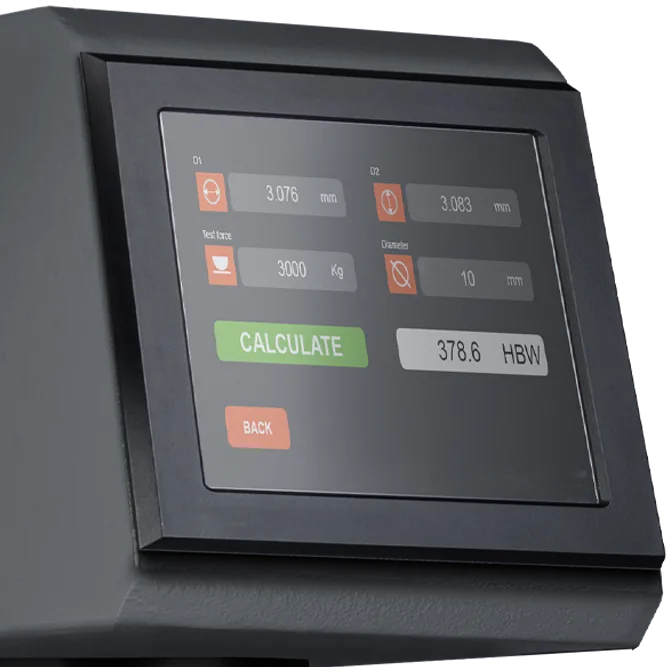

Software
The software is designed to guide the user through the Brinell hardness testing process. First, all relevant test parameters must be entered, including load, dwell time, and indenter specifications. Once these parameters are set, the user clicks the ‘CALCULATE’ button, and the software automatically processes the data to provide the final hardness test result. Set the hardness test scales, set the standard test method, conversion scales, manage the instrument tools and check if the installed instrument is correct and compliant with the selected hardness test method.

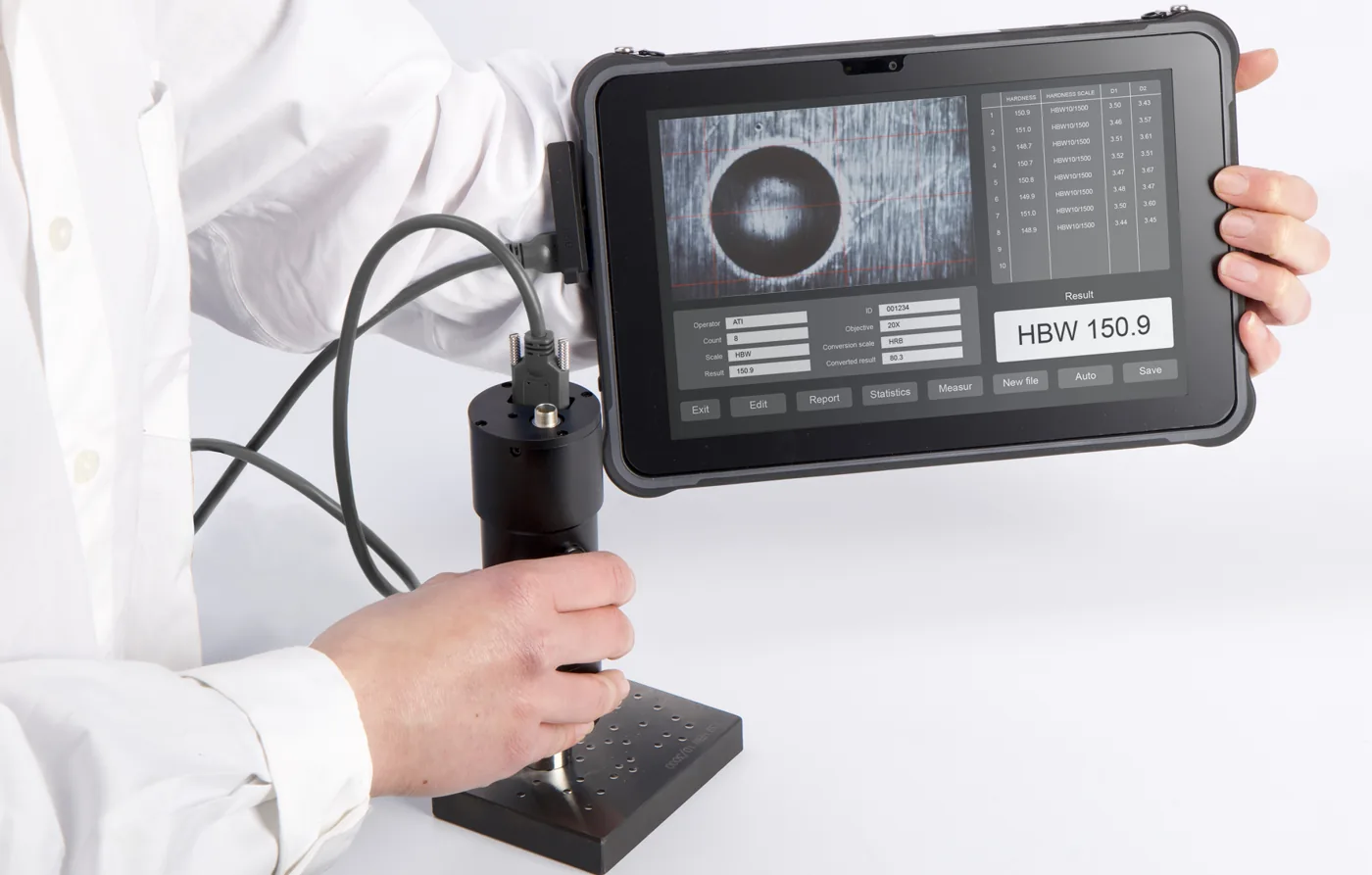

Add ATI BR
ATI BR is a digital and portable microscope for Brinell and Vickers indentation reading. The system complies with ISO 6506, ISO 6507, ASTM E10 , and ASTM E92 standards. Brinell and Vickers hardness tests can be performed directly on the production line, eliminating the need to move the components. Suitable for parts of any shape or size.
Technical data
- Model
- ATI B3000-2
- Brinell hardness scales
- HBW 2.5/62.5 , HBW 2.5/187.5 , HBW 5/62.5 , HBW 5/250 , HBW 5/750 , HBW 10/100 , HBW 10/500 , HBW 10/1500 , HBW 10/3000
- Test force (kgf)
- 62.5 Kgf (612.9N), 100 Kgf (980.7N), 125 Kgf (1226N), 187.5 Kgf (1839N), 250 Kgf (2452N), 500 Kgf (4903N), 750 Kgf (4905n), 1000 Kgf (7905n), 1500 Kgf (14710N), 3000 Kgf (29420N)
- Loading system
- Electronic control of load cells in “Closed-Loop”
- Turret
- 1 ball Brinell indenter
- Compliance standards
- ISO 6506, ASTM E10 and equivalents
- Accuracy
- Accuracy better than 1% (62.5 – 3000 Kgf); Accuracy better than 0.5% (500 – 3000 Kgf)
- Measuring device resolution
- 0.1 μm
- Dwell time
- 0-99 seconds
- Height capacity
- 290 mm
- Depth capacity
- 210 mm
- Measuring range
- 15.9-650 HBW (ASTM E10 (Recommended effective hardness value)
- Measurement methods
- Manual
- Power supply
- 110-220 V or 50-60 Hz single phase
- Total dimensions
- 450 x 200 x 700 cm – Weight: 160/200 kg
Data from official AFFRI product information. Values are reproduced as published; final configuration is confirmed in the EMUS quotation.
