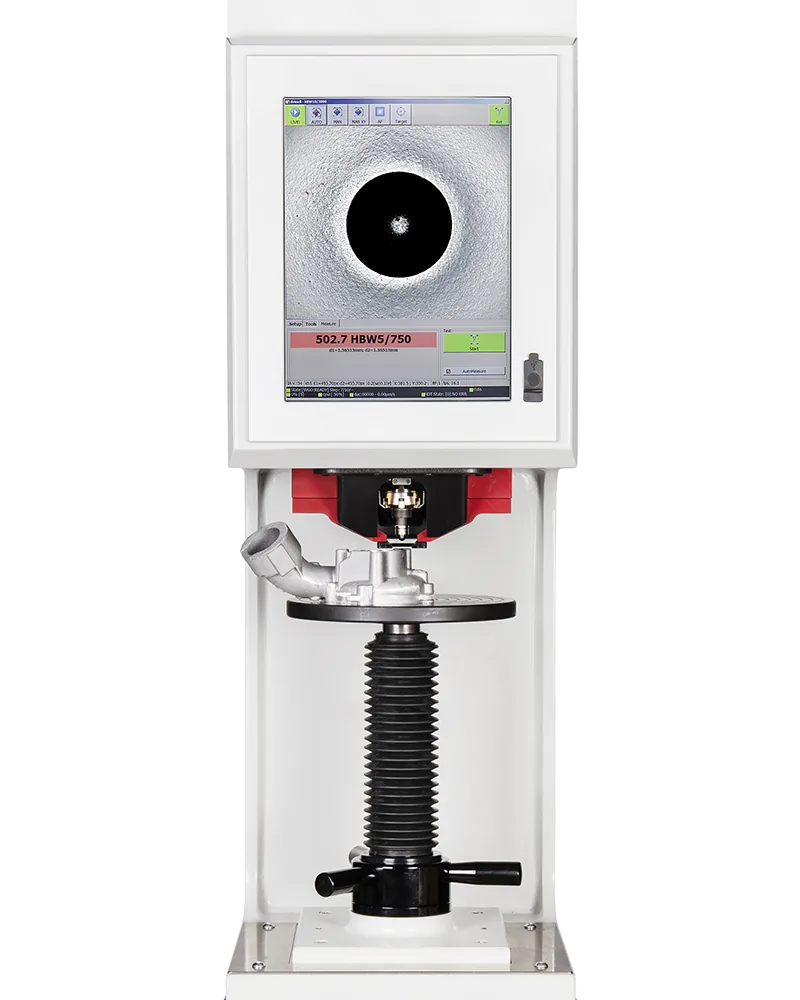

LD3000AX

Rockwell ISO 6508 / ASTM E-18:

HRA – HRB – HRC – HRD – HRE – HRF – HRG – HRH – HRK – HRL – HRM – HRP – HRR – HRV / HRN – HRT – HRS – HRW – HRX – HRY

Brinell HBW ISO 6506 / ASTM E-10 – HBWT ASTM E103

HBW 1/1 – HBW 1/1.25 – HBW 1/2.5 – HBW 1/5 – HBW 1/30 – HBW 2.5/6.25 – HBW 2.5/7.8125 – HBW 2.5/15.625 – HBW 2.5/31.25 – HBW 2.5/62.5 – HBW 2.5/187.5 – HBW 5/25 – HBW 5/31.25 – HBW 5/62.5 – HBW 5/125 – HBW 5/250 – HBW 5/750 – HBW 10/100 – HBW 10/125 – HBW 10/250 – HBW 10/500 – HBW 10/1000 – HBW 10/1500 – HBW 10/3000

Vickers ISO 6507 / ASTM E-384 / ASTM E-92

HV1 – HV2 – HV3 – HV5 – HV10 – HV20 – HV30 – HV50 – HV100

Fully motorized and automatic, the test is not affected by operator influences and can easily be used by operators of every level

One Touch Measurements

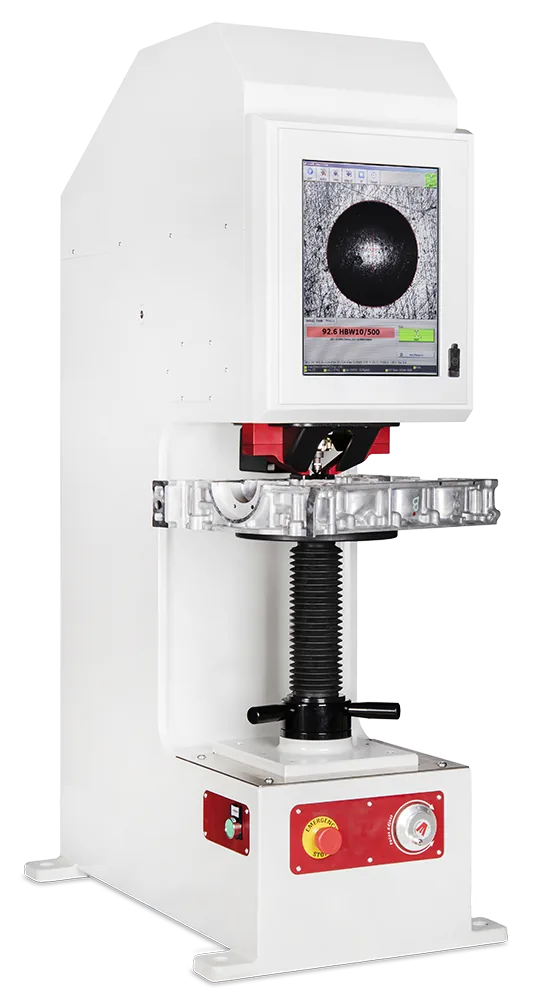

LD3000AX is an automatic system for Brinell, Vickers, Rockwell and Superficial Rockwell hardness test methods in compliance with ASTM and ISO hardness standards. AFFRI System hardness testers achieve the highest level of load accuracy and measurement resolution available for hardness tests. Thanks to the AFFRI System, the real indentation measurement is guaranteed without any external interference in any condition.

The measurements are very easy, quick and absolute. The hardness test cycle is automatic and motorized in just one drive (button or icon):

• Automatic contact with the specimen
• Auto-active sliding clamping
• Autopreloading and loading
• Automatic switching to optic lens
• Autofocus by image scanning brightness
• Automeasure and result display
• Automatic return stroke at programmed distance

Auto-Contact And Clamping

Vertical capacity from indenter to the base 300mm / 12″ (more on request)

Horizontal capacity from column to the indenter 190 mm / 7.4” (more on request)

The LD3000AX hardness tester is a robust, reliable system, designed to function even in hostile environments . Heavy and bulky samples can be easily placed using a forklift or overhead-traveling crane.

• The activation of the test cycle is automatic, it starts when the head makes contact with the specimen which is automatically recognized at any position within the vertical stroke.
• The top surface referencing design minimizes errors caused by problems associated with dirt or scale.
• This reduces sample preparation time and increases both accuracy and speed.

Auto-Compensation Of All Deflections

When testing unstable samples or deflecting parts, the AFFRI System will follow the sample without losing contact thanks to its stroke for indenter and clamping hood.

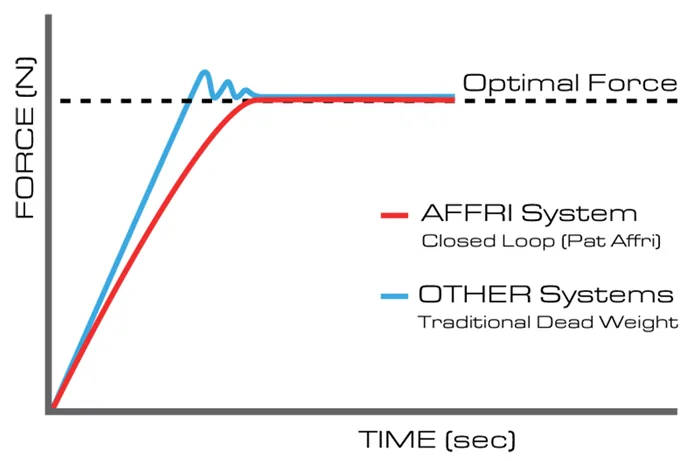

Load forces are applied through load cells and controlled in “ Closed Loop ” with a frequency of 1 khz, assuring perfect linearity in every range. Results are not affected by any structural deflection, misalignment or vibration.

Accurate measurements on the first test, even in extreme conditions, eliminate the need for repeated tests. The R&R data is at the top of its class.

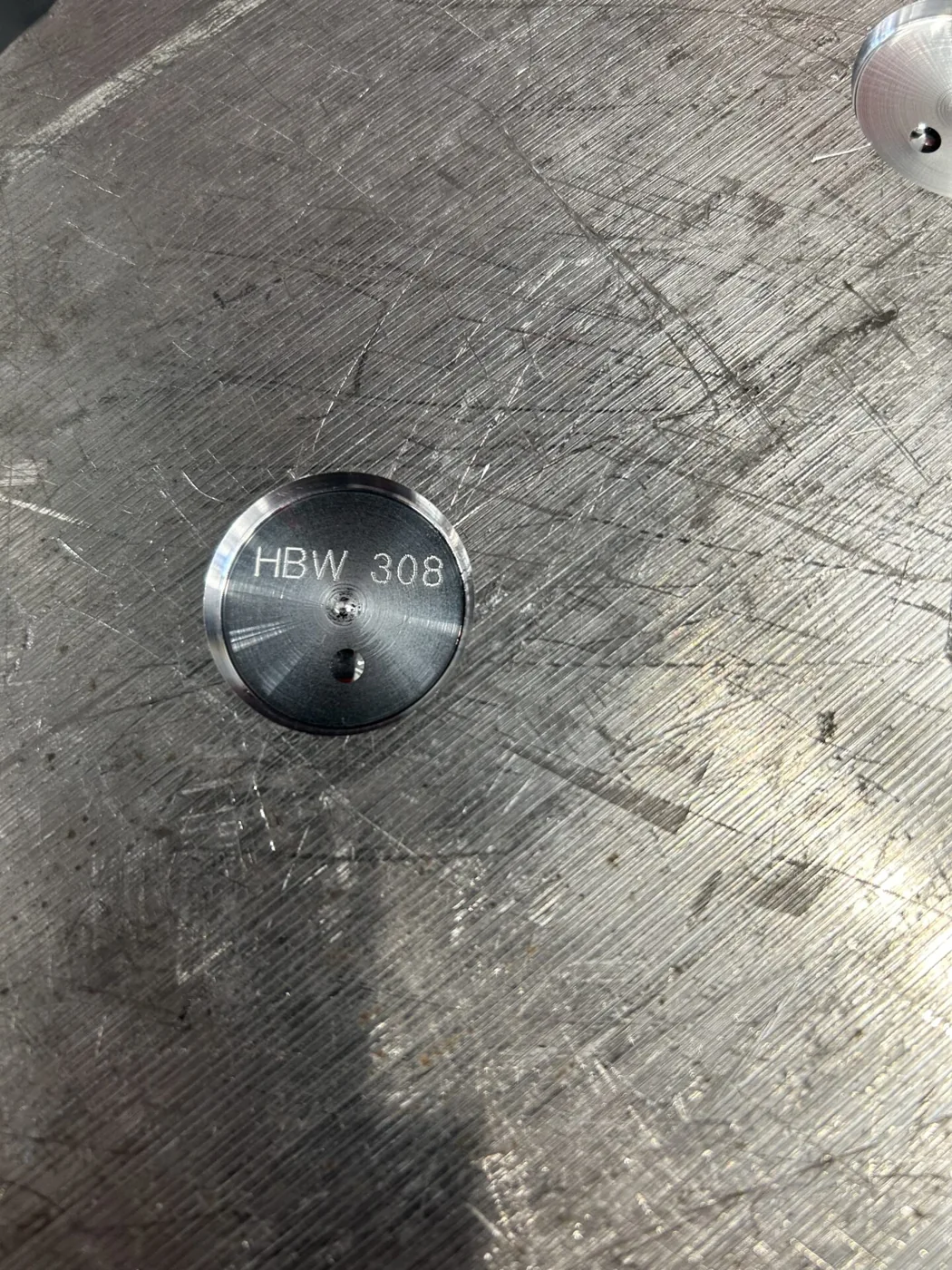

The Exclusive Milling Tool

Brinell hardness tester Integral 1 can be equipped with a sample preparation system which is directly installed on the head of the instrument.

Save time! Only 30 seconds to get the Brinell result!

Increase the accuracy and the quality of your Brinell results

The Exclusive Milling Tool

The LD3000AX hardness tester can be equipped with a sample preparation system which is directly installed on the head of the instrument.

Save time! Only 30 seconds to get the Brinell result!

Increase the accuracy and the quality of your Brinell results

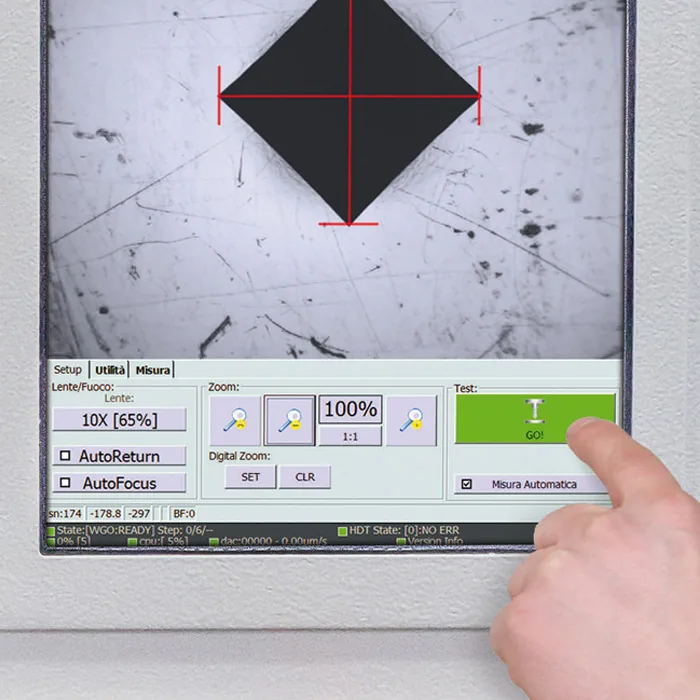

The Hardness Software

The pre-installed software controls the whole instrument during the entire cycle avoiding operator errors:

• Touchscreen gloves sensitive 15″
• User-friendly software designed inhouse
• Color highlighted results (low/ok/high)
• Live statistics and graph
• Programs of test settings
• Results archives
• Save images
• Export results to PDF, TXT, CSV, DOC, XLS, and more
• Data enter via code bar scanning
• Outputs via RS232, USB, and Ethernet

Automatic Turret

Automatic two position turret with one indenter and one objective, easily changeable with manual screwing. Auto tool switching and auto indentation centering for a completely automatic hardness test cycle. (On request 8 position)

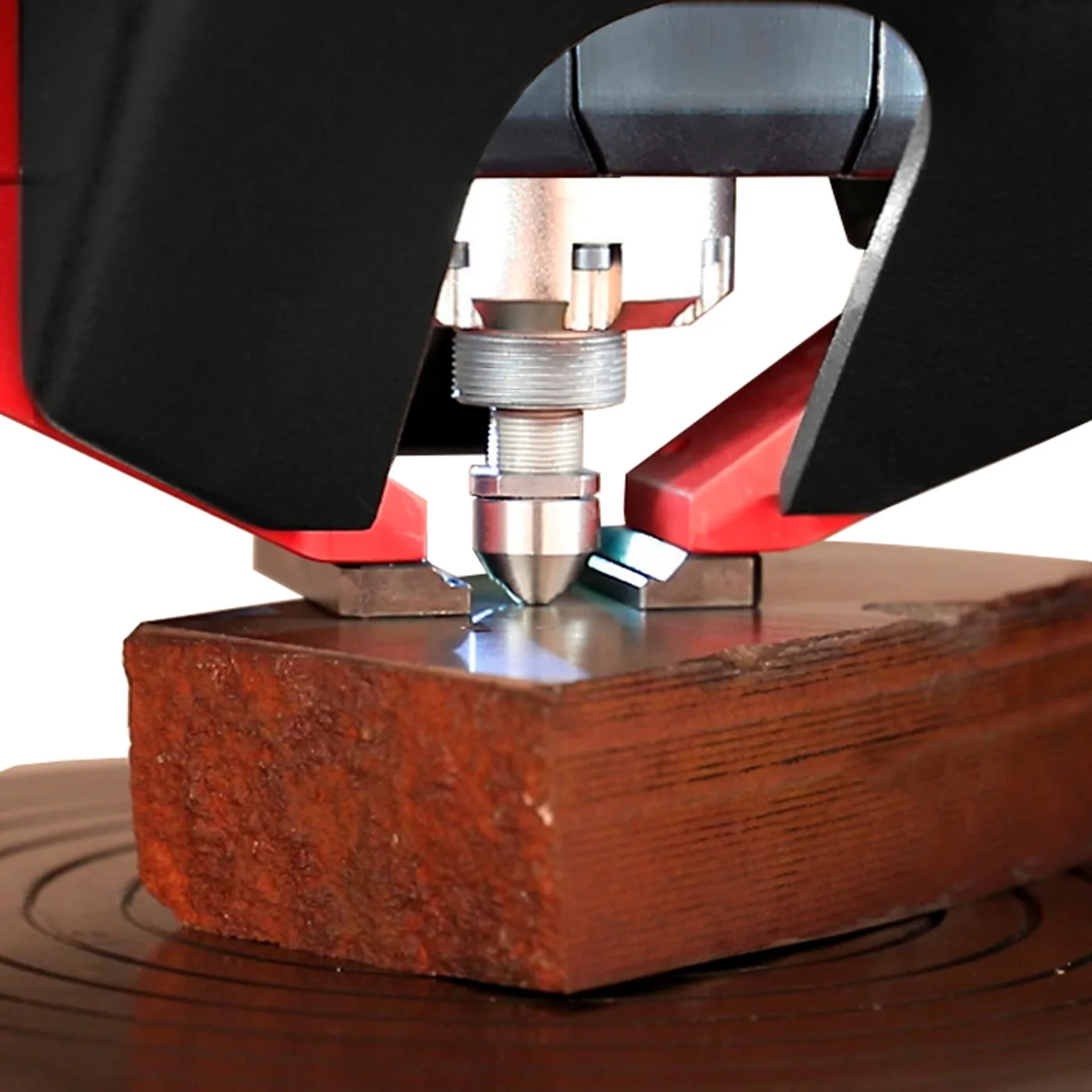

Clamping System

Secure contact with the specimen is always maintained, even in the unlikely event of any specimen movement during the operation cycle. The clamping system assures complete stability of any test piece throughout the test cycle, even if it’s oiled, rusty or dirty.

Focus Drive

Fully automatic hardness test cycle with a single start input for quick and accurate measurements. But, in some cases, the automatic measure and autofocus can be bypassed using manual focusing and manual reading.
