Integral Wheels

Name: Integral Wheels
Brand: AFFRI Testing Instruments

Model: Integral Wheels

Special automatic Brinell hardness tester for wheels with motor-driven rotating and sliding table for easy loading.

Request Technical Consultation About AFFRI

Overview

About the Integral Wheels

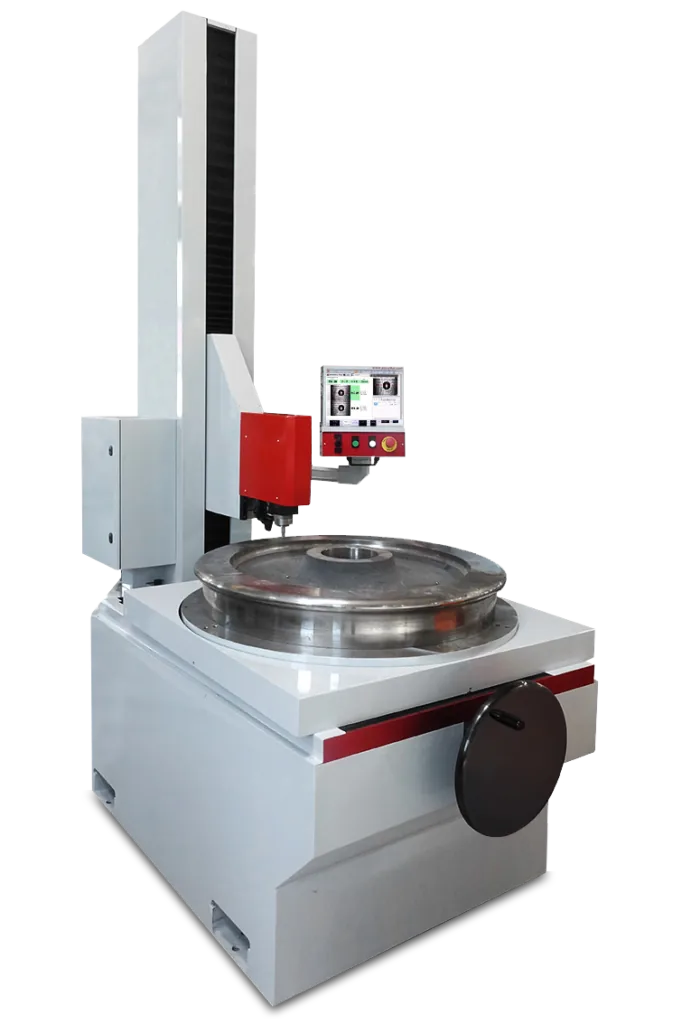

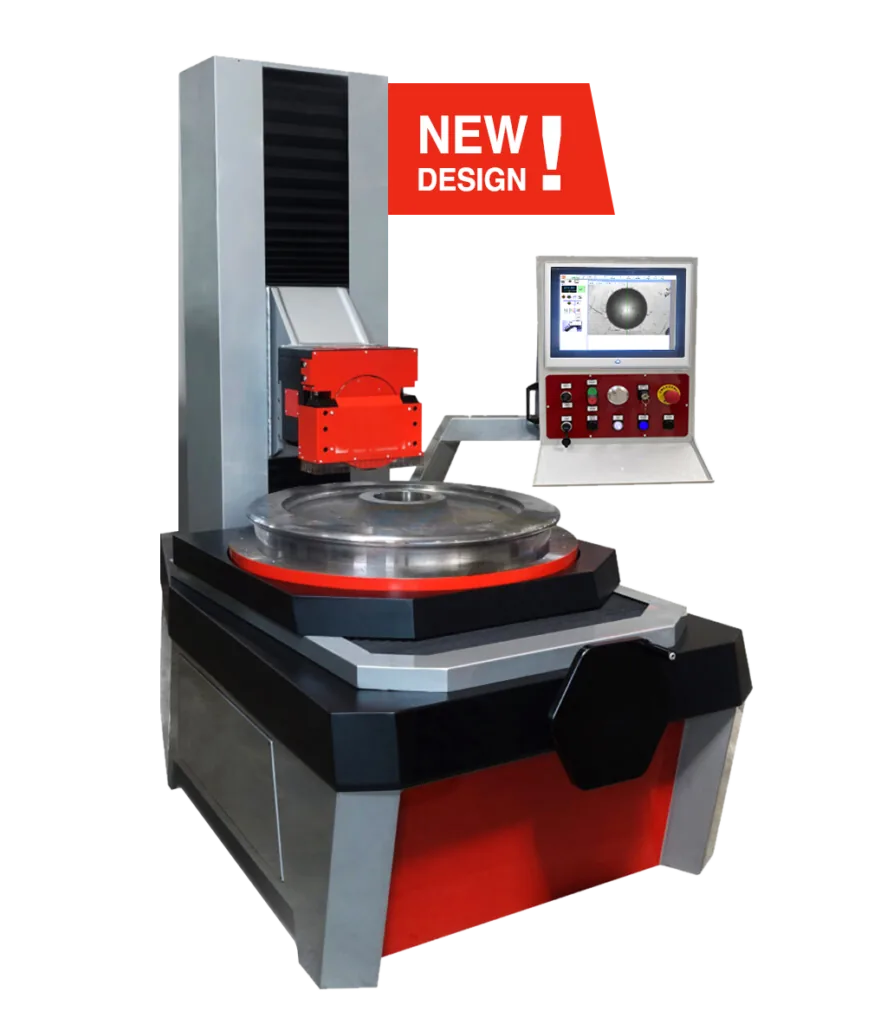

This special hardness tester Integral Wheels is a Brinell Hardness testing machine for train wheels and railway. Fully automatic Brinell test cycles up to 3000kgf with motorized turret, automatic loading, auto-focus and automatic reading. In order to make the operator’s work as easy as possible, it is equipped with a motor-driven rotating table, which can also move horizontally to load the wheel easily.

HBW 1/10 – HBW 1/30 – HBW 2.5/15.625 – HBW 2.5/31.25 – HBW 2.5/62.5 – 2.5/187.5 – 5/25 – 5/62,5 – 5/125 – 5/250 – 5/750 – 10/100 – 10/250 – 10/500 – 10/1000 – 10/1500 – 10/3000

In order to make the operator’s work as easy as possible, this special hardness tester INTEGRAL WHEELS is equipped with a motor-driven rotating table, which also moves frontward to load the wheel easily. By setting a fully automatic Brinell cycle (e.g. 3 tests at 120°, 4 at 90°, etc.) the motor-driven rotating table allows the tests to be carried out by programming the test points, working with the highest precision and considerably reducing the working time.

Key features

Benefits
Automation
The Exclusive Milling Tool
Integral Wheel Software
XY Rotating Table
Motorized Turret
Auto-Reading And Auto-Focus
Motorized Turret 8P

Testing methods

Supported methods documented by AFFRI

Brinell
Vickers and Rockwell — on request

Technical detail

How the Integral Wheels works

Benefits

Easy loading of heavy samples thanks to the moving table
Fast measuring process with considerable time saving
Considerable reduction of operator working time
Automatic test positioning with high precision
Hardness testing on 100% of production

Automation

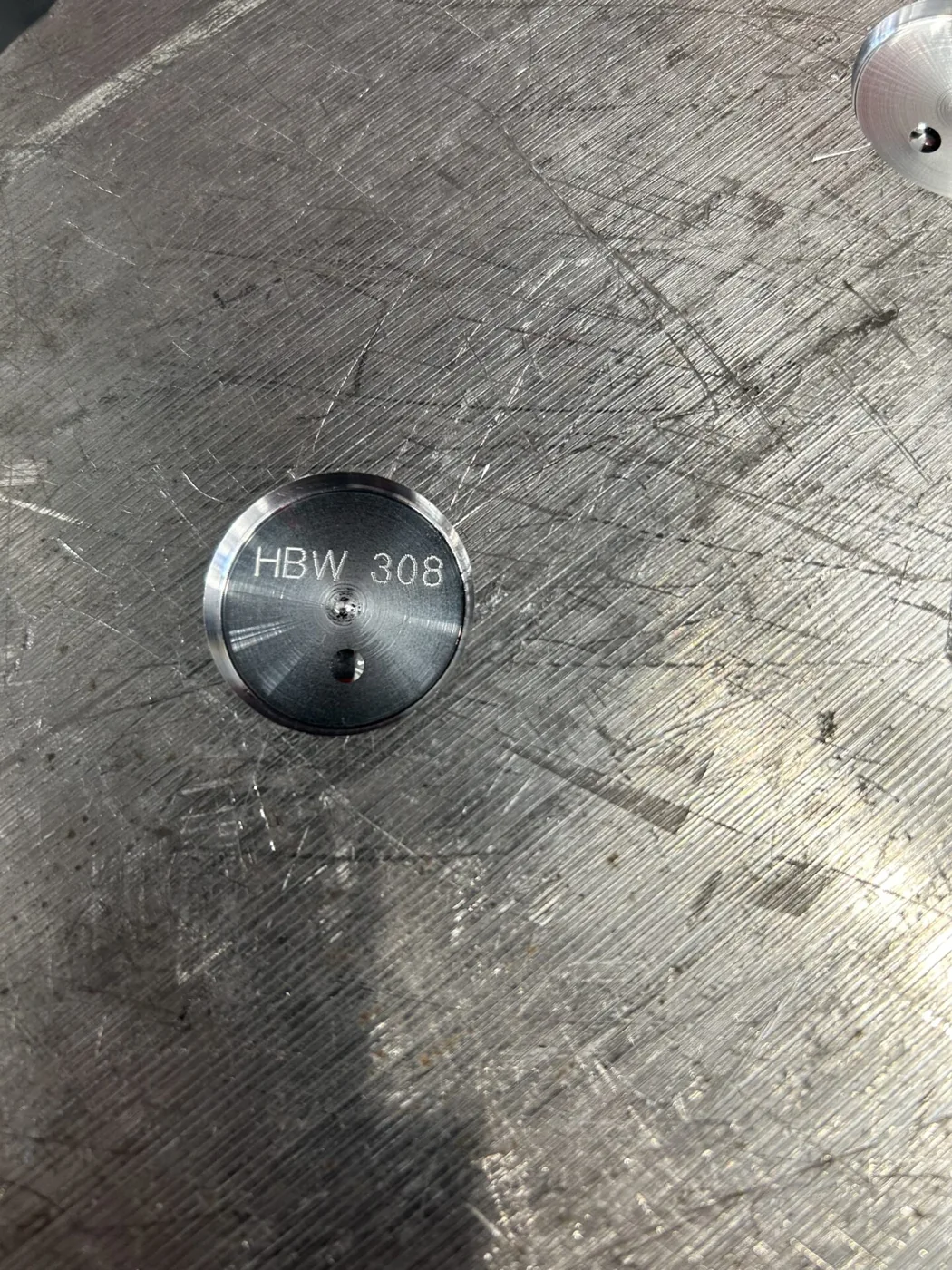

The Exclusive Milling Tool

Special hardness tester Integral Wheels is also equipped with a sample preparation system which is directly installed on the head of the instrument.

Save time! Only 30 seconds to get the Brinell result!

Increase the accuracy and the quality of your Brinell results

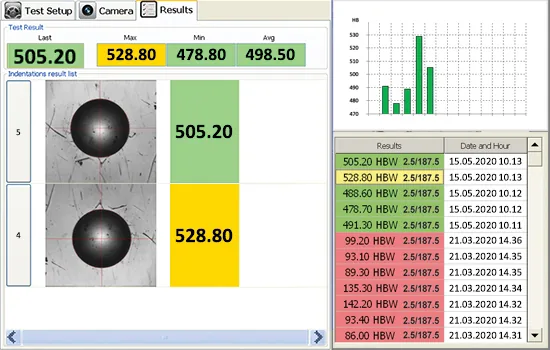

Integral Wheel Software

The special hardness tester Integral Wheels has a pre-installed software which controls the whole instrument during the entire cycle avoiding operator errors. The hardness tester software includes:

Touchscreen gloves sensitive
User friendly software designed inhouse
Color highlighted results (low/ok/high)
Live statistics and graph
Programs of test settings
Results archives
Export results to: PDF, TXT, CSV, DOD, XLS and more
Data enter via code bar scanning
Outputs via RS232, USB and Ethernet
Data exchange with management system MES

XY Rotating Table

Bring the table to the front to load the sample with your lifting system. Move the stage to the back, make a Brinell test and then rotate the table to test the wheel at different angles. Fully motorization available.

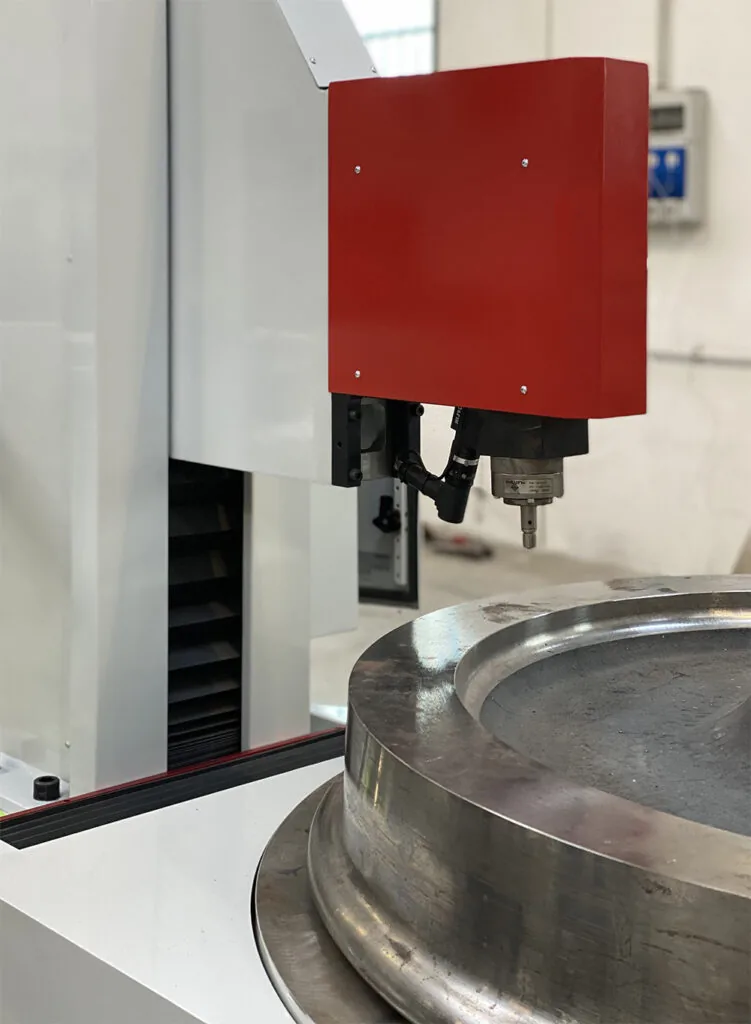

Motorized Turret

Multiples slots for different ball indenters and magnification lenses. Auto-rotating and tool switching for a completely automatic single or multi indentation measurement cycle. Bigger turret available with surface preparation tool.

Auto-Reading And Auto-Focus

Automatic indentation reading through camera. To make the test just push the start button: the hardness tester will make the contact, apply the test force, switch to the objective, auto-focus, read the indent and give the result.

Motorized Turret 8P

Optional: Up to 8 slots (or more) for different hardness scales indenters, different optic lenses, laser and even a milling surface preparation tool. Auto-rotating and auto-tool-switching for a complete automatic measurement cycle. For single or multi hardness test methods using only one tester.

Clamping System

Optional: Secure contact with the specimen is always maintained, even in the unlikely event of any specimen movement during the operation cycle. The clamping system assures complete stability of any test piece throughout the test cycle, even if it’s oiled, rusty or dirty.

Touchscreen

Easy joystick and buttons control. Large capacity Hard Disk and PC assure infinite performance as well as remote control for easy assistance everywhere. USB and Ethernet outputs. Connect to database networks, PC’s and printers, to download data or for final custom reports.

Accessories

Discover all the accessories that works with this Special hardness tester Integral Wheels

Specifications

Technical data

Published specifications

Standards: DIN-EN-ISO 6506 / ASTM E-10
X/Y table: Customizable depending on sample dimension
Vertical head stroke: 550 mm fully motorized (more on request)
Depth capacity: 300 mm (more on request)
Indent reading: Auto-focus with automatic and manual reading
Force range: 98.07 - 294.2 - 306.5 - 612.9 - 1226 - 1839 - 2452 - 4903 - 7335 - 9807 - 29421 N (10 - 30 - 31.2 - 62.5 - 125 - 187.5 - 250 - 500 - 750 - 1000 - 3000 kgf)
Feasible tests: Brinell On request Vickers and Rockwell
Load accuracy: Better than 0.05 %
