Micro Hardness Tester

Vickers hardness tester for micro and macro Vickers and Knoop tests.

Micro Hardness Tester

Hardness tester for micro macro Vickers and Knoop.

Vickers ISO 6507 / ASTM E-384 / ASTM E-92

HV0.001 – HV0.005 – HV0.01 – HV0.015 – HV0.02 – HV0.025 – HV0.05 – HV0.1 – HV0.2 – HV0.3 – HV0.5 – HV1 – HV2 – HV3 – HV5 – HV10 – HV20 – HV30 – HV50

Knoop ISO 4545 / ASTM E-384 / ASTM E-92

HK0.01 – HK0.02 – HK0.025 – HK0.05 – HK0.1 – HK0.2 – HK0.3 – HK0.5 – HK1

Brinell ISO 6506 / ASTM E-10

HBW 1/1 – HBW 1/1.25 – HBW 1/2.5 – HBW 1/5 – HBW 1/10 – HBW 1/30 – HBW 2.5/6.25 – HBW 2.5/7.8125 – HBW 2.5/15.625 – HBW 2.5/31.25 – HBW 2.5/62.5

Motorized and automatic, the test is not affected by operator influences and can easily be used by operators of every level

One Button Measurements

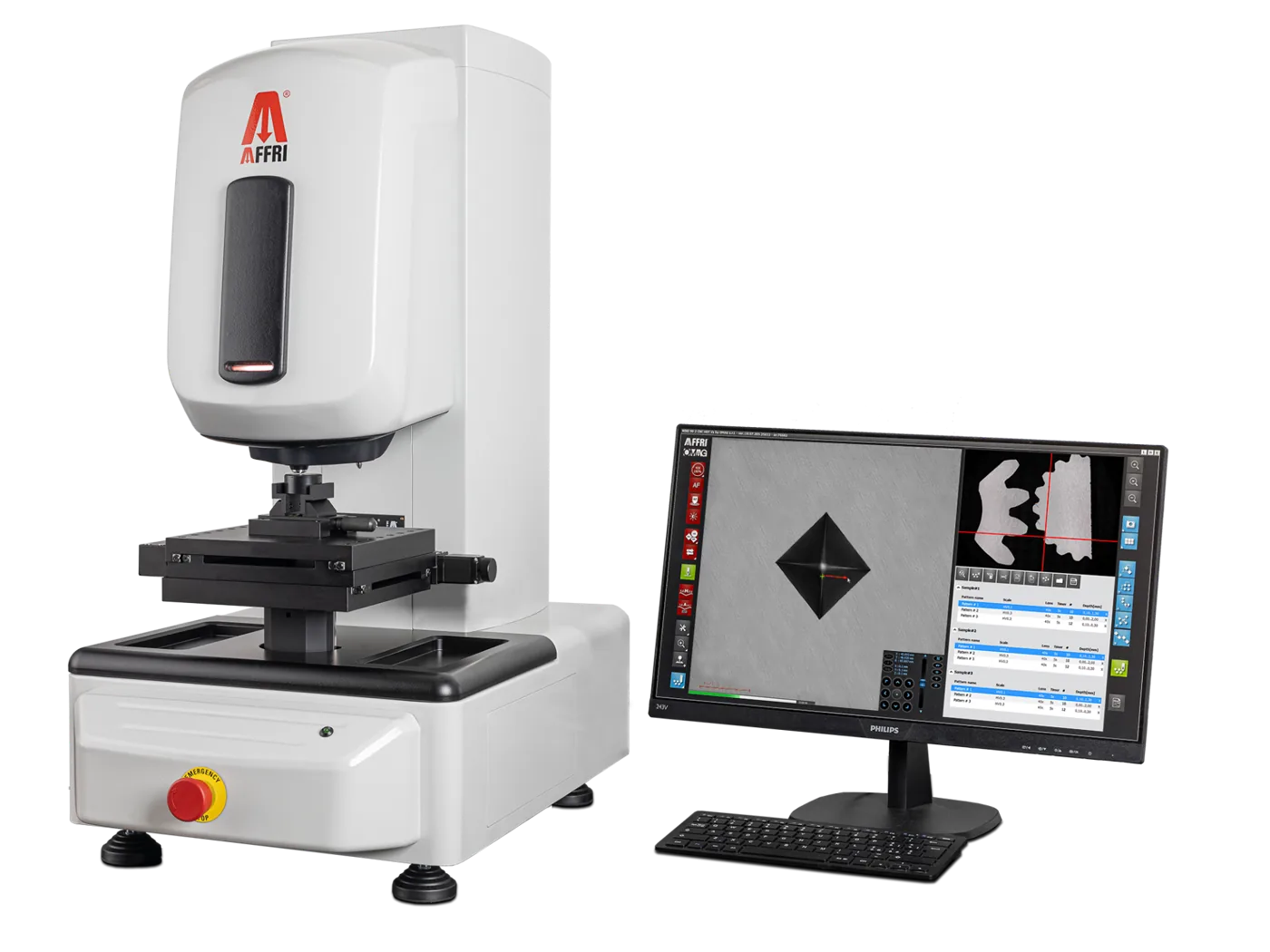

Micro hardness tester WIKI 90 CNC is a motorized and automatic system for Vickers, Knoop, or Brinell hardness testing with load cell technology, a high definition camera for indent auto-reading, and a motorized turret with 6 positions (4 steps for lens and 2 steps for indenters). Fully conforms to ASTM and ISO hardness standards.

One button measurement:

Click the START button: the hardness tester indents the sample, moves to the camera, measures, and generates data dynamically. Semi-automatic case hardness depth (CHD) can be easily done thanks to the 1µm step XY table connected to the PC and the step-by-step assisted procedure.

For micro-macro Vickers and CHD case depth tests on all metals: iron, steel, tempered steel, cast iron, brass, aluminum, copper, and metal alloys. Heat treatment, hardening, nitriding, cementation, and hard facing. Knoop test on ceramic and glass materials.

Speed, accuracy, and infinite functions in a semi-automatic solution.

Easy Step-By-Step CHD

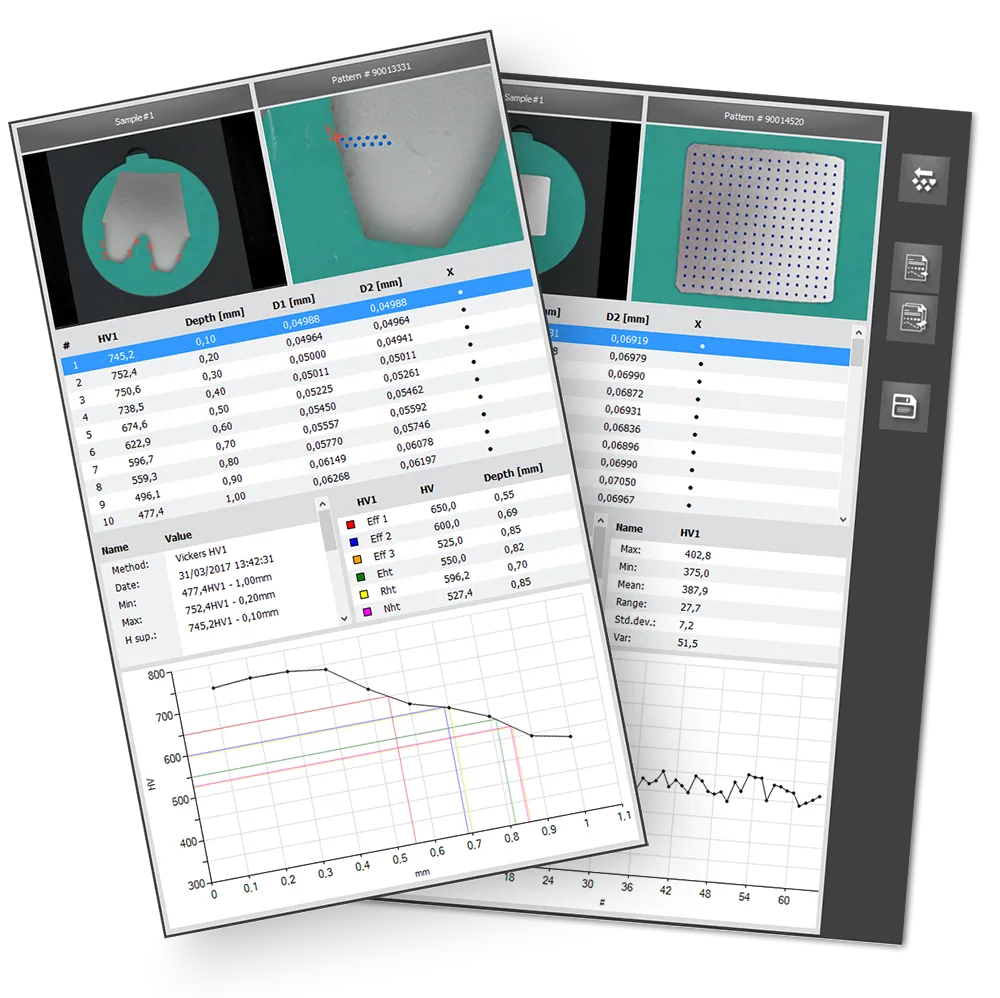

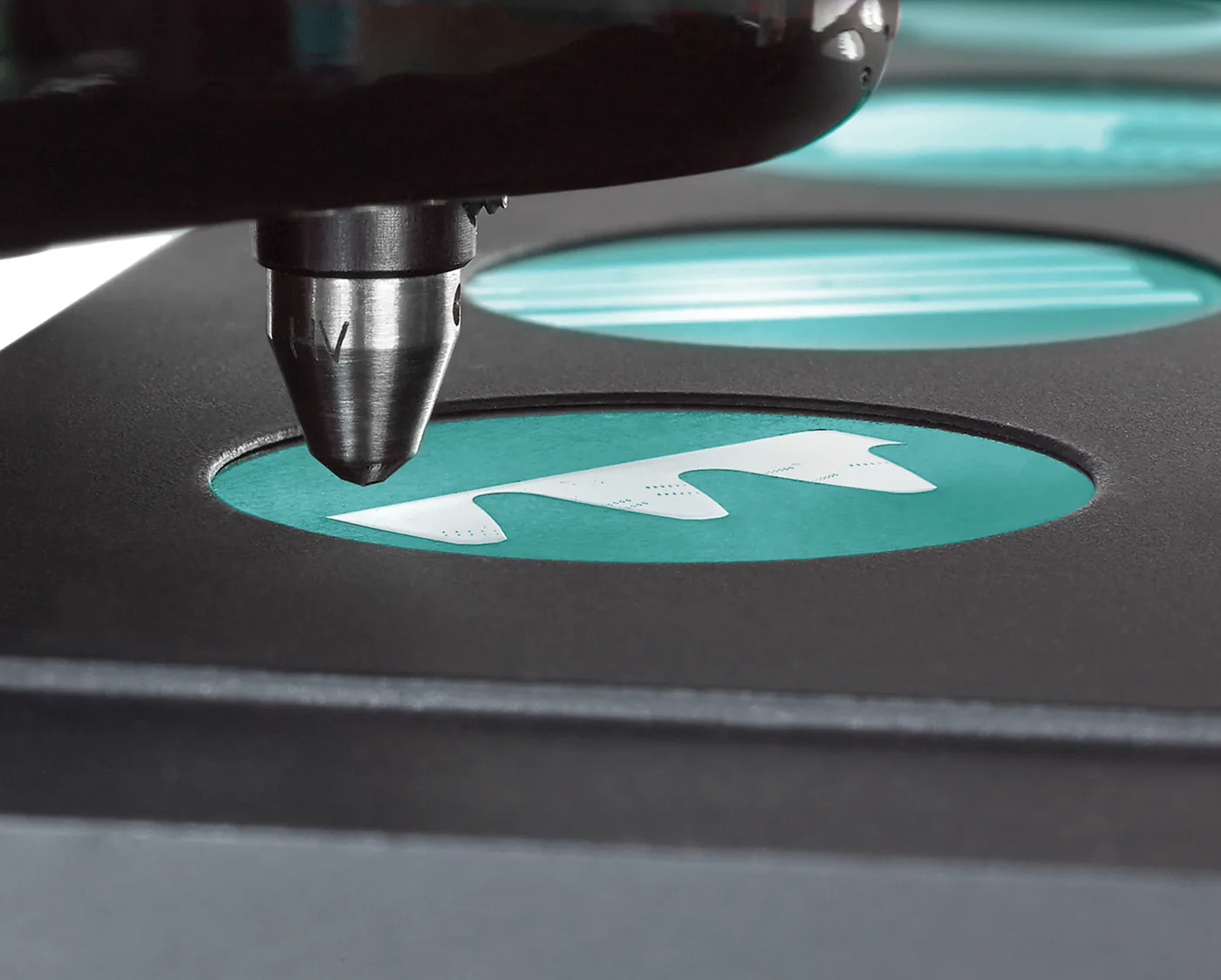

• CHD TRAVERSES AND PATTERNS Single or multiple traverses/patterns can be rapidly created. With one simple click of the line, the angle and the starting point of the indentations are determined.
• SEMI-AUTOMATIC CHD TESTS Digital micrometers connected to the PC. Movements resolution of 1 µm step. Step-by-step assisted procedure to easily test at the perfectly right XY quote.
• EDIT, MOVE, OR DELETE Select the pattern from the preview image and modify direction, position, hardness scale, number and distances of indent, pattern name, and point of focus.
• IN AND OUT ZOOMING Zoom out to look at the entire sample in order to identify the pattern position and direction. Zoom-in to verify pattern distances and spot surface imperfections.

Looking For A Smart Software ?

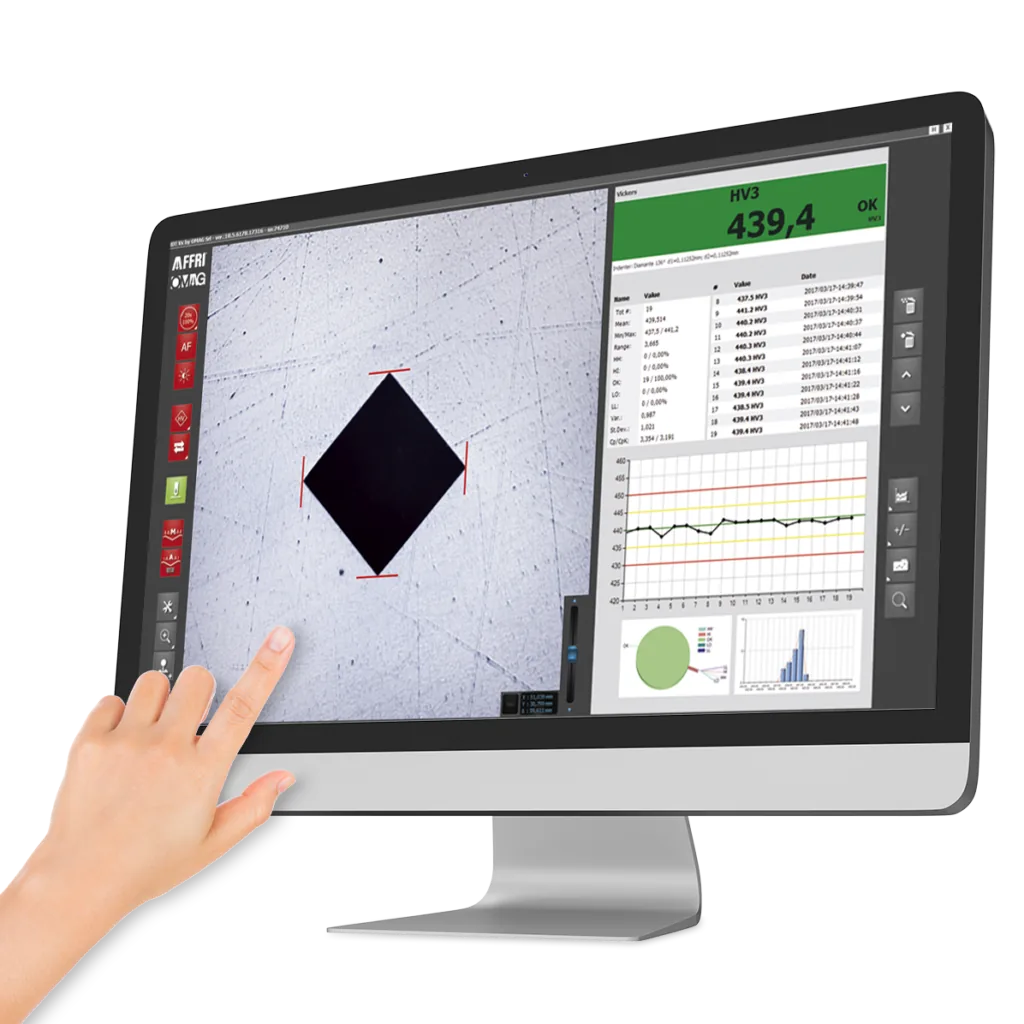

It can’t be easier! The Vickers software is suitable to fulfill any measuring need and to be accessible to every operator. This is a “SMART SOFTWARE”, extremely user friendly but complete of all the functions needed for simple or multi- cycles Vickers hardness tests:

• Single and simple Vickers test
• The automatic conversion in all scales (Rockwell, Brinell, Knoop, ASTM, and ISO)
• Multi-test and multi-sample hardness test with automatic cycle
• Automatic Vickers case hardness depth (CHD, NHT, EHT, RHT, ..)
• The dimensional measure of layers
• Crack measurements
• Automatic Vickers test on Welding
• Direct result export via Ethernet

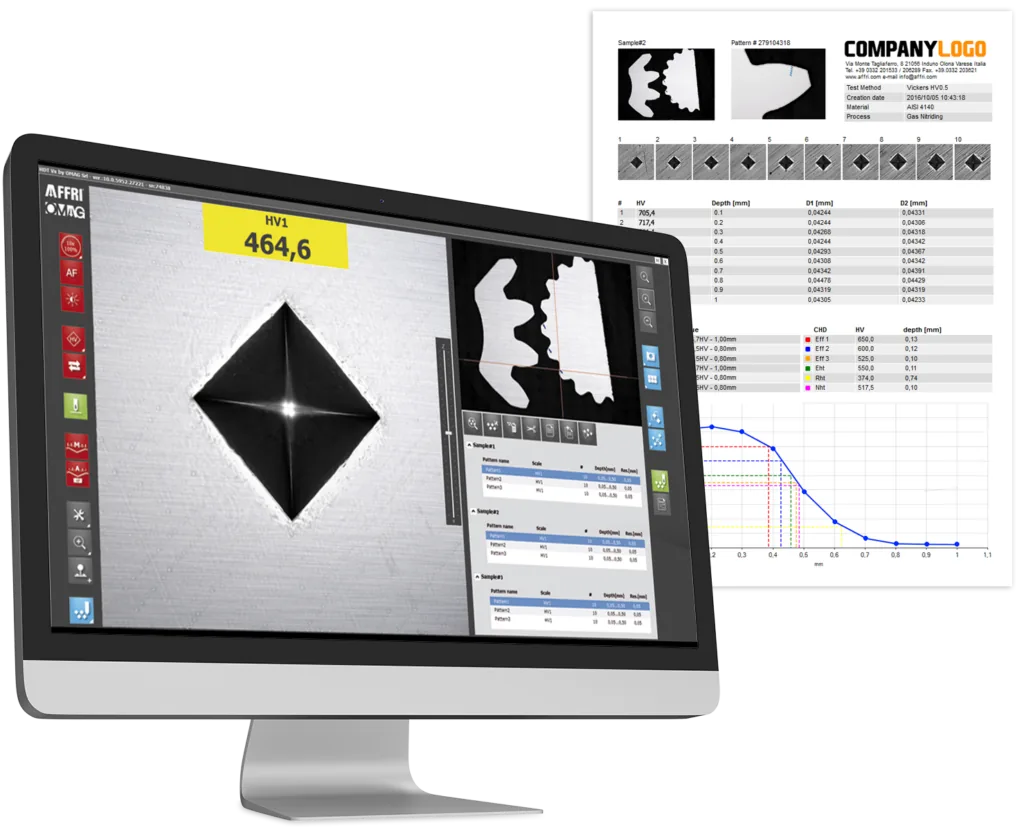

• Customizable test report with the client logo, specimen information, indent images, statistics, and graphs.

Free Your Time For Other Tasks

Micro hardness tester WIKI 90 CNC has software designed for intuitive and simple use. All you have to do, for case hardness depth, with three easy steps :

Obtain a perfect, detailed, high-resolution panoramic view of the sample using the panoramic feature. The picture is clear, sharp, and without any distortion.

Create, save, open, modify, copy or paste Vickers multi-tests to predefined locations with a simple click. Create case depth traverses or fill a surface with indentation points to control sample uniformity.

Auto-Compensation Of All Deflections

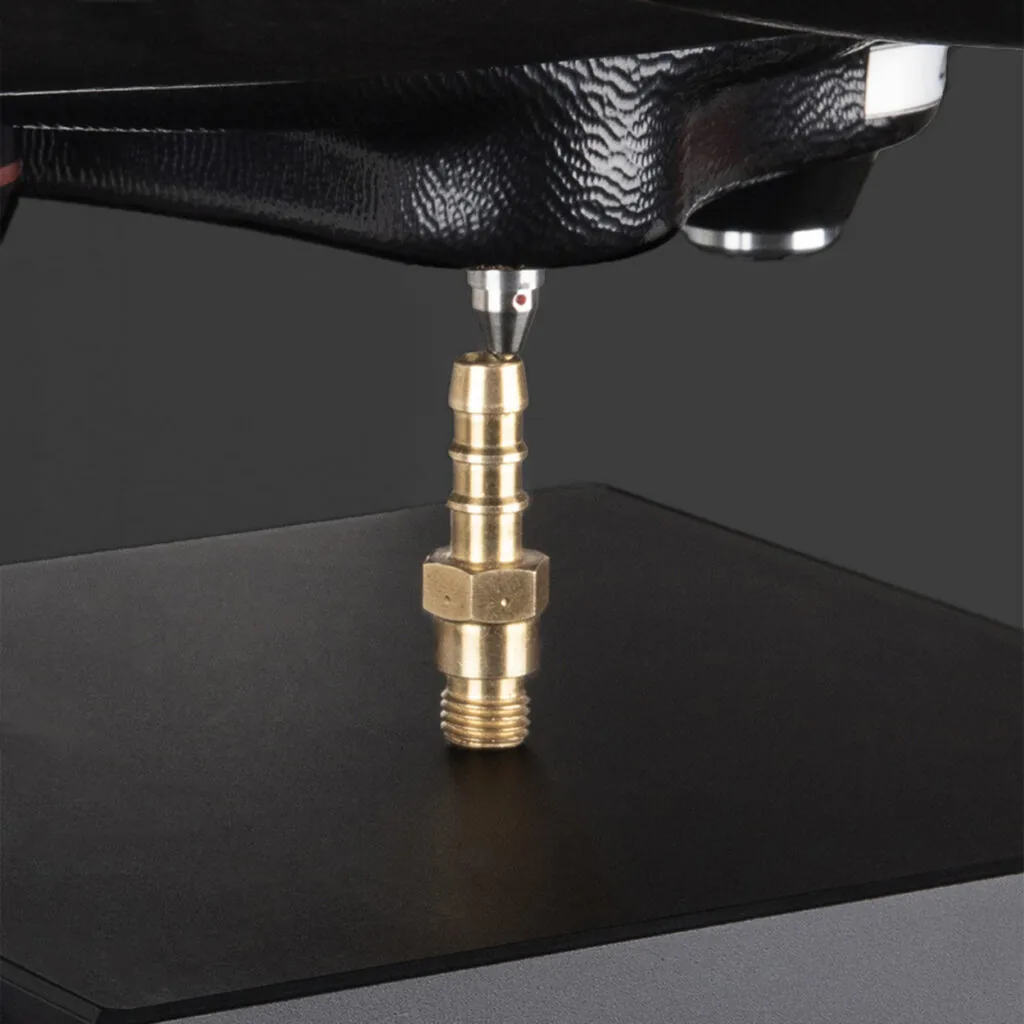

When testing unstable samples or deflecting parts, the AFFRI System will follow the sample without losing contact thanks to its infinite stroke for indenter and clamping hood.

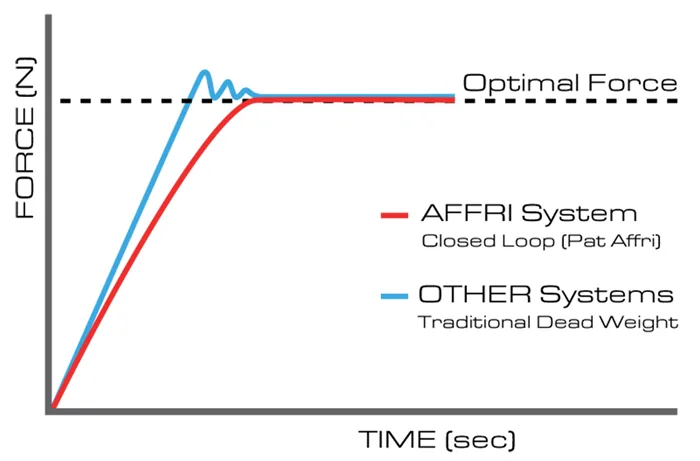

Load forces are applied through load cells and controlled in “ Closed Loop ” with a frequency of 1 kHz, assuring perfect linearity in every range. Results are not affected by any structural deflection, misalignment, or vibration. Accurate measurements on the first test, even in extreme conditions, eliminate the need for repeated tests. The R&R data is at the top of its class.

Motorized Turret

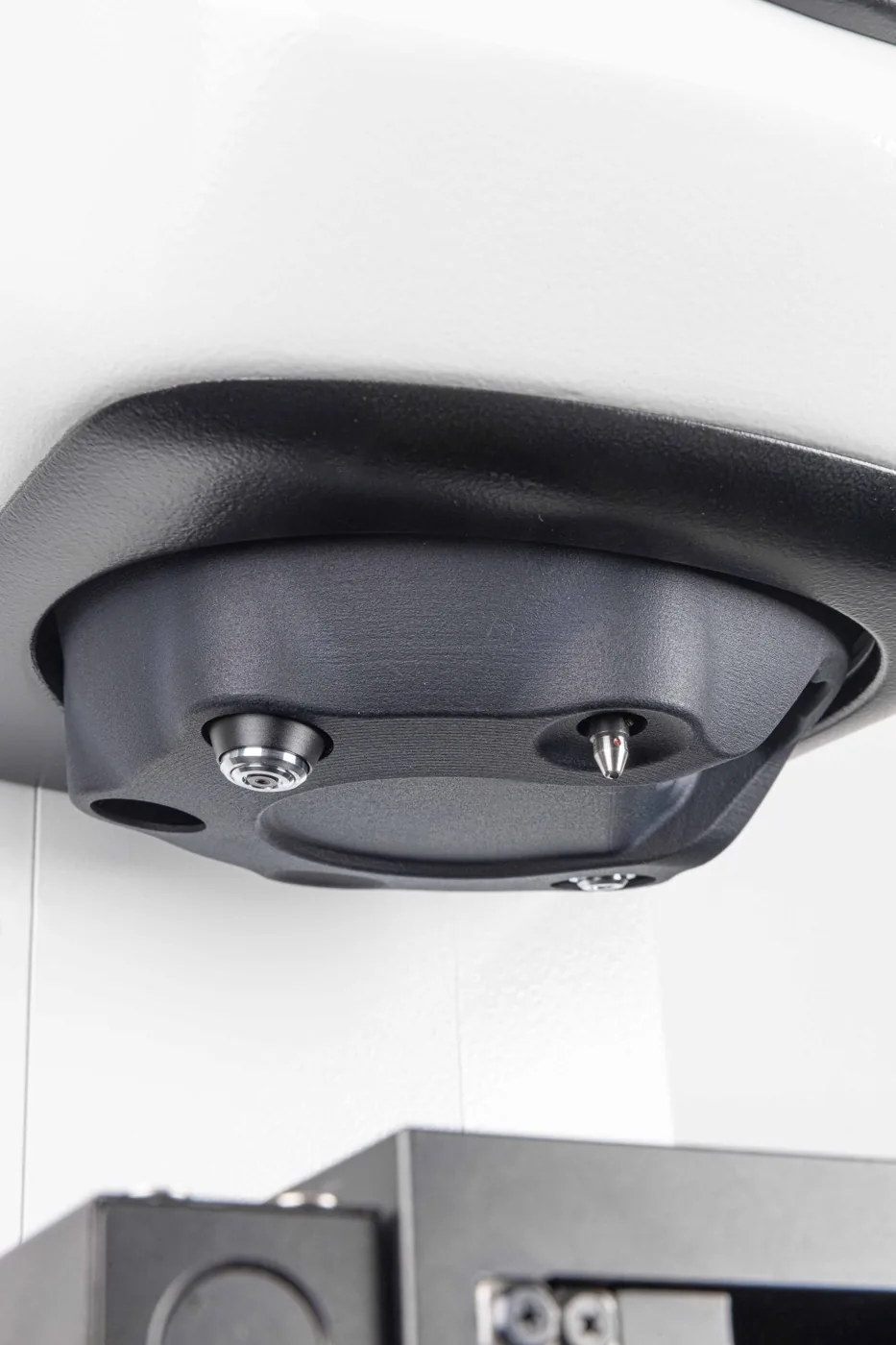

Horizontally rotating turret with 4 slots for magnification lenses and 2 for indenters. All-optical microscope objectives can be pre-installed and combined with indenters for every Vickers and Knoop hardness scale.
