WK Series

Smart Solution For Auto Measurements

All hardness testers can be upgraded into WK SERIE with probe and microscope incorporated

Universal Hardness Testers

Rockwell, Superficial Rockwell, Brinell and Vickers

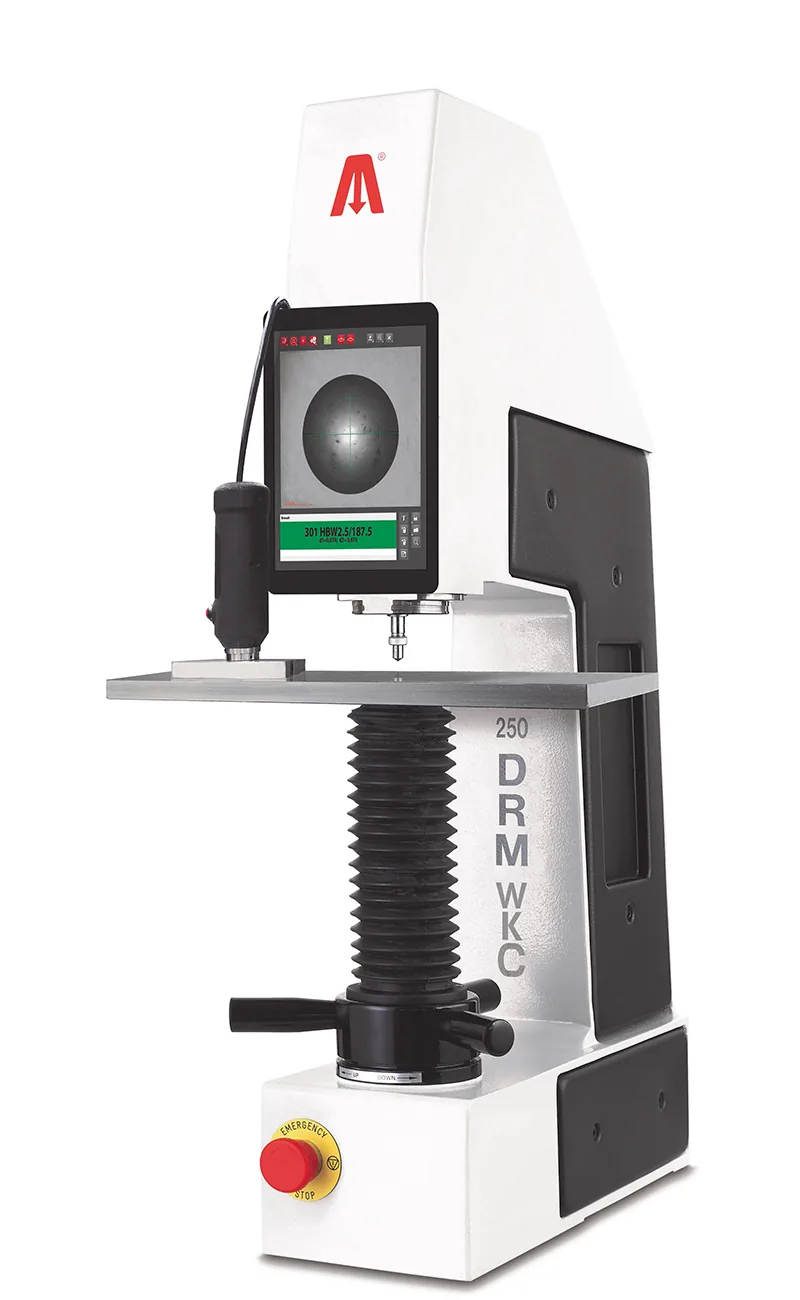

250 Drm Wkc

• 3 to 250 kgf
• Rockwell, Superficial R., Brinell and Vickers
• Motorized electronic load cells loading system
• Clamping system available
• Direct reading HR and HBW

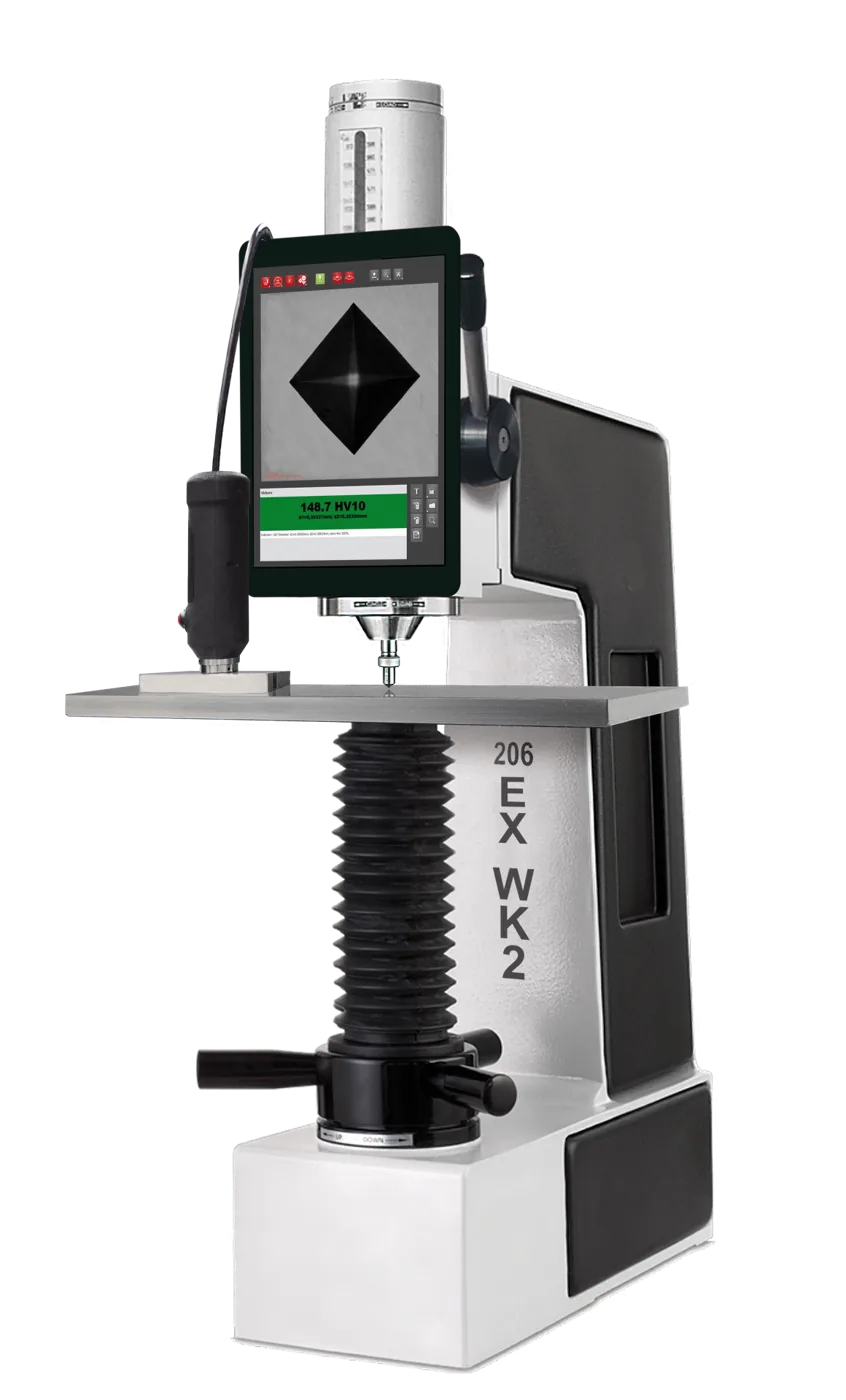

206 Ex2 Wk

• 3 to 187.5 kgf
• Rockwell, Superficial R., Brinell and Vickers
• Dual load cells loading system
• Clamping system available
• Direct reading HR and HBW

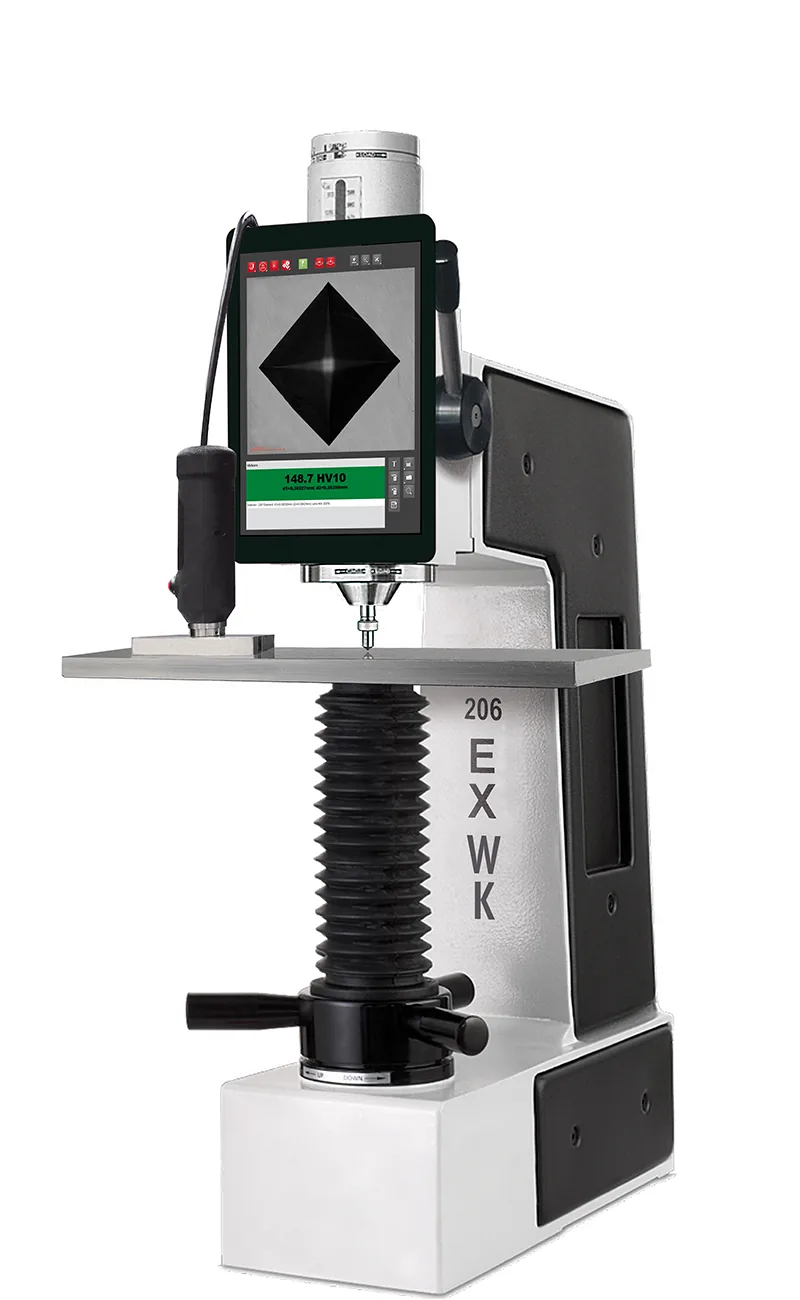

206 Ex Wk

• 3 to 31.25 kgf or 10 to 187.5kgf
• Rockwell, Brinell and Vickers or Superficial R., Brinell and Vickers
• Dual load cells loading system
• Clamping system available
• Direct reading HR and HBW

Universal Hardness Testing Solutions Wk Serie

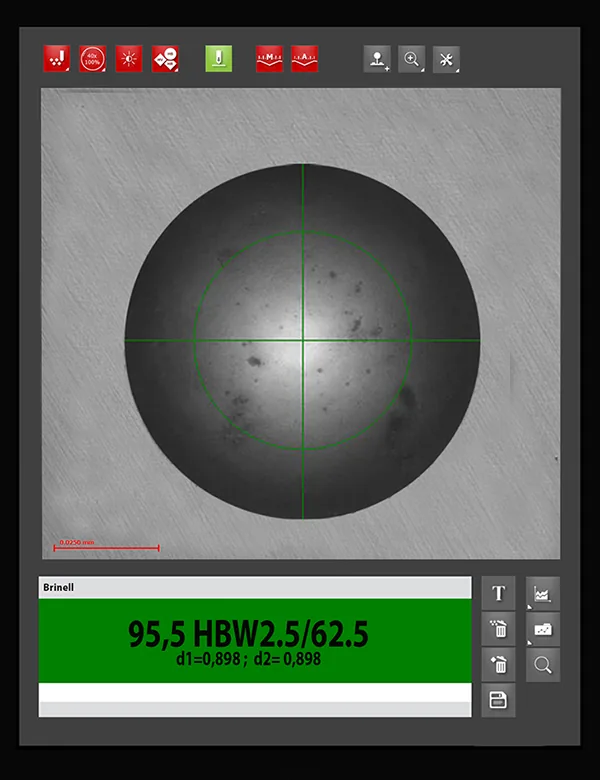

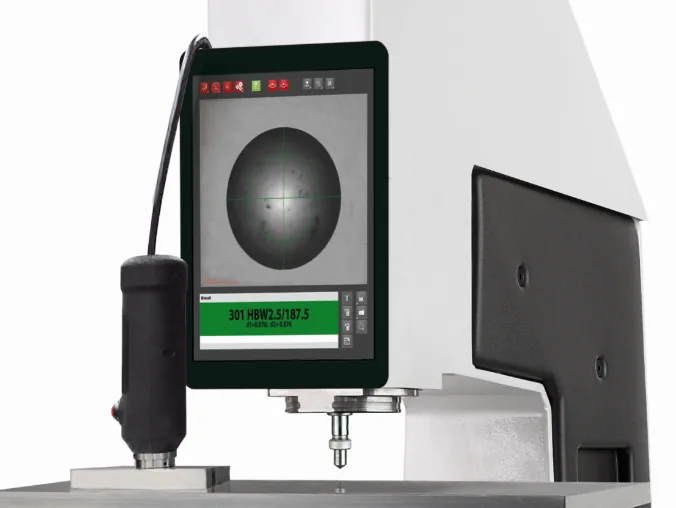

WK is an accessory applicable to each hardness tester to transform them into universal hardness testers for Brinell, Vickers and Rockwell measurements. Suitable to measure any kind of component thanks to the automatic scanning of indentation by optic probe and the direct view of result on the LCD touch-screen. Data report can be created and exported.

• Camera HD 1.2MP • Objectives 25x or 50x with 50x or 100x zoom according to objectives
• Autofocus
• Autolighting LED
• Autorecognition of indentations with auto measuring
• Automatic and manual Brinell and Vickers measures
• HD touchscreen
• LCD colored touchscreen 12”
• Software multilanguages Windows 10
• USB, Eternet and 484 ouputs
• Archive for data, images and statistic datas

Automatic motorized hardness testers

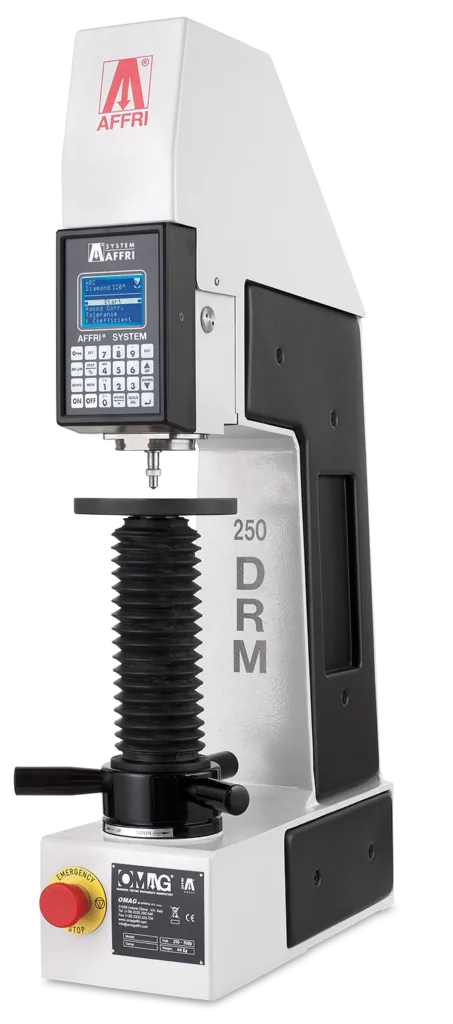

250 DRM is a fast and really easy bench hardness testers with high accuracy standards. To perform the test just act on the elevating screw and bring the sample to make contact with the indenter, then push the start button activating preloading and loading in automatic succession; within seconds results appear. Load forces are electronically applied throug load cells which eliminates problems associated with dead weight systems on traditional testers. It is not affected by vibration and it doesn’t need to be leveled.

Rockwell and superficial Rockwell ISO 6508 / ASTM E-18

HRA – HRB – HRC – HRD – HRF – HRG – HRL – HRM – HRR / HRN – HRT – HRW – HRX – HRY

Brinell HBWT ASTM E-103 / ISO 6506

HBW 1/5 – HBW 1/10 – HBW 1/30 – HBW 2.5/6.25 – HBW 2.5/7.8125 – HBW 2.5/15.625 – HBW 2.5/31.25 – HBW 2.5/62.5 – HBW 2.5/187.5 – HBW 5/25 – HBW 5/31.25 – HBW 5/62.5 – HBW 5/125 – HBW 5/250

Vickers ISO 6507 / ASTM E-92 (Indentation only)

HV3 – HV5 – HV10 – HV15 – HV20 – HV30 – HV50 – HV100

Semi-automatic hardness testers

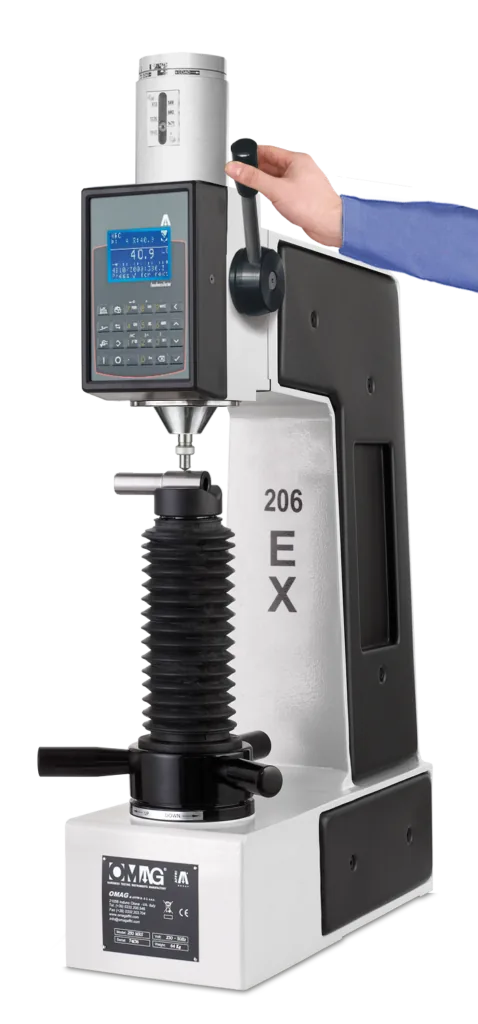

206 EX is a fast and really easy bench hardness testers with high accuracy standards. To perform the test just act on the elevating screw and bring the sample to make contact with the indenter, then pull the lever activating preloading and loading in automatic succession; within seconds results appear. Load forces are applied through two dynamometric load cells which eliminates problems associated with dead weight systems on traditional testers. It is not affected by vibration and it doesn’t need to be leveled.

Brinell HBWT ASTM E-103 / ISO 6506

HBW 1/30 – HBW 2.5/15.625 – HBW 2.5/31.25 – HBW 2.5/62.5 – HBW 2.5/187.5 – HBW 5/25 – HBW 5/31.25 – HBW 5/62.5 – HBW 5/125
