Accessories
A dedicated range of accessories and alternative X-ray tubes engineered for the Comet X-ray XMB mobile systems — directional and panoramic X-ray tubes, a laser pointer with collimator and a mobile tripod tube stand, all designed to make the inspection workflow safe and more efficient.
- Compatible X-ray tubes
- 10
- Tube range
- 100–225 kV
- Max. tube power
- Up to 3000 W
- Panoramic beam
- 40° x 360°
Compatible X-ray tubes
Tube range
Max. tube power
Panoramic beam
About theAccessories
For more than 60 years Comet X-ray have manufactured high quality X-ray systems, designed to be reliable and efficient in all conditions. The mobile XMB X-ray system with 100, 160 or 225 kV supports a wide range of high quality X-ray tubes, from directional to panoramic, with different beam shapes and different size focal spots. The application possibilities of Comet X-ray mobile products are numerous, and they all pose different challenges to both equipment and operator. To meet these challenges a range of accessories has been designed — the accessory selection helps to make your workflow safe and more efficient.
Designed for the XMB Series
These accessories are engineered for the Comet X-ray XMB mobile systems.
A range built around your workflow
Directional & panoramic X-ray tubes
A wide range of high quality metal-ceramic X-ray tubes — from directional to panoramic — with different beam shapes and focal spot sizes for 100, 160 and 225 kV XMB systems. Full specifications are listed in the technical information table below.
Laser Pointer and Collimator
A practical tool for precise alignment of the X-ray tube head. The system consists of two different collimators and a frame carrying a laser pointer for alignment.

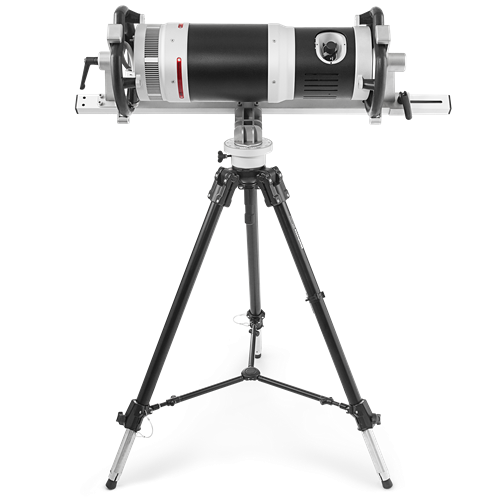

Mobile Tripod Tube Stand
A light-weight solution consisting of a tripod combined with a dolly for extended mobility. Mobility combined with agile positioning of 100 and 160 kV X-ray tubes for the XMB system saves both repositioning time and manpower.
Compatible X-ray tubes
Compatible X-ray tubes for the XMB system — directional and panoramic variants. * Limited to the XMB specifications.
| X-ray tube | Focal spot size EN 12543 | Max. X-ray power | Weight | Beam angle | Leakage radiation |
|---|---|---|---|---|---|
| Y.TU 100-D02 | 1.0 mm / 3.0 mm | 640 W / 1500 W | 6 kg | 40° x 40° | 1.0 mSv/h |
| Y.TU 160-D02 | 1.0 mm / 5.5 mm | 640 W / 3000 W* | 8 kg | 40° x 40° | 2.5 mSv/h |
| Y.TU 160-D03 | 1.0 mm / 3.0 mm | 640 W / 1600 W | 8 kg | 40° x 40° | 2.5 mSv/h |
| Y.TU 160-D04 | 1.0 mm / 1.0 mm | 640 W / 640 W | 8 kg | 40° x 40° | 2.5 mSv/h |
| Y.TU 160-D05 | 1.0 mm / 1.0 mm | 1000 W / 1000 W | 8 kg | 40° x 40° | 2.5 mSv/h |
| Y.TU 160-D06 | 0.4 mm / 1.0 mm | 800 W / 1800 W | 8 kg | 40° x 30° | 2.5 mSv/h |
| Y.TU 160-P01 | 0.4 mm x 4.0 mm | 1000 W | 8 kg | 40° x 360° | 2.5 mSv/h |
| Y.TU 225-D02 | 1.0 mm / 5.5 mm | 640 W / 3000 W* | 11 kg | 40° x 40° | 5.0 mSv/h |
| Y.TU 225-D03 | 1.0 mm / 3.0 mm | 640 W / 1600 W | 11 kg | 40° x 40° | 5.0 mSv/h |
| Y.TU 225-D04 | 0.4 mm / 1.0 mm | 800 W / 1800 W | 11 kg | 40° x 30° | 5.0 mSv/h |
Where theAccessories is used
- Operations at nuclear power plants
- Inspection in the petrochemical industry
- X-ray inspection in narrow and hard-to-reach spaces
- Precise alignment of the X-ray tube head
- Mobile positioning of 100 and 160 kV X-ray tubes
