XMB 100/160/225
Mobile constant-potential X-ray system available in 100, 160 and 225 kV variants — operative from 7.5 up to 225 kV with X-ray power up to 2.25 kW, high voltage cables up to 20 m and IP54 protection, fully compatible with film and digital imaging.
- Operating range
- 7.5–225 kV
- Max. X-ray power
- Up to 2.25 kW
- Cable length
- Up to 20 m
- Environment
- IP54
Operating range
Max. X-ray power
Cable length
Environment
About theXMB 100/160/225

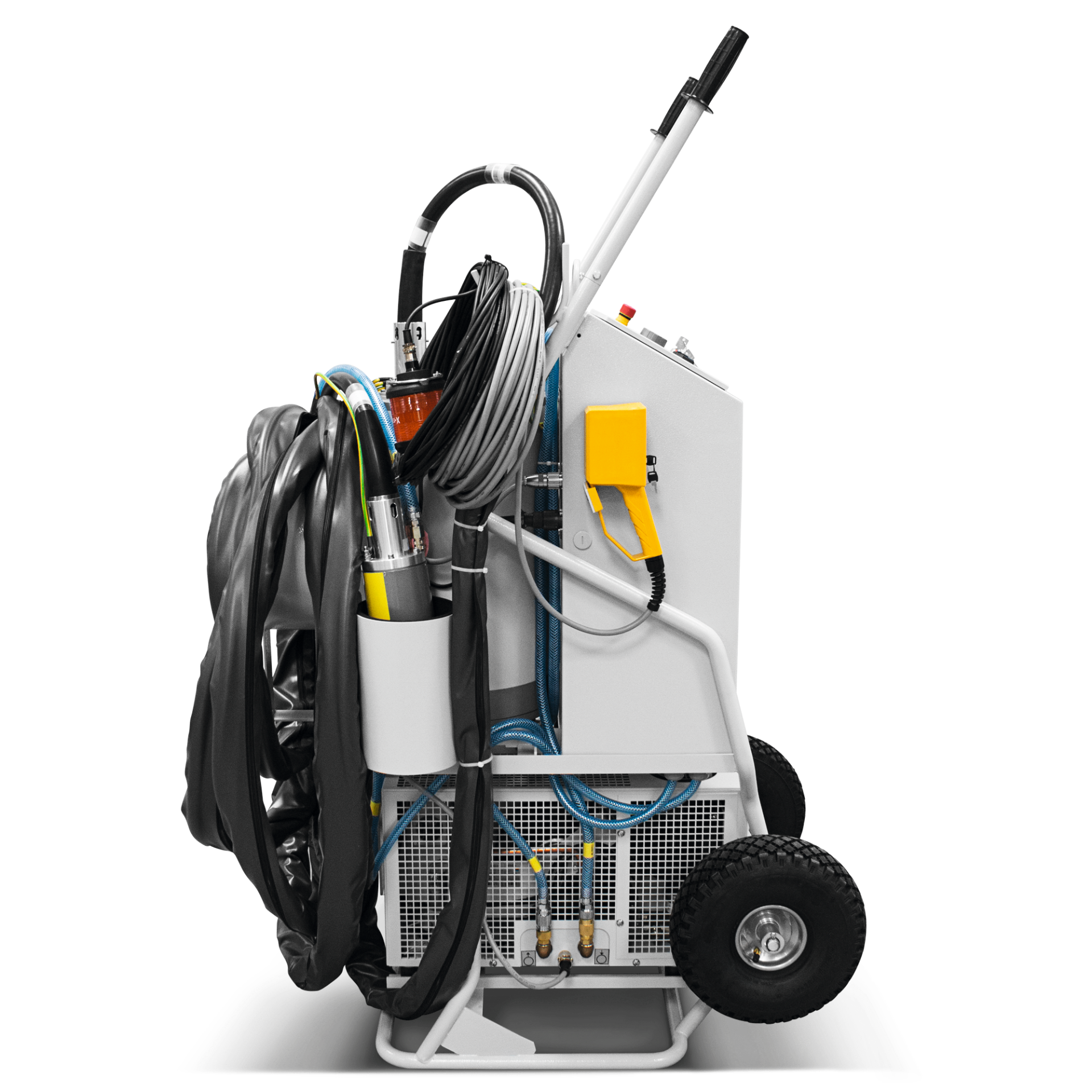

The mobile XMB X-ray system from Comet X-ray is easy to handle and perfectly designed for dealing with challenging inspection jobs at power plants, on aircraft structures and in the petrochemical industry. Our mobile X-ray solution supports high voltage cables with lengths up to 20 meters and combined with a compact metal ceramic X-ray tube mounted on the flexible high voltage cable, it performs excellently in challenging environments in narrow and hard-to-reach areas.
What sets theXMB 100/160/225 apart
Smarter workflow
The mobile XMB X-ray system from Comet X-ray is easy to handle and perfectly designed for dealing with challenging inspection jobs at power plants, on aircraft structures and in the petrochemical industry. Our mobile X-ray solution supports high voltage cables with lengths up to 20 meters and combined with a compact metal ceramic X-ray tube mounted on the flexible high voltage cable, it performs excellently in challenging environments in narrow and hard-to-reach areas.
Versatile
The constant potential XMB X-ray system supports a wide range of high-quality X-ray tubes, both directional and panoramic variants, with different sizes of focal spots. The modular design of the mobile system means it can be easily adapted to deal with diverse inspection jobs in confined spaces, just by changing the X-ray tube. The XMB is fully compatible with both film and digital imaging and can be used for a large range of difficult tasks without compromising your workflow.
High performance
The XMB is available in 100, 160 and 225 kV variants, and is operative from 7.5 kV up to a maximum of 225 kV, with an extremely high X-ray power of up to 2.25 kW. The system features a broad mA range from 0–20 mA depending on the chosen system and X-ray tube. The versatile XMB high-performance system will give you the competitive edge by reducing exposure time and creating a smarter workflow.
Options
A range of accessories and alternative X-ray tubes are available for XMB mobile X-ray systems.
Power supply
230 V +10 / −15 %, 50/60 Hz AC voltage range. Required fuse protection 20 A (single phase).
Exposure timer
1 second steps up to 10 minutes and 10 second steps up to 99 minutes or infinity. The exposure duration can be adjusted between 0–99 minutes and there is also an infinity setting for radioscopy.
Environment
IP54 protection against dust and water. Operational temperature from 0°C to +40°C. Relative humidity at 90 %.
XMB 100/160/225 specification matrix
XMB mobile X-ray systems — available in 100, 160 and 225 kV variants.
| XMB 100 | XMB 160 | XMB 225 | |
|---|---|---|---|
| Weight | Approx. 180 kg | Approx. 184 kg | Approx. 190 kg |
| Height x depth | 1630 x 980 mm | 1630 x 980 mm | 1630 x 980 mm |
| Width of axis | 600 mm | 600 mm | 600 mm |
| High voltage adjustment | 7.5 – 100 kV | 7.5 – 160 kV | 10 – 225 kV |
| mA adjustment | 0 – 20 mA | 0 – 20 mA | 0 – 15 mA |
| Max. X-ray power | 1500 W | 2250 W | 2250 W |
| Cable length | 10, 15 or 20 m | 10, 15 or 20 m | 10, 15 or 20 m |
Compliance & safety
- CE — EN 60204-1
- EN 50178
- EN 55011
- EN 61000-6-2
- DIN 54113
- Röntgenverordnung (RöV)
Compatible X-ray tubes
Compatible X-ray tubes — directional and panoramic variants. * Limited to the XMB specifications.
| X-ray tube | Focal spot size EN 12543 | Max. X-ray power | Weight | Beam angle | Leakage radiation |
|---|---|---|---|---|---|
| MXR-100/24/10-30 (XMB) | 1.0 mm / 3.0 mm | 640 W / 1500 W | 6 kg | 40° x 40° | 1.0 mSv/h |
| MXR-160/22 (XMB) | 1.0 mm / 5.5 mm | 640 W / 3000 W* | 8 kg | 40° x 40° | 2.5 mSv/h |
| MXR-160/21 (XMB) | 1.0 mm / 3.0 mm | 640 W / 1600 W | 8 kg | 40° x 40° | 2.5 mSv/h |
| MXR-160/20 (XMB) | 1.0 mm / 1.0 mm | 640 W / 640 W | 8 kg | 40° x 40° | 2.5 mSv/h |
| MXR-160HP/20 (XMB) | 1.0 mm / 1.0 mm | 1000 W / 1000 W | 8 kg | 40° x 40° | 2.5 mSv/h |
| MXR-160HP/11 (XMB) | 0.4 mm / 1.0 mm | 800 W / 1800 W | 8 kg | 40° x 30° | 2.5 mSv/h |
| MXRP-160C (XMB) | 0.4 mm x 4.0 mm | 1000 W | 8 kg | 40° x 360° | 2.5 mSv/h |
| MXR-225/22 (XMB) | 1.0 mm x 5.5 mm | 640 W / 3000 W* | 11 kg | 40° x 40° | 5.0 mSv/h |
| MXR-225/21 (XMB) | 1.0 mm / 3.0 mm | 640 W / 1600 W | 11 kg | 40° x 40° | 5.0 mSv/h |
| MXR-225HP/11 (XMB) | 0.4 mm x 1.0 mm | 640 W / 1800 W | 11 kg | 40° x 30° | 5.0 mSv/h |
Where theXMB 100/160/225 is used
- Inspection jobs at power plants
- Radiography on aircraft structures
- X-ray inspection in the petrochemical industry
- Inspection in narrow and hard-to-reach areas
