Scorpion2

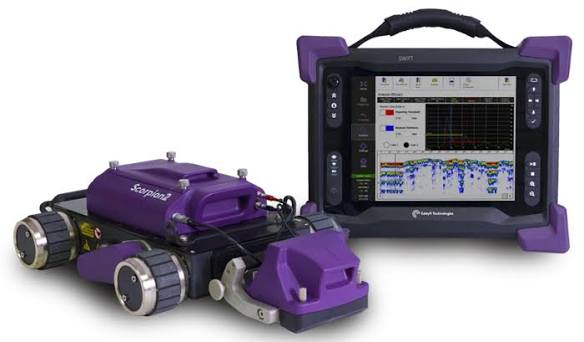

Scorpion2 is Eddyfi's advanced remote-access ultrasonic crawler designed for storage tank inspection and corrosion mapping. The system combines Swift acquisition software, high-speed robotic scanning and dry-coupled ultrasonic technology to improve inspection efficiency, increase Probability of Detection and reduce personnel exposure.
- Inspection Speed
- 180 mm/s
- Battery Operation
- 4 h
- Maximum Thickness
- 100 mm
- Umbilical
- 50 m
Inspection Speed
Battery Operation
Maximum Thickness
Umbilical
About theScorpion2
Scorpion2 is Eddyfi's advanced remote-access ultrasonic crawler designed for storage tank inspection and corrosion mapping. The system combines Swift acquisition software, high-speed robotic scanning and dry-coupled ultrasonic technology to improve inspection efficiency, increase Probability of Detection and reduce personnel exposure.
What sets theScorpion2 apart
High-Speed Scanning
Inspection speed up to 180 mm/s — up to 7× faster than Scorpion1.
Dry Coupled Wheel Probe
Dry coupled wheel probe with thickness measurement every 1 mm.
Advanced Gating
Floating gates and tracking gates for reliable thickness acquisition.
Active Probe Lift
Active probe lift and automatic probe balancing for consistent coupling.
Precise Tracking
Twin encoders and self-straightening capability for accurate positioning.
Magnetic Crawler
Four magnetic drive wheels on a battery-powered crawler platform.

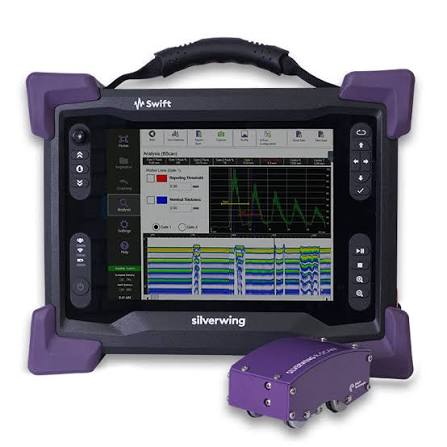

Swift Acquisition
Swift acquisition platform for streamlined data capture and reporting.
Close-to-Weld Access
Inspection within 25 mm from weld caps for improved coverage.
Improved POD
Improved Probability of Detection across the inspected surface.
Efficient Deployment
Reduced mobilization time, simplified deployment and faster reporting workflow.
Standards Compliant
API 650 compliant, API 653 compliant and EEMUA aligned methodology.
Where theScorpion2 is used
- Storage Tanks
- Tank Shell Inspection
- Tank Roof Inspection
- Pressure Vessels
- Offshore Structures
- Corrosion Monitoring
- Refineries
- Petrochemical Assets
- In-service Inspection
Product imagery
Product videos
Official brochures
Scorpion2 — Technical Spec Sheet
Additional documents
Swift & Scorpion R-scan — User Manual
Scorpion1 vs Scorpion2 — Comparison Guide
How EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
Eddyfi Technologies
Scorpion2 is part of the Eddyfi Technologies portfolio, represented by EMUS across the Balkan region.
Application Notes & resources
Official application notes and technical literature for Scorpion2.
Request an Engineering Consultation
Talk to an EMUS engineer about theScorpion2 and whether it fits your inspection workflow.
