Ectane 3
Ectane 3 is Eddyfi Technologies' flagship electromagnetic inspection platform for advanced tubing and surface inspections. The system supports ten inspection technologies, up to 256 channels, SmartMUX architecture and Remote Field Array capabilities for high-resolution heat exchanger inspections. Designed for demanding industrial environments, Ectane 3 combines IP65 ruggedization, modular expandability and Magnifi software compatibility to deliver advanced inspection workflows for heat exchangers, tubing assets and critical infrastructure.
- Frequency Range
- 5 Hz – 10 MHz
- Battery Autonomy
- 8 h
- Technology Support
- 10 Technologies
- Maximum Channels
- 256
Frequency Range
Battery Autonomy
Technology Support
Maximum Channels
About theEctane 3
Ectane 3 is Eddyfi Technologies' flagship electromagnetic inspection platform for advanced tubing and surface inspections. The system supports ten inspection technologies, up to 256 channels, SmartMUX architecture and Remote Field Array capabilities for high-resolution heat exchanger inspections. Designed for demanding industrial environments, Ectane 3 combines IP65 ruggedization, modular expandability and Magnifi software compatibility to deliver advanced inspection workflows for heat exchangers, tubing assets and critical infrastructure.
What sets theEctane 3 apart
Ten Inspection Technologies
Supports 10 inspection technologies including ECT, ECA, NFT, RFT, RFA, MFL, MFLA and integrated IRIS.
Remote Field Array
Remote Field Array (RFA) support for high-resolution ferromagnetic tube inspection.
SmartMUX Architecture
SmartMUX architecture with up to 256 channels and 64, 128 or 256 element configurations.
Rugged & Sealed
IP65 certified sealed enclosure for demanding industrial environments.
Wide Frequency Range
5 Hz to 10 MHz frequency range across all supported technologies.
Battery Operation
8 hour battery autonomy with hot swappable batteries.
Flexible Connectivity
Three encoder inputs and eight probe inputs with automatic probe recognition.
Integrated IRIS
Built-in IRIS UT capability and programmable current source.
Software & SDK
Magnifi software integration, SDK compatible and system integration ready.
Automation Ready
Semi automated inspections with crawler and robotic inspection compatibility.
Array Capability
Array probe capability for accelerated, high-coverage inspections.
Modular Platform
Portable rugged platform with modular architecture and upgradeable configurations.
Where theEctane 3 is used
- Heat Exchangers
- Boilers
- Condensers
- Steam Generators
- Tubing Inspection
- Surface Inspection
- Corrosion Detection
- Carbon Steel Tubes
- Ferromagnetic Tubes
- Petrochemical Assets
- Power Plants
- Refineries

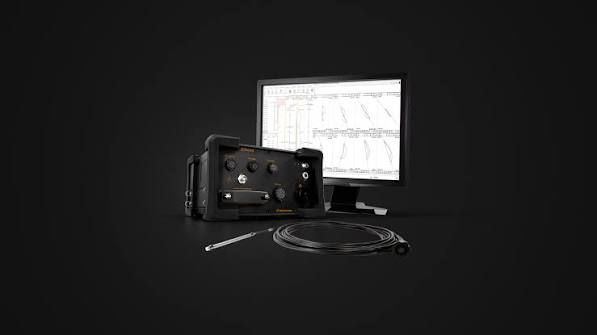

Product imagery
Product videos
Official brochures
Ectane 3 — Technical Spec Sheet
Additional documents
Ectane 3 — User Manual
