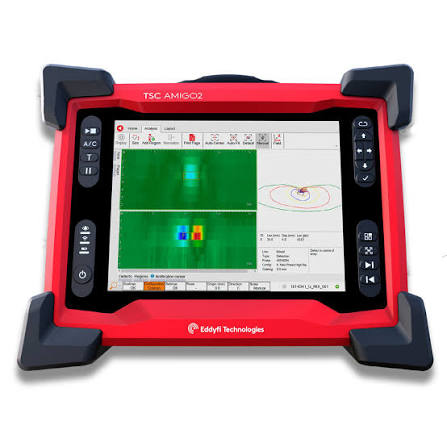

Amigo 2
With more than three decades of proven field performance, ACFM technology has become the industry benchmark for in-service weld inspection. Amigo2 extends this legacy with increased portability, improved signal quality, enhanced productivity and modern connectivity. The platform supports conventional probes, Sensu2 array probes, underwater probes and high-temperature applications, combining hardware, Assist software and Sensu probe technologies into a complete ACFM inspection ecosystem.
- Technology
- ACFM
- Display
- 10.4 in
- Battery Life
- 6–8 h
- Ingress Protection
- IP65
- Temperature
- 500°C
- Underwater
- 50 m
- Frequency
- 5–50 kHz
- Data Resolution
- 16 bit
Technology
Display
Battery Life
Ingress Protection
Temperature
Underwater
Frequency
Data Resolution
About theAmigo 2
With more than three decades of proven field performance, ACFM technology has become the industry benchmark for in-service weld inspection. Amigo2 extends this legacy with increased portability, improved signal quality, enhanced productivity and modern connectivity. The platform supports conventional probes, Sensu2 array probes, underwater probes and high-temperature applications, combining hardware, Assist software and Sensu probe technologies into a complete ACFM inspection ecosystem.
What sets theAmigo 2 apart
Inspect Through Coatings
Perform inspections without removing coatings, reducing downtime and coating restoration costs.
Crack Sizing
Depth sizing, length sizing, encoder based, 3BZ technology.
Sensu2 Compatibility
Single element probes, array probes, high productivity scanning and single-pass inspections.
Portable Rugged Design
IP65 construction, magnesium alloy enclosure, sealed fanless cooling, hot swappable batteries and heavy-duty bumpers.
Connected Ecosystem
Assist, OneDrive, Zoom and Eddyfi App for remote collaboration and data sharing.
High Temperature Inspection
Up to 500°C, suitable for elevated temperature inspections.
Where theAmigo 2 is used
- Structural Weld Inspection
- Fillet Welds
- Lap Joints
- Butt Welds
- Thread Inspection
- High Temperature Inspection
- Galvanized Steel Inspection
- Underwater Inspection
- Tank Inspection
- Rail Tank Cars
- Offshore Structures
- Pressure Vessels
Product imagery
Product videos
Official brochures
Amigo2 — Product Brochure
Additional documents
Amigo2 & SE — User Manual
Alternatives from other manufacturers
Comparable systems we also represent. If your application requires a different balance of speed, resolution or footprint, these are worth reviewing.
Structure & Hardness Test Instruments
ibg's family of digital eddy-current instruments for 100% comparative verification of heat treatment, hardness, case depth and material mix-ups on mass-produced steel parts.
Compareibg NDT TechnologyeddyQlab Ai
Laboratory system that uses eddy-current data and a pre-trained AI model to predict case depth and surface hardness of induction-hardened parts such as CV joints.
Compareibg NDT TechnologyeddyQlab Ai VL
Semi-automated, one-button lab system for CV joints that predicts surface hardness and case depth non-destructively using AI and machine learning.
Compareibg NDT Technologyeddyguard neo S
Next-generation eddy-current controller for microstructure testing, built for easy machine integration, Industrial Ethernet connectivity and multi-device control.
CompareHow EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
Eddyfi Technologies
Amigo 2 is part of the Eddyfi Technologies portfolio, represented by EMUS across the Balkan region.
Application Notes & resources
3 application notes and related technical literature for Amigo 2.
High-Temperature Weld Inspection (ACFM)
ACFM crack detection on hot surfaces.
Through-Coating Crack Detection
ACFM without paint or coating removal.
Monopile & Offshore Structure Inspection
ACFM inspection of monopiles and jackets.
