Floormap X
FloormapX is Eddyfi Technologies' latest generation MFL Array tank floor scanner developed for high-resolution corrosion mapping and storage tank integrity assessment. The platform combines MFL Array, STARS technology, SIMS GO acquisition, SIMS PRO reporting, SmartMAGNET™, laser-assisted indication marking and precision active steering, supporting Mapping and Freescan workflows while maximizing tank floor coverage including the critical zone.
- Inspection Thickness
- Up to 20 mm
- Coverage
- Up to 263 m²/h
- Critical Zone
- Within 12 mm
- Scan Width
- 300 mm
- Battery
- Up to 4 h
- Speed
- Up to 1 m/s
- Sensors
- 256 Hall Sensors
- Channels
- 64
Inspection Thickness
Coverage
Critical Zone
Scan Width
Battery
Speed
Sensors
Channels
About theFloormap X
FloormapX is Eddyfi Technologies' latest generation MFL Array tank floor scanner developed for high-resolution corrosion mapping and storage tank integrity assessment. The platform combines MFL Array, STARS technology, SIMS GO acquisition, SIMS PRO reporting, SmartMAGNET™, laser-assisted indication marking and precision active steering, supporting Mapping and Freescan workflows while maximizing tank floor coverage including the critical zone.
What sets theFloormap X apart
Precision Active Steering
Inspect critical zones within 12 mm of the shell wall with curved scans, improved coverage and reduced dead zones.
STARS Technology
Differentiate top-side and bottom-side corrosion, generate detailed surface profiles and improve tank integrity assessment.
SmartMAGNET™
Variable magnetic flux strength for optimized inspection performance and safer transport and handling.
Interactive Laser Guide
Live defect localization with C-scan correlation and improved field efficiency.
Adjustable Bridge Height
Compensates for lap welds, repair plates, surface irregularities and challenging floor conditions.
SIMS Ecosystem
SIMS GO acquisition and SIMS PRO reporting for an integrated inspection workflow.
SIMS GO — Data Acquisition
Supports Mapping, Freescan, pause-on-defect workflows and live MFL imaging.
SIMS PRO — Analysis & Reporting
API 653 and EEMUA reporting, tank builder, repair plate designer, automated indication lists, 100% RAW MFL visualization, custom report templates and PDF, Word and Excel export.
Maximum coverage including critical zone
Top-side and bottom-side discrimination
High Probability of Detection
Mapping mode
Freescan mode
Pause-on-defect workflow
10% material loss detection
Battery-powered operation
Modular transport design
Where theFloormap X is used
- Tank Bottom Inspection
- Storage Tank Integrity
- API 653 Inspection
- EEMUA 159 Compliance
- Critical Zone Inspection
- Corrosion Mapping
- Maintenance Planning
- Asset Life Extension

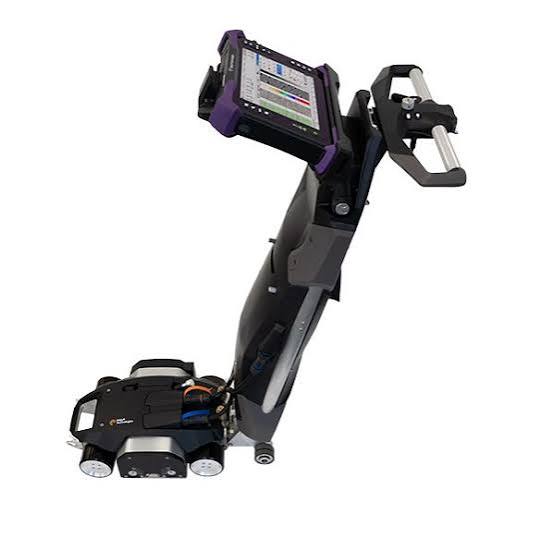

Product imagery
