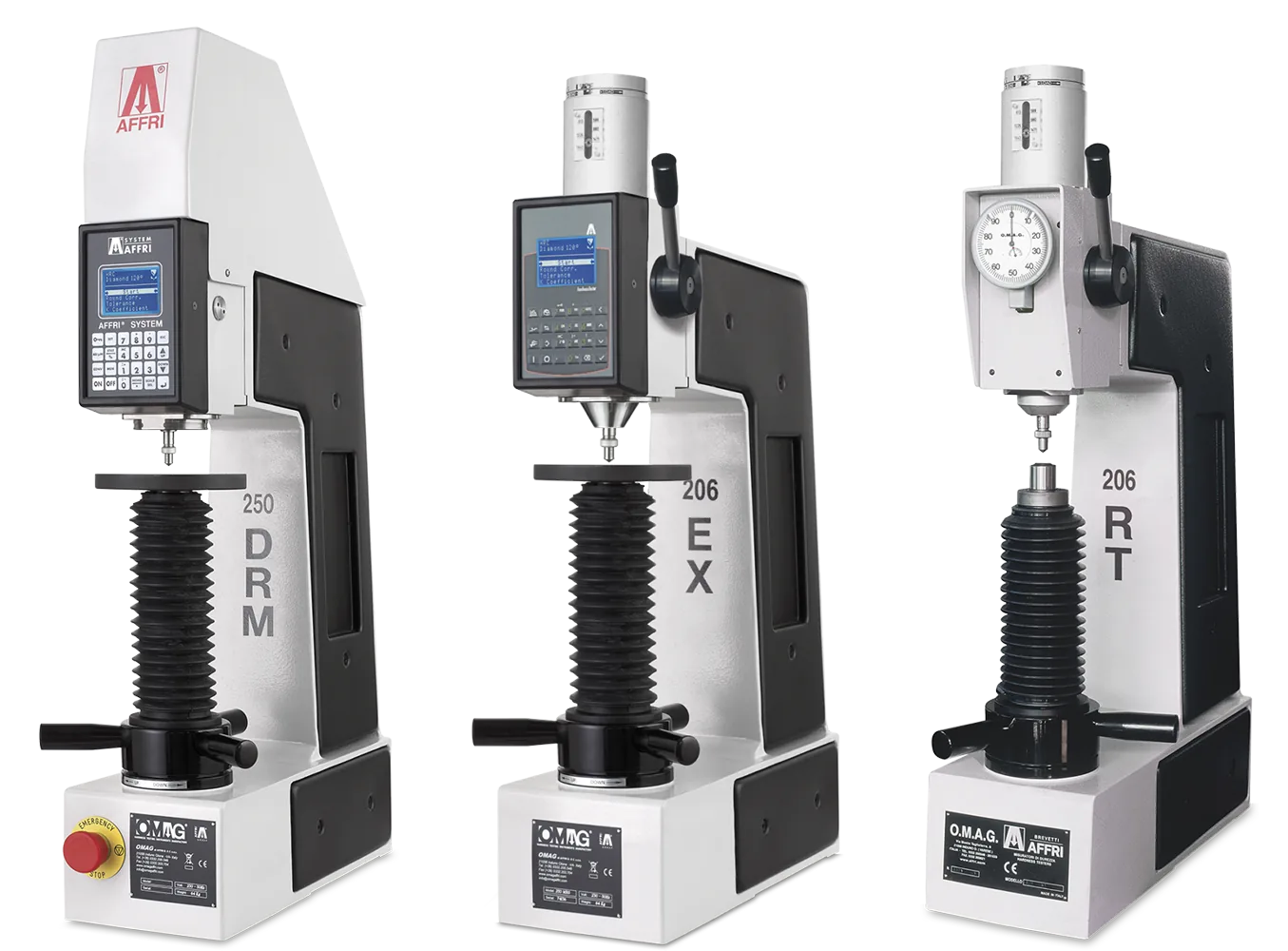

DRM / EX / RT

Rockwell and superficial Rockwell ISO 6508 / ASTM E-18

HRA – HRB – HRC – HRD – HRF – HRG – HRL – HRM – HRR / HRN – HRT

Brinell HBWT ASTM E-103 / ISO 6506

HB 30 – HB 10 – HB 5 – HB 2,5 – MPa (F/D2)

Vickers ISO 6507 / ASTM E-92 (Indentation only)

HV3 – HV5 – HV10 – HV15 – HV20 – HV30 – HV50 – HV100

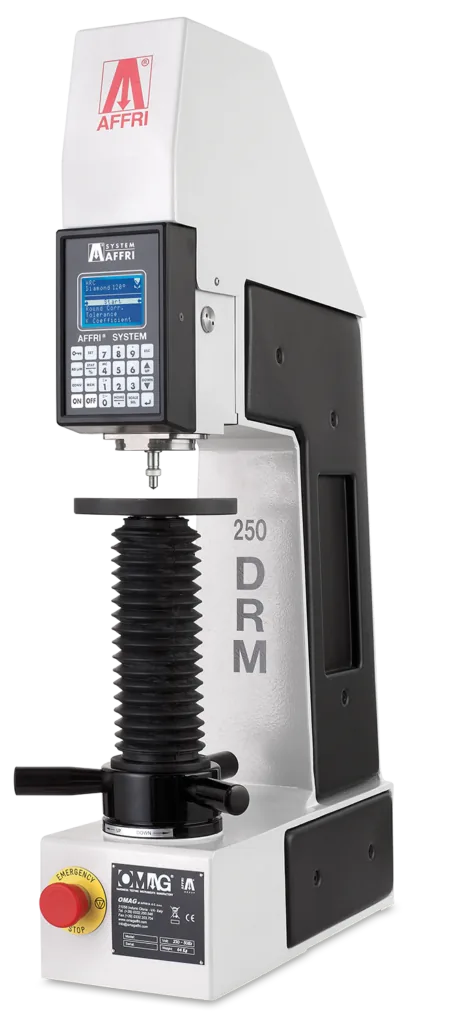

Automatic motorized hardness tester:

250 DRM is a fast and really easy bench hardness testers with high accuracy standards. To perform the test just act on the elevating screw and bring the sample to make contact with the indenter, then push the start button activating preloading and loading in automatic succession; within seconds results appear. Load forces are electronically applied through load cells which eliminates problems associated with dead weight systems on traditional testers. It is not affected by vibration and it doesn’t need to be leveled.

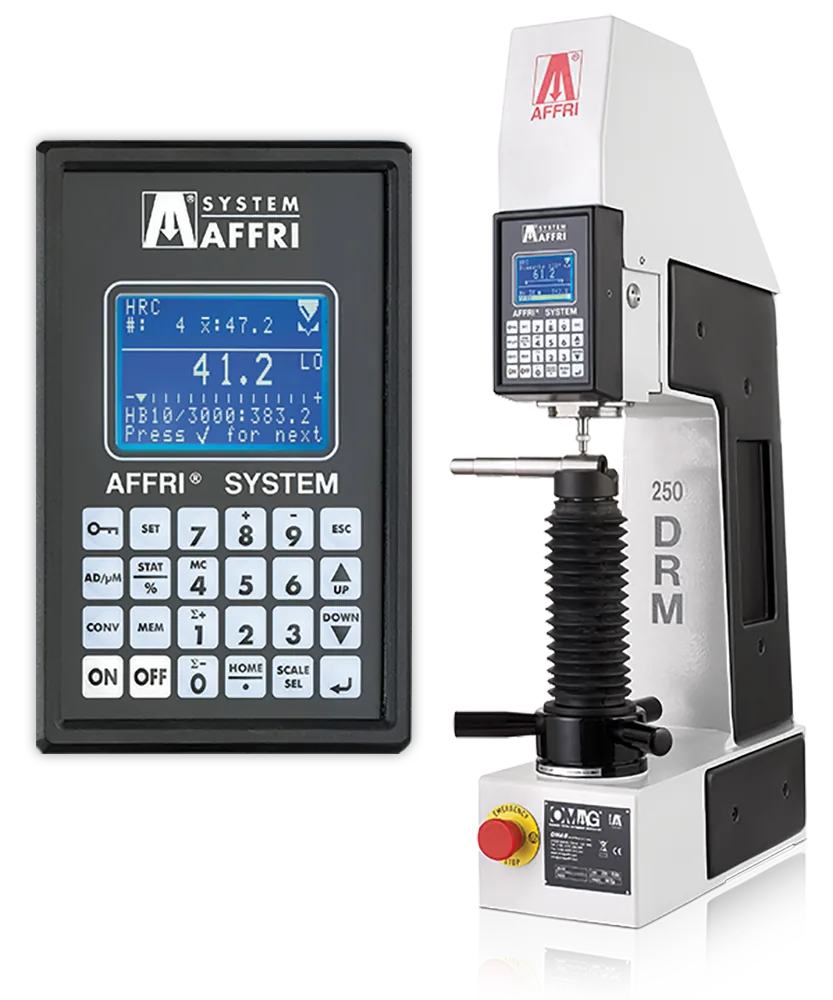

Main control LCD panel in front of the measuring head for setup of test parameters :

Selection of hardness scales, dwell time, conversion data, return stroke, memory and storage of results, statistics, test temperature measure, calibration, system checkup, tolerance range, in-time results average, correction of round surface and automatic evaluation.

Automatic Motorized Hardness Tester

250 DRM is a fast and really easy bench hardness testers with high accuracy standards. To perform the test just act on the elevating screw and bring the sample to make contact with the indenter, then push the start button activating preloading and loading in automatic succession; within seconds results appear. Load forces are electronically applied through load cells which eliminates problems associated with dead weight systems on traditional testers. It is not affected by vibration and it doesn’t need to be leveled.

Main Control LCD Panel In Front Of The Measuring Head For Setup Of Test Parameters

Selection of hardness scales, dwell time, conversion data, return stroke, memory and storage of results, statistics, test temperature measure, calibration, system checkup, tolerance range, in-time results average, correction of round surface and automatic evaluation.

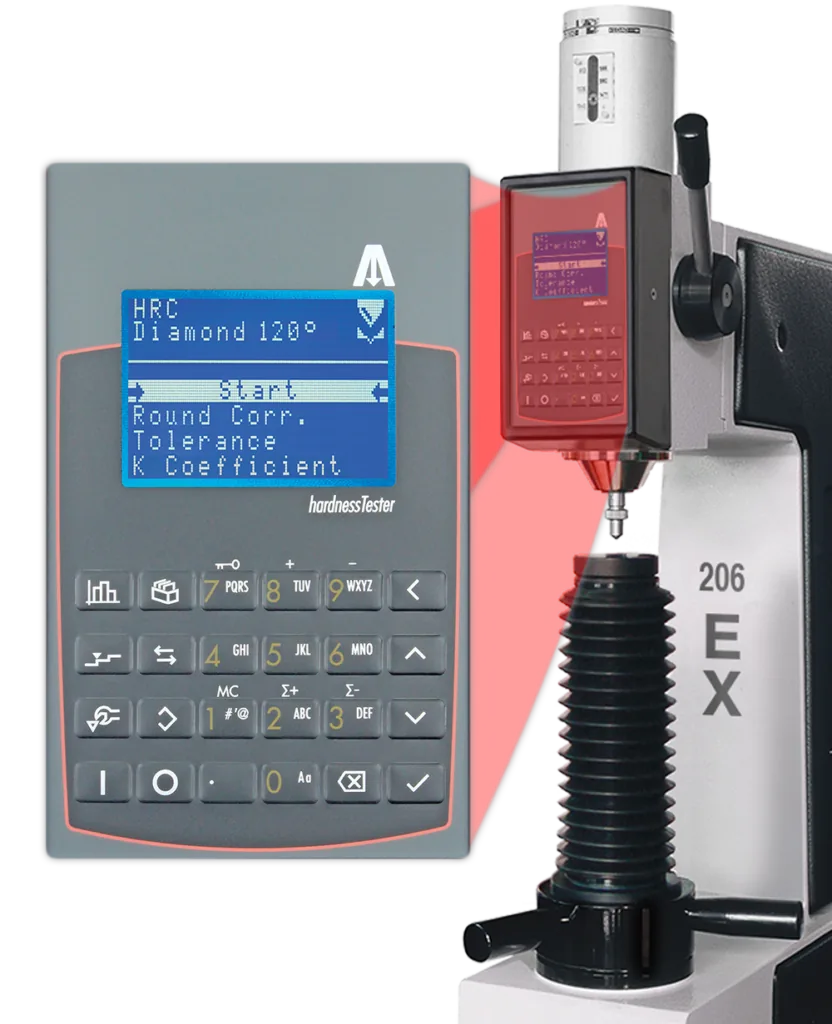

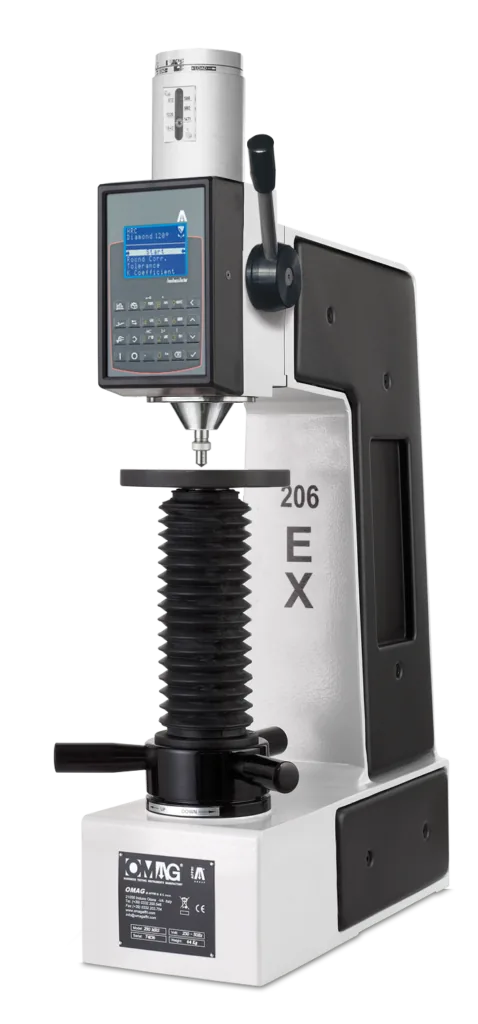

Semi-automatic hardness tester for simple measurements

206EX is a semi-automatic and simple hardness tester with test loads from 3 to 187,5 kgf. It works with Rockwell, Superficial Rockwell and Brinell HBWT hardness tests conforming to ASTM and ISO hardness testing standards.

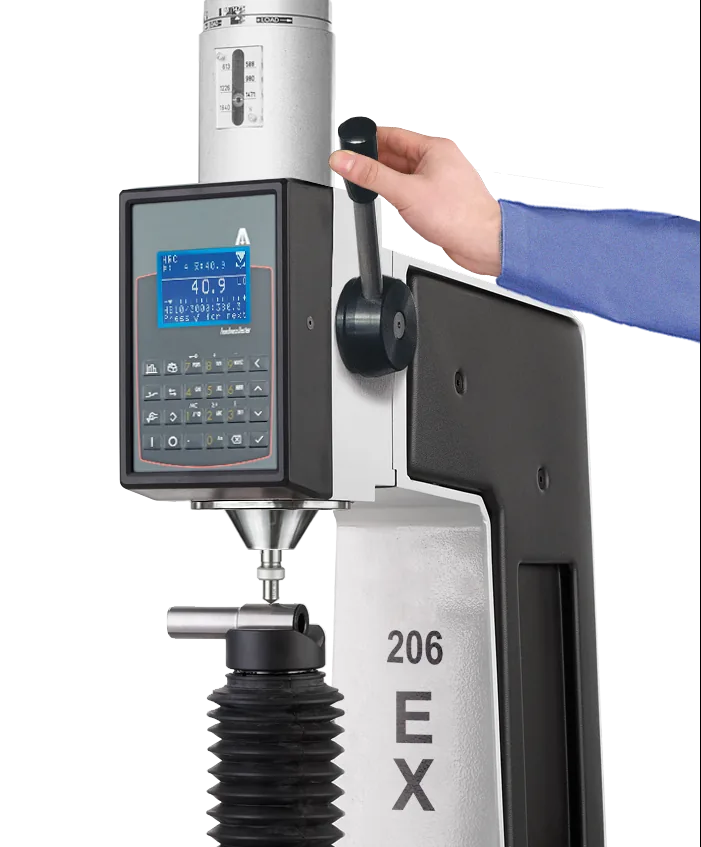

Semi-automatic digital hardness tester:

206 EX is a fast and really easy bench hardness testers with high accuracy standards. To perform the test just act on the elevating screw and bring the sample to make contact with the indenter, then pull the lever activating preloading and loading in automatic succession; within seconds results appear. Load forces are applied through two dynamometric load cells which eliminates problems associated with dead weight systems on traditional testers. It is not affected by vibration and it doesn’t need to be leveled.

LCD and key pad board IP 64 protection:

• Simultaneous view of 2 scales, the one of the test and the one chosen from the list of conversion scales. Conversion values for all hardness scales HB, HV, HSD, HK, HRN, HRT, N/mm.

Semi-Automatic Digital Hardness Tester

206 EX is a fast and really easy bench hardness testers with high accuracy standards. To perform the test just act on the elevating screw and bring the sample to make contact with the indenter, then pull the lever activating preloading and loading in automatic succession; within seconds results appear. Load forces are applied through two dynamometric load cells which eliminates problems associated with dead weight systems on traditional testers. It is not affected by vibration and it doesn’t need to be leveled.

LCD And Key Pad Board Ip 64 Protection

• Simultaneous view of 2 scales, the one of the test and the one chosen from the list of conversion scales. Conversion values for all hardness scales HB, HV, HSD, HK, HRN, HRT, N/mm.
