Rockwell hardness tester designed as a tool for CNC machines and robots, controlled from the machine panel with a wireless connection.

Request Technical Consultation About AFFRI

Overview

About the EXPLORER

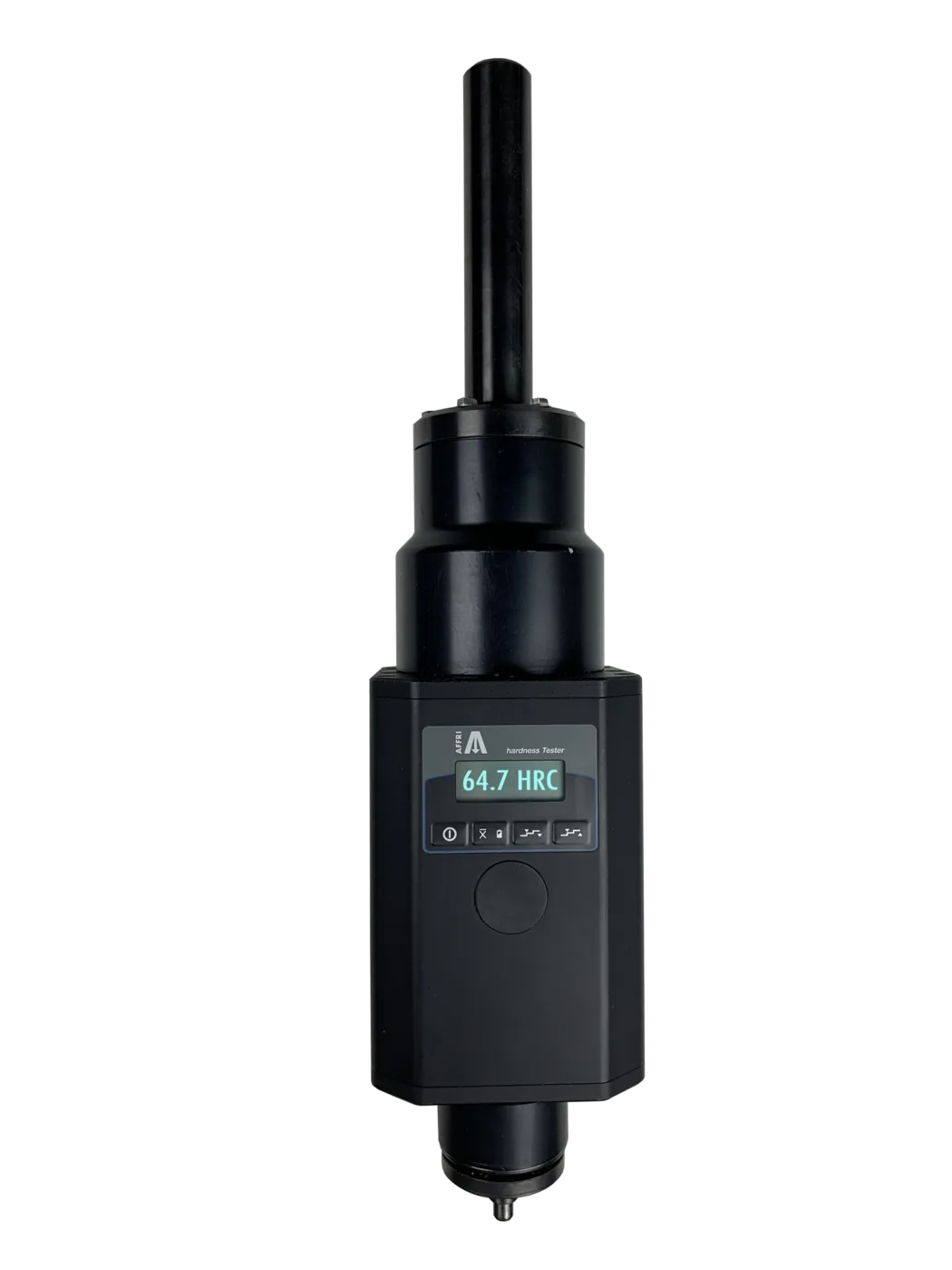

Explorer represents the heart of hardness measurement and automation enclosed in a unique instrument and it’s a hardness tester for CNC machines and robots. Explorer can be easily controlled from the general control panel of the CNC machine because the automation system recognizes Explorer as its tool.

Explorer is a reliable and precise hardness tester, with a new design and user friendliness. It allows to make quick and precise measurements. The instrument is applied to the working centres and handled just like a standard tool. Different types of coupling are available ISO, DIN 30,40,50 and more on demand.

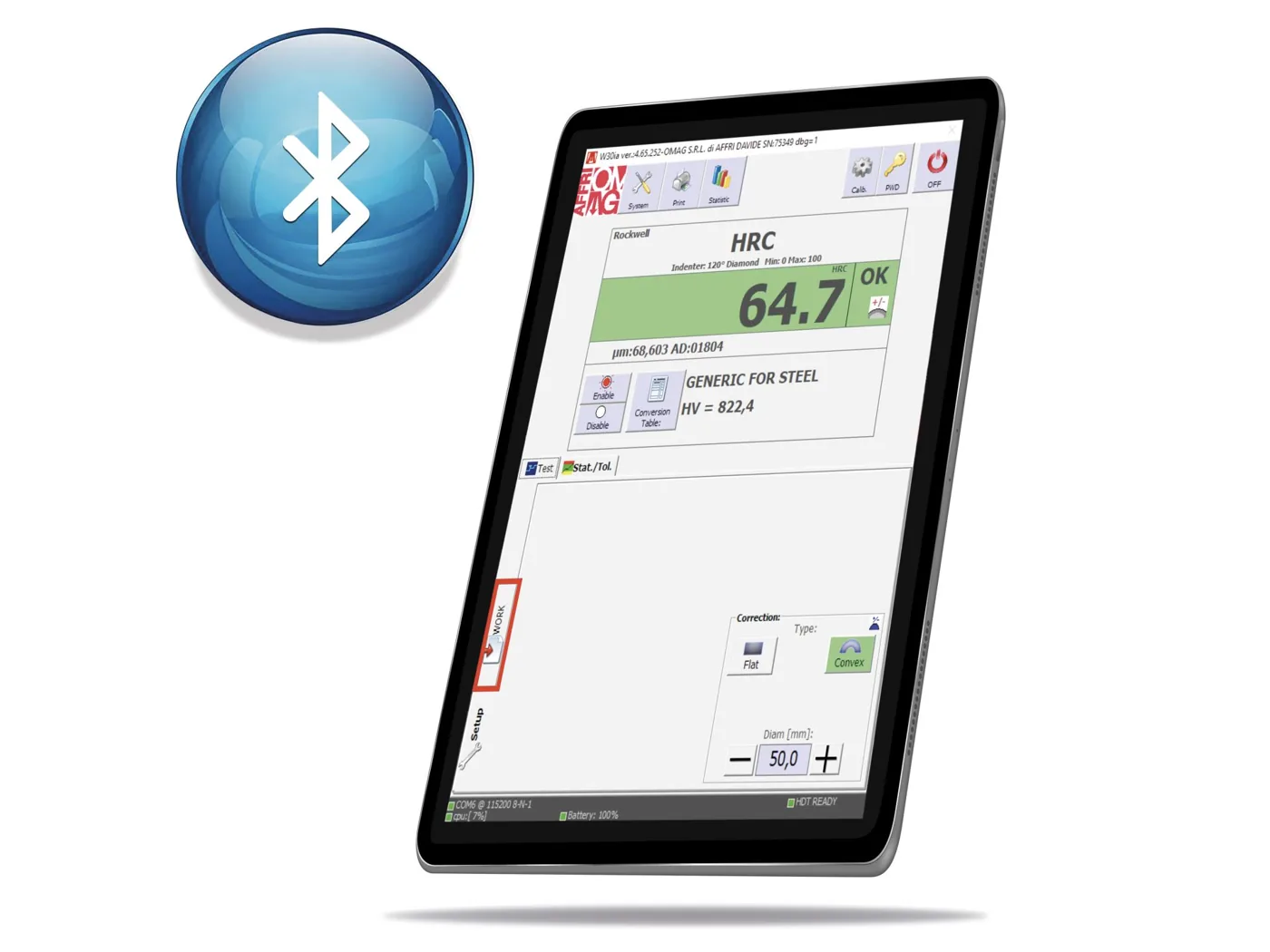

Explorer transfers the data concerning the test just carried out thanks to a Wireless connection via standard Bluetooth. Data transfer is guaranteed up to 30 meters (even if without net noises it is possible to transfer beyond 100 meters). This allows to place the support PC even far from the instrument for better ergonomics of the working place.

Key features

Rockwell Hardness Tester For Robots And CNC Machines
Explorer
Rockwell and superficial Rockwell ISO 6508 / ASTM E-18
Brinell HBWT ASTM E-103 / SO 6506
Wireless connection between CNC machine and Explorer
Maximum Innovation

Testing methods

Supported methods documented by AFFRI

Rockwell
Superficial Rockwell
Brinell HBWT — on request

Technical detail

How the EXPLORER works

Rockwell Hardness Tester For Robots And CNC Machines

Automatic hardness tester connectable to robots and CNC machines. Fully conform to ASTM and ISO standards.

Explorer

Automatic hardness tester connectable to robots and CNC machines. Fully conform to ASTM and ISO standards.

Rockwell and superficial Rockwell ISO 6508 / ASTM E-18

HRA – HRB – HRC – HRD – HRF – HRG – HRL – HRM – HRR / HRN – HRT

Brinell HBWT ASTM E-103 / SO 6506

1/30 – 1/10 – 2.5/15.6 – 2.5/31.5 – 2.5/62.5 – 2.5/187.5 – 5/125

Wireless connection between CNC machine and Explorer

Maximum Innovation

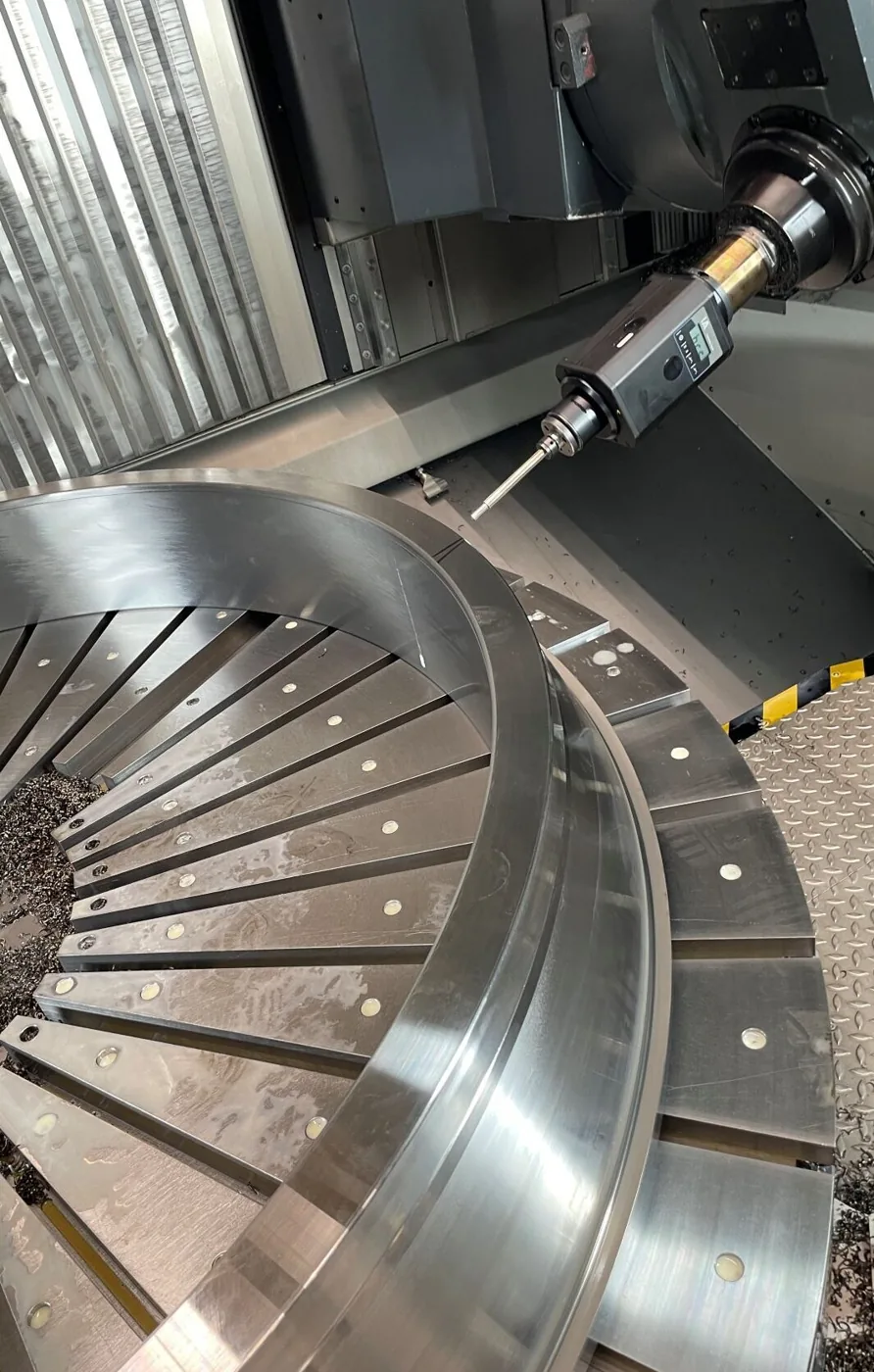

Explorer represents the pinnacle of technological innovation. It is recognized by CNC MACHINES and ROBOTS as one of their own limbs. It enables the execution of a hardness test directly along the production line. Now it will be possible to reach the most inaccessible and hard-to-reach spots and make hardness tests.

MAXIMUM INNOVATION Explorer represents the pinnacle of technological innovation. It is recognized by CNC MACHINES and ROBOTS as one of their own limbs. It enables the execution of a hardness test directly along the production line. Now it will be possible to reach the most inaccessible and hard-to-reach spots and make hardness tests.

Specifications

Technical data

Published specifications

Standards: EN-ISO 6508-2 / EN-ISO 6506-2 / ASTM E-18 / ASTM E-103 / ASTM E-3246
Preload: EXPLORER: 1 kgf (9.807 N) EXPLORER 2: 98.1 N (10 kgf) - 29.4 N (3 kgf)
Force range: EXPLORER: 2 or 5.6 kgf (19.614 or 54.92 N) EXPLORER 2: Rockwell: 588.4 or 980.7 or 1471 N (60 - 100 - 150 kgf) Brinell (On request): 98.07 or 153.2 or 294.2 or 306.5 or 612.9 or 1226 or 1839 N - On request 2452 N (10 - 15.6 - 30 - 31.2 - 62.5 - 125 - 187.5 kgf - On request 250 kgf) Superficial Rockwell: 147.1 or 294.2 or 441.3 N (15 - 30 - 45 kgf)
Feasible tests: Rockwell: HRC - HRA - HRB - HRD - HRE - HRF - HRG - HRH - HRK - HRL - HRM - HRR Superficial Rockwell: HRN - HRT Brinell (On request): HB30 - HB10 - HB5 MPa (F/D2)
Load accuracy: Better than 0.5%

Data from official AFFRI product information. Values are reproduced as published; final configuration is confirmed in the EMUS quotation.
