Structure & Hardness Test Instruments
Model: eddyvisor S · eddyliner S · eddyguard S
ibg's family of digital eddy-current instruments for 100% comparative verification of heat treatment, hardness, case depth and material mix-ups on mass-produced steel parts.
About the Structure & Hardness Test Instruments

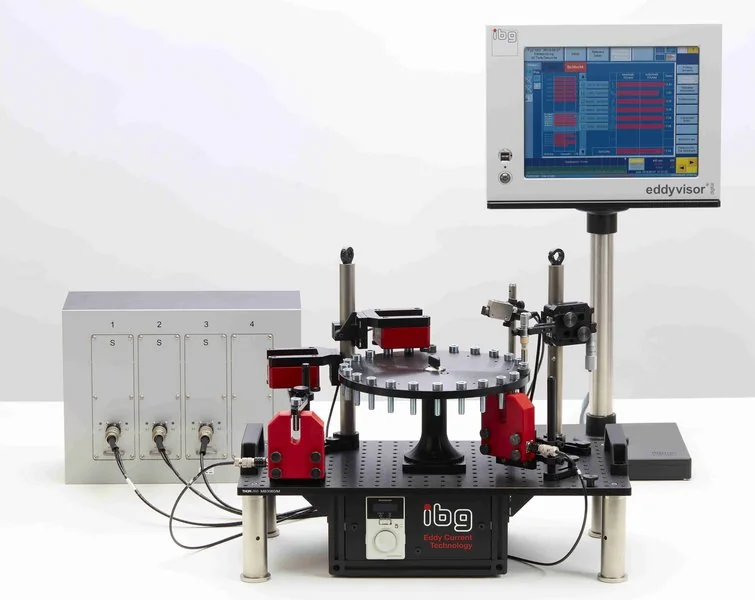

The structure test family covers every scale of heat-treatment verification, from the single-channel eddyguard S and eddyliner S to the modular, multi-channel eddyvisor S. All instruments share ibg's Preventive Multi-Frequency Technology (PMFT), Simultaneous Harmonic Analysis and good-part-only teaching, so a set-up is created by recording a batch of known good parts rather than by tuning frequencies and gains manually.
Typical tasks are confirming the result of hardening, tempering or case hardening, detecting soft spots and annealing faults, and sorting out material mix-ups on fasteners, ball studs, shafts, gears, rings and similar safety-relevant parts.
Eddy-current structure testing is comparative: the instrument learns tolerance zones from known good, correctly heat-treated reference parts and reports whether each part matches that reference. It does not output an absolute hardness value or a direct case-depth measurement; parts that fail should be examined metallurgically or with a conventional hardness test to establish the cause.
- Direct control of sorting devices, paint marking systems, and indicating lamps
- Integrated 24 V DC (2.5 A) power supply for cost-effective automation
- Remote operation from any network computer via VNC viewer software
- Multilevel access authorization with pin code or key switch
- Context-sensitive help function on the device screen
- Languages include German, English, Spanish, French, Italian, Czech, Polish, Portuguese, Chinese, Hungarian, Japanese, Korean, Russian, and more upon request.

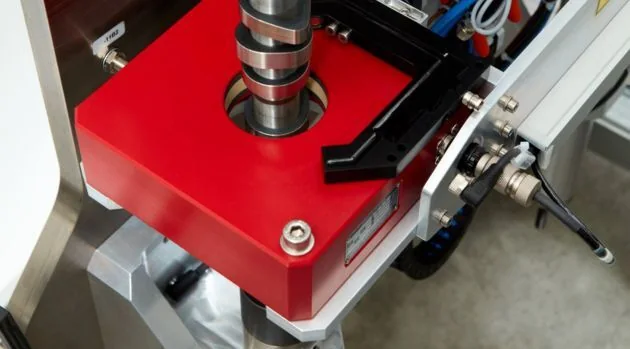

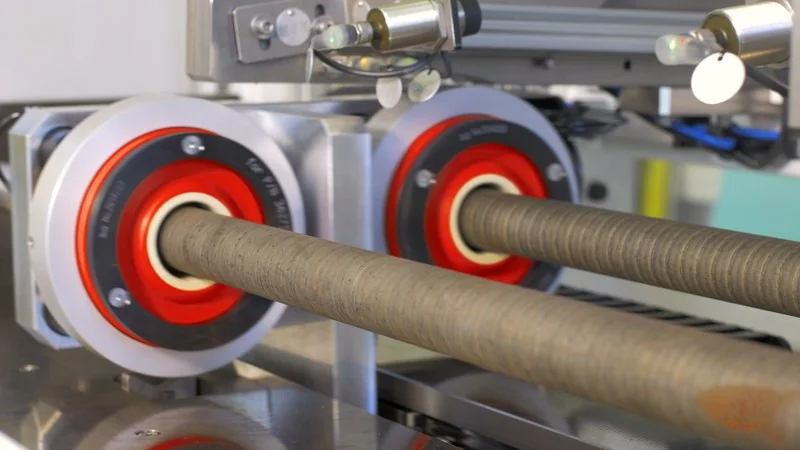

- Various encircling coils up to 500 mm in diameter

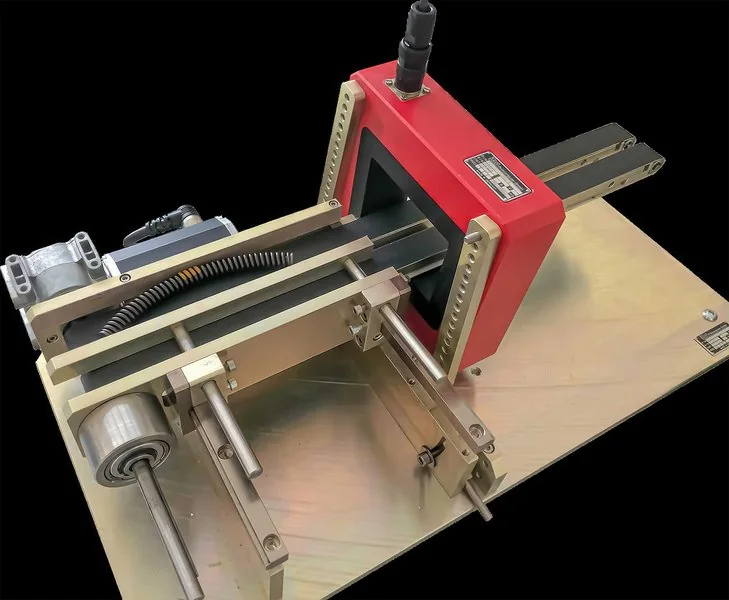

- Custom-designed coils for special applications
- Flexible coil configurations
- Detection of coil and cable failure
- 50/60 Hz noise suppression
- Sorting of different materials and mixed batches
- Up to seven trainable part types with varying characteristics

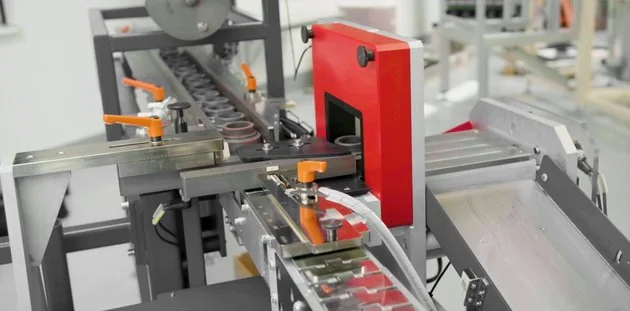

- Inline testing for material, heat treatment, case depth, and microstructure
- Statistical evaluation of test results along the part length
- Adjustable threshold for eliminating irrelevant variations

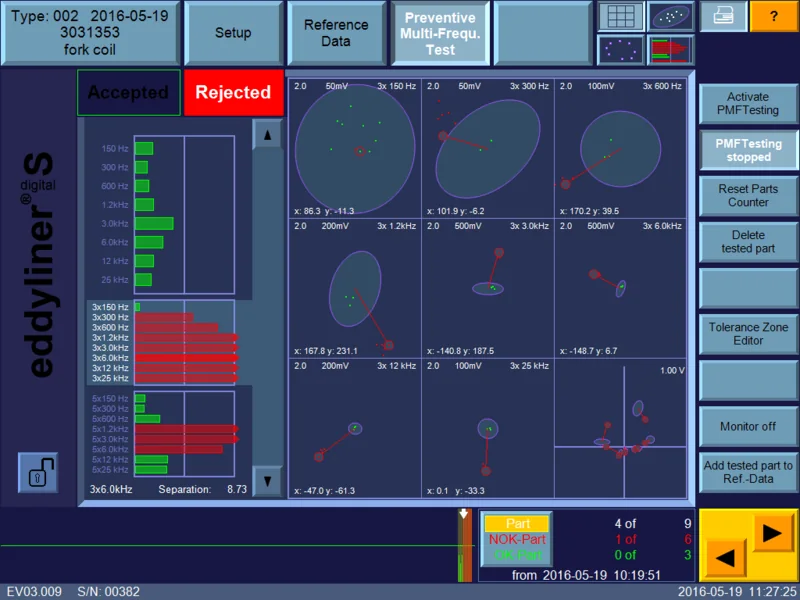

- Test results displayed as bar graph, single ellipse, or multiple ellipses
- Multi-colored histogram for visualizing reference data
- Stores results for up to 1,000 good parts and 100 bad parts
- Easy addition of questionable parts to reference data
Where the Structure & Hardness Test Instruments is used
- 100% heat-treatment verification after hardening and tempering
- Case-hardening and induction-hardening result checks
- Material mix-up sorting of ferromagnetic steels
- Fasteners, ball studs, tie rods, shafts, gears and rings
