AVIKO G3 WET CERAMIC
Model: AVIKO G3 CERAMIC ADVANCED AI
One-sided wet scanner for ceramic balls combining an enhanced electro-optical probe, sub-surface eddy-current probe and vibration probe with AI evaluation.
About the AVIKO G3 WET CERAMIC
The AVIKO G3 WET CERAMIC is designed specifically for ceramic balls. An enhanced electro-optical probe, a sub-surface eddy-current probe and a specially designed electro-vibration probe scan the ball, and all signals are evaluated by the eddyvisor and sorted by AI evaluation.

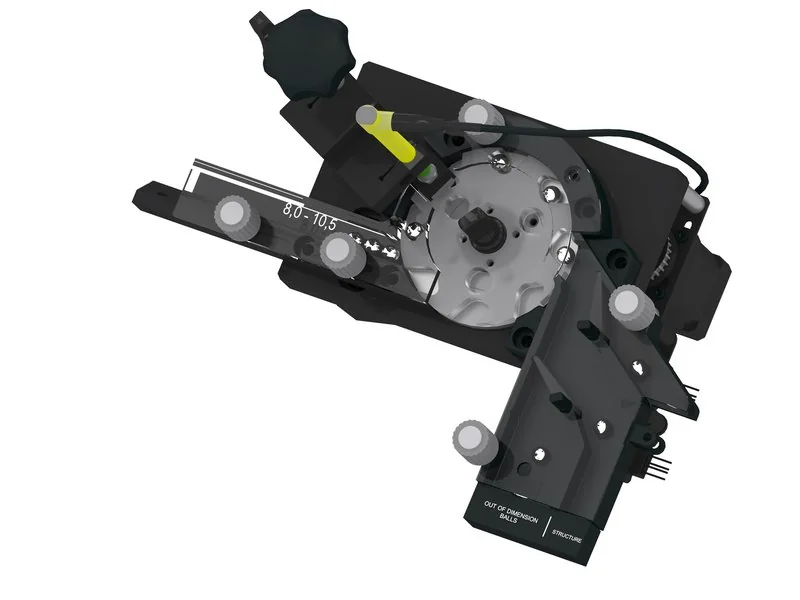

As in the steel version, diameter validation removes balls outside ±1 µm of the selected diameter before scanning. ibg lists the 1527 model as in development.
Technical data
- AVIKO 0610 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 5.556 - 10.319 · Validation Wheel: K 092 200C · Presorter: K 092 225
- AVIKO 1014 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 9.500 - 19.050 · Validation Wheel: K 092 400C · Presorter: K 092 425
- AVIKO 1419 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 13.494 - 19.050 · Validation Wheel: K 092 600C · Presorter: K 092 625
- AVIKO 1527 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 15.000 - 26.988 · Validation Wheel: IN DEVELOPMENT · Presorter: IN DEVELOPMENT
- AVIKO 1830 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 18.000 - 30.163 · Validation Wheel: K 092 800C · Presorter: K 092 825
- Machine
- Sorting Diameter (mm): Min. Ball ø · Presorter: Max. Ball ø · Scan Speed
- [mm]
- Sorting Diameter (mm): [mm] · Validation Wheel: [inch] · Presorter: [mm] · [inch] · [pcs/hr]
- AVIKO 0610 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 5.556 · Validation Wheel: 7/32 · Presorter: 10.319 · 13/32 · 880 - 2.490
- AVIKO 1014 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 9.525 · Validation Wheel: 3/8 · Presorter: 14.288 · 9/16 · 462 - 1030
- AVIKO 1419 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 13.494 · Validation Wheel: 17/32 · Presorter: 19.050 · 3/4 · 270 - 540
- AVIKO 1527 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 15.000 · Validation Wheel: - · Presorter: 26.988 · 1-1/16 · 130 - 440
- AVIKO 1830 G3 CERAMIC ADVANCED AI
- Sorting Diameter (mm): 18.000 · Validation Wheel: - · Presorter: 30.163 · 1-3/16 · 110 - 300
- AVIKO G3 WET CERAMIC 0306 / 0610 / 1014 / 1419 / 1830
- Sorting Diameter (mm): AVIKO G3 WET CERAMIC 0306 / 0610 / 1014 / 1419 / 1830
- Dimensions (L×W×H)
- Sorting Diameter (mm): 2 030 × 700 × 1 850 (mm)
- Weight
- Sorting Diameter (mm): 410 kg
- Sorting groups
- Sorting Diameter (mm): 3 (OK, EOT probe rejection; EVT/ECT probe rejection)
- Input Power (230V)
- Sorting Diameter (mm): 230V, 50Hz/60Hz (Type E plug)
- Input Power (110V)
- Sorting Diameter (mm): 110V, 50Hz/60Hz (Type B plug)
- SCAN AREA width
- Sorting Diameter (mm): SCAN AREA width · Validation Wheel: MAX. DEFECT size
- Electric optical probe
- Sorting Diameter (mm): 1.2 mm · Validation Wheel: Spot defect Ø 600 μm
- Electric vibration probe
- Sorting Diameter (mm): - · Validation Wheel: Deep flat 300 μm
- Eddy current probes
- Sorting Diameter (mm): 2 mm · Validation Wheel: Metal inclusions
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the AVIKO G3 WET CERAMIC is used
- Ceramic (hybrid-bearing) balls
- Detection of surface spots, flats and metal inclusions

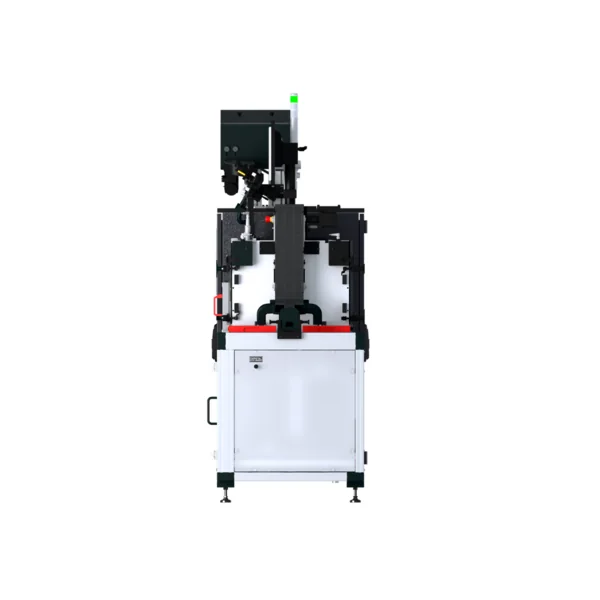

Product imagery
