ibg NDT Technology
Eddy-current structure, crack and grinder-burn testing, AVIKO bearing-ball inspection and automated NDT systems from Germany.
About ibg NDT Technology
ibg NDT Technology (ibg Prüfcomputer GmbH, Ebermannstadt, Germany) develops eddy-current instruments, sensors and automated test systems for 100% non-destructive testing of mass-produced metal components.
Its portfolio covers structure testing for heat treatment, hardness and material mix-ups; crack and grinder-burn detection; AVIKO bearing-ball scanners and sorters; and inline, standard, special and sample test systems.
ibg instruments share the Preventive Multi-Frequency / Multi-Filter Technology (PMFT) and a good-part-only teaching concept: tolerance zones are learned from known good parts rather than from artificial master defects.
Technologies
The inspection and measurement technologies ibg NDT Technology manufactures.
Industries served
Manufacturing sectors where ibg NDT Technology technology is typically applied.
Applications
Typical inspection and quality-control tasks ibg NDT Technology systems address.
Products grouped by application
Organized by ibg NDT Technology product category. Each product links to its dedicated page with features, specifications, images and videos.
Material & Heat Treatment
Hardness, Case Depth & Material Verification
10 ProductsComparative eddy-current structure testing, AI-based case-depth prediction, coils and sorting gates.

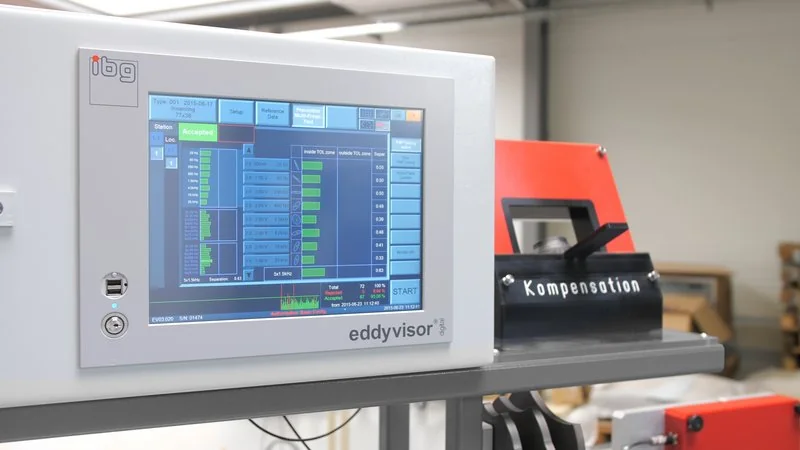

Structure & Hardness Test Instruments
ibg's family of digital eddy-current instruments for 100% comparative verification of heat treatment, hardness, case depth and material mix-ups on mass-produced steel parts.

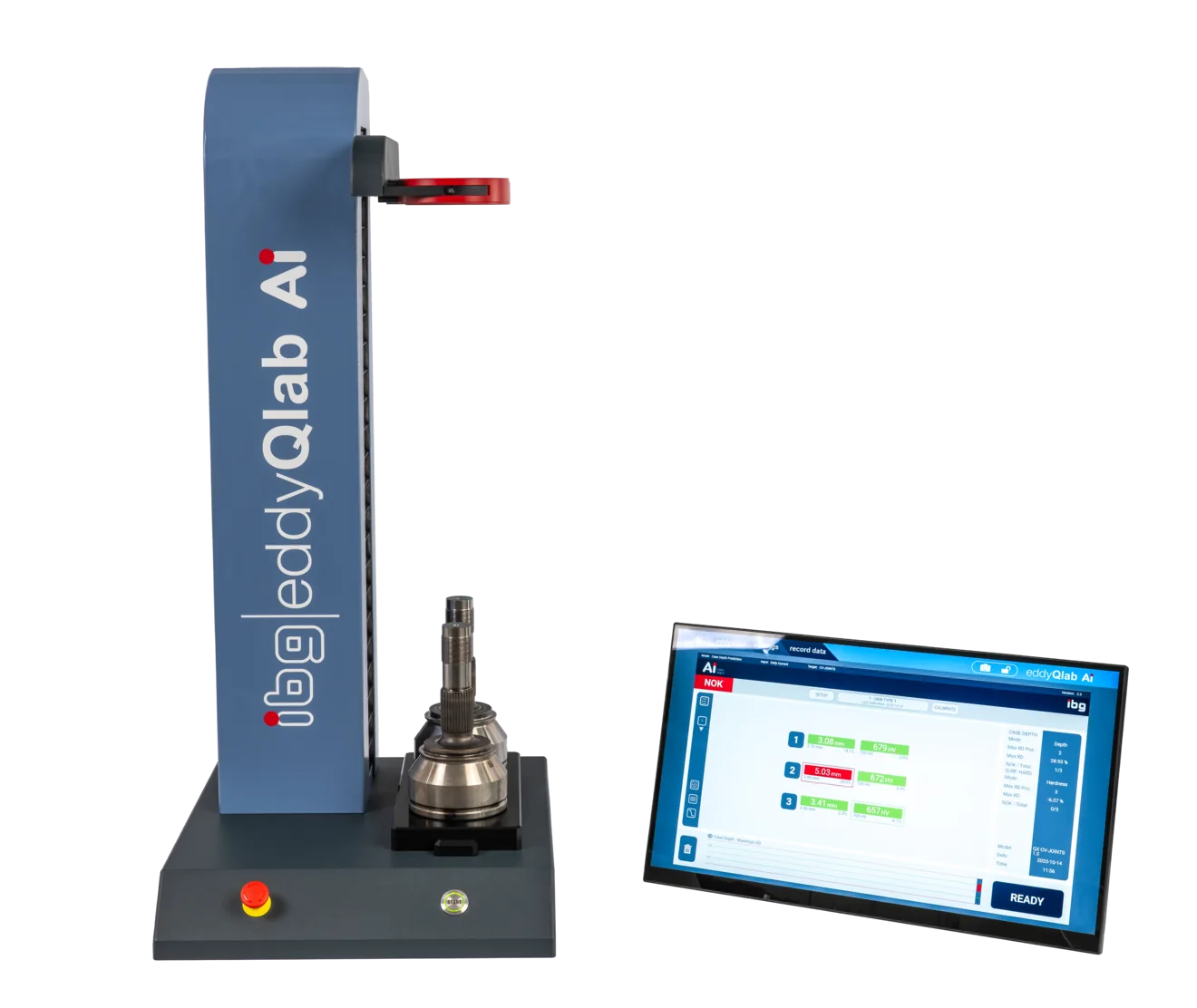

eddyQlab Ai
Laboratory system that uses eddy-current data and a pre-trained AI model to predict case depth and surface hardness of induction-hardened parts such as CV joints.

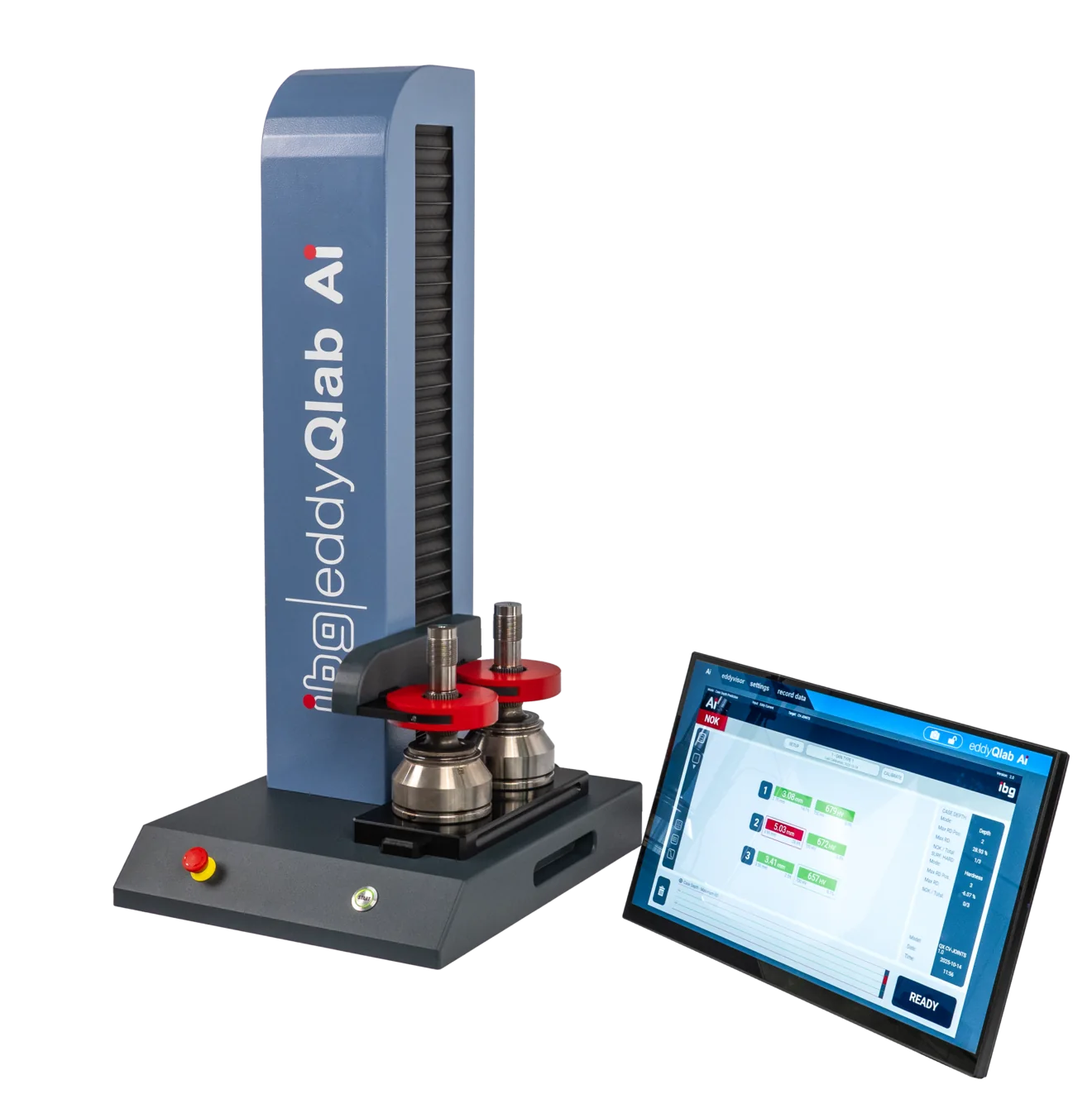

eddyQlab Ai VL
Semi-automated, one-button lab system for CV joints that predicts surface hardness and case depth non-destructively using AI and machine learning.

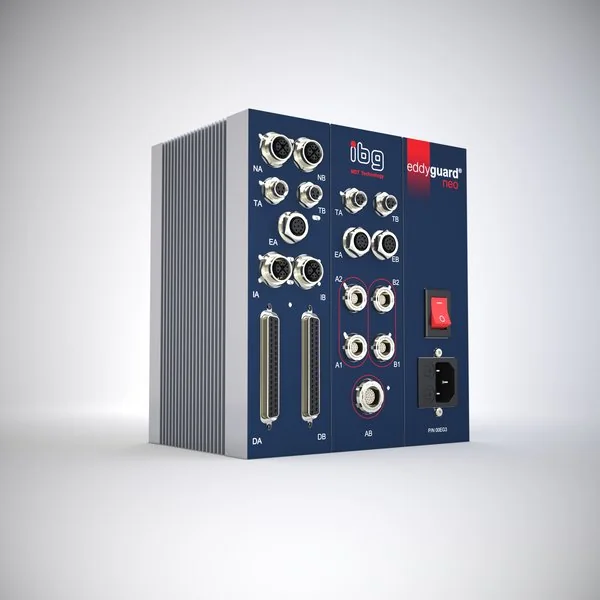

eddyguard neo S
Next-generation eddy-current controller for microstructure testing, built for easy machine integration, Industrial Ethernet connectivity and multi-device control.
eddyvisor S
Modular multi-channel eddy-current instrument with up to 32 structure-test channels for demanding hardness, case-depth and heat-treatment verification.

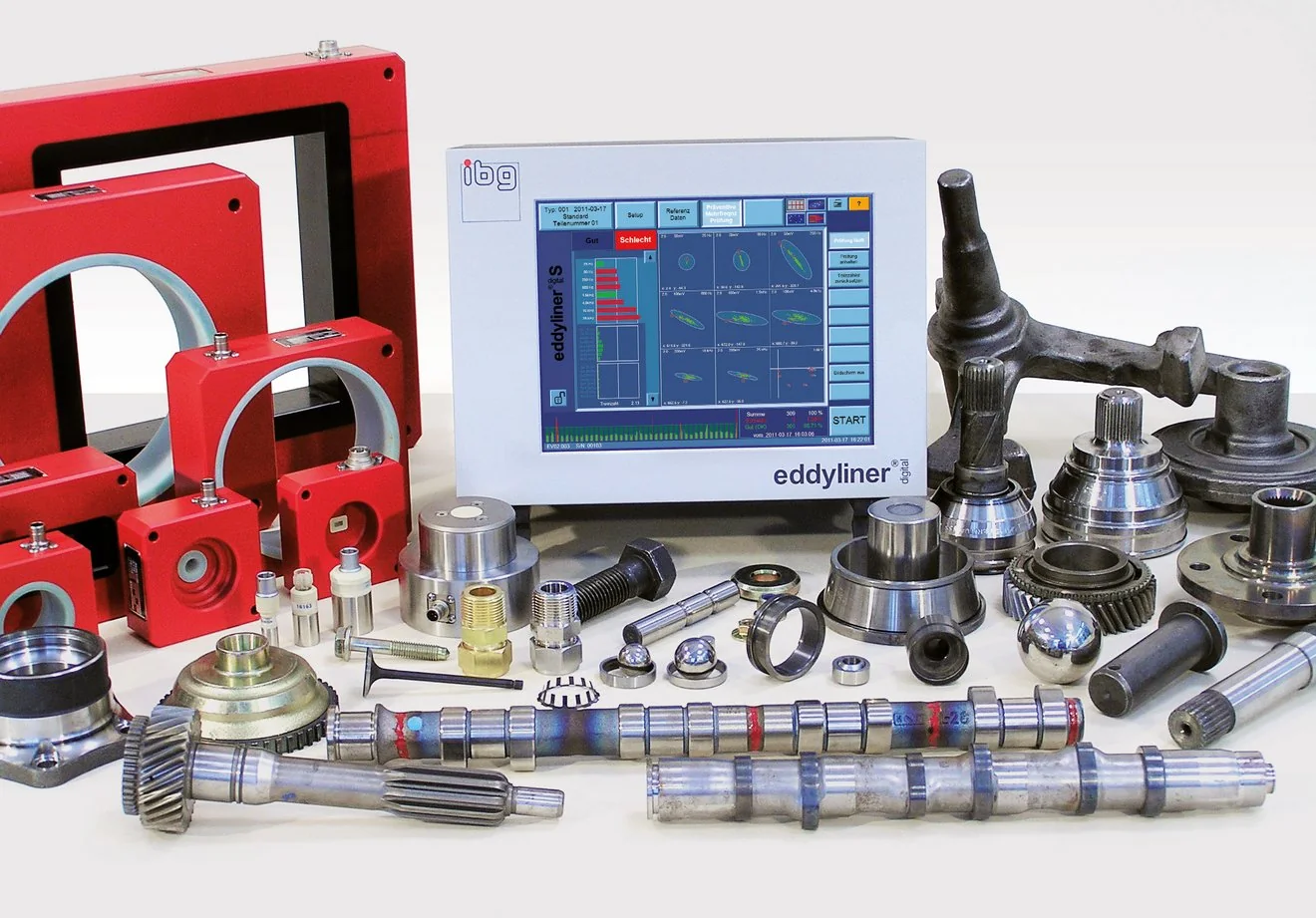

eddyliner S
Compact one-channel eddy-current instrument for structure testing with one coil at one part location, using PMFT and good-part-only calibration.

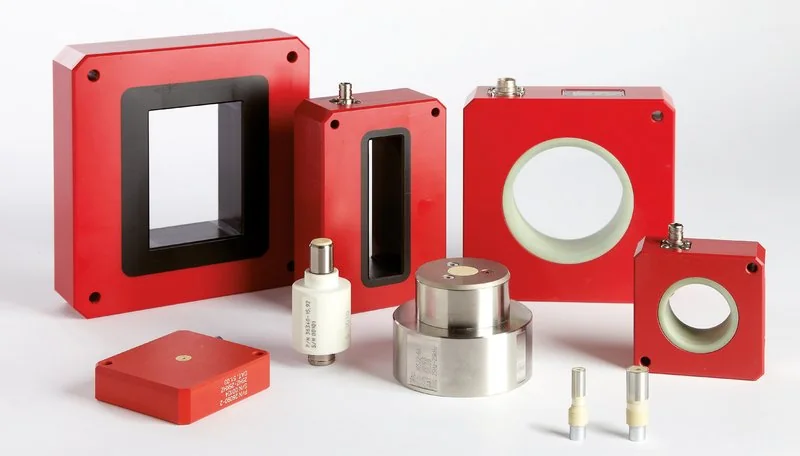

Structure Test Coils & Probes
ibg's in-house range of encircling, rectangular, fork, inner-diameter and flat coils and probes for eddy-current structure testing, plus custom designs.

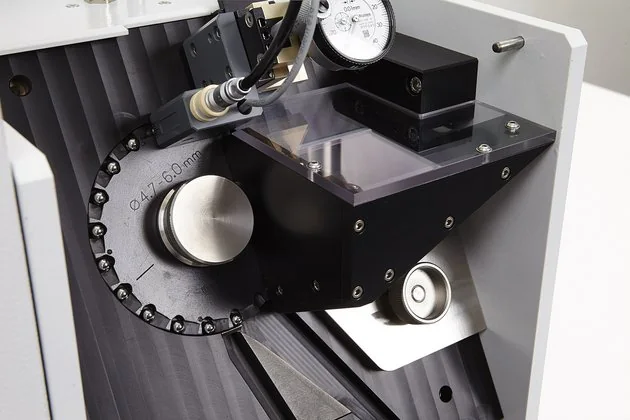

Sorting Devices for Bearing Rings
Devices for 100% non-destructive microstructure testing of bearing inner and outer rings after heat treatment, using multi-frequency eddy-current testing.

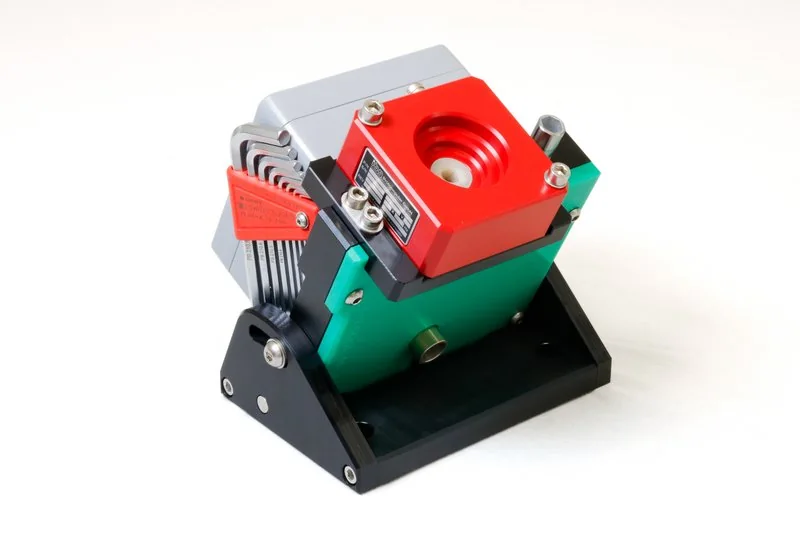

UNISort Universal Sorting Gates
Portable semi-automatic sorting gates that, with an ibg structure instrument and coil, test small and medium batches at around one part per second.

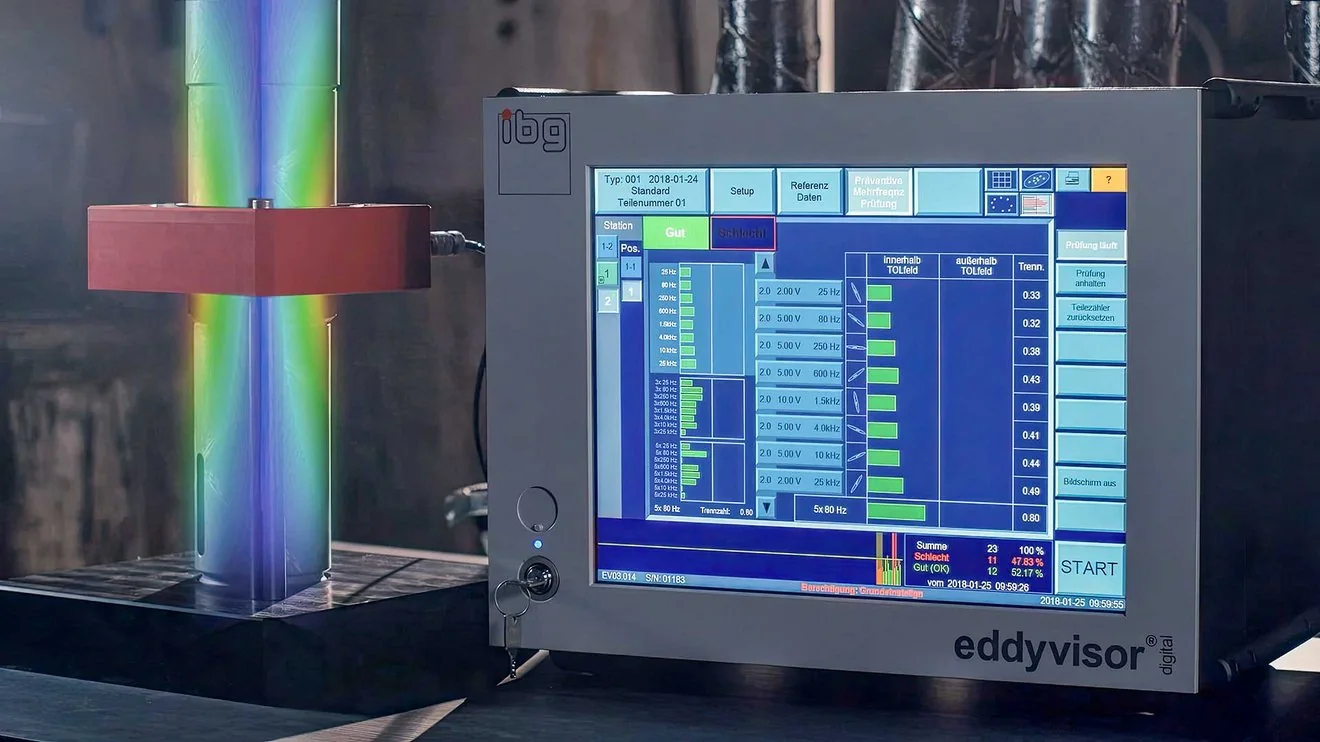

Ai Cube CDP
Compact AI module that uses eddy-current signals from eddyvisor S and eddyliner S instruments to predict case depth of induction-hardened parts, in the lab or inline.
Surface Defects
Crack & Grinder Burn Detection
6 ProductsCrack, pore and grinder-burn instruments, probes and rotating scanners.

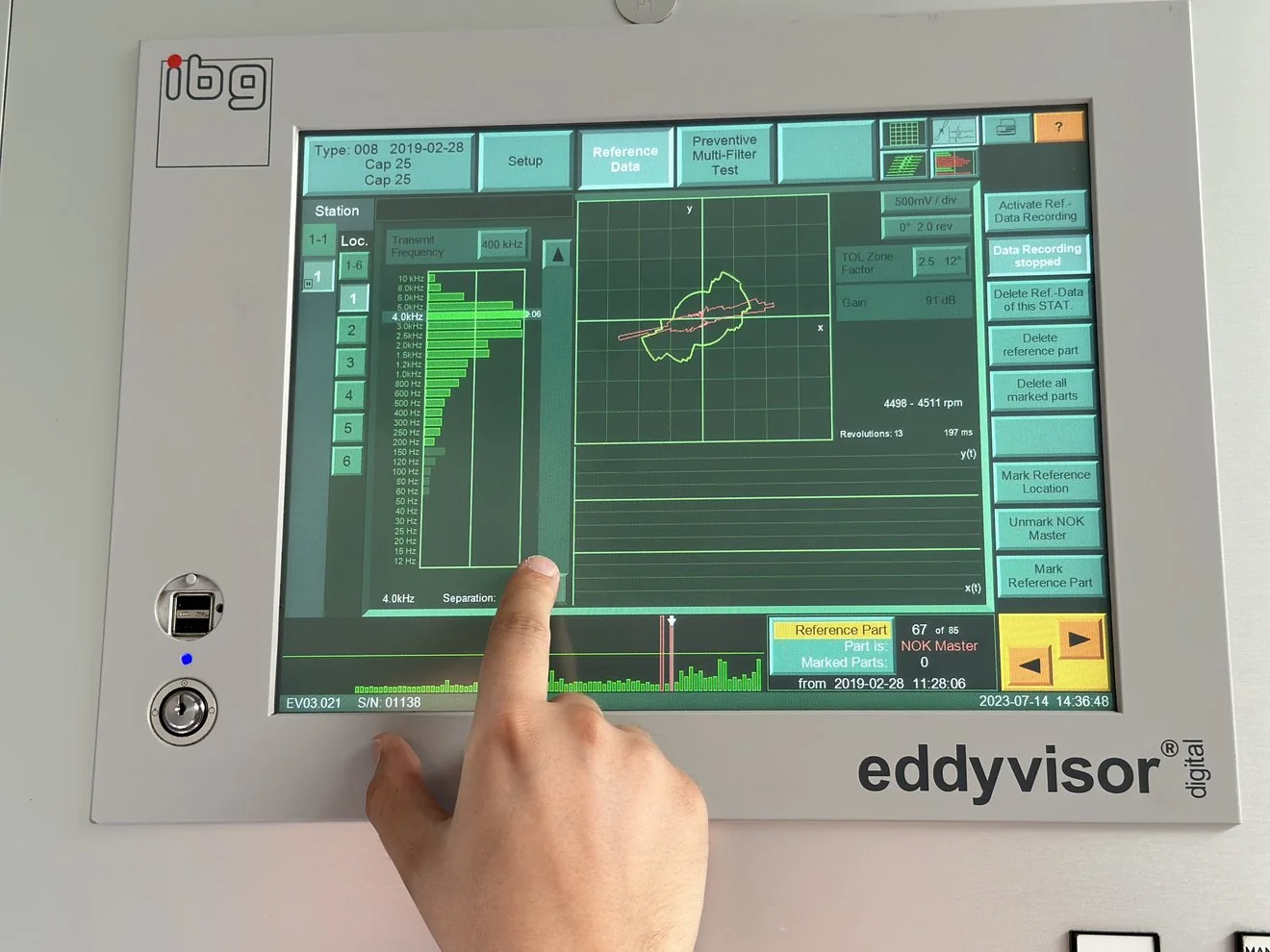

Crack & Grinder Burn Test Instruments
ibg's digital eddy-current instruments for simultaneous 100% inline detection of cracks, pores and grinder burn on metal components.

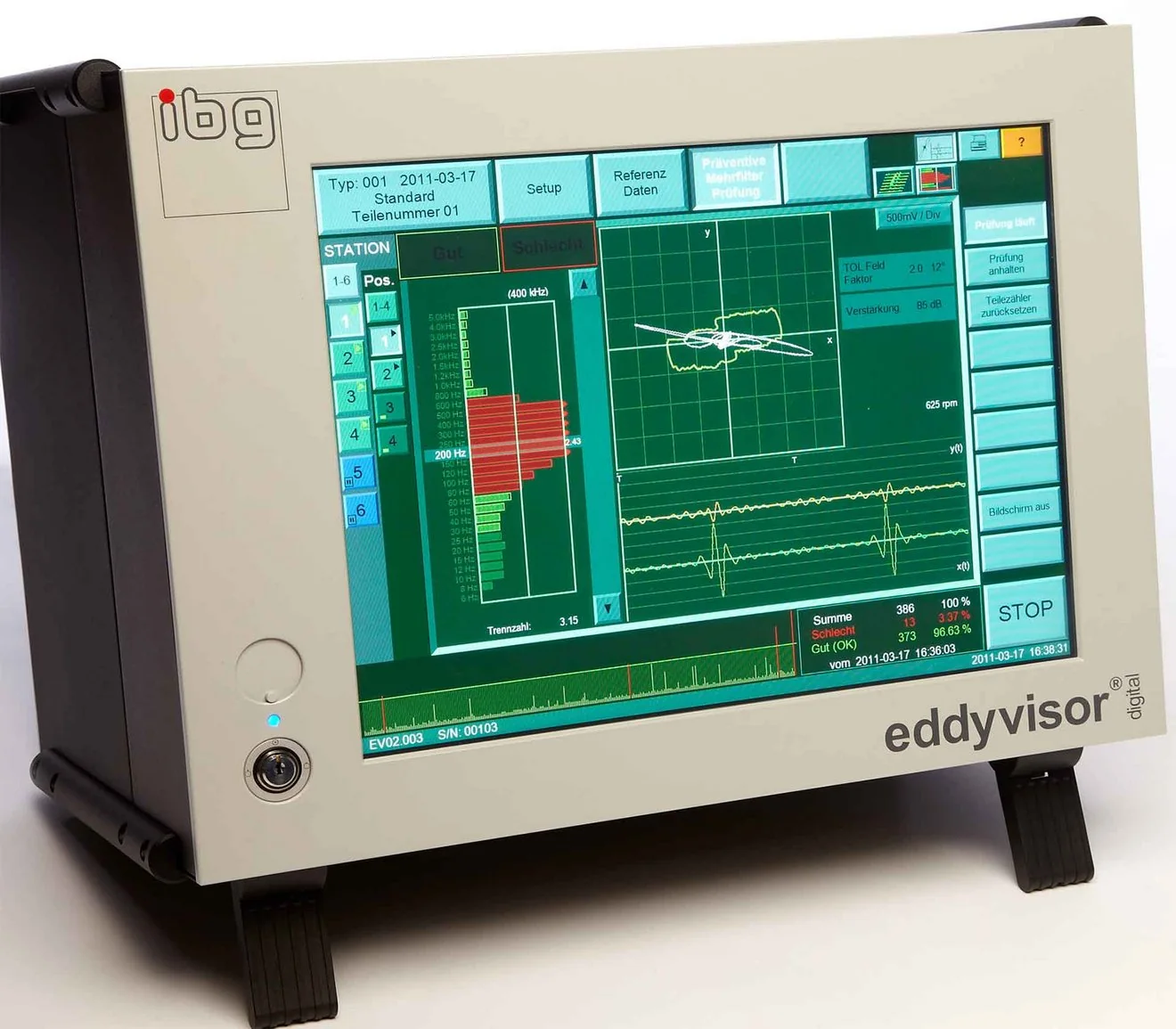

eddyvisor C
Modular multi-channel eddy-current instrument with up to 16 crack channels for crack, pore and grinder-burn detection, with C-scan heatmap visualisation.

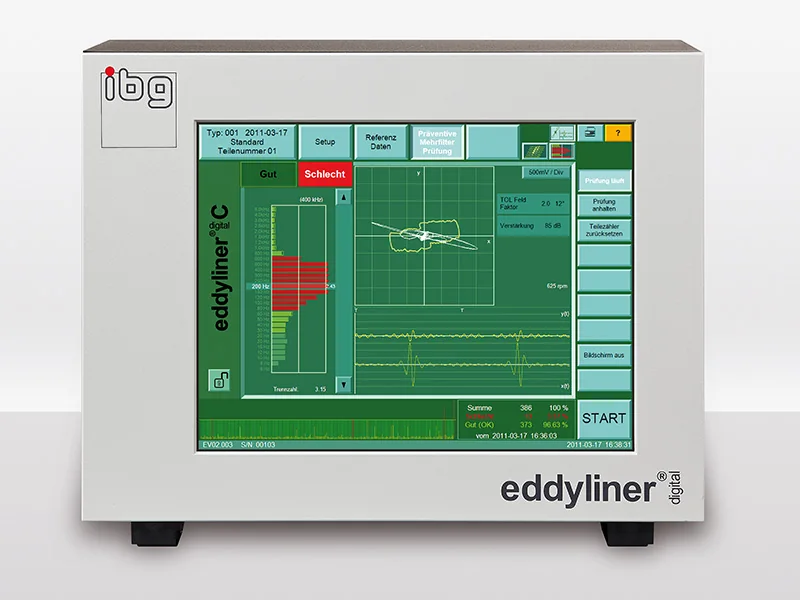

eddyliner C
Compact one-channel crack test instrument for cracks, pores and grinder burn using PMFT and good-part-only referencing.

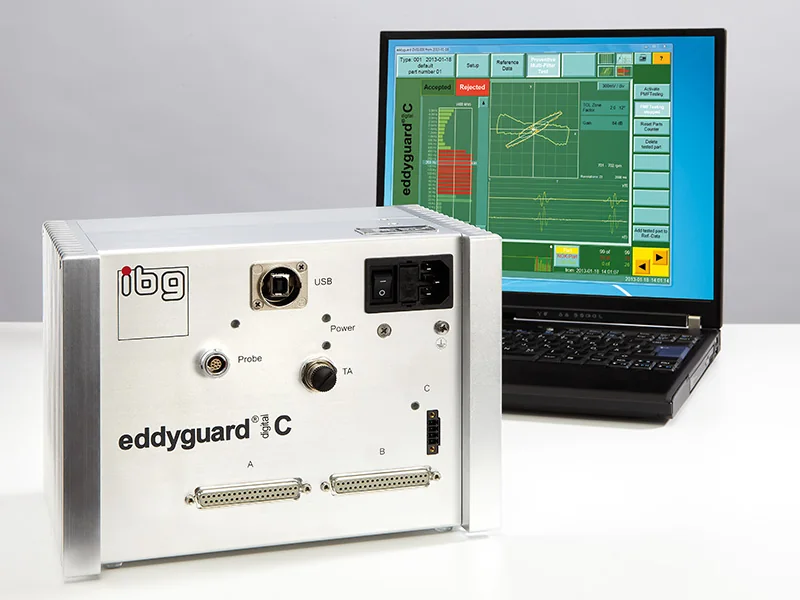

eddyguard C
Screenless one-channel crack and grinder-burn instrument configured from a PC, designed for compact machine integration.

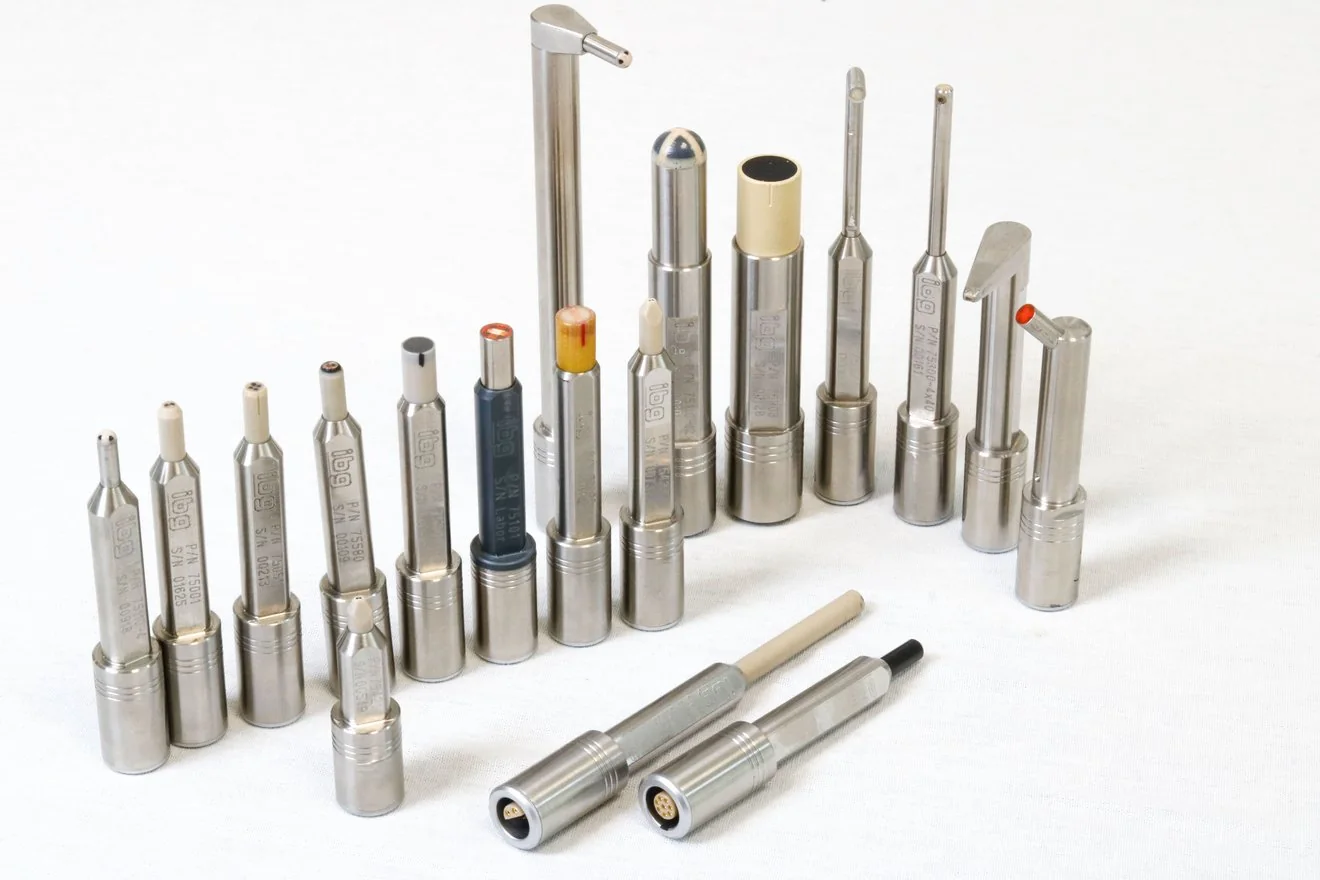

Crack & Grinder Burn Test Probes
Standard and application-specific eddy-current probes for crack and grinder-burn detection, designed and built by ibg.

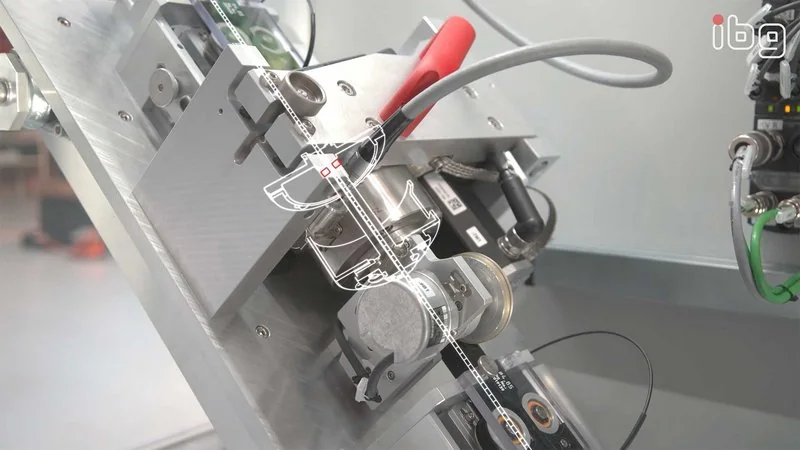

eddyscan H, F, F mini, C Rotating Scanners
Rotating probe heads for high-speed 100% eddy-current crack testing of outer diameters, bores, cylinder liners and flat surfaces.
Bearing Balls
Bearing Ball Testing
11 ProductsAVIKO ball scanners, diameter and structure sorters, packaging and ball handling.
AVIKO Ball Scanners
High-speed non-destructive bearing-ball inspection family combining eddy-current, optical and vibration probes, with control rollers for 100% surface coverage.

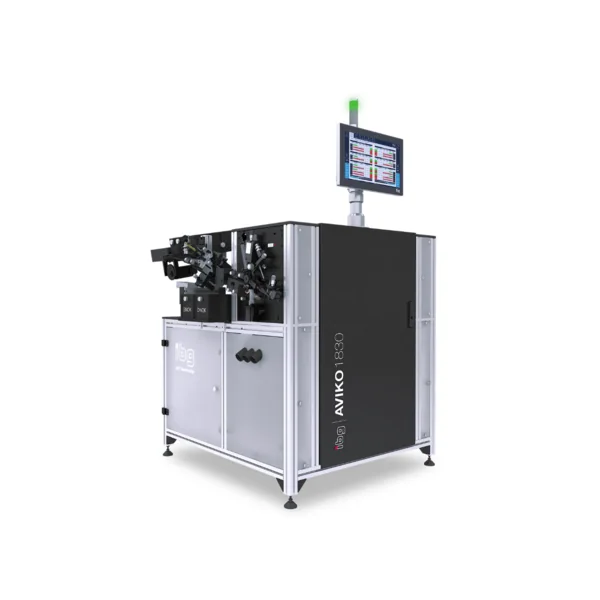

AVIKO G3 COMPACT
Dry ball scanner for balls from 1.984 to 30.163 mm, with eddy-current, laser-optical and vibration probes and control-roller rotation.

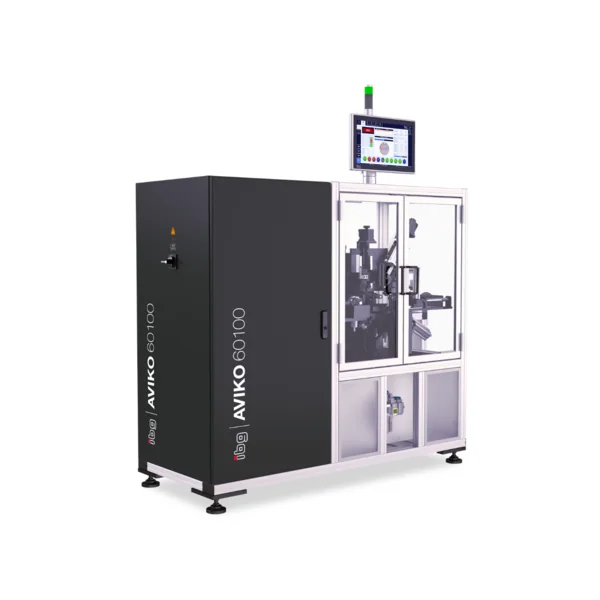

AVIKO G3 STANDARD
Dry ball scanner for large balls from 30 to 100 mm, with control cylinders, loader and outlet holder, in electric or compressed-air versions.

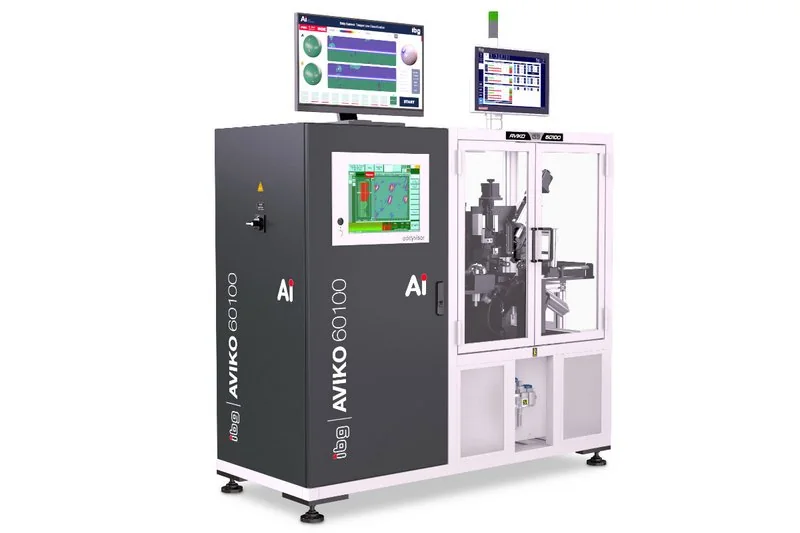

AVIKO G3 ADVANCED
Large-ball scanner for 30–100 mm balls, adding eddy-current probes with an eddyvisor C crack-test unit and optional AI evaluation.

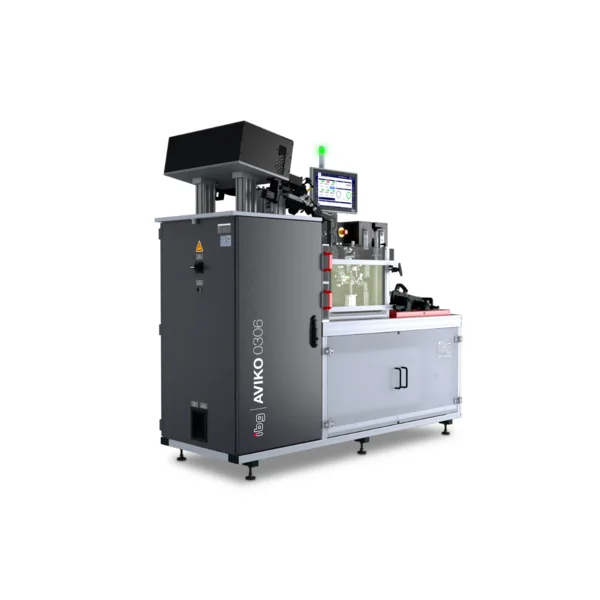

AVIKO G3 WET STEEL
Ball scanner that inspects steel balls inside an oil-based solution, without prior drying, with ±1 µm diameter validation.

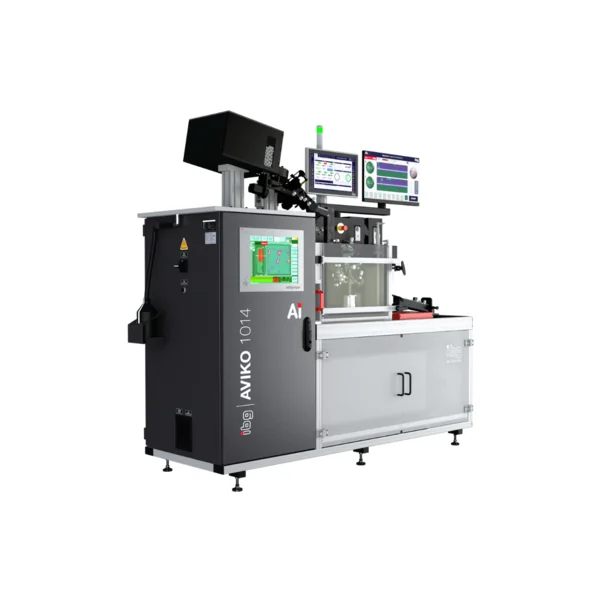

AVIKO G3 WET CERAMIC
One-sided wet scanner for ceramic balls combining an enhanced electro-optical probe, sub-surface eddy-current probe and vibration probe with AI evaluation.

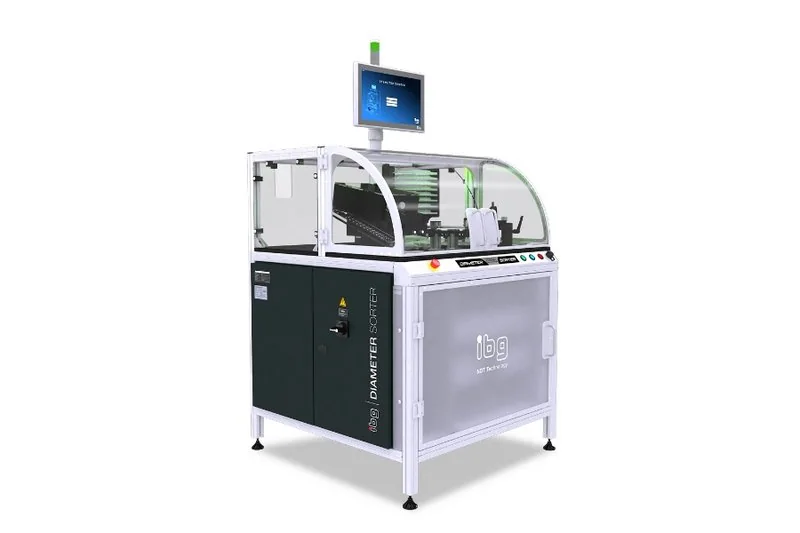

Diameter Sorter 0310 / 0820
LVDT-based ball diameter sorter for 3–20 mm balls with ±0.15 µm repeatability, sorting into 7 groups plus NOK.

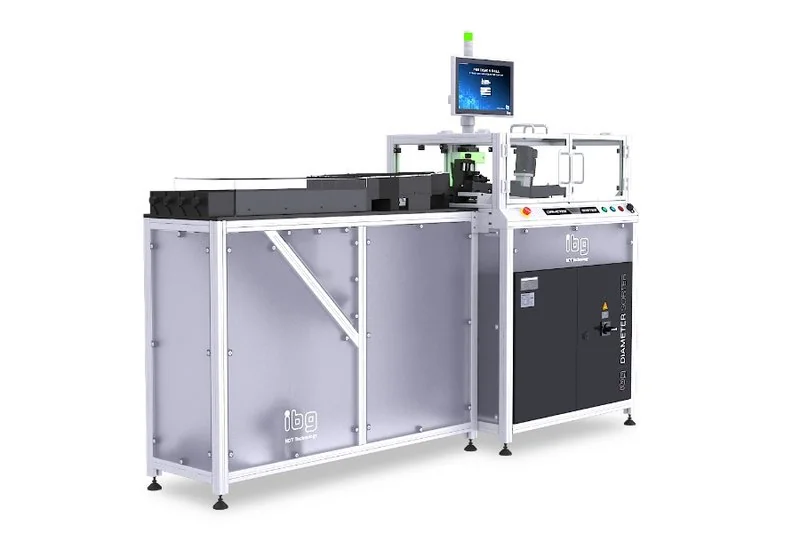

Diameter Sorter 1830 / 3060 / 4080 / 60100
LVDT-based diameter sorters for large balls from 18 to 100 mm, with ±0.15 µm repeatability and optional microstructure testing.

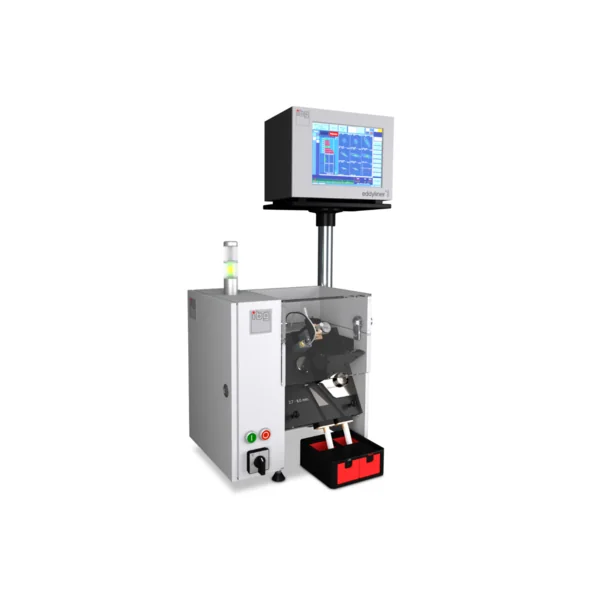

High Speed Ball Structure Sorter
Plug-in eddy-current sorter that verifies material and heat treatment of finished bearing balls at more than 10 balls per second.

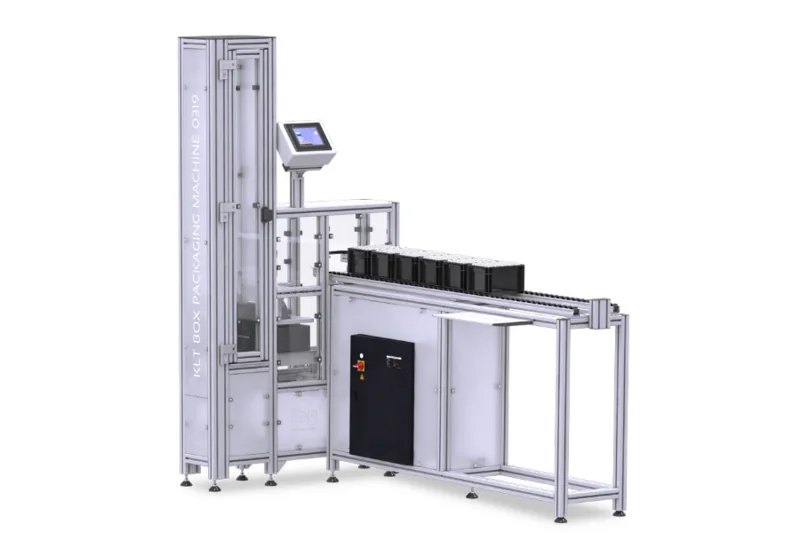

Ball Packaging Machines
Packaging machines that preserve, count and pack bearing balls at AVIKO scanner speed, inline or standalone.

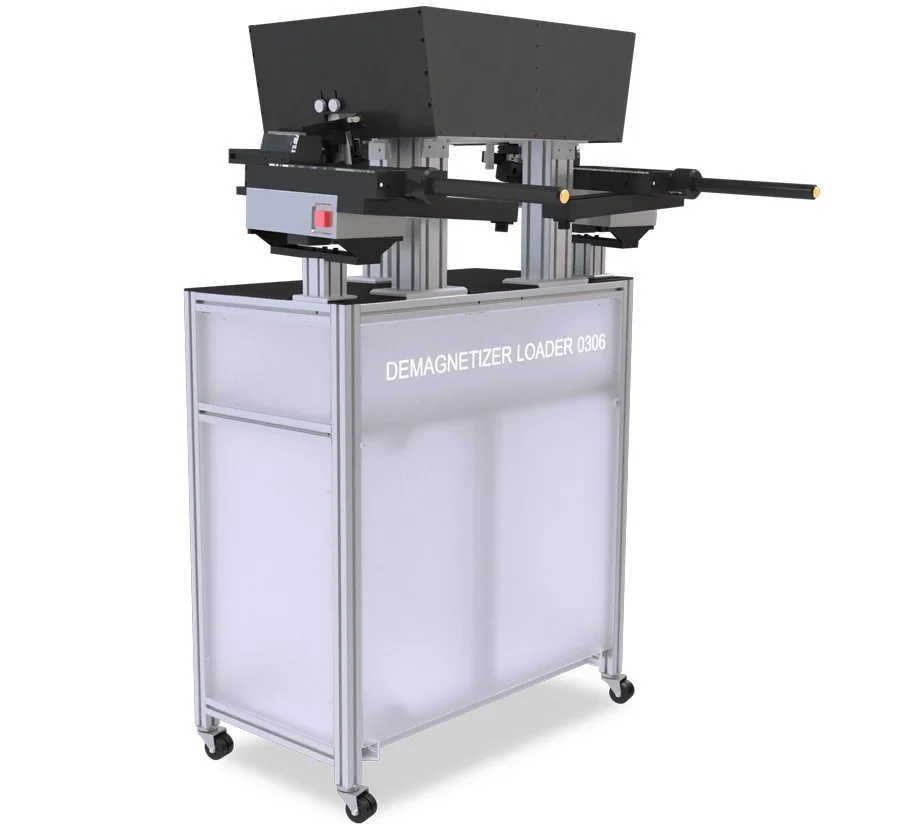

Smart Mechanics — Demagnetizer & Elevators
Demagnetizer loaders and elevators that feed and discharge balls for AVIKO ball scanners.
Test Systems
Systems and Devices
5 ProductsInline, standard, special and sample test systems including the eddyrobot.

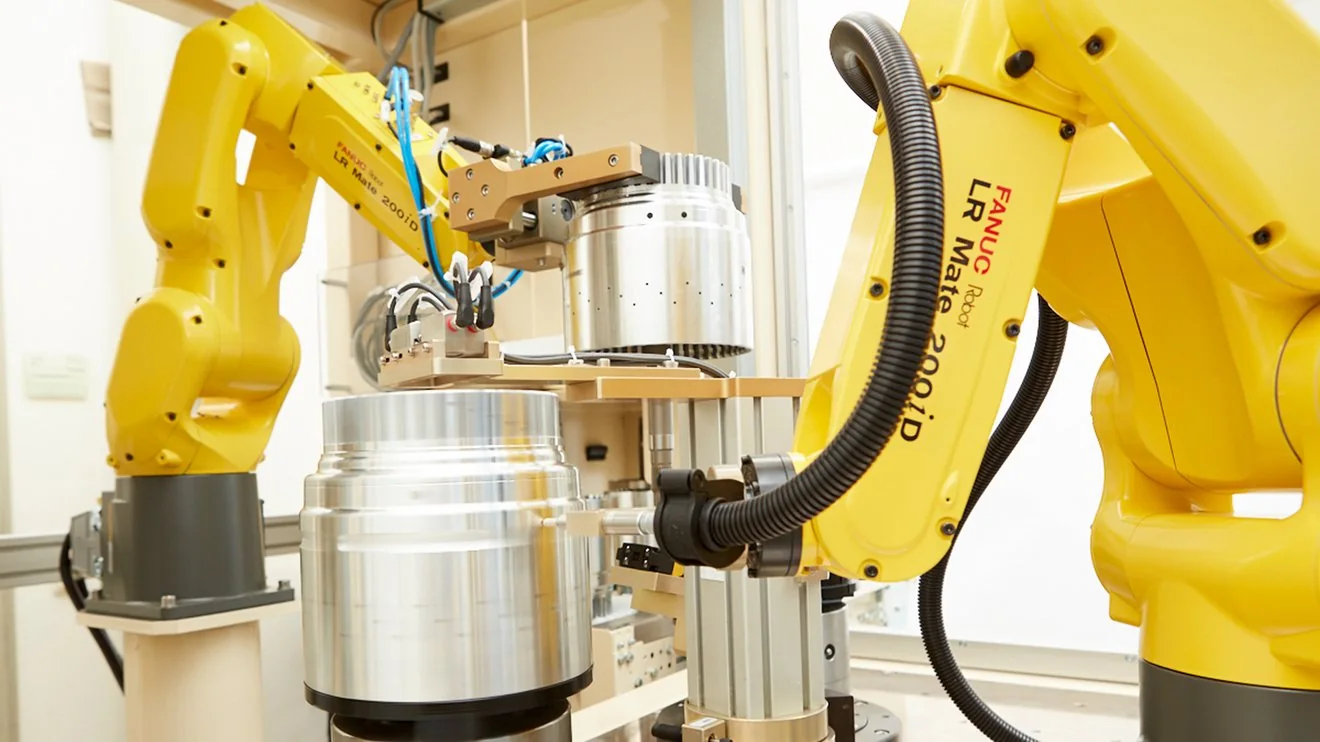

Inline Testing Systems
Eddy-current crack and structure testing integrated directly into production lines for continuous 100% inspection.

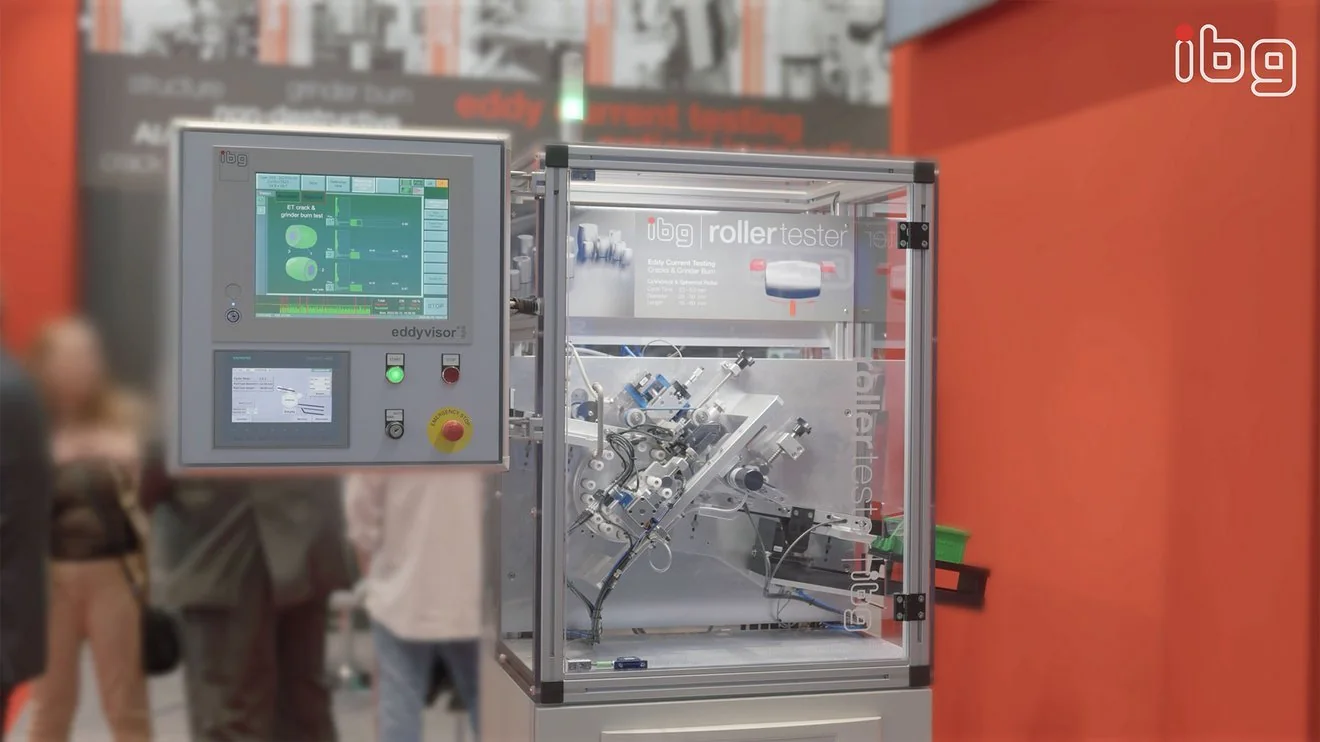

Standard Test Systems
Cost-efficient standard ibg test solutions for common component families such as rollers, rings and balls.

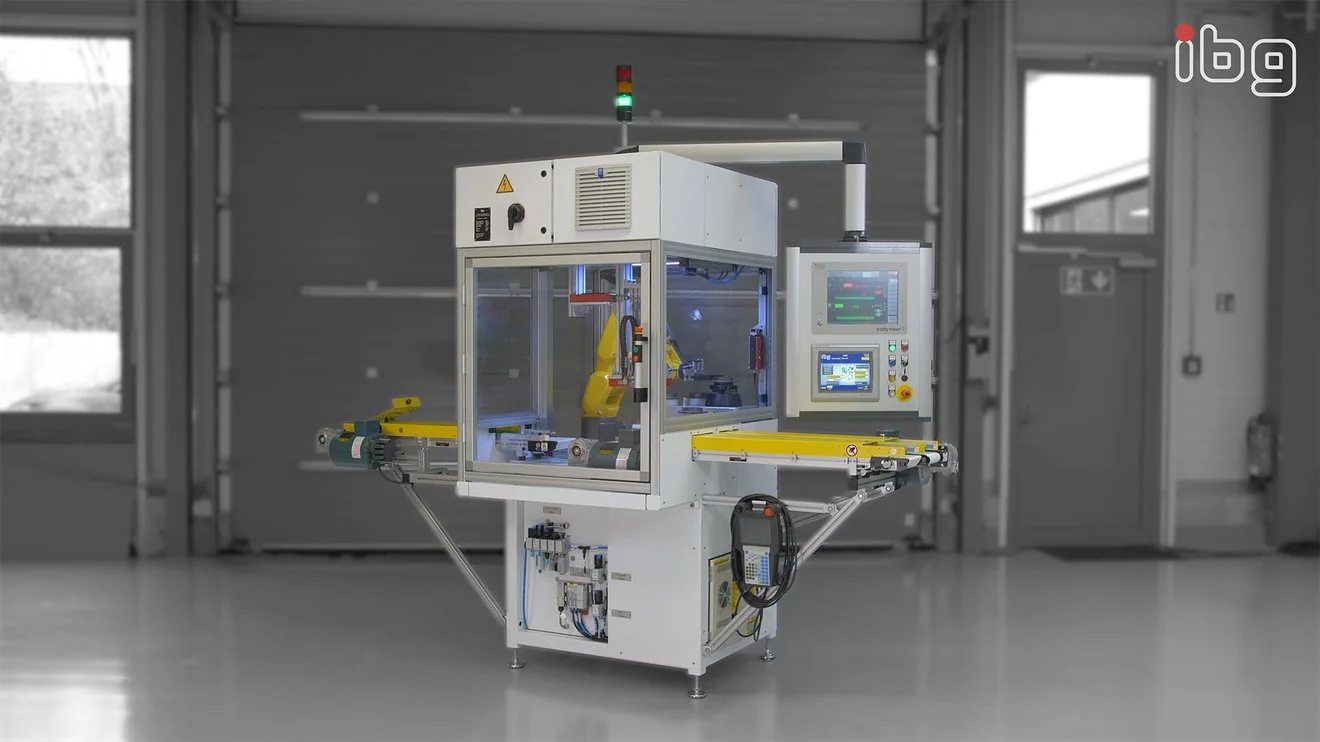

Special Test Systems
Customer-specific plug-and-play inline test systems engineered by ibg for 100% testing of demanding components.

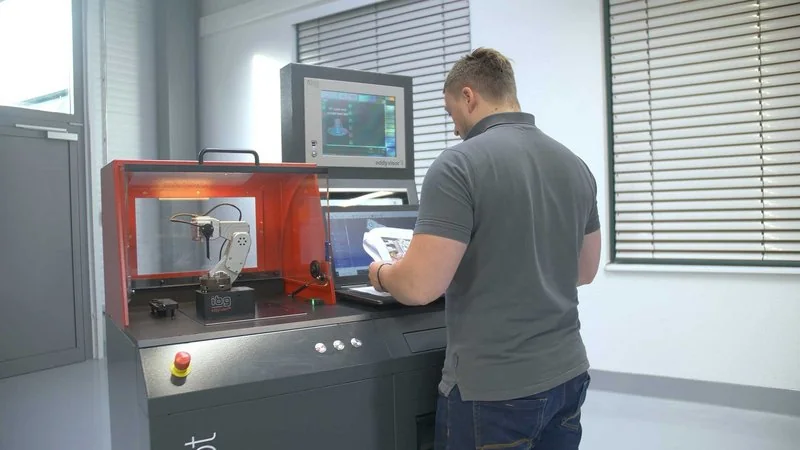

Sample Testing Systems
Sample and laboratory test solutions for smaller batches, prototypes and critical components, including the eddyrobot.

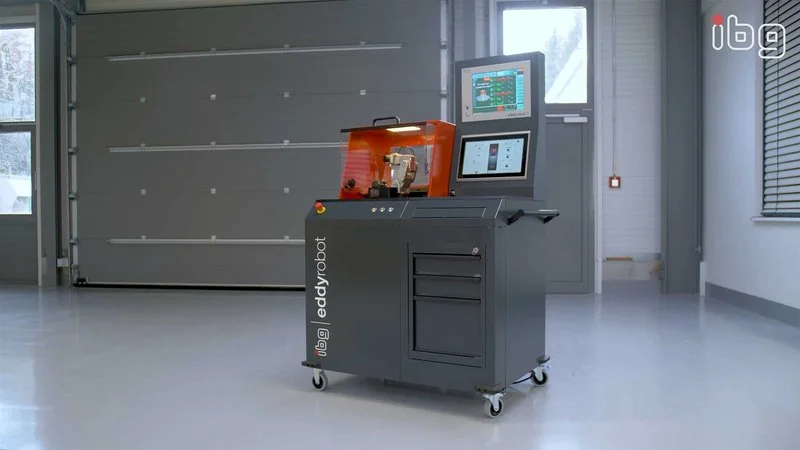

eddyrobot
Mobile, modular semi-automatic sample test unit with a 6-axis robot for eddy-current crack and grinder-burn testing and optional optical surface inspection.
Why EMUS represents ibg NDT Technology
Eddy-current testing only pays off when the method, coil or probe, reference parts and handling are matched to the part and the defect. EMUS helps manufacturers in the Balkan region define the test task with ibg — which faults must be found, at which locations and cycle time — and select instruments, sensors and systems accordingly, from a single UNISort sorting gate to a fully integrated inline test station.
- Structure testing for heat treatment, hardness and material mix-ups.
- Simultaneous crack, pore and grinder-burn detection.
- AVIKO scanners, diameter sorters and packaging for bearing balls.
- From portable sorting gates to inline and special systems.
- Clear distinction between comparative testing and AI-based prediction.
Media library
Official ibg NDT Technology brochures and product videos available through EMUS.
Brochures
- AVIKO ball scanners & sorting solutions catalogue
- eddyvisor brochure (English)
- Whitepaper: AI prediction vs. destructive microhardness profile testing
Videos
Talk to an EMUS engineer aboutibg NDT Technology
Tell us about your application and our engineers will recommend the rightibg NDT Technology system and configuration.
