AVIKO Ball Scanners
Model: AVIKO G3 DRY · G3 WET · Control Rollers
High-speed non-destructive bearing-ball inspection family combining eddy-current, optical and vibration probes, with control rollers for 100% surface coverage.
About the AVIKO Ball Scanners

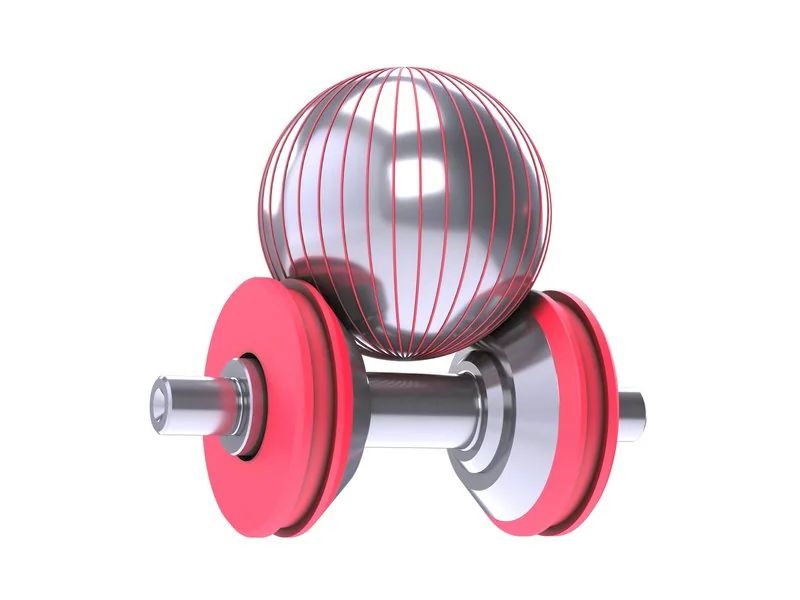

AVIKO ball scanners inspect bearing balls for surface and sub-surface defects at up to 34,000 pieces per hour. Control rollers based on the meridian rotation system spin each ball so that the probes cover its entire surface.
For steel balls, an eddy-current probe looks for cracks and sub-surface defects such as grinder burn, an optical probe for stains, material gaps and polish variations, and a vibration sensor for shape irregularities. Ceramic balls are handled by a dedicated version with AI evaluation in the eddyvisor.
The G3 generation is available as DRY (COMPACT, STANDARD, ADVANCED) and WET (STEEL, CERAMIC) machines, with diameter validation and optional structure testing.
Where the AVIKO Ball Scanners is used

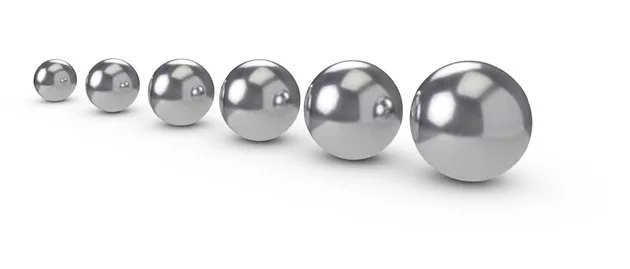

- Steel and ceramic bearing balls
- Aerospace and standard ball production
- Complete automated ball lines
Product imagery
Official product videos
Brochures, datasheets & catalogues
AVIKO ball scanners & sorting solutions catalogue
PDF · Catalogue
Related ibg products
Alternatives from other manufacturers
Comparable systems we also represent. If your application requires a different balance of speed, resolution or footprint, these are worth reviewing.
MIZ-21C
MIZ-21C is the most advanced handheld eddy current instrument with surface array capability, simplifying inspection confidence for aerospace, oil & gas, manufacturing and power generation.
CompareEddyfi TechnologiesReddy
Reddy is the first portable, battery-operated system for eddy current array, eddy current tubing and MFL inspection — combining on-site acquisition, real-time C-scan imaging and one-click reporting in a rugged, sealed instrument.
CompareEddyfi TechnologiesLyft
Lyft is Eddyfi's dedicated Pulsed Eddy Current platform for corrosion assessment through insulation, fireproofing and weather jackets. The platform combines PEC and PECA technologies with SmartPULSE automation, Tau-scan analysis and real-time C-scan imaging.
CompareEddyfi TechnologiesAmigo 2
With more than three decades of proven field performance, ACFM technology has become the industry benchmark for in-service weld inspection. Amigo2 extends this legacy with increased portability, improved signal quality, enhanced productivity and modern connectivity. The platform supports conventional probes, Sensu2 array probes, underwater probes and high-temperature applications, combining hardware, Assist software and Sensu probe technologies into a complete ACFM inspection ecosystem.
CompareHow EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
ibg NDT Technology
TheAVIKO Ball Scanners is part of the ibg NDT Technology portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theAVIKO Ball Scanners, your parts and tolerances, and the configuration that fits your inspection workflow.
