AVIKO G3 WET STEEL
Model: AVIKO 0306 – 1830 G3 WET STEEL
Ball scanner that inspects steel balls inside an oil-based solution, without prior drying, with ±1 µm diameter validation.
About the AVIKO G3 WET STEEL
The AVIKO G3 WET STEEL performs the scan inside an oil-based solution. Damping of noise and vibration in the wet environment supports a stable inspection, and because the balls do not have to be dried first, pseudo-rejects caused by stains or dirt are reduced, according to ibg.
A diameter validation step rejects balls more than ±1 µm from the selected diameter before they reach the monitoring point, and can optionally be combined with a structure probe. An integrated oil-management system monitors the tank level.
Technical data
- AVIKO 0306 G3 WET - STEEL
- Sorting Diameter (mm): 2.778 – 6350 · Order Number: K 092 000
- AVIKO 0610 G3 WET - STEEL
- Sorting Diameter (mm): 5.556– 10.319 · Order Number: K 092 200
- AVIKO 1014 G3 WET - STEEL
- Sorting Diameter (mm): 9.500 – 14.286 · Order Number: K 092 400
- AVIKO 1419 G3 WET - STEEL
- Sorting Diameter (mm): 13.494 – 19.050 · Order Number: K 092 600
- AVIKO 1830 G3 WET - STEEL
- Sorting Diameter (mm): 18.000– 30.163 · Order Number: K 092 800
- [mm]
- Min.: [mm] · Ball: [inch] · Max.: [mm] · Ball: [inch] · Min.: Standard [pcs/hr] · Scan Speed: Aerospace [pcs/hr] · Max.: Standard [pcs/hr] · Scan Speed: Aerospace [pcs/hr]
- AVIKO 0306 G3 WET
- Min.: 2.778 · Ball: 7/64 · Max.: 6.350 · Ball: 1/4 · Min.: 20 600 · Scan Speed: 19 200 · Max.: 15 600 · Scan Speed: 13 800
- AVIKO 0610 G3 WET
- Min.: 5.556 · Ball: 7/32 · Max.: 10.319 · Ball: 13/32 · Min.: 20 100 · Scan Speed: 13 900 · Max.: 13 100 · Scan Speed: 8 500
- AVIKO 1014 G3 WET
- Min.: 9.525 · Ball: 3/8 · Max.: 14.600 · Ball: - · Min.: 14 200 · Scan Speed: 12 300 · Max.: 8 400 · Scan Speed: 6 600
- AVIKO 1419 G3 WET
- Min.: 13.494 · Ball: 17/32 · Max.: 19.050 · Ball: 3/4 · Min.: 9 300 · Scan Speed: 7 700 · Max.: 5 600 · Scan Speed: 4 700
- AVIKO 1830 G3 WET
- Min.: 18.000 · Ball: - · Max.: 30.163 · Ball: 1-3/16 · Min.: 5 600 · Scan Speed: 4 300 · Max.: 2500 · Scan Speed: 2 000
- AVIKO G3 WET STEEL 0306 / 0610 / 1014 / 1419 / 1830
- Ball: AVIKO G3 WET STEEL 0306 / 0610 / 1014 / 1419 / 1830
- Dimensions (L×W×H)
- Ball: 2 030 × 700 × 1 850 (mm)
- Weight
- Ball: 400 kg
- Sorting groups
- Ball: 3 (OK, EOT probe rejection; EVT/ECT probe rejection)
- Input Power (230V)
- Ball: 230V, 50Hz/60Hz (Type E plug)
- Input Power (110V)
- Ball: 110V, 50Hz/60Hz (Type B plug)
- SCAN AREA width
- Min.: SCAN AREA width · Ball: MAX. DEFECT size
- Electric optical probe
- Min.: 1.2 mm · Ball: Spot defect Ø 600 μm
- Electric vibration probe
- Min.: - · Ball: Deep flat 700 μm
- Eddy current probes
- Min.: 2 mm · Ball: Crack defect 750 × 50 × 50 (μm)
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the AVIKO G3 WET STEEL is used
- Steel bearing balls 2.778–30.163 mm
- Inspection directly after wet finishing processes

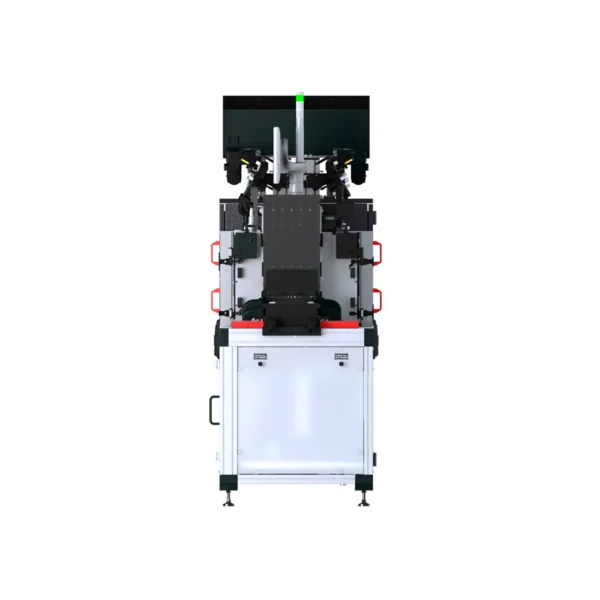

Product imagery
Brochures, datasheets & catalogues
AVIKO ball scanners & sorting solutions catalogue
PDF · Catalogue
