eddyscan H, F, F mini, C Rotating Scanners
Model: eddyscan H10/H25/H63 · F50 · F mini · C
Rotating probe heads for high-speed 100% eddy-current crack testing of outer diameters, bores, cylinder liners and flat surfaces.
About the eddyscan H, F, F mini, C Rotating Scanners
For high-throughput lines, rotating the probe around a linearly moving part is much faster than rotating the part. ibg's eddyscan heads carry one or more probes on a rotor, with a rotational transformer transferring the signals undistorted to the crack test instrument.

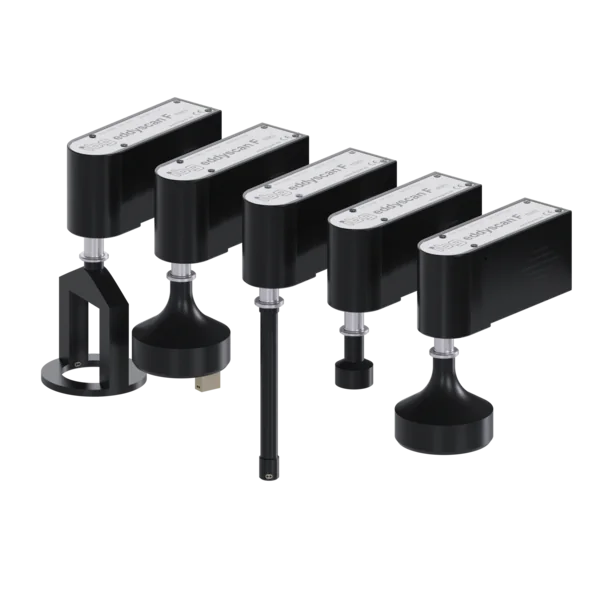

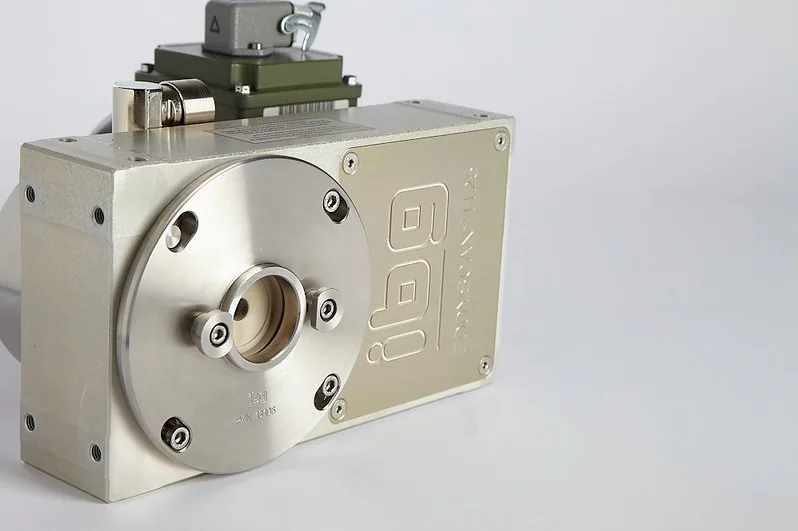

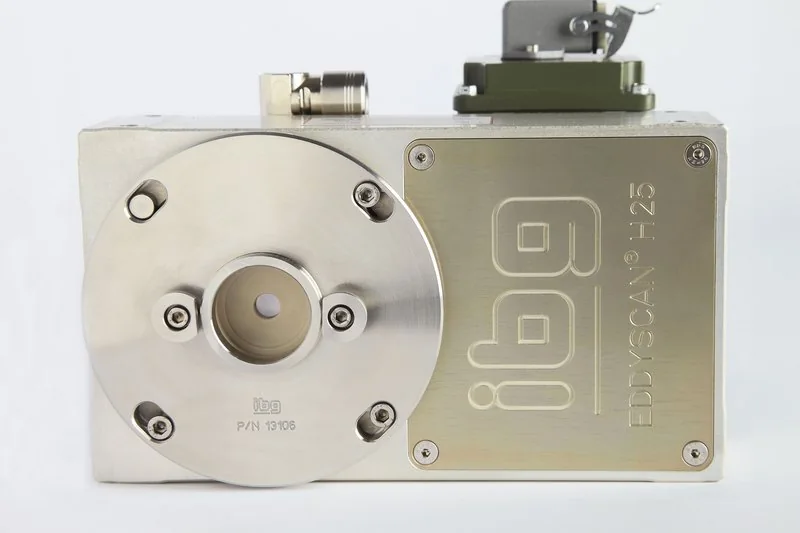

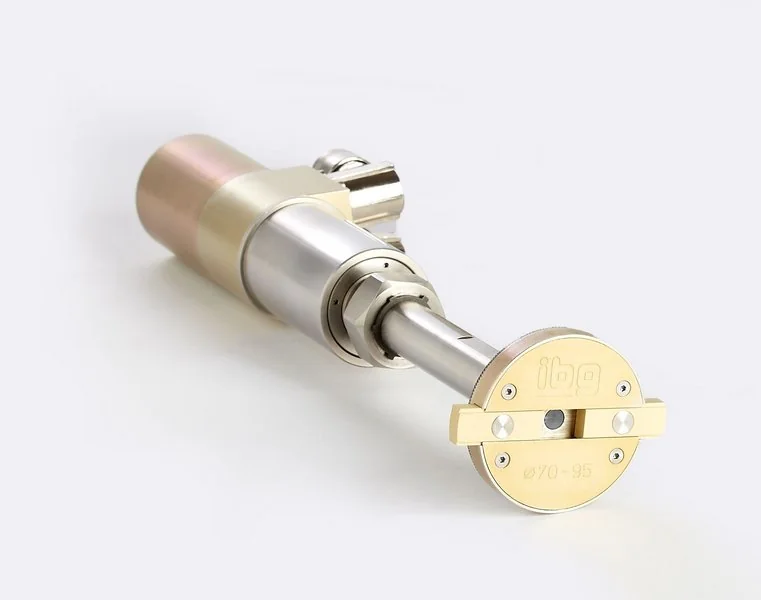

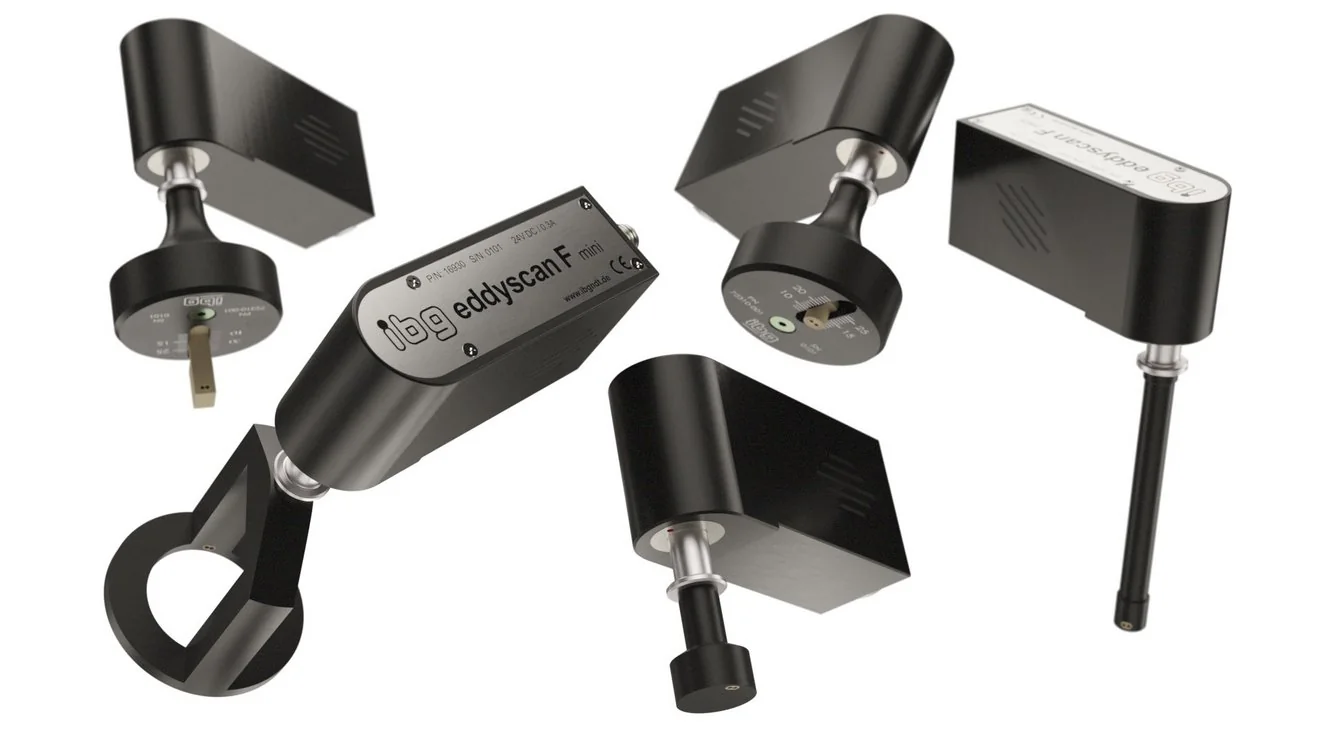

The eddyscan H tests outer diameters (up to 63 mm, 70 mm with external guidance), the eddyscan F and F mini test inner diameters such as bores, liners and bearing rings as well as flat surfaces, and the eddyscan C is a self-centring version for cylinder liners in engine blocks.
Technical data
- Part diameter max
- H10 (H15): 10 mm (15 mm) · H25 (H30): 25 mm (30 mm) · H63 (H70): 63 mm (70 mm)
- Number of probes
- H10 (H15): 2 · H25 (H30): 2 · H63 (H70): 2 or 4
- Rotation max.
- H10 (H15): 8.000 /min · H25 (H30): 8.000 /min · H63 (H70): 5.000 /min
- Trigger pulse
- H10 (H15): 1 per rotation · H25 (H30): 1 per rotation · H63 (H70): 1 per rotation
- Motor power
- H10 (H15): 90 W · H25 (H30): 180 W · H63 (H70): 370 W
- Mains supply
- H10 (H15): 230/400 V 3-phase · H25 (H30): 230/400 V 3-phase · H63 (H70): 230/400 V 3-phase
- Part diameter max
- F50: 200 mm · F Mini: 50 mm
- Number of probes
- F50: 1 or 2 · F Mini: 1
- Rotation max.
- F50: 6.000 /min · F Mini: 3.000 /min
- Trigger pulse
- F50: 1 per rotation · F Mini: 1 per rotation
- Motor power
- F50: 50 W · F Mini: 5 W
- Mains supply
- F50: 24 V (motor controller) · F Mini: 24 V
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the eddyscan H, F, F mini, C Rotating Scanners is used
- Rollers, piston rods and pinion pins
- Bores, cylinder liners and bearing-ring raceways
- Engine-block cylinder liners (eddyscan C)
