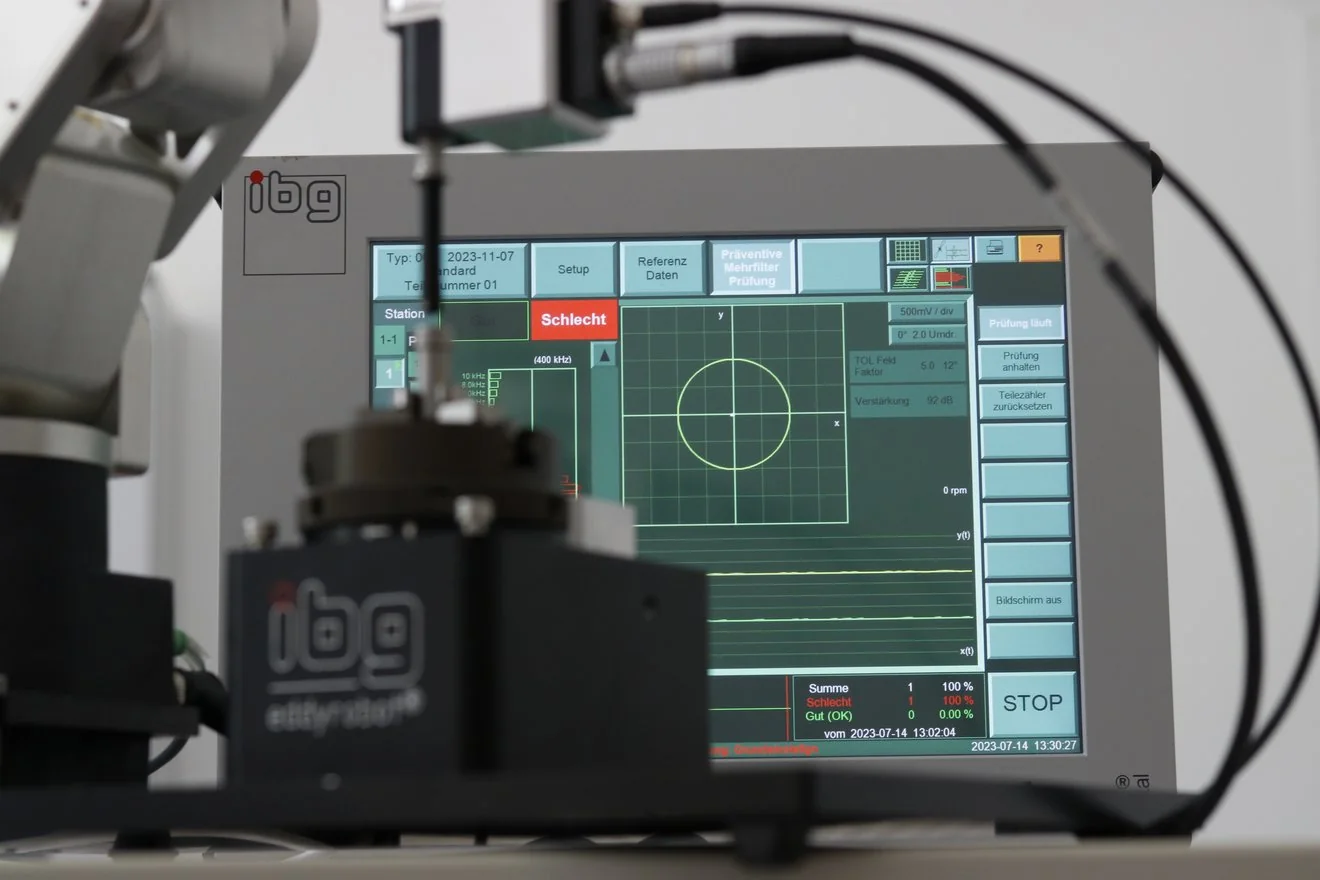

eddyvisor C

About the eddyvisor C

• Signal evaluation by 30 PMFT bandpass filters with automatic tolerance zones.
• Enveloping 360 degrees for precise non-destructive metal testing.
• Machine-learning algorithm creates tolerance zones based on good parts' basic noise signals.
• Maintains visibility to various defects, reducing pseudo rejects and enhancing real flaw detection.
• Define up to eight test stations with up to 32 locations for complex applications.
• Independent stations can have different operating conditions and reference data.
• Transmitting frequency selectable from 3 kHz to 10 MHz in 21 steps.
• Receiving filter frequencies range from 6 Hz to 20 kHz with 30 bandpass filters.
• Store up to 100 part types for crack detection and 250 part types for structure testing.
• Easily switch between settings and reference data for automated processes.
• Diverse crack detection probes are available with different scan widths, sensitivity, and designs.
• Compact rotating heads like eddyscan H and eddyscan F offer cycle time-optimized crack tests.
• Robust internal flash memory and USB backup for test results, part types, and device settings.
• Export test data via Gigabit Ethernet network or AQDEF compliantly with eddyXporter software.
• Heatmap C-Scan 2D/3D function for quick visualization of defects.
• Real-time display synchronized with rotation, highlighting defect areas.
• Multi-colored histogram shows test results, the latest bad parts, and up to 1,000 good parts.
• Valuable for reference part cross-checks and process optimization.
• Key switch-based access control for secure instrument operation.
