Smart Mechanics — Demagnetizer & Elevators
Model: Demagnetizer loader · motorized & static elevators
Demagnetizer loaders and elevators that feed and discharge balls for AVIKO ball scanners.
About the Smart Mechanics — Demagnetizer & Elevators
Balls must be demagnetised before entering any AVIKO scanner so that residual magnetism does not disturb the eddy-current probe. ibg's demagnetizer loader handles this step at the scanner inlet.
Motorized and static floor-standing elevators connect the scanners to the ball distribution system at the inlet or outlet, with a sensor detecting the filling level of the box.
Technical data
- Dimensions (L×W×H)
- 1 050 × 950 × 1 600 (mm)
- Load
- 250 kg
- Power
- 230V, 50Hz/60Hz (E plug)
- Range
- 2.778 - 6.350 mm
- Order Number (0306)
- K 076 200A
- Elevator Motorized 0320
- BALL DIAMETER (mm): 3.000 – 20.000 · ORDER NUMBER: S 095 000
- Elevator Motorized 1830
- BALL DIAMETER (mm): 18.000 – 30.000 · ORDER NUMBER: S 095 050
- Elevator Motorized 3060
- BALL DIAMETER (mm): 30.000 – 60.000 · ORDER NUMBER: S 095 100
- Elevator Motorized 4080
- BALL DIAMETER (mm): 40.000 – 80.000 · ORDER NUMBER: S 073 970
- Elevator Motorized 60100
- BALL DIAMETER (mm): 60.000 – 100.000 · ORDER NUMBER: S 095 150
- Elevator Static 0320
- BALL DIAMETER (mm): 3.000 – 20.000 · ORDER NUMBER: S 095 200
- Elevator Static 1830
- BALL DIAMETER (mm): 18.000 – 30.000 · ORDER NUMBER: S 095 250
- Elevator Static 3060
- BALL DIAMETER (mm): 30.000 – 60.000 · ORDER NUMBER: S 095 300
- Elevator Static 4080
- BALL DIAMETER (mm): 40.000 – 80.000 · ORDER NUMBER: S 095 350
- Elevator Static 60100
- BALL DIAMETER (mm): 60.000 – 100.000 · ORDER NUMBER: S 095 400
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the Smart Mechanics — Demagnetizer & Elevators is used
- Ball line automation
- Demagnetisation before eddy-current scanning

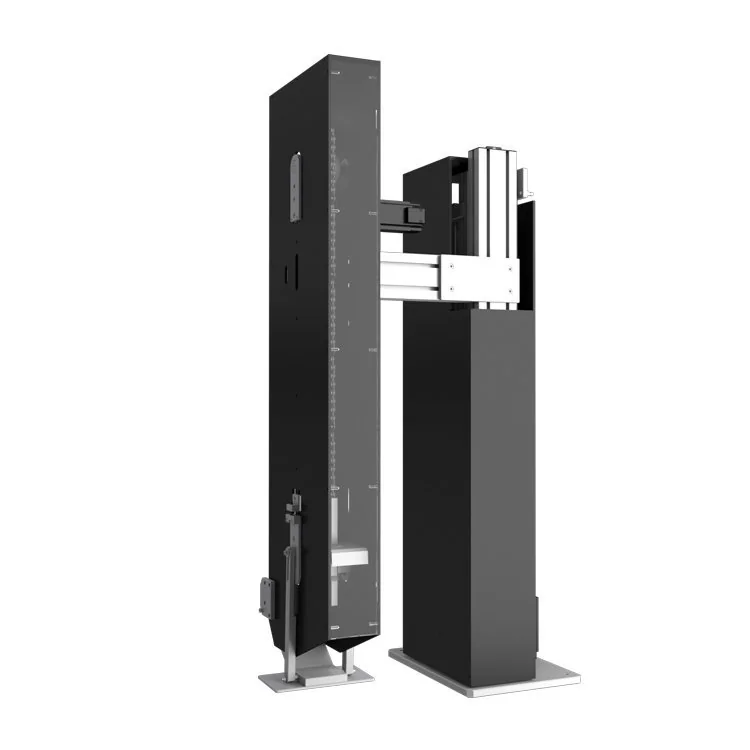

Product imagery
