Ball Packaging Machines
Model: KLT Box 0319 · Cardboard Box 0330 · 30100
Packaging machines that preserve, count and pack bearing balls at AVIKO scanner speed, inline or standalone.
About the Ball Packaging Machines
ibg's packaging machines pack balls at the same rate as the AVIKO scanners so the line is not slowed down, and can also run standalone at the end of any production line.

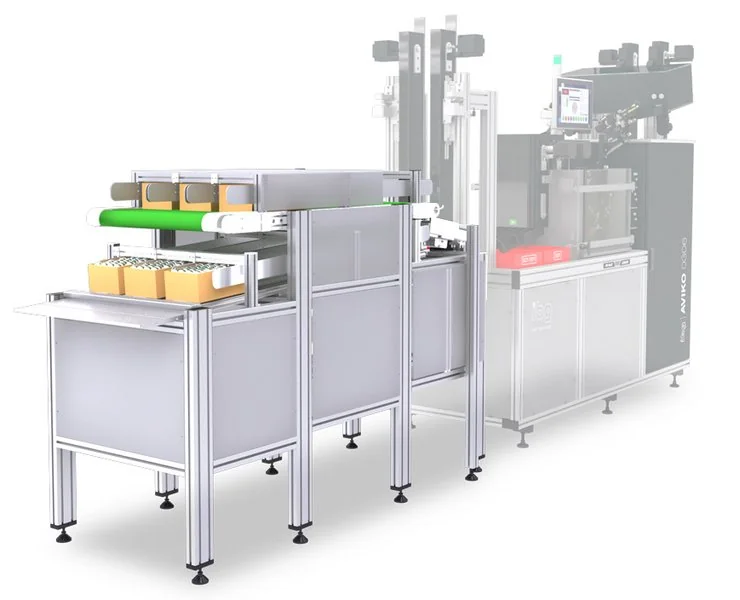

Standard features are an anti-corrosion inhibitor spray, a ball counter and batch-size setting. The KLT version packs into MF 2120 boxes for 2.778–19.050 mm balls; the large-ball versions use a robotic arm to place balls into cardboard boxes.
Technical data

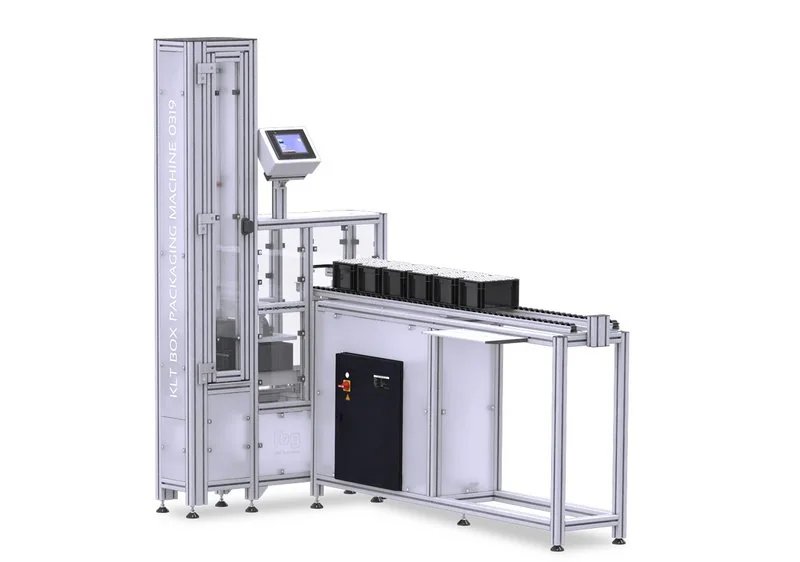

- Packaging Machine KLT Box 0319
- Ball Diameter (mm): 2.778 - 19.050 · Order Number: S 081 500
- Packaging Machine Cardboard box 0330
- Ball Diameter (mm): 3.000 – 30.163 · Order Number: S 081 650
- Packaging Machine Cardboard Box 30100
- Ball Diameter (mm): 30.000 – 100.000 · Order Number: S 081 700
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the Ball Packaging Machines is used
- End-of-line packing of bearing balls
- Corrosion protection before shipment

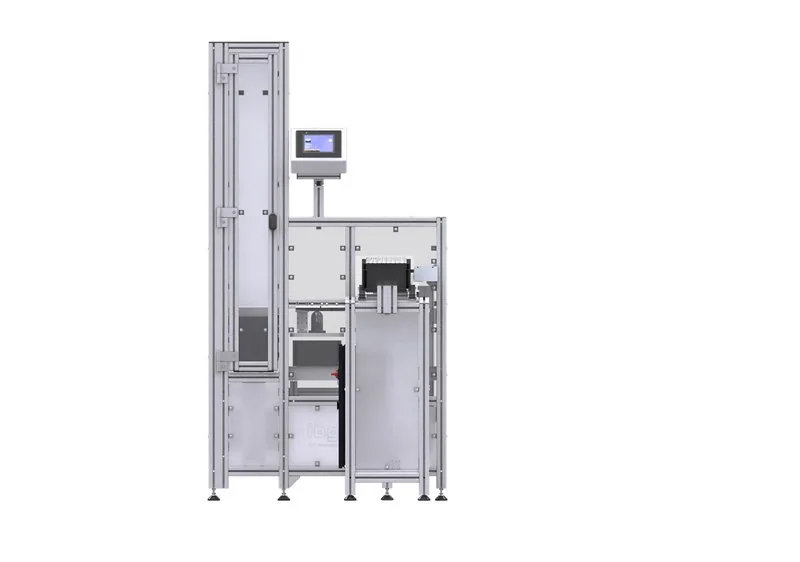

Product imagery
Brochures, datasheets & catalogues
AVIKO ball scanners & sorting solutions catalogue
PDF · Catalogue
