AVIKO G3 COMPACT
Model: AVIKO 0203 – 1830 G3 COMPACT
Dry ball scanner for balls from 1.984 to 30.163 mm, with eddy-current, laser-optical and vibration probes and control-roller rotation.
About the AVIKO G3 COMPACT
The AVIKO G3 COMPACT covers small and medium balls in six models from 1.984 mm to 30.163 mm. Eddy-current probes detect cracks, laser sensors surface defects and vibration sensors ovality, while control rollers rotate each ball for full surface scanning.
An optional microstructure test using an eddyvisor S and eddy-current probe sorts out balls of a different material or hardness; because it is an eddy-current method it applies to ferromagnetic steels only.
Technical data
- AVIKO 0203 G3 COMPACT
- Sorting Diameter (mm): 1.984 – 3.175 · Order Number: K 097 400
- AVIKO 0306 G3 COMPACT
- Sorting Diameter (mm): 2.778 – 6.350 · Order Number: K 097 450
- AVIKO 0610 G3 COMPACT
- Sorting Diameter (mm): 5.556 – 10.319 · Order Number: K 097 500
- AVIKO 1014 G3 COMPACT
- Sorting Diameter (mm): 9.500 – 14.286 · Order Number: K 097 550
- AVIKO 1419 G3 COMPACT
- Sorting Diameter (mm): 13.494 – 19.050 · Order Number: K 097 700
- AVIKO 1830 G3 COMPACT
- Sorting Diameter (mm): 18.000 – 30.163 · Order Number: K 097 750
- [mm]
- Min.: [mm] · Ball: [inch] · Max.: [mm] · Ball: [inch] · Min.: Standard [pcs/hr] · Scan Speed: Aerospace [pcs/hr] · Max.: Standard [pcs/hr] · Scan Speed: Aerospace [pcs/hr]
- AVIKO 0203 G3 COMPACT
- Min.: 1.984 · Ball: 5/64 · Max.: 3.175 · Ball: 1/8 · Min.: 34 100 · Scan Speed: 32 100 · Max.: 30 500 · Scan Speed: 28 100
- AVIKO 0306 G3 COMPACT
- Min.: 2.778 · Ball: 7/64 · Max.: 6.350 · Ball: 1/4 · Min.: 32 800 · Scan Speed: 30 500 · Max.: 24 500 · Scan Speed: 21 600
- AVIKO 0610 G3 COMPACT
- Min.: 5.556 · Ball: 7/32 · Max.: 10.319 · Ball: 13/32 · Min.: 26 200 · Scan Speed: 19 000 · Max.: 17 600 · Scan Speed: 11 900
- AVIKO 1014 G3 COMPACT
- Min.: 9.525 · Ball: 3/8 · Max.: 14.286 · Ball: - · Min.: 18 800 · Scan Speed: 16 700 · Max.: 11 600 · Scan Speed: 9 300
- AVIKO 1419 G3 COMPACT
- Min.: 13.494 · Ball: 17/32 · Max.: 19.050 · Ball: 3/4 · Min.: 12 800 · Scan Speed: 10 600 · Max.: 7 900 · Scan Speed: 6 700
- AVIKO 1830 G3 COMPACT
- Min.: 18.000 · Ball: - · Max.: 30.163 · Ball: 1-3/16 · Min.: 7 700 · Scan Speed: 6 600 · Max.: 3 500 · Scan Speed: 2 800
- AVIKO 0203 COMPACT
- Min.: AVIKO 0203 COMPACT · Ball: AVIKO 0306 - 1419 COMPACT · Max.: AVIKO 1830 COMPACT
- Dimensions (L×W×H)
- Ball: 1000 × 1201 × 1920
- Weight
- Min.: 170 (kg) · Ball: 170 (kg) · Max.: 200 (kg)
- Sorting groups
- Ball: 3 (OK, EOT probe rejection; EVT/ECT probe rejection)
- Input Power (230V)
- Ball: 230V, 50Hz/60Hz (Type E plug)
- Input Power (110V)
- Ball: 110V, 50Hz/60Hz (Type B plug)
- SCAN AREA width
- Min.: SCAN AREA width · Ball: MAX. DEFECT size
- Electric optical probe
- Min.: 1.2 mm · Ball: Spot defect Ø 600 μm
- Electric vibration probe
- Min.: - · Ball: Deep flat 700 μm
- Eddy current probes
- Min.: 2 mm · Ball: Crack defect 750 × 50 × 50 (μm)
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the AVIKO G3 COMPACT is used
- Steel bearing balls 2–30 mm
- Standard and aerospace scanning modes

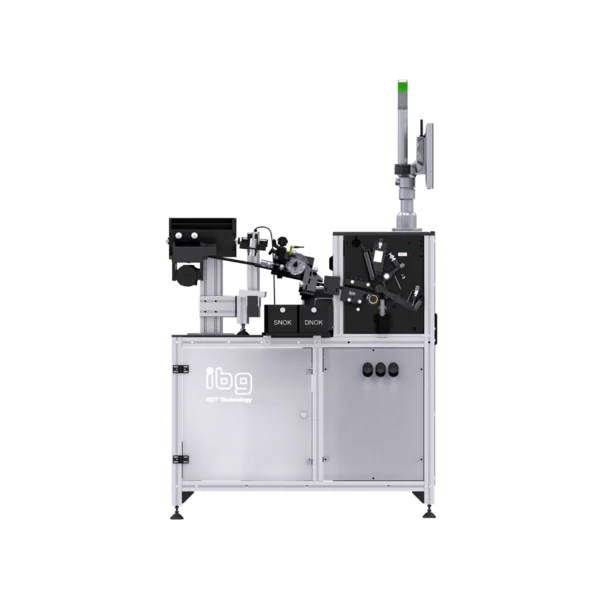

Product imagery
Brochures, datasheets & catalogues
AVIKO ball scanners & sorting solutions catalogue
PDF · Catalogue
