UNISort Universal Sorting Gates
Model: UNISort 10 / 25 / 40 / 63 HD
Portable semi-automatic sorting gates that, with an ibg structure instrument and coil, test small and medium batches at around one part per second.
About the UNISort Universal Sorting Gates
UNISort gates fill the gap between manual handling and a dedicated automatic line for small and medium batches. Combined with an eddyvisor S, eddyliner S or eddyguard S and the appropriate coil, one operator can test at a cycle time of roughly one part per second, according to ibg.
The gate is controlled directly by the ibg instrument, needs no separate control, is ready within minutes and is easy to transport — which is why it is often used for urgent sorting jobs. Adding feeding and escapement allows automatic operation.
- large testable parts range
- for immediate and universal use
- works with all ibg structure test instruments
- long lifetime due to high-quality components and easy exchange of worn parts
- non-stop operation
- easy integration in automatic test systems
- sorting gate monitoring
Technical data
- Weight of the Unisort
- UNISort 10 HD: 3 kg · UNISort 25 HD: 4 kg · UNISort 40 HD: 8 kg · UNISort 63 HD: 13 kg
- Power Supply
- UNISort 10 HD: 24 VDC (10 - 40 HD: ibg instrument, 63 HD: external supply) · UNISort 25 HD: 24 VDC (10 - 40 HD: ibg instrument, 63 HD: external supply) · UNISort 40 HD: 24 VDC (10 - 40 HD: ibg instrument, 63 HD: external supply) · UNISort 63 HD: 24 VDC (10 - 40 HD: ibg instrument, 63 HD: external supply)
- Ambient temperature
- UNISort 10 HD: - 10 to + 60°C · UNISort 25 HD: - 10 to + 60°C · UNISort 40 HD: - 10 to + 60°C · UNISort 63 HD: - 10 to + 60°C
- Protection class
- UNISort 10 HD: IP 55 · UNISort 25 HD: IP 55 · UNISort 40 HD: IP 55 · UNISort 63 HD: IP 55
- Mmax. part temperature
- UNISort 10 HD: 50°C · UNISort 25 HD: 50°C · UNISort 40 HD: 50°C · UNISort 63 HD: 50°C
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the UNISort Universal Sorting Gates is used
- Sorting of suspect batches
- Small- and medium-batch heat-treatment verification
- Mobile sorting jobs at different sites

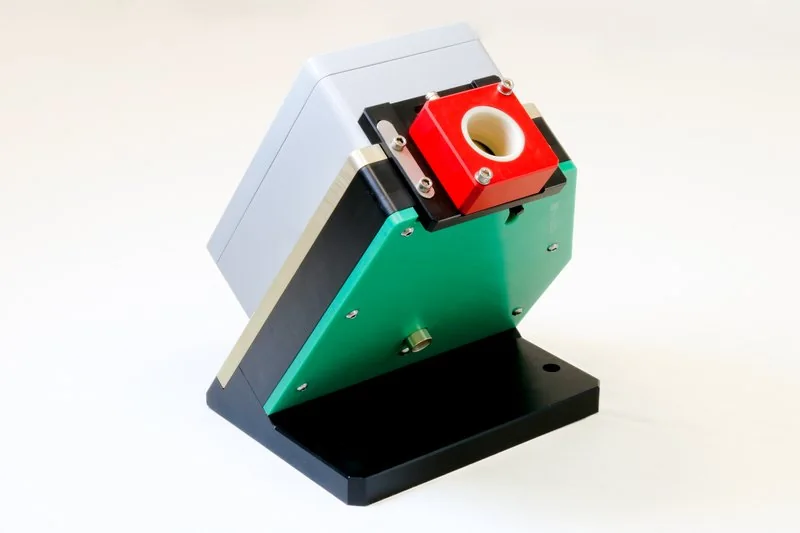

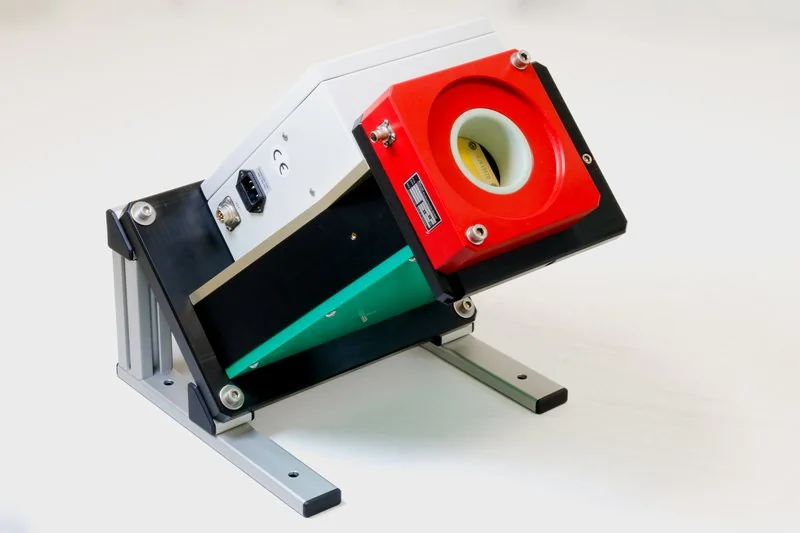

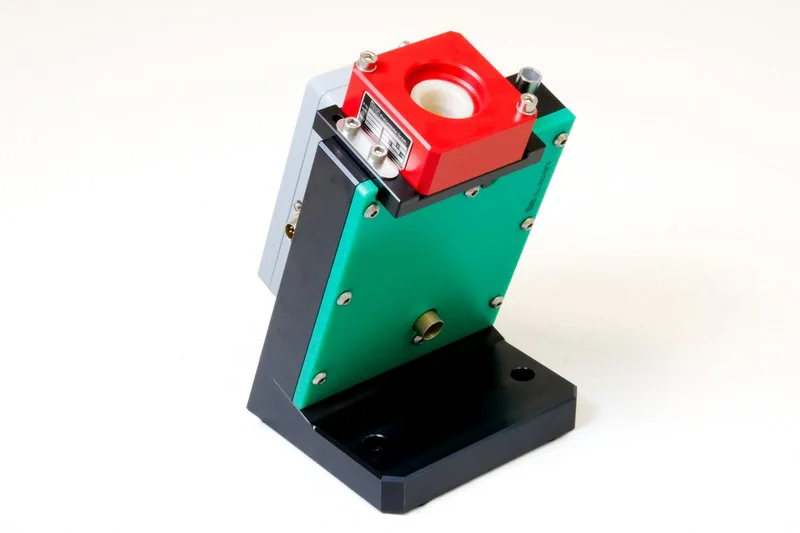

Product imagery
