eddyliner S
Model: eddyliner S
Compact one-channel eddy-current instrument for structure testing with one coil at one part location, using PMFT and good-part-only calibration.
About the eddyliner S
The eddyliner S is the compact screen-based instrument for single-channel structure testing — one coil at one location on the part. Calibration follows ibg's good-part-only concept: a suitable number of correct parts is recorded and the tolerance zones are generated automatically.
It is compatible with all coils and probes of the ibg system family and is commonly paired with UNISort sorting gates or integrated into test machines, including the ibg high-speed ball structure sorter.
Eddy-current structure testing is comparative: the instrument learns tolerance zones from known good, correctly heat-treated reference parts and reports whether each part matches that reference. It does not output an absolute hardness value or a direct case-depth measurement; parts that fail should be examined metallurgically or with a conventional hardness test to establish the cause.
Technical data
- IO-ports
- optically isolated interface for PLC connection with 32 inputs and 32 outputs
- Network
- Gigabit Ethernet
- XVGA
- PXVGA interface allows connection to a monitor or projector, an essential feature for training courses.
- Printer
- Commercially available printers may be connected via USB 2.0 or Ethernet to print out test results.
- USB0
- Two USB ports on the back side for data storage.
- Screen
- Tough 10.2” TFT touch screen, color display, resolution 1,024 x 768 pixels, operable with gloves
- Power supply
- 100-240 V, 50/60 Hz
- Protection class
- IP41 (mounted)
- Ambient temperature
- 0 – 45°C
- Relative humidity
- max. 85%, non-condensing
- Dimensions (WxHxD)
- 304 x 229 x 200 mm
- Weight
- 6 kg
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the eddyliner S is used
- Single-location heat-treatment verification
- Material mix-up sorting
- Semi-automatic sorting with UNISort gates

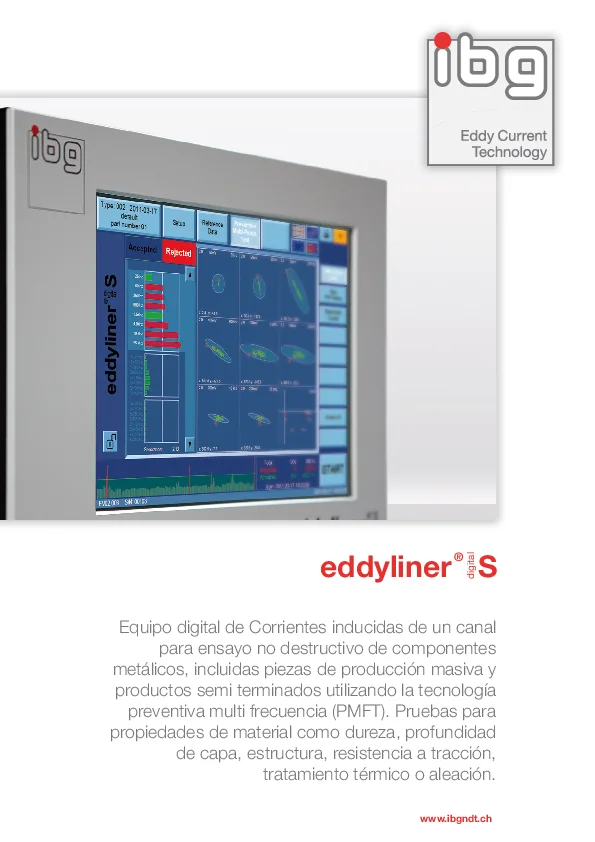

Product imagery
