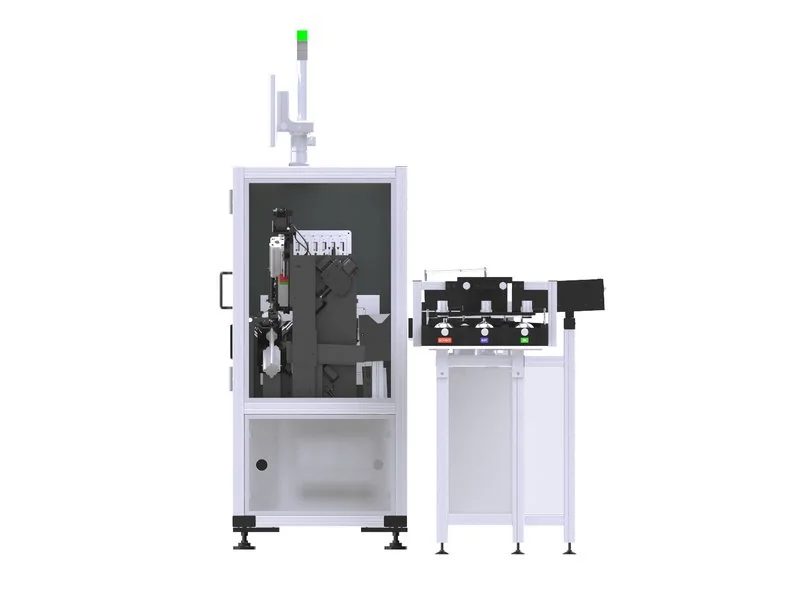

AVIKO G3 ADVANCED
Model: AVIKO 3060 / 4080 / 60100 G3 ADVANCED
Large-ball scanner for 30–100 mm balls, adding eddy-current probes with an eddyvisor C crack-test unit and optional AI evaluation.
About the AVIKO G3 ADVANCED
The AVIKO G3 ADVANCED builds on the STANDARD machine for 30–100 mm balls by adding eddy-current probes evaluated by an eddyvisor C crack-test unit, with an optional AI evaluation application.
Loader and outlet holder are included; main movements are driven by compressed air or electric motors depending on version.
Technical data
- AVIKO 3060 G3 STANDARD - ELECTRIC
- Sorting Diameter (mm): 30 – 60 · Order Number: K 096 600AE
- AVIKO 4080 G3 STANDARD - ELECTRIC
- Sorting Diameter (mm): 40– 80 · Order Number: K 096 700AE
- AVIKO 60100 G3 STANDARD - ELECTRIC
- Sorting Diameter (mm): 60 – 100 · Order Number: K 096 800AE
- AVIKO 3060 G3 STANDARD - COMPRESSED AIR
- Sorting Diameter (mm): 30 – 60 · Order Number: K 096 000A
- AVIKO 4080 G3 STANDARD - COMPRESSED AIR
- Sorting Diameter (mm): 40– 80 · Order Number: K 096 200A
- AVIKO 60100 G3 STANDARD - COMPRESSED AIR
- Sorting Diameter (mm): 60 – 100 · Order Number: K 096 400A
- BALL Ø [mm]
- SCAN SPEED [pcs/hr]
- 30
- 237
- 40
- 188
- 50
- 148
- 60
- 117
- BALL Ø [mm]
- SCAN SPEED [pcs/hr]
- 40
- 188
- 50
- 148
- 60
- 117
- 70
- 94
- 80
- 86
- 60
- SCAN SPEED [pcs/hr]: 117
- 70
- SCAN SPEED [pcs/hr]: 94
- 80
- SCAN SPEED [pcs/hr]: 86
- 90
- SCAN SPEED [pcs/hr]: 72
- 100
- SCAN SPEED [pcs/hr]: 61
- AVIKO G3 3060 / 4080 / 60100
- AVIKO G3 3060 / 4080 / 60100
- Dimensions (L×W×H)
- 1 300 × 2 000 × 1 800 (mm)
- Weight
- 355 kg
- Sorting groups
- 3 (OK, EOT probe rejection; EVT/ECT probe rejection)
- Input Power (230V)
- 230V, 50Hz/60Hz (Type E plug)
- Input Power (110V)
- 110V, 50Hz/60Hz (Type B plug)
- SCAN AREA width
- SCAN SPEED [pcs/hr]: SCAN AREA width · MAX. DEFECT size
- Electric optical probe
- SCAN SPEED [pcs/hr]: 1.2 mm · Spot defect Ø 600 μm
- Electric vibration probe
- SCAN SPEED [pcs/hr]: - · Deep flat 70 μm
- Eddy current probes
- SCAN SPEED [pcs/hr]: 2 mm · Temperline and grinder burn
Data from official ibg product information. Final configuration is confirmed in the EMUS quotation.
Where the AVIKO G3 ADVANCED is used
- Large bearing balls 30–100 mm
- Temper-line and grinder-burn detection on balls
Product imagery
Official product videos
Brochures, datasheets & catalogues
AVIKO ball scanners & sorting solutions catalogue
PDF · Catalogue
Related ibg products
Alternatives from other manufacturers
Comparable systems we also represent. If your application requires a different balance of speed, resolution or footprint, these are worth reviewing.
MIZ-21C
MIZ-21C is the most advanced handheld eddy current instrument with surface array capability, simplifying inspection confidence for aerospace, oil & gas, manufacturing and power generation.
CompareEddyfi TechnologiesReddy
Reddy is the first portable, battery-operated system for eddy current array, eddy current tubing and MFL inspection — combining on-site acquisition, real-time C-scan imaging and one-click reporting in a rugged, sealed instrument.
CompareEddyfi TechnologiesLyft
Lyft is Eddyfi's dedicated Pulsed Eddy Current platform for corrosion assessment through insulation, fireproofing and weather jackets. The platform combines PEC and PECA technologies with SmartPULSE automation, Tau-scan analysis and real-time C-scan imaging.
CompareEddyfi TechnologiesAmigo 2
With more than three decades of proven field performance, ACFM technology has become the industry benchmark for in-service weld inspection. Amigo2 extends this legacy with increased portability, improved signal quality, enhanced productivity and modern connectivity. The platform supports conventional probes, Sensu2 array probes, underwater probes and high-temperature applications, combining hardware, Assist software and Sensu probe technologies into a complete ACFM inspection ecosystem.
CompareHow EMUS supports this
Equipment is only part of the answer. Every system we supply is backed by regional engineering, service and application support.
Mechanical, electrical, environmental setup done right the first time.
Qualification and acceptance testing against real criteria.
Operator and application training built around your parts.
Traceable calibration to keep measurements audit-ready.
Preventive and corrective service across the Balkan region.
Method development and problem-solving with our engineers.
ibg NDT Technology
TheAVIKO G3 ADVANCED is part of the ibg NDT Technology portfolio, supplied and supported by EMUS across the Balkan region.
Request Technical Consultation
Talk to an EMUS engineer about theAVIKO G3 ADVANCED, your parts and tolerances, and the configuration that fits your inspection workflow.
